Page 1: Tool Operating Instructions

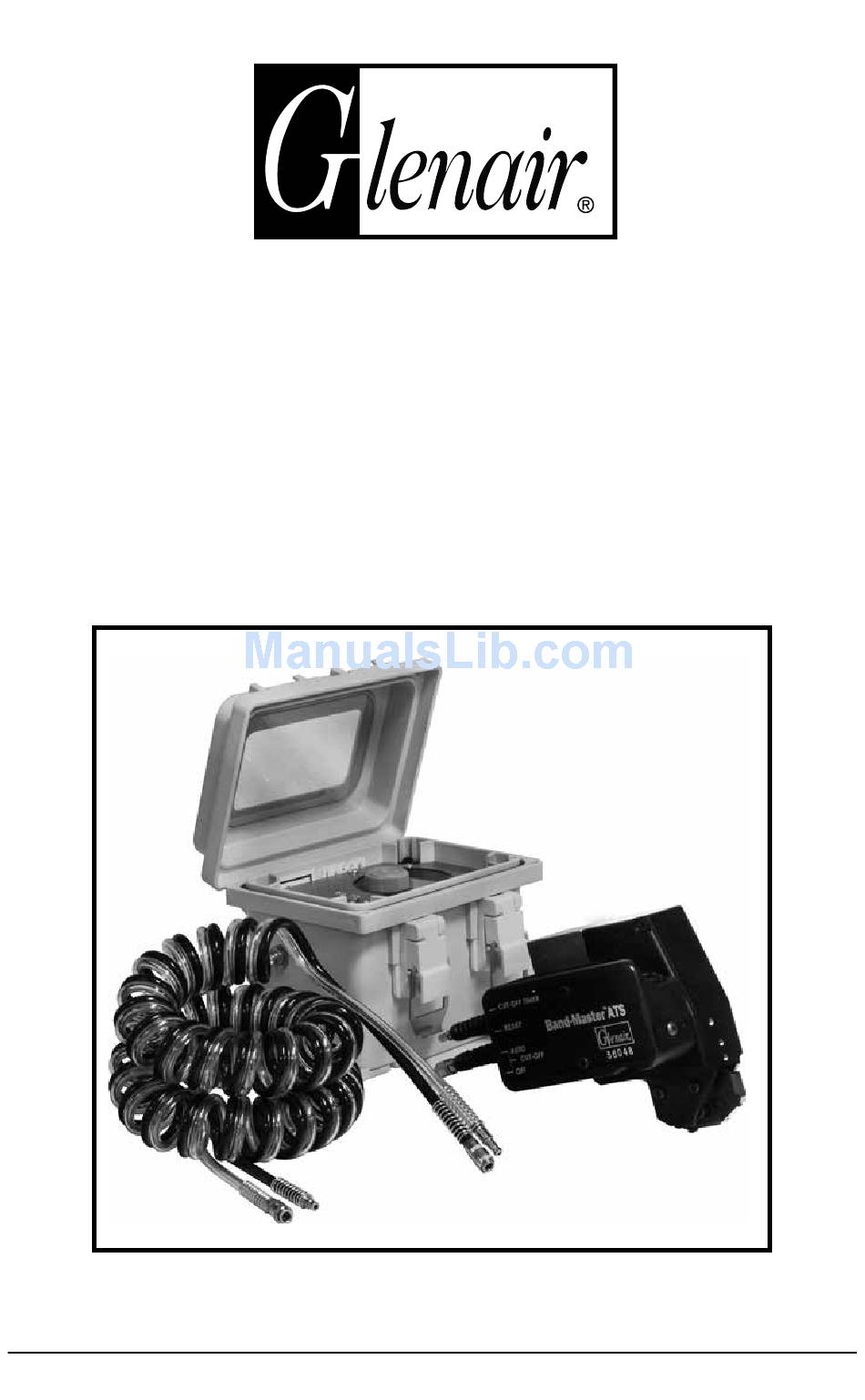

Band-Master® ATS 601-118 Nano Pneumatic Banding Tool Operating Instructions © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 2: Table Of Contents
Foot control and bench mount kit installation . . . . . . . . . . . . . . . 17 © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 3: Overview
Adjustment (Factory Set) Red Reset Button (Tension Release) Blade Manual Cut-Off Knife Auto Cut-Off Switch © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 4: Specifications
2 601-310 Hose, coil 3 601-311 Regulator Assembly 4 601-400 Foot Control Unit/Bench Mount Kit (see page 16) © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 5: Safety
2 for mounting pattern) . Keep filter vertical to maximize the water and contaminant capacity . © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 6: Attach Tool Head To Regulator
. Lock the adjustment shaft by tightening the 5/16 nut under the adjustment knob . © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 7: Operating Instructions
Immediately after cut-off, release actuator button and remove the excess band from the tool . © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 8: Counter Features
. ƒ Glenair recommends that banding occur on an unfixtured cable assembly . ƒ Trying to band on a firmly fixed surface may affect the applied forces and interfere with the cut-off operation . -
Page 9: Maintenance
Replacement (if necessary) must be a 5 micron filtering element, available from Glenair (part number 601-314) . Figure 5 Filter Unit (Filter inside) P/N 601-314 © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 10: Adjust Cut-Off Timer
Caution: Adjusting cut-off delay timing too short will result in premature cut-off, and a loose clamp . Figure 6 Cut-O Timer © 2016 Glenair, Inc. CAGE Code 06324 Rev. 7/17 Printed in U.S.A. Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 11: Replace Cutter Knife
Push cylinder forward and install/tighten cylinder mounting screws . Reinstall blade . Important: To order replacement parts contact the factory . © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... - Page 12 Cut-Off Blade 7/64” Hex Key Screw Cut-off Blade Figure 7 B a n Cylinder Mounting Screws © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com...
-
Page 13: Counter Battery Replacement
Counter Reset Remove housing Push reset button on counter module or remove and replace battery © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 14: Band Inspection And Replacement Parts
2. Band can be removed by lifting buckle with a screwdriver or diagonal cutters . Replacement Parts Contact factory for replacement parts © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... -
Page 15: Bands
Consult factory for additional recommendations for technical information on overall shields with distributed individual shields on common terminations . ACCESSORIES Tool Balancer Glenair tool balancer part number 601-401 is available for purchase . Contact factory for details and pricing Tool Balancer Hook (see figure 10) If a tool balancer is desired, install tool balancer hook and set balancer to approximately 2 .5 lbs balance weight... - Page 16 LOCK NUT SETUP TOOL BALANCED IN VERTICAL POSITION HORIZONTAL POSITION Figure 11 601-400 Foot Pedal Control © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com...
-
Page 17: Foot Control And Bench Mount Kit Installation
Button Head Screw #8-32 x 1/2 Blocking Plate Hex Nut #8-32 Remove 2 Bolts and Cover Plate © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com... - Page 18 Place waste container under tool to collect excess band. © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com...
- Page 19 Button Head Screw Store Air Block On Handle Using Original Mounting Screw Foot Control Connector © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com...
- Page 20 1211 Air Way, Glendale, California 91201-2497 818.247.6000 © 2017 Glenair, Inc. CAGE Code 06324 Printed in U.S.A. GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 818-247-6000 • FAX 818-500-9912 www.glenair.com...
