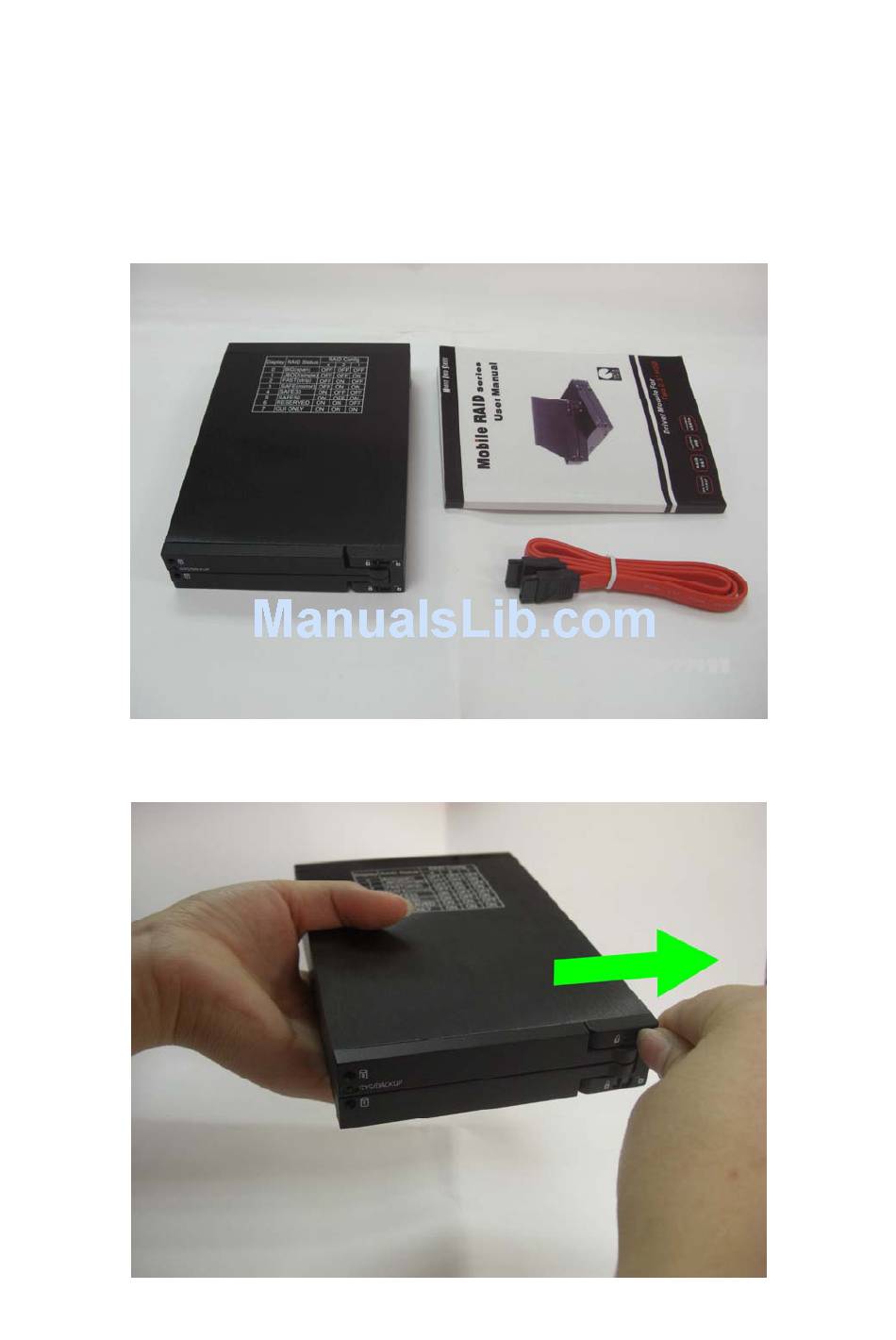

- Page 1 Quick Installation Guide JJ-1225SUSRI (A) Hardware Installation: 1. Standard packaging contains: 2. Push the ”LOCK” rightward to unlock the upper HDD door. The same for the lower HDD door.
- Page 2 3. Open the front door as the direction shown on the picture 4. Put the 1 HDD and 2 HDD inside the cage slowly(See following picture)
- Page 3 5．Push back the two HDD doors back until the HDD doors close to the cage(see following picture) 6. Push the LOCK leftward to lock the two HDD doors.
- Page 4 7. Connect the 15pin power cable and SATA data cable to the host connections (B) How to Configure your Raid Raid Setting Table RAID Config Display RAI D Status BIG (span) JBOD (single) FAST (strip) SAFE (mirror) SAFE33 SAFE50 RESERVED GUI ONLY How to Build Raid JBOD mode? a) Set the DIP Switch as following...
- Page 5 將 7pin 電源線和 SATA 傳輸線插入相應接口 C) Click mouse right button on “My computer” and choose “manage” by clicking mouse left button D) Choose “Disk Management” by clicking mouse left button...
- Page 6 E) the “Disk Manage shows the hard disks are “Not Install” & “Unallocated” F) Click mouse right button over the red forbid sign and choose “Initialize Disk ”by clicking mouse left button...
- Page 7 G) Press ”OK” H) Refer steps g) & h) to Initialize Disk 2...
- Page 8 j. Hard disks will become “Online” I) Click mouse right button and choose “New Partition”...
- Page 9 J) Choose ”Next” K) Choose ”Next” again. ( Suggestion: Tick “Extended partition” is recommended if data in use only) L) Set up partition size and click “Next”...
- Page 10 M) Tick “Quick format” and click ”Next” N) Click ”Finish”...
- Page 11 O) Disk Manager shows “Formatting” P) When format is finished , it shows “Healthy”...
- Page 12 Q) Format the other hard disk by refer to steps k) ~s) R) When format is finished, “My Computer” will shows two Physical hard disks...
- Page 13 (B)How to build Raid Mode BIG or SAFE50 B-1 How to build Raid : BIG(Span) Set the DIP Switch as following RAID Config Display RAI D Status BIG (span) B1-1 Set the DIP switch as above and Refer to Step C) ~ R) to build the Raid BIG(Span) mode.
- Page 14 B-2 How to build Raid : SAFE50 B2-1 Set the DIP switch as following and Refer to Step C) ~ R) to build the Raid SAFE50 mode. This time you can see 2 hard disks ( one is mirror hard disk and the other, BIG.
- Page 15 B-2a See two hard disks B-2b See two healthy hard disks After Raid SAFE50 is finished, you can see two new hard disks, one is with Raid mirroring and the other is with Raid BIG.
-
Page 16: Troubleshooting
Appendix If you are using ESATA, you will have to connect both mini USB and USBto 5v cables. Trouble shooting A> Can only see “8GB Unallocated” Possible reasons are: a-1 Does not install any hard disk. a-2 First time installation and “Forgot to press “Change Mode” button once. a-3 You have changed the Raid mode but forgot to press “Change Mode”... - Page 17 c-1 This is because the Safe(Mirror) mode is under rebuilding. It usually occurred on your first time setting the Safe(Mirror) mode or you change the new hard disks. c-2 The LED blinking will return to normal after rebuilding process finished. c-3 While the Safe(Mirror) is under rebuilding or verifying, you can still use the hard disks, only the performance will be slower than expected.
