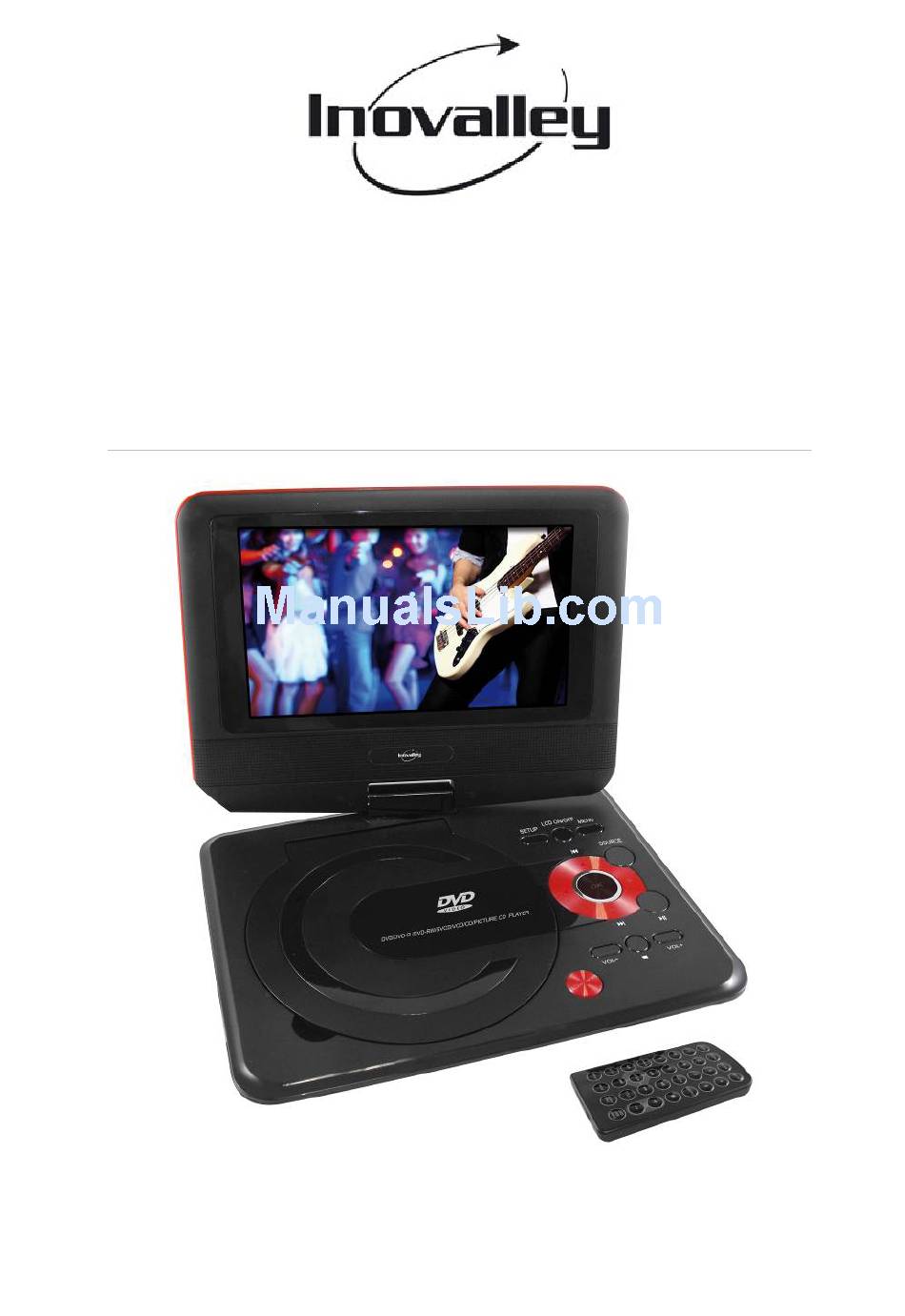

- Page 1 DVD PLAYER PORTABLE Ref. LDD38 ‐ USER’S MANUAL ‐ ...
-
Page 2: Table Of Contents
Before connecting, operating or adjusting this product, please read this user’s manual carefully and completely. TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS SAFETY PRECAUTIONS CARACTERISTICS IDENTIFICATION OF CONTROLS Main Unit Remote Control Unit SETUP MENU SETTING General Page Audio Setup Page Video Setup Page Preference Page Password Setup Page BATTERY PARAMETERS PARAMETERS AND SPECIFICATIONS ‐ 1 ‐... - Page 3 IMPORTANT SAFETY INSTRUCTIONS Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user‐serviceable parts inside. Refer servicing to qualified personnel. Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture. Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit. Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves. Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface. Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury. Never place heavy or sharp objects on the LCD panel or frame. Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty. The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable. Unplug the power from the outlet when the unit is not in use. Attention should be drawn to the environmental aspects of battery disposal. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. WARNING: Excessive sound pressure from earphones or ...
- Page 4 shall be placed on the apparatus. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Where an all‐pole MAINS SWITCH is used as the disconnect device, the location on the apparatus and the function of the switch shall be described, and the switch shall remain readily operable. SAFETY PRECAUTIONS Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure. Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation when open. Warning: Never stare directly into the laser beam. Caution: Do not install this product in a confined space such ...
- Page 5 Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case. Warning: more than 250mm USB extension cord is prohibited to use for USB port. This set employs an optical laser beam system in the CD mechanism designed with built‐in safeguards. Do not attempt to disassemble. Exposure to this invisible laser light beam may be harmful a the human eye. This is a Class 1 laser product. Use of controls, adjustments or procedures other than those specified here in may result in hazardous laser light beam exposure. This compact disc player should not be adjusted or repaired by anyone except qualified service personnel. The laser mechanism in the set corresponds to the stylus (needle) of a record player. Although this product uses a laser pick‐up lens, it is completely safe when operated according to directions. Battery handling and usage There is a CR 2025 battery for remote control included. 1) Never throw batteries into a fire. Do not expose batteries to fire or other heat sources. 2) Battery Disposal: Spent or discharged batteries must be properly disposed of and recycled in compliance with all applicable laws. For detailed information, contact your local solid waste authority. Handling precautions ‐ Hold the disc by the edges so the surface will not be soiled with fingerprints. ‐ Fingerprints, dirt and scratches can cause skipping and distortion. ‐ Do not write on the label side with a ball‐point pen or other writing utensils. ‐ Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids. ‐ Be careful not to drop or bend the disc. ‐ Do not install more than 1 disc on the disc compartment. ‐ Do not try to close the disc cover when the disc is not installed properly. If the surface is soiled ...
- Page 6 ‐ Wipe gently with a soft, damp (water only) cloth. ‐ When wiping discs, always move the cloth from the center hole toward the outside, which will not cause distortion. (If you wipe the discs using a circular motion, circular scratches are likely to occur, which will cause distort ion.) ‐ Be sure to store the disc in its exclusive case when not in use. If the disc is brought from a cold to warm environment moisture may form on the disc ‐ Wipe this moisture off with a soft, dry, lint‐free cloth before using the disc. Improper disc storage You can damage discs if you store them in the following places: ‐ Areas exposed to direct sunlight ‐ Humid or dusty areas ‐ Areas directly exposed to a heat outlet or heating appliance Maintenance ‐ Be sure to disconnect the AC adaptor before maintaining the player. ‐ Wipe the player with a dry, soft cloth. ‐ If the surfaces are extremely dirty, wipe clean with a cloth which has been dipped in a weak soap‐and‐water solution and wrung out thoroughly, and then wipe again with a dry cloth. ‐ Never use alcohol, benzine, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust. N Notes on Copyrights It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of ‐ 5 ‐...
- Page 7 this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. CARACTERISTICS 7‐INCH SWIWEL SCREEN = 180°: THE SCREEN CAN FOLD ON THE MAIN UNIT RESOLUTION: 640X480 PIXELS DVD/MPEG4/VCD/SVCD/CD/JPEG PLAYER USB 2.0 PORT SD/MMC MEMORY CARD MULTI‐ANGLE SCREEN PARENTAL CONTROL SUBTITLE PAL/NTSC/AUTO AV INPUT AV OUTPUT EARPHONE JACK 9‐12V DC INPUT BUILT‐IN SPEAKERS BUILT‐IN LITHIUM‐ION BATTERY Accessories ...
-
Page 8: Identification Of Controls
The player can play back discs bearing any of the following marks: Player read files: DVD/CD/JPEG IDENTIFICATION OF CONTROLS Main Unit 14 15 16 ‐ 7 ‐... -
Page 9: Remote Control Unit
1 MENU 8 PLAY/ PAUSE 2 SOURCE 9 OPEN 3 VOL‐ / VOL+ 10 Memory Card 4 ENTER 11 USB ▲/►/▼/ ◄ 5 12 AV OUT (UP/RIGHT/DOWN/LEFT) 13 Earphone Socket Select an item in the menu.OK key confirms menu selection. 14 AV IN When playing VCD, DVD, if 15 ON/OFF available: ► fast forward ◄ fast reverse ▲ previous track ▼ down: next track ■ STOP 6 16 DC IN 9‐12V 7 ... - Page 10 1. SLOW Press SLOW button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2,1/4,1/8,1/16,and normal. 2. MUTE Disable Audio output. 3. 0‐9 NUMBER BUTTON Selects numbered items in a menu. 4. AUDIO DVD ‐ Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available. CD ‐ Press AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left, or Right). 5. SUBTITLE Press SUBTITLE repeatedly during playback to see different subtitle languages. 6. PLAY/PAUSE Press PLAY/PAUSE once to pause playback, pressing PLAY/ PAUSE second time will resume the playback 7. STOP When this button is pressed once, the unit records the stopped point, from where the playback will resume, if PLAY is pressed afterwards. But if STOP button is pressed again instead of the PLAY button, there will be no resume function. ‐ 9 ‐...
- Page 11 8. TITLE Return to DVD title menu. 9. VOL + VOL ‐ 10. MENU Return to DVD root menu (DVD) PBC on/off switch (VCD) 11.DVD/USB/CARD 12. ZOOM DVD VCD ‐ Use ZOOM to enlarge or shrink the video image. 1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture. 2. Each press of the ZOOM button changes the TV screen in the following sequence: 2x size ─ 3x size ─ 4x size ─ ½ x size ─ 1/3x size ─ ¼ x size ─ normal size JEPG ‐ Use ZOOM to enlarge or shrink the picture. 1. Press ZOOM. 2. Use to enlarge, or to shrink the picture. Use the buttons ► ▲ ◄ ▼ to move through the zoomed picture. 13. MODE DVD and AV IN 14. ANGLE DVD Press ANGLE will change the view angle, on DVDs that support this feature. 15. (1) BUTTON Press BUTTON allow skipping ahead at 5‐level speed(X2‐>X4‐>X8‐>X16‐>X32), press PLAY/PAUSE button return to normal playback. (2) BUTTON Press BUTTON allow skipping back at 5‐level speed(X2‐>X4‐>X8‐>X16‐>X32), press PLAY/PAUSE button return to normal playback. (3) ENTER Confirms menu selection. 16. SETUP Accesses or leaves setup menu. 17. REPEAT Press REPEAT during playback to select a desired repeat mode. DVD ‐ you can play a chapter/title/all on a disc. ‐ 10 ‐...
-
Page 12: Setup Menu Setting
CD ‐ you can select Repeat one/Repeat folder /Off. 18. PROGRAM DVD ‐ The program function enables you to store your favourite tracks from the disc. Press PROGRAM button, then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles, chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu, press PROGRAM again to exit program menu. SETUP MENU SETTING General Setup Page Press SETUP button to get the setup menu. Use direction buttons ▲/►/▼/◄ to select the preferred item. After finishing settings, press SETUP again to return to normal display. The following menu items can be changed: GENERAL: selects the GENERAL PAGE menu. AUDIO: selects the AUDIO PAGE menu. VIDEO: selects the VIDEO PAGE menu. PREFERENCE: selects the PREFERENCE PAGE menu. PASSWORD: selects the PASSWORD PAGE menu. General Setup Page English French Normal/ps German Normal/lb Italian Wide Spanish Portuguese TV DISPLAY Select the aspect ratio of the playback picture. ... -
Page 13: Audio Setup Page
4:3 ‐ PANSCAN ‐ if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen. 4:3 ‐ LETTERBOX ‐ if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed. WIDE: ‐ wide screen display. Angle Mark Displays current angle setting information on the right hand corner of the TFT screen, if available on the disc. OSD Language You can select your own preferred language settings. Closed Captions Closed captions are data that are hidden in the video signal of some discs. Before you select this function, please ensure that the disc contains closed captions information and your TV set also has this function. Screen Saver This function is used to turn the screen saver on or off. Audio Setup Page Audio Setup Page Downmix: This option allows you to set the stereo analogue output of your DVD Player. LT/RT ‐ Select this option if your DVD Player is connected to a Dolby Pro Logic decoder. STEREO ‐ Select this option when output delivers sound from only the two front speakers. ‐ 12 ‐... -
Page 14: Video Setup Page
Dolby digital The options included in Dolby Digital Setup are: Dual Mono and 'Dynamic. Dual Mono Stereo: Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker. L‐Mono: Left mono sound will send output signals to Left speaker and Right speaker. R‐Mono: Right mono sound will send output signals to Left speaker and Right speaker. Mix‐Mono: Left and Right mixed mono sound will send output signals to Left and Right speakers. Dynamic Dynamic range compression. Video Setup Page High Medium ‐ 13 ‐... -
Page 15: Preference Page
Sharpness, Brightness, Contrast, Hue, and Saturation: sets the video quality. Preference Page Preference Page Note: this status in the STOP mode but not in the normal playback AUTO NT SC E n g lish F r en ch Ger m an E n g lish E n g lish S p an ish F r en ch F r en ch It alian Ger m an Ger m an... -
Page 16: Password Setup Page
the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes. Default: Backs to the factory setting. Password Setup Page Password Setup Page Note: this status in the STOP mode but not in the normal playback) Password mode: Set password mode on/off. If set to off, change parental level will not check password. Password ‐ select the menu password change page. OLD PASSWORD: Enter the OLD password, (Factory setting is 0000), and the cursor will jump automatically to NEW PASSWORD NEW PASSWORD: Enter the NEW password. Enter 4 digits from the remote control unit numeric buttons, and the cursor will automatically jump to CONFIRM PASSWORD. ‐ 15 ‐... - Page 17 CONFIRM PASSWORD: Confirm the NEW password by entering it again. If the confirmation is incorrect, the cursor will stay in this column. After entering, the correct new password again, the cursor will jump automatically to OK. OK: When cursor is on this button, press ENTER key to confirm setting. Note: If the password has been changed, the parental and disc lock code will also be changed. The default password (0000) is always active, even if the password has been changed. PARAMETERS AND SPECIFICATIONS Electronic parameters Item Standard Requirements Power requirements AC 100‐240 V , 50/60 Hz Power consumption < 15W Operating humidity 5 % to 90 % VIDEO 1 Vp‐p (75 Ω) OUT Output AUDIO 1.4 Vrms (1 KHz, 0 dB) OUT Audio Speaker:1WX2, Headphones output System Laser Semiconductor laser, wavelength 650 nm Signal system NTSC / PAL Frequency 20Hz to 20 kHz(1dB) response ...
-
Page 18: Battery Parameters
BATTERY PARAMETERS Battery Specifications Output: 7.4V Standard charge time: 3h ~ 4h (Varies according to battery capacity) Discharge Time: About 2h (Varies according to battery capacity) Storage and work circumstances： 1. Storage circumstances Temperature Humidity 6 months ‐20°C ~ +45°C 65±20% 1 week ‐20°C ~ +45°C 65±20% 2. Work circumstances Temperature Humidity Standard charge 0°C ~ +45°C 65±20% Standard discharge ‐20°C ~ +65°C 65±20% Region code setting All DVD discs are coded by sales territory. Please note the player is set to the region 2 coding by the factory which cannot be changed. This is compliance with the DVD patent requirements. DETAILS AND PRECAUTIONS ON THE USE OF BATTERIES ‐ Discard a used battery in nature or garbage pollutes and prevents the recovery of recyclable materials. It is therefore important to limit consumption of batteries and follow these guidelines: • focus on alkaline batteries (that last longer than the saline batteries) and when possible, rechargeable batteries • deposit batteries and accumulators in specific containers arranged among traders. For example, metals will be valued and polluted the environment because they contain heavy metals hazardous to health and the environment primarily (cadmium and nickel) ‐ 17 ‐... - Page 19 ‐ The piles must installation by respecting the polarity indicated on the apparatus and the pile. An incorrect positioning can is to damage the apparatus, is to cause escapes on the level of the pile, is to the extreme to cause a fire or the explosion of the pile. ‐ To ensure proper operation, the batteries must be in good condition. In case of abnormality in the functioning of the device, put fresh batteries ‐ Never attempt to recharge non‐rechargeable batteries. They could run, warm up, causing a fire or explosion. ‐ Replace all batteries at the same time. Never mix zinc batteries with alkaline batteries or rechargeable batteries ‐ The batteries must be removed from the device ‐ Also, remove the batteries from your device if you do not use it for a long time, if the batteries may leak and cause damage. ‐ Never try to short‐circuit the battery terminals ‐ Never dispose of batteries in fire, they might explode ‐ Charging of batteries is to be performed by an adult. ‐ Remove batteries from the device before reloading. ‐ We recommend an adult to supervise children when they change the batteries so that these instructions are complied with or to make himself the replacement of batteries. ‐ If a battery is swallowed, immediately consult a doctor or poison control center nearest you. Do not forget to carry the product with you. ...
- Page 20 TIPS AND PRECAUTIONS WHEN LISTENING TO THE UNIT ‐ This device supports all types of headphones and headsets found generally on the market. ‐ In order to minimize hearing damage, it is recommended to limit the listening time to 5 hours per week, at a moderate level. ‐ Listening to music at a loud level can affect the hearing of the user, such as the loss of hearing. ‐ In order to prevent hearing damage, please limit the music level to a safe and moderate level by adjusting the sound output volume. WITH FULL POWER, THE PROLONGED LISTENING CAN DAMAGE THE EAR OF THE USER. We certify that the power supply is used as a device for disconnecting the power distribution network, which should stay easily accessible. ...
