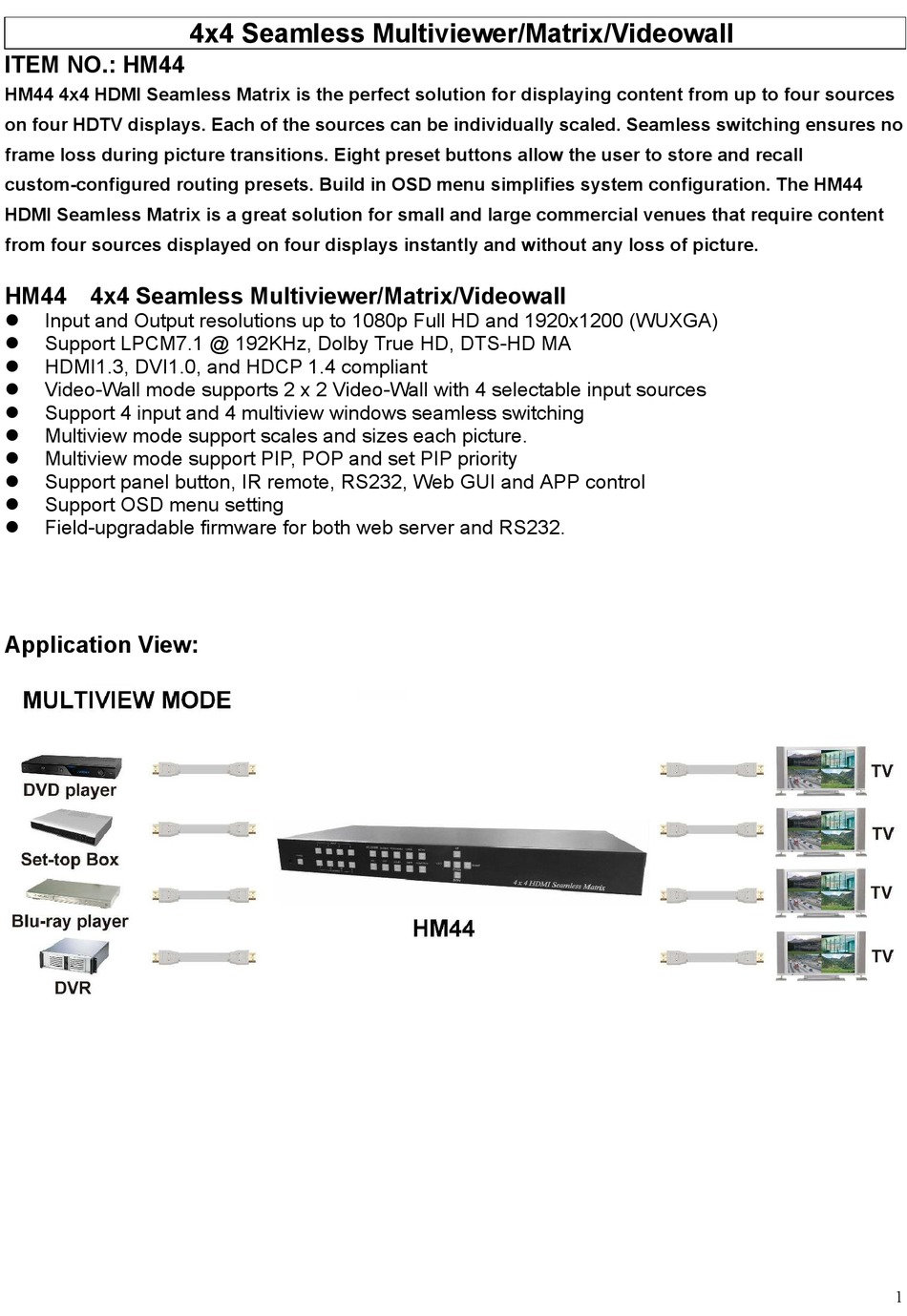

ITEM NO.: HM44
HM44 4x4 HDMI Seamless Matrix is the perfect solution for displaying content from up to four sources
on four HDTV displays. Each of the sources can be individually scaled. Seamless switching ensures no
frame loss during picture transitions. Eight preset buttons allow the user to store and recall
custom-configured routing presets. Build in OSD menu simplifies system configuration. The HM44
HDMI Seamless Matrix is a great solution for small and large commercial venues that require content
from four sources displayed on four displays instantly and without any loss of picture.
HM44 4x4 Seamless Multiviewer/Matrix/Videowall
Input and Output resolutions up to 1080p Full HD and 1920x1200 (WUXGA)
Support LPCM7.1 @ 192KHz, Dolby True HD, DTS-HD MA
HDMI1.3, DVI1.0, and HDCP 1.4 compliant
Video-Wall mode supports 2 x 2 Video-Wall with 4 selectable input sources
Support 4 input and 4 multiview windows seamless switching
Multiview mode support scales and sizes each picture.
Multiview mode support PIP, POP and set PIP priority
Support panel button, IR remote, RS232, Web GUI and APP control
Support OSD menu setting
Field-upgradable firmware for both web server and RS232.
Application View:
4x4 Seamless Multiviewer/Matrix/Videowall
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM44 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smart Cabling & Transmission HM44

  • Page 1 4x4 Seamless Multiviewer/Matrix/Videowall ITEM NO.: HM44 HM44 4x4 HDMI Seamless Matrix is the perfect solution for displaying content from up to four sources on four HDTV displays. Each of the sources can be individually scaled. Seamless switching ensures no frame loss during picture transitions. Eight preset buttons allow the user to store and recall custom-configured routing presets.

  • Page 2: Panel View

    Panel View ：...

  • Page 3: Front Panel Function

    Front Panel Function: Panel Button Function: No. Function Name Description 1 IR Receiving IR remote signal 2 POWER Power on / standby 3 INPUT 1~4 Press these buttons to select the desired input Press these buttons to select the desired output (not available for videowall 4 OUTPUT 1~4 mode) MULTIVIEW...

  • Page 4: Matrix Mode

    Operating: Multiview mode: Output/input selection: 1. Press OUTPUT 1~4 buttons to select the desired output windows (A~D), button LED will light on. You could select multiple outputs at the same time. 2. Press INPUT 1~4 buttons to switch to desired input 3.

  • Page 5: Rear Panel Function

    Rear Panel Function: Panel Connector Function: Name Description INPUT 1~4 HDMI Input 1~4 OUTPUT 1~4 HDMI Output 1~4 Yellow LED: Link Green LED: Data transmit/receive ETHERNET WebGUI control / Web firmware update RS232 RS232 control / firmware update DC12V External power supply I: Power on O: Power off...
  • Page 6 IR Remote Control (IR01) : Initial at first time use the remote control or after change battery of remote control, the IR remote control and the equipment IR Remote ID must be using same. The default IR Remote ID is 0. To setting the Remote ID, Press and hold power button, then press button 0 to complete the setting.

  • Page 7: Osd Menu

    OSD MENU : MAIN SUB MENU DESCRIPTION OUTPUT RESULTION 480P 1366x768 576P 1440x900 720P50 1600x1200 720P60 1680x1050 1080P24 1920x1200 1080P50 BACK 1080P60, Default EXIT 1024x768 1280x800 1280x1024 PICTURE SETTING OUT SELECT OUT1~OUT4, Default OUT1 CONTRAST 0~100, Default 50 BRIGHTNESS 0~100, Default 50 SATURATION 0~100, Default 50 0~100, Default 50...
  • Page 8 INPUT3 EDID 1080P 2CH, Default 1080P MLT OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 INPUT4 EDID 1080P 2CH, Default 1080P MLT OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 INPUT ALL 1080P 2CH, Default 1080P MLT OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 BACK...
  • Page 9 IN 3 IN 4, Default BACK EXIT MATRIX MODE OUTPUT1 AUDIO IN 1 IN 2 IN 3 IN 4 FOLLOW, Default OUTPUT 2 AUDIO IN 1 IN 2 IN 3 IN 4 FOLLOW, Default OUTPUT 3 AUDIO IN 1 IN 2 IN 3 IN 4 FOLLOW, Default...

  • Page 10: Subnet Mask

    FOLLOW, Default OUTPUT 3 AUDIO IN 1 IN 2 IN 3 IN 4 FOLLOW, Default OUTPUT 4 AUDIO IN 1 IN 2 IN 3 IN 4 FOLLOW, Default BACK EXIT BACK EXIT BACK EXIT IP ADDRESS BYTE 1 BYTE 2 BYTE 3 BYTE 4 BACK...
  • Page 11 EXIT MEDIA TYPE MEDIA TYPE 100M AUTO, Default BACK EXIT MAC FILTER MAC FILTER OFF, Default BACK EXIT BACK EXIT DEVICE ID DEVICE ID 0~99, Default 0 BACK EXIT REMOTE ID REMOTE ID 0~9, Default 0 BACK EXIT SYSTEM FACTORY DEFAULT FACTORY DEFAULT REBOOT REBOOT...

  • Page 12: Webgui Control

    WebGUI Control: Initial IP Configuration 1. Setup host IP Address same as your PC with same subnet.(Default 192.168.0.200) To change IP Address please enter OSD menu by panel button or IR remote control. 2. Enter IP Address in your web browser and you could link to the web page of host. 3.
  • Page 13 Multiview  VIDEO SETTING：Select video source of window A~D to input 1~4 or off  AUDIO SETTING：Select audio source of output 1~4 from input 1~4 or off  WINDOW LAYOUT：Select windows layout from default 1~4 or user define 1~4  MULTIVIEW SCENCE：Select SCENCE 1~8 to load or save ...
  • Page 14 Matrix  VIDEO SETTING：Select video source of output 1~4 to input 1~4, off or follow.  AUDIO SETTING：Select audio source of output 1~4 from input 1~4,off or follow  MATRIX SCENCE：Select SCENCE 1~8 to load or save  REFRESH：Refresh the information of host ...

  • Page 16: Video Wall

    VIDEOWALL  VIDEO SETTING：Display videowall block of output 1~4  AUDIO SETTING：Select audio source of output 1~4 from input 1~4,off or follow  Video SCENCE：Select SCENCE 1~4 to load  REFRESH：Refresh the information of host  APPLY：Apply changes *SCENCE 1 is factory default...
  • Page 17 SETUP OUTPUT RESOLUTION：Support 480P, 576P, 720P50, 720P60, 1080P24, 1080P50,  1080P60,Default 1080P60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x1200, 1680x1050, 1920x1200 HDCP SETTING：Set HDCP always on or follow input.  ID SETTING：Set DEVICE ID, Default 0, REMOTE ID, Default 0  ...

  • Page 18: Dhcp Client

    NETWORK  IP ADDRESS：Set IP address, Default 192.168.0.200  SUBNET MASK：Set Subnet mask, Default 255.255.255.0  GATEWAY：Set gateway address, Default 192.168.0.1  DHCP CLIENT： ON:Get IP Address, Subnet Mask, Gateway from existing DHCP server OFF:Set IP Address, Subnet Mask, Gateway by WebGUI or OSD menu manually, Default OFF ...
  • Page 19 SYSTEM  PASSWORD：Enter old password, Default 123  NEW PASSWORD：Enter new password  CONFIRM PASSWORD：Enter new password again to confirm  APPLY：Apply changes ADVANCE  WIDTH, HEIGHT: Set size of the windows.  X.POS,Y.POS: Set top left position of window by x, y coordinate. ...
  • Page 20 RS232 remote control command: Connect the RS232 CONSOLE port to the COM port of the host by an F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5) Communication format is 9600, 8, N, 1 (9600 bps, 8 data bits, no parity check, 1 stop bit) Operation Instruction format: Command + △(Space) + Parameter + Enter [Command]...

  • Page 21: Specification

    -To route VIDEOWALL audio source from input 1, send the following string: VDWALLRX△01 Commands are case insensitive. The host will reply OK once string is correct, NG in case of incorrect string Specification: ITEM NO. HM44 Resolution 480i/p, 576i/p, 720p, 1080i/p@60Hz HDMI Input HDMI Type A x 4 HDMI Output...
