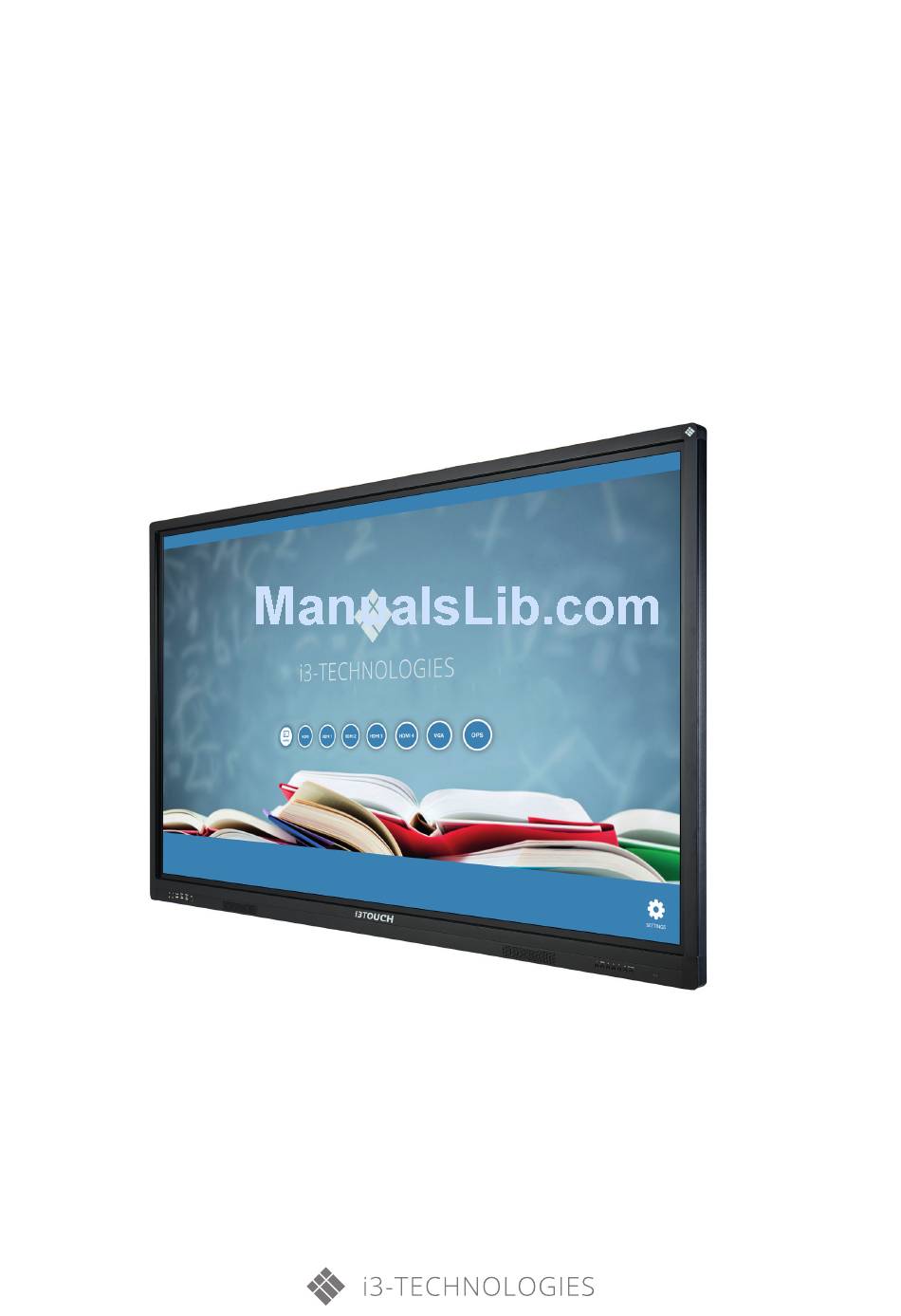

Page 1 V6510 T10 MANUAL...
Page 2: Table Of Contents
Contents Features Safety Warning and Precautions Installation and Connection PackingList Ports Connection Diagram Control Buttons on the Front Panel Remote Control Basic Operations Power On/Standby Source Selection Menu Operations List of Menu Settings Intelligent Platform Operations Basic Operations Quick Start Intelligent Application Settings Important Statement about Web Service...
Page 3: Features
Features 1. Runs on Android 5.0.1 operating system with unique UI design, offering you more convenient operations and better visual experience. 2. Download a huge selection of applications ranging from chat, query, learning, shopping to reading over the Internet; support synchronous e-mail receiving and sending. 3.
Page 4 Safety Warning and Precautions Warning Use AC 100-240V, 50/60Hz only. Cut off power supply before connecting/disconnecting anycable. To avoid the risk of fall, damage and fire,donotfix the product to any unstableposition. Do not place the product in anyenvironment: 1. That is too damp, hot, cold or dusty or exposed to directsunlight; 2.
Page 5 Safety Warning and Precautions Caution Do not allow children to climb the product. To avoid the risk of swallow, keep small accessories beyond the reach of children. Turn off the product and disconnect the power plug beforekeepingtheproductidleforalongtimeforanyreason. Disconnect all cables before changingthepositionor angle of the product. To avoid the risk of fall, move the product slowly.
Page 6 Safety Warning and Precautions Mounted on the wall Ventilation Keep clearances around the product according to the minimum dimensions shown in the picture. Never cover the ventilation holes or insert any object in the housing. Do not place the product in a confi ned space such as bookcase or imbedded closet unless appropriate ventilation con ditions are provided.
Page 7: Installation And Connection
Installation and connection Installation Tips Install the product near an AC power outlet with easy access. For the sake of safety, you are suggested to use a fi tting wall-mount bracket or base for the product. To avoid injury, the product must be placed on a stable horizontal surface or fi xed to a solid wall. Wall mounting of the product must be completed by a professional technician.
Page 8: Connection Diagram
Installation and connection Connection Diagram Schematic diagram for connecting the product to a PC. (Note: Disconnect the power plug before installing or removing the product!) Connection diagram Connection ports on the product Connection ports on the PC Remark: The connection diagram in this Manual is only for reference when connecting a PC box, which is subject to actual operations.
Page 9: Control Buttons On The Front Panel
Installation and connection Control Buttons on the Front Panel Power On/Stand by button; Press this button to show the Settings menu; Press this button to show the Settings menu; VOL + / VOL - button; in the OSD menu, press these two buttons to adjust the analog value of a selected item;...
Page 10: Remote Control
Remote Control Install Batteries in the Remote Control: Remove the battery compartment cover and follow the polarity marks “+” and “-” in the battery compartment to install two AAA batteries (No.7, 1.5V). Precautions for Use of Remote Control: Aim the remote control at the remote receiver when using the remote control. Any object placed between the remote control and the remote receiver may disturb normal operation.
Page 11 Keys on the Remote Control Description Switch between normal operation and standby STANDBY SNAPSHOT Take screenshot MUTE Enable or disable sound LETTER/NUMERIC KEYS Input any letters and number F1 (FREEZE) Enable or disable freeze function in the system CHANNEL LIST Allow backspace when inputting characters / view TV channel list HOME Display the home page of the product...
Page 12: Basic Operations
Basic operations Power On/Stand by Insert the powerplug into the power outlet. First turn on the On/Off button “ “ on the product, then press “ ” on the remote control or control panel to turn on the product. In power-on state, press “ ”, and the product will enter standby.
Page 13: List Of Menu Settings
Basic operations List of Menu Settings Picture Mode Select (Diff erent options are provided under diff erent sources) Measure the luminance between the brightest white and the darkest black that can Contrast be produced in the light and dark areas of a picture. Adjust the overall brightness of pictures: increase the analog value to enhance the Brightness brightness;...
Page 14: Intelligent Platform Operations
Basic Operations Select Channel > Channel Edit; then press “ OK ” to enter the Channel Edit submenu; press “ ” to select a channel. 1: Skip: Press the numeric key “ 1 ” to enable or disable skipping the channel selected; 2.
Page 15: Quickstart
Intelligent Platform Operations QuickStart Prior to use of the product, please get familiar with the following operations to ensure a better experience. Mouse Operation 1. Click: Click the mouse and then release it immediately; 2. Long press: Press the mouse for more than 3s; then release it; 3.
Page 16 Intelligent Applications How to visit a website? Firstly press “ ” keys to select the website input box and then input the network address to be accessed in the website box; at last, select the Go icon on the virtual keyboard and press the “ OK ” key to access the website.
Page 17 Intelligent Applications Multimedia Player (if the APK installer is not pre-installed, you can access the fi le manager to select and install the corresponding APK app): Connect the USB storage device via USB port; select Local Play in the main interface of intelligent mode, and press “...
Page 18: Settings
Intelligent Applications Options in the video player menu Play the previous chapter. View the playlist. Select the fast rewind rate. Display the details of a video Playback settings; enable subtitle display and adjust audio track progress Pause/start video playback. with this option. Select the fast forward rate.
Page 19 Intelligent Applications WiFi Hotspot: Set the product as a hotspot for wireless network connection with this option. 1. Select WiFi Hotspot, and press “ OK ” to enable the WiFi hotspot function; 2. Select Conﬁ gure WiFi Hotspot, and press “ OK ”; 3.
Page 20: Troubleshooting
Important Statement on Network Service All contents and services obtained from the product are owned by third parties and protected by copyright, patent, trademark and/or other intellectual property laws. These contents and services are only for your personal non-commercial purposes, which shall not be used in a way not authorized by the content owner or serviceprovider.
Page 21 Troubleshooting Sympton Possible Cause Solution 1. Use the auto adjustment function Pictures shown on the 2. Enter “PC Screen Adjustment” 1. Improper adjustment PC are offset, do not cover the entire screen, go beyond to adjust the horizontal or vertical 2.
Page 22: Technical Specifications
Technical Specifications Model i3TOUCH V8610 T10 Physical resolution 3840×2160(pixels) Pixel pitch 0.4935mm×0.4935mm Response time Brightness 410cd/m² Contrast 1200:1 Viewing angle 178°/178° Chroma 1.07B Contrast, brightness, definition, color saturation, color tone, signal switching, color temperature adjustment, System functions refresh rate switching and running state display Control mode Key control/infrared remote control/RS232 control Input voltage...
Page 23 Technical Specifi cations Toxic and Hazardous Substance or Element Components ( Pb) ( Hg) ( Cd) ( Cr 6 +) ( PBB) ( PBDE) × ○ ○ ○ ○ ○ Displayscreen ○ ○ ○ ○ ○ ○ Housing × ○ ○...
