Fan Kit - Entre Matic HVLS series User Manual

PACKING KIT
1. Blade Box – 5 blades
2. Fan Motor Box
a. Motor assembly with cover.
b. Remote control.
c. Controller box.
d. Mounting hardware.
e. Power and communication cables.
REQUIRED TOOLS
• Wrenches: 9/16
• Sockets: 1/2, 9/16
• Spirit level, short
• Torque wrench: 15-60 Ft-lbs (for use with sockets)
• Tape measure
• T-15 Torx (included)
• T-40 Torx (included)
PRIOR TO FAN INSTALLATION:
1. Ensure blade length matches fan model size.
3. Ensure all mounting hardware is present.
NATIONAL FIRE PROTECTION ASSOCIATION STANDARD
In accordance with NFPA 13 Standard from the National Fire
Prevention Association as referenced in sections 12.1.4 and
11.1.7: High Volume Low Speed (HVLS) Fans: The installation
of HVLS fans in buildings equipped with sprinklers, including
ESFR sprinklers, shall comply with the following:
• The maximum fan diameter shall be 14 feet (4.3 m).
• The fan shall be approximately centered between four
adjacent sprinklers.
• The vertical clearance from the fan to sprinkler deflector
shall be a minimum of 3 feet (0.9 m).
• All fans shall be interlocked to shut down immediately
upon receiving a water flow signal from the alarm system
in accordance with the requirements of NFPA 72- National
Fire Alarm and Signaling Code.
November 2016

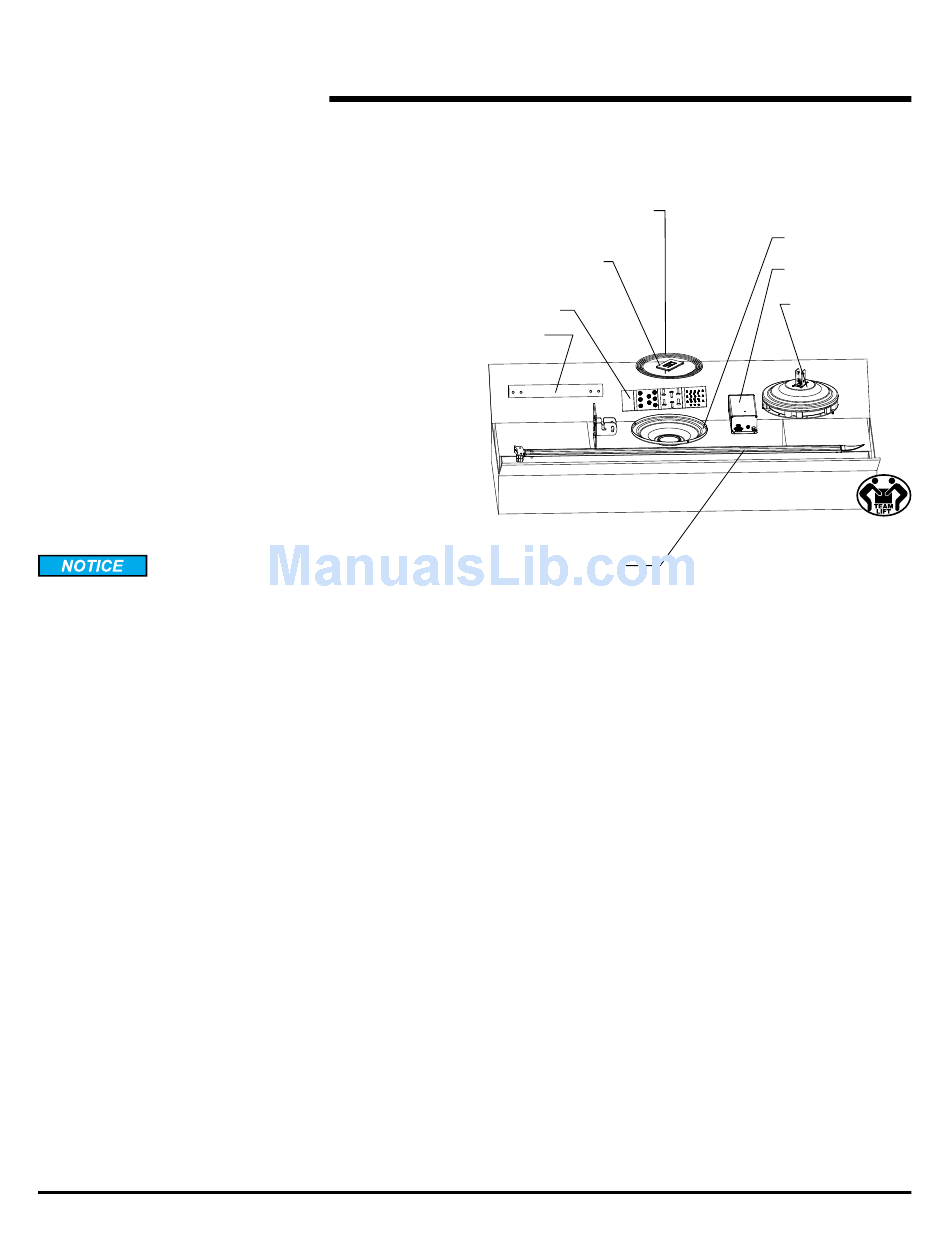

Fig. 1
communication cables
Remote control
Mounting
hardware
Down
tube
Blade assemblies
6020031A — Commercial HVLS Fans
Power and
© Entrematic Group AB 2015

FAN KIT

Bottom cover
Controller box
Motor assembly
with cover
5
