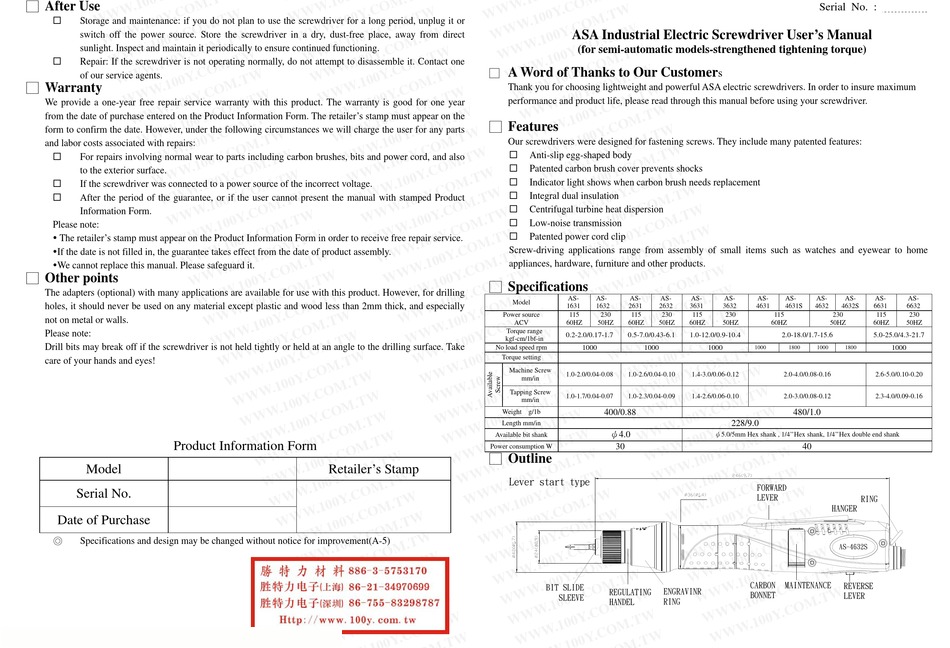

ASA Electronics AS-4632S User Manual

□ After Use


Storage and maintenance: if you do not plan to use the screwdriver for a long period, unplug it or
switch off the power source. Store the screwdriver in a dry, dust-free place, away from direct
sunlight. Inspect and maintain it periodically to ensure continued functioning.

Repair: If the screwdriver is not operating normally, do not attempt to disassemble it. Contact one
of our service agents.

□ Warranty

We provide a one-year free repair service warranty with this product. The warranty is good for one year
from the date of purchase entered on the Product Information Form. The retailer's stamp must appear on the
form to confirm the date. However, under the following circumstances we will charge the user for any parts
and labor costs associated with repairs:

For repairs involving normal wear to parts including carbon brushes, bits and power cord, and also
to the exterior surface.

If the screwdriver was connected to a power source of the incorrect voltage.

After the period of the guarantee, or if the user cannot present the manual with stamped Product
Information Form.
Please note:
 The retailer's stamp must appear on the Product Information Form in order to receive free repair service.
If the date is not filled in, the guarantee takes effect from the date of product assembly.
We cannot replace this manual. Please safeguard it.
□ Other points
The adapters (optional) with many applications are available for use with this product. However, for drilling
holes, it should never be used on any material except plastic and wood less than 2mm thick, and especially
not on metal or walls.
Please note:
Drill bits may break off if the screwdriver is not held tightly or held at an angle to the drilling surface. Take
care of your hands and eyes!
Product Information Form
Model
Serial No.
Date of Purchase
◎
Specifications and design may be changed without notice for improvement(A-5)
□ A Word of Thanks to Our Customer
Thank you for choosing lightweight and powerful ASA electric screwdrivers. In order to insure maximum
performance and product life, please read through this manual before using your screwdriver.

□ Features

Our screwdrivers were designed for fastening screws. They include many patented features:
Screw-driving applications range from assembly of small items such as watches and eyewear to home
appliances, hardware, furniture and other products.

□ Specifications

Power source
Torque range
kgf-cm/1bf-in
No load speed rpm
Torque setting
Weight g/1b
Length mm/in
Available bit shank
Power consumption W

□ Outline

Retailer's Stamp
ASA Industrial Electric Screwdriver User's Manual
(for semi-automatic models-strengthened tightening torque)

Anti-slip egg-shaped body

Patented carbon brush cover prevents shocks

Indicator light shows when carbon brush needs replacement

Integral dual insulation

Centrifugal turbine heat dispersion

Low-noise transmission

Patented power cord clip
AS- AS- AS- AS-
Model
1631 1632 2631 2632
115 230 115 230
ACV 60HZ 50HZ 60HZ 50HZ 60HZ
0.2-2.0/0.17-1.7 0.5-7.0/0.43-6.1 1.0-12.0/0.9-10.4
1000 1000
Machine Screw
1.0-2.0/0.04-0.08 1.0-2.6/0.04-0.10
mm/in
Tapping Screw
1.0-1.7/0.04-0.07 1.0-2.3/0.04-0.09
mm/in
400/0.88
ψ4.0
30
Lever start type
BIT SLIDE
REGULATING ENGRAVINR
SLEEVE
HANDEL RING
Serial No. :
s
AS- AS- AS- AS- AS- AS-
3631 3632 4631 4631S 4632 4632S
115 230 115 230
50HZ 60HZ 50HZ
2.0-18.0/1.7-15.6
1000
1000 1800 1000 1800
1.4-3.0/0.06-0.12 2.0-4.0/0.08-0.16
1.4-2.6/0.06-0.10 2.0-3.0/0.08-0.12
480/1.0
228/9.0
ψ5.0/5mm Hex shank , 1/4''Hex shank, 1/4''Hex double end shank
40
FORWARD
LEVER
RING
HANGER
AS-4632S
CARBON MAINTENANCE REVERSE
BONNET LEVER
AS- AS-
6631 6632
115 230
60HZ 50HZ
5.0-25.0/4.3-21.7
1000
2.6-5.0/0.10-0.20
2.3-4.0/0.09-0.16
