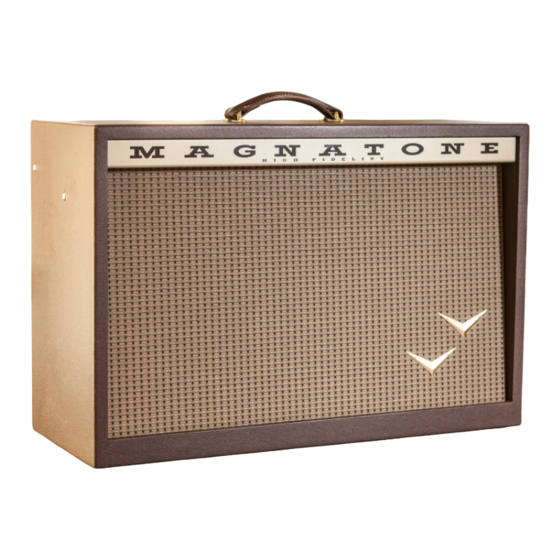

- Page 1 P A N O R A M I C S T E R E O ® TRUE DIMENSIONAL SOUND MAGNATONEUSA.COM...
- Page 2 WELCOME TO MAGNATONE FEATURES • V intage brown and gold cosmetic Welcome to the proud family of Magnatone owners. We are excited to have you join this group that consists • 2 x10” combo or head powered by (4) EL84s of the world’s great guitarists — including iconic players of yesterday and today — who have masterfully used • 1 2+12 watts all tube stereo power amp Magnatone’s True Dimensional Sound to create a trademark • V aristor Stereo Pitch Shifting Vibrato for True sound all their own. Dimensional Sound™ (switchable to tremolo) The Panoramic has plenty of muscle to gig with and performs with a range of tone never thought possible. The • F ull length Accutronics™ reverb tank exclusive Magnatone stereo pitch-shifting vibrato elevates • C ompact size for easy portability and classic tone your musical experience to new levels. If you have questions regarding your Panoramic or any other Magnatone product, email us at info@magnatoneusa.com...
-
Page 3: Front Panel Controls
FRONT PANEL CONTROLS INPUTS REMOTE PEDAL Connect the optional Magnatone remote pedal here. Input 1 : High Sensitivity Use any 1/4” mono or stereo guitar cable. When connected, Use this input for max pickup output and frequency response . the front panel speed control is disabled. The remote pedal works Input 2 : Low Sensitivity (6dB) with both FM and AM settings. Use this input for hotter pickups / lower gain. SPEED VOLUME Controls the rate or speed of the selected effect. Controls overall gain/volume. Typically, breakup will begin to The exclusive Magnatone design allows for extremely slow occur around 6-7 on the dial. Higher setting may require less bass. “choral” settings not attainable from the original design. When the remote pedal is connected, the front panel TREBLE control is inactive. Controls high frequency response centered around 2Khz. REMOTE SPEAKERS BASS External 8 Ohm left and right speakers connect here. Note that Controls low frequency response centered around 60hz. internal speakers remain live. REVERB LINE OUT Controls the amount of reverberation effect. The drive and recovery... -
Page 4: Tube Layout
INPUTS Low Sensitivity -120 KOhms • Problems are not the result of misuse, abuse, shipping damage, tampering, circuit modification, improper tube POWER OUTPUT 12 + 12 Watts Push/Pull Class AB Stereo installation (incorrect orientation of tubes can damage the amp), or spilled beverages; any of these will void 80 dB GAIN the warranty. 14 dB range at 2 kHz TREBLE • T he amplifier is shipped to Magnatone Amplifiers in the original packing materials, or materials of equal quality, 12 dB range at 60 Hz BASS with freight paid by the purchaser. (Note: If the amplifier failed within thirty days of use, Tube driven 4 counter wound springs long pan. REVERB shipping will be reimbursed). We will pay the return shipping after warranty work is complete within the VIBRATO True pitch-shifting stereo varistor vibrato. continental US. Switchable to conventional tremolo. Tubes, speakers, and reverb tanks carry a ninety-day warranty and (2) Magnatone Custom USA 10” Ceramic Magnet... - Page 5 This symbol represents CAUTION a hot surface. When this symbol is displayed, nearby components (vacuum tubes) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS are extremely hot and AMPLIFIER TO RAIN OR MOISTURE. TO REDUCE care must be taken in their THE RISK OF ELECTRIC SHOCK, DO NOT OPEN AMPLIFIER CHASSIS.
