Climax Call Point CP-23 User Manual

Emergency voice communicator

Advertisement

Call Point
I.

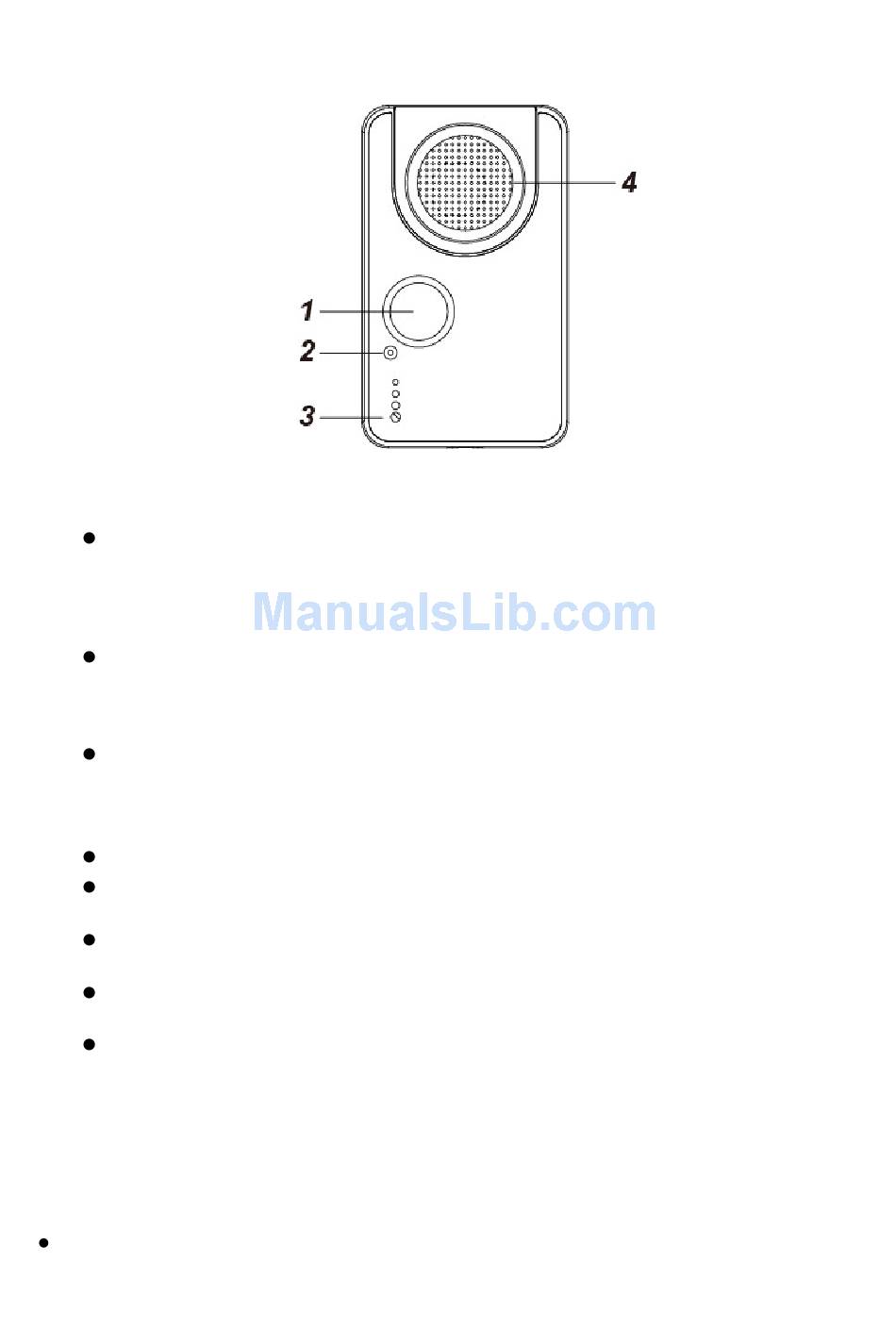

Identifying the Parts

1
.
A
c
t
i
v
e
1
.
A
c
t
i
v
e
Press the Active Button once will activate the Control Panel, causing it to dial
emergency call or alarm. Once the button is pressed, the Green LED lights on for 3
sec and then becomes flashing to indicate alarm signal transmission to the Control
Panel is in progress. During signal transmission, the CP-23 will emit continuous
beeps.
When there is an incoming phone call, you can press the Active Button to answer it.
If the two way communication is enabled, CP-23 will stop emitting beeps. CP-23 will
open a remote two-way voice communication. The length of the communication
period is determined by the Control Panel.
To terminate both the reporting and the two-way communication, press and hold the
Active Button for 8 seconds. One long beep will be emitted.
2
.
D
u
a
l
C
2
.
D
u
a
l
C
LED OFF: In Standby Mode
RED LED ON: Registering CP-23 to the Control Panel; CP-23 is triggered when low
on battery
RED LED FLASHES: Having transmitted a signal to the Control Panel; providing
two-way voice communication when CP-23 is low on battery
GREEN LED FLASHES: Having transmitted a signal to the Control Panel; providing
two-way voice communication
GREEN LED ON: Receiving a learning signal from the Control Panel; CP-23 is
triggered
3
.
M
i
c
r
o
p
3
.
M
i
c
r
o
p
4
.
S
p
e
a
k
4
.
S
p
e
a
k
II.
CP-23 uses 2 x 1.5V AA lithium batteries as its power source. Please note: ALWAYS
replace battery with the correct size and voltage.
(
C
P
-
2
3
)
(
C
P
-
2
3
)
B
u
t
t
o
n
B
u
t
t
o
n
o
l
o
u
r
R
e
d
&
G
r
e
o
l
o
u
r
R
e
d
&
G
r
e
h
o
n
e
h
o
n
e
e
r
e
r
e
n
L
E
D
e
n
L
E
D
1
