Topcon RE-S1 Operator's Manual

Topcon RE-S1 Operator's Manual

915 plus spread spectrum radio repeate
Hide thumbs
Table of Contents

Advertisement

Quick Links

RE-S1
915+ Spread Spectrum Radio Repeater
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE-S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Topcon RE-S1

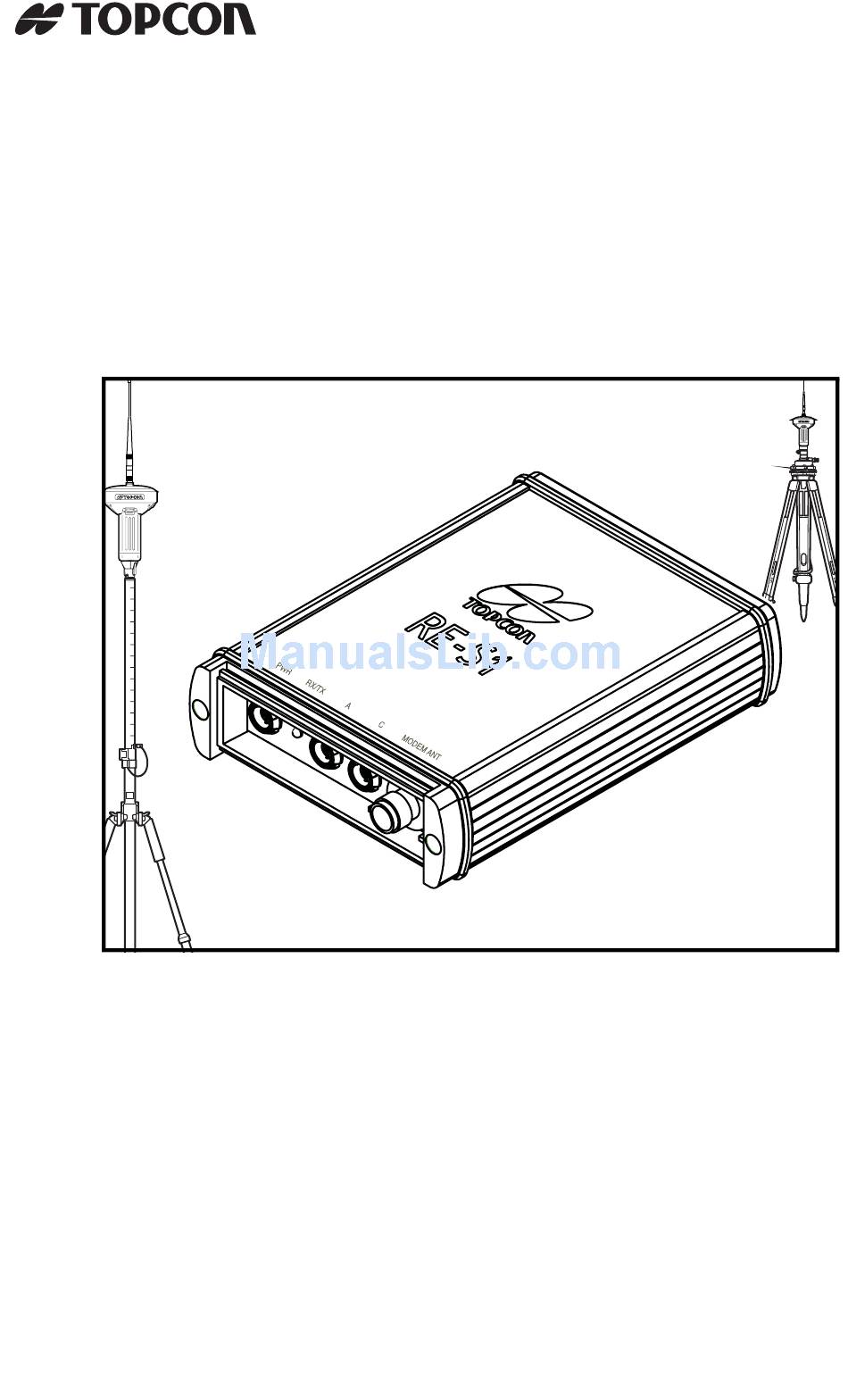

  • Page 1 RE-S1 915+ Spread Spectrum Radio Repeater Operator’s Manual...
  • Page 2 Conditions and those more fully set forth in the Operator’s, User’s, Instruction, or Reference Manual. Copyrights and Trademarks The information in this manual is a copyright of Topcon and is for use only with the product. HiPer, RE-S1, and Topcon are trademarks or registered trademarks of Topcon Positioning Systems, Inc.
  • Page 3 Chapter 1 Introduction The RE-S1 is a 1W radio extension system using 915+ spread spectrum technology. The RE-S1 can be used to enhance the following survey-related systems: • As a stand-alone repeater to increase the range between a Base and Rover in spread spectrum systems, such as with the GR-3 or HiPer Lite+ GPS systems.

  • Page 4: Getting Acquainted

    The RE-S1 is compatible with existing Topcon spread spectrum radio systems (some older HiPer models may need a radio modem upgrade), as well as Topcon base stations. Simple features allow the RE-S1 to be easily adaptable to any situation, and make it easy to use. RX/TX LED The RX/TX LED provides the following indications for the modem: •...
  • Page 5 Getting Acquainted • The channel of the RE-S1, Base, and Rover. • The protocol of the RE-S1, Base, and Rover (FH915 Plus). Data and Power Ports The RE-S1 has the following ports: • Power – used to connect the repeater an an external power source.
  • Page 6 Figure 1-5. Modem Antenna Standard Kit Cables and Power Supply The standard RE-S1 package includes communication and power cables for configuring the repeater and providing a power source to the repeater. Table 1-1 lists the cables included in the package.
  • Page 7 Getting Acquainted Table 1-1. RE-S1 Standard Package Cables (Continued) Cable Description Cable Illustration SAE-to-SAE extension cable Connects the SAE ends of two cables together. For example from the aligator clips to the charging cable. p/n 14-008022-01 Serial cable Connects the repeater to an external device (controller or computer) for modifying the configuration.
  • Page 8 Introduction Notes: RE-S1 Operator’s Manual...

  • Page 9: Configuration And Usage

    Chapter 2 Configuration and Usage Once the RE-S1 is configured, it simply needs to be connected to a power source to begin operating. Installing Modem-TPS Modem-TPS is a configuration program for the radio modem board inside the receiver. Modem-TPS is available from the TPS website or on the GPS+ CD.
  • Page 10 All modems connected to the repeater must use the same protocol and channel. 1. Connect the power cable to the RE-S1 and to a power source. 2. Using the RS-232 serial cable, connect port A of the RE-S1 to a computer. 3. Open Modem-TPS and click Connect.
  • Page 11 Configuring the RE-S1 as a Repeater 8. Select the channel: 1–5. The Base, Rover, and Repeater must use the same NOTICE channel. 9. Click Apply. Figure 2-3. Configure the RE-S1 using Modem-TPS P/N 7010-0780...
  • Page 12 Configuration and Usage Notes: RE-S1 Operator’s Manual...

  • Page 13: Regulatory Information And Warnings

    Appendix A Regulatory Information and Warnings The following sections provide information on this product’s compliance with government regulations for use, and some guidelines on the safe use of the product. FCC Compliance This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1.

  • Page 14: Canadian Emissions Labeling Requirements

    By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed RE-S1 Operator’s Manual...
  • Page 15 Safety and Usage Warnings information about the take-back and recycling of this product, please contact your supplier where you purchased the product or consult. Safety and Usage Warnings To comply with RF exposure requirements, maintain at least 20cm between the user and the NOTICE radio modem.
  • Page 16 Regulatory Information and Warnings Notes: RE-S1 Operator’s Manual...
  • Page 17 Notes:...
  • Page 18 Topcon Positioning Systems, Inc. 7400 National Drive, Livermore, CA 94551 800∙443∙4567 www.topcon.com ISO 9001:2000 FM 68448 RE-S1 Operator’s Manual P/N: 7010-0780 Rev A 09/06 30 ©2006 Topcon Corporation All rights reserved. No unauthorized duplication.
