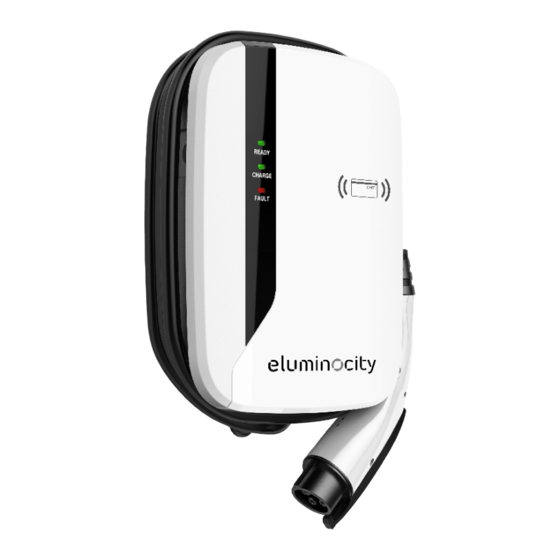

Summary of Contents for eluminocity GridCharge

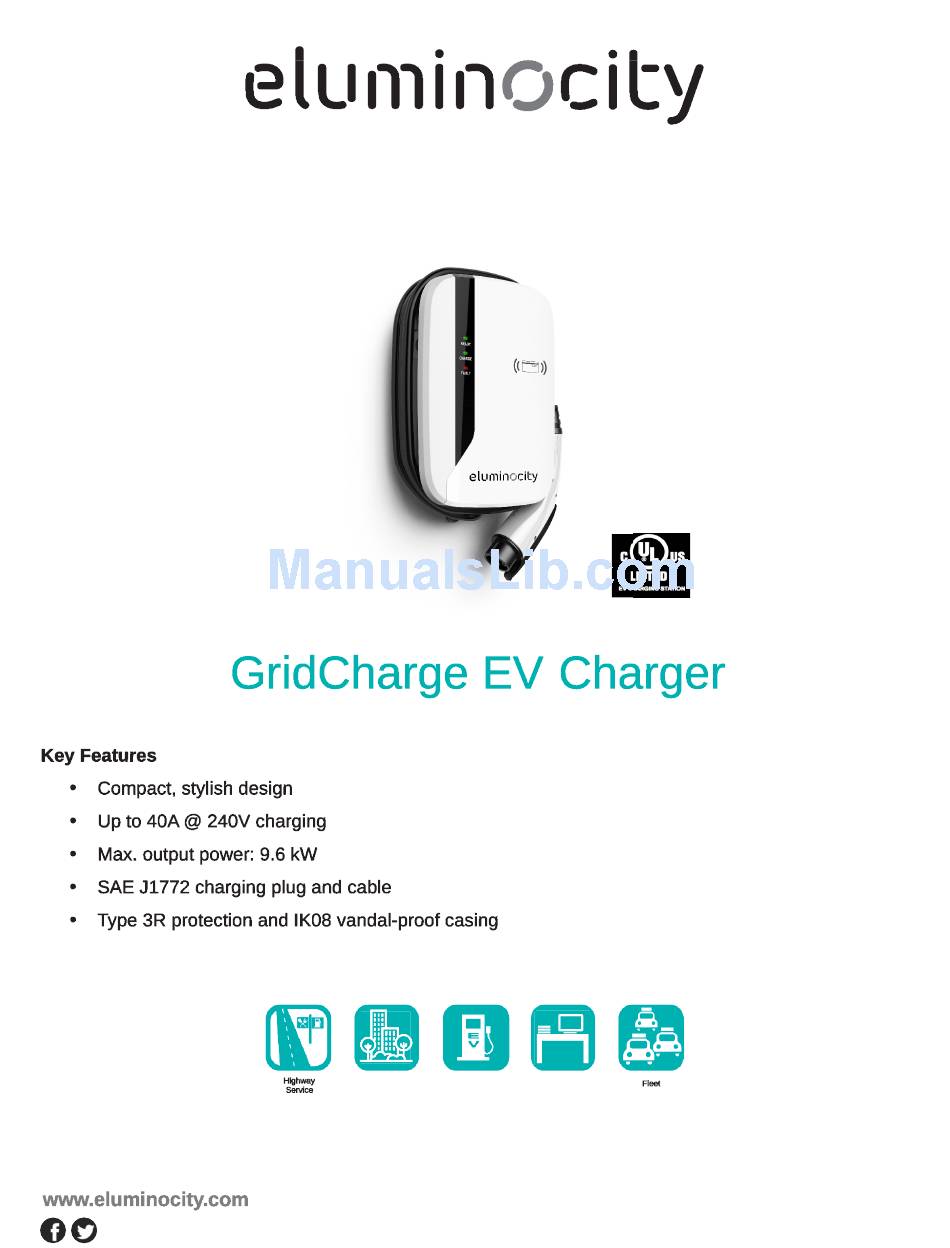

- Page 1 Installation Manual & Warranty Public orkplace...
-
Page 2: Table Of Contents
Specifications...................... 7 Warranty ......................8 This document provides instructions for the eluminocity GridCharge and should not be used for any other product. This product should be installed only by a licensed contractor and/or a licensed electrician and in accordance with all applicable state, local and national electrical codes and standards. -
Page 3: What's Included
Inside this box you will find 1) GridCharge EV Charger 2) Mounting Bracket 3) Torx T30 bolts (x2) 4) 1/4 inch expansion bolts (x3) 5) No. 8 wood screws (x3) If any parts are damaged or missing, please contact us at salesUS@eluminocity.com Installation-manual_CH-211 v1.0.4... -
Page 4: Before Installation
Before Installation INSTRUCTIONS PERTAINING TO THE RISK OF ELECTRIC SHOCK Read all the instructions before using this product. This device should be supervised when used around children. Do not put fingers into the electric vehicle connector. Do not use this product if the flexible power cord or EV cable are frayed, have broken insulation, or any other signs of damage. -
Page 5: Safety Check
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. The eluminocity GridCharge shall be installed only by a licensed contractor, and/or a licensed electrician in accordance with all applicable state, local and national electrical codes and standards. Before installing this product, ensure compliance with local building practices, climate conditions, safety standards, and state and local codes. -
Page 6: Installing The Eluminocity Gridcharge
3. Align the screw holes of the mounting bracket with the eluminosity GridCharge. Install and secure the eluminosity GridCharge on the mounting bracket with the two (2) Torx T30 screws supplied. Torque to 13 lb·in (1.5 N·m). 7. Remove the compartment cover. - Page 7 10. Replace the front cover by aligning the hinge on the top. Secure the front cover by the bottom screw, torque to 10.4 lb·in (1.2 N·m). 11. Place the charger cable properly. To view an introduction installation video, visit www.gridcharge.io Installation-manual_CH-211 v1.0.4...
-
Page 8: Specifications
Specifications EVMU30 EVMU40 CH-21130 CH-21140 Charging interface SAE J1772 compliant charging plug Input rating 208-240 Vac, single 208-240 Vac, single 208-240 Vac, single phase, 30 A max., 60 Hz phase, 40 A max., 60 Hz Wiring for L1, L2, and Ground, hardwired with terminal block; bottom-fed hardwired models Wall plug for cord NEMA 6-50P... -
Page 9: Warranty
EVSE Product Warranty (2016) For products sold by eluminocity US, Inc. 80 Pine Street, 24th Floor, New York, NY 10005, hereinafter referred to as “eluminocity”, Factory Warranty is as follows: • 3 years on Level II EVSE • 1 year on Level III EVSE •... - Page 10 TO THE EXTENT PERMITTED BY PPLIC BLE L W, OTHER TH N THE EXPRESS W RR NTY SET FORTH IN THIS W RR NTY, ELUMINOCITY M KES NO DDITION L W RR NTIES, EXPRESS OR IMPLIED, ND DISCL IMS LL IMPLIED W RR NTIES, WHETHER IN F CT OR BY...
