SMART MIRROR
MIRALITE CONNECT V2
60 I 90 I 120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIRALITE CONNECT 60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pradel MIRALITE CONNECT 60

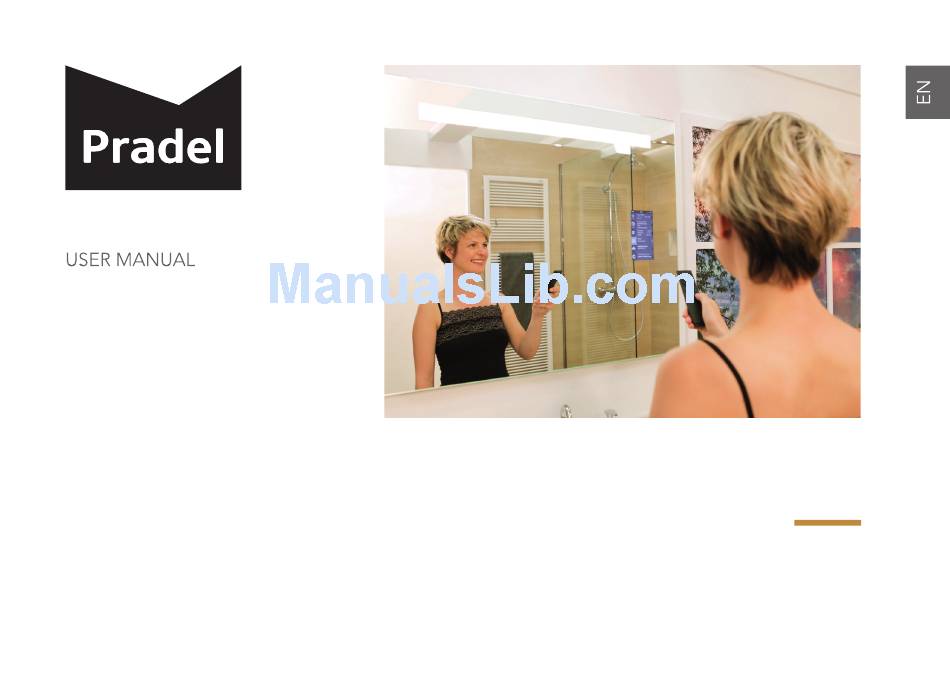

  • Page 1 SMART MIRROR MIRALITE CONNECT V2 60 I 90 I 120...
  • Page 2 The colour and the appearance may differ depending on the product and the specifications are subject to change without prior notice to improve the performance.
  • Page 4: About This Manual

    ABOUT THIS MANUAL About this manual Please read the corresponding instructions of this manual prior to the first usage of the device, even if the usage of electronic devices is familiar to you. Notice especially the chapter SAFETY PRECAUTIONS. Please do keep this manual in a safe place for future references. When selling the device or giving it away, absolutely give these directions for use.
  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS the plug, at the female connectors and where it exits the device. Do not install the mains cable in the proximity of heating elements and never place heavy items on the cable. Do not modify or arbitrary repair the mains cable. Electricity and safety 9.
  • Page 6 SAFETY PRECAUTIONS 11. Do not install the product alone on yourself. Two persons are required to perform a safe installation. Installation 12. The corners and edges of the glass are very delicate. Take care that they do not hit the wall, ceiling or floor in any way to avoid damages and split-offs. 1.
  • Page 7 SAFETY PRECAUTIONS 19. For installations in wet-rooms, such as bathrooms, specific installation 7. Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects guidelines apply. These regulations differ by region. Please contact a that burn easily (paper, matches, etc) into the product. specialist for this.
  • Page 8 SAFETY PRECAUTIONS 19. Trouble free operation is ensured up to 80% air humidity. To prevent fire or electric shock, never allow liquids to enter the unit. 20. The ambient temperature for operating the device is between +5 and Cleaning and Product Care +40 degrees Celsius.
  • Page 9: Delivery Scope

    DELIVERY SCOPE Hardware I What‘s included Components may differ in different locations. Contact the vendor where you purchased the product if any components are missing. The appearance of the components may differ from the images shown. Self-adhesive buffers to User Manual prevent vibrations Warranty Card Smart Mirror...
  • Page 10: Installation

    INSTALLATION STEP 1: Bathroom Protection Areas Attach the appropriate hooks to the wall where the product is to be positioned. For installations in wet-rooms, such as bathrooms, specific installation guidelines apply. These regulations differ by region. Please contact a specialist for this. Therefore electrical installations are to be performed by a skilled technician, while observing the regulations of the standard DIN VDE 0100 T.701.
  • Page 11 INSTALLATION STEP 2: Stick self-adhesive buffers to the defined spot on the back. Connect the cables of the device to your power supply. Pay attention to the polarity. We recommend this electrical installation to be carried out by trained technical personnel. Always switch off the power before starting the installation or maintenance.
  • Page 12 INSTALLATION STEP 3: Hang the product with the hooks and dowels suitable for your wall STEP 4: Gently pull the film from the mirror surface. surface at the recesses. 1. The surface of the glass is very sensitive. Do not use a cutter or knife to remove the protective foil in order to avoid scratches and other damages.
  • Page 13: Bluetooth Remote Control

    BLUETOOTH REMOTE CONTROL Bluetooth Remote Control Button Description Insert the batteries into the remote control. Two AAA batteries are required (included in delivery scope). Pay attention to the correct polarity. POWER Power on/off the device – power off will put the device in standby mode.
  • Page 14 SETUP I REGISTRATION Registration Setup STEP 1 Connect the device to STEP 2 Wait for your device to STEP 3 The display shows a 6-di- For some applications to work your WLAN. connect to the server. This can git pin code. correctly, you need to enter the If you are connecting to a protec- take a few minutes.
  • Page 15 HANDLING User Portal www.smart-mirror.net There you can: • Add additional devices under „My mirror“ • Change user data under „User“ • The respective user profiles with their settings are displayed on the de- vice as soon as you have pressed the relevant color button (red, green, yellow or blue) on your remote control.
  • Page 16 HANDLING Mirror Defogger The unit has a built-in mirror heater which ensures that the mirror is not fogged. The mirror heater is automatically activated as soon as the unit is switched on, defogger can be switched off. Loudspeaker The device has an integrated surface loudspeaker. Ensure that the device is stuck on the wall to prevent vibrations, as they can adversely affect sound quality.
  • Page 17: Display Handling

    DISPLAY HANDLING How to operate the device with your remote control Use the NAVIGATION buttons on your remote control to scroll and confirm The MENU button is used to access the settings of the device. with OK. Use the HOME button on the remote control to return to the „main There you can: screen“.
  • Page 18: Product Information

    PRODUCT INFORMATION GENERAL INFORMATION MIRALITE CONNECT 60 I 556.642 MIRALITE CONNECT 90 I 556.654 MIRALITE CONNECT 120 I 556.666 Installation method On-Wall Installation On-Wall Installation On-Wall Installation Product Dimensions 600 W x 750 H x 45 D mm 900 W x 750 H x 45 D mm...
  • Page 19: General Information

    GENERAL INFORMATION Certificates EUROPEAN ENERGY LABEL IP44 The European Energy Label informs you on the energy efficien- cy class of this product. The greener the energy efficiency class of this product is, the lower the energy it consumes. On the label you can find the energy efficiency class.
  • Page 20: Troubleshooting

    In the online support, you can select your language and enter the model name of your product. If this does not help you, please send us an email or contact the service center indicated on the website. Pierre Pradel Paris Parc Eurostore 95/97 rue du Moulin de Cage –...
