DIZIC STM32W RF Manual

Quickly add wireless capability with these high performance ZigBee compliant modules
R SoC RF M
EADY TO USE
Quickly add wireless networking capabilities to your
products with these ready-to-use DiZiC 802.15.4 RF
Modules. Simple to operate and available in a wide range of
configurations, these ZigBee compliant RF modules are
ideal for industrial sensors, consumer remote controls,
home appliances, and more.
Based on the STM32W108 wireless System-on-Chip
(SoC) from STMicroelectronics, this family of modules offer
outstanding RF performance with a -99 dBm normal RX
sensitivity (configurable to -100 dBm) and +3 dBm
normal mode output power (configurable up to +7 dBm).
With a small form factor and pin-to-pin compatible, DiZiC
802.15.4 RF Modules are available with several software
stack options, including EmberZNet PRO, RF4CE stack, or
proprietary low level MAC / PHY stack.
V
ERSATILE CONFIGURATIONS
With several possible configurations, select from 3 power
level options, 3 output options, 3 software stack options
and 2 EMI options:
Power Level Options
level (+7 dBm), and two versions of RF front end (PA and
LNA, +20 dBm).
RF Output Options - Choose from a chip antenna, a U.FL
connector, or a single port 50 Ohm RF pad.
The U.FL connector allows, amongst other uses, for
connecting an external antenna, for connecting to an
application board that provides additional filters, or for
connecting to another 50 Ohm coaxial cable TX line. The
single port 50 Ohm RF pad allows for a direct connection
to another board, application module, or external antenna.
Software Stack Options
PRO, RF4CE, or a low level PHY / MAC stack.
EmberZNet PRO is an easy to use ZigBee platform for
complex mesh networks. RF4CE (Radio Frequency for
Consumer Electronics) is a new protocol for consumer
remote controlled equipment. Custom applications can be
developed on top of a simple to use and low footprint
PHY/MAC API library.
– Choose metal shielding protection where
EMI Options
enhanced electromagnetic interference immunity is
required otherwise standard version without metal
shielding is advisable.
© 2010 DiZiC Co. Ltd, 3F, N° 4-2 Jin Xi Street Taipei City 104, TAIWAN
All Rights Reserved. All trademarks are property of their respective owners. Subject to change without notice.
Document ID: PB-ZB-MOD-003-20DS
ODULES
- Choose from a standard power
- Choose from EmberZNet
802.15.4 Family of RF Modules
High Performance and Long Range
802.15.4 STM32W RF Modules

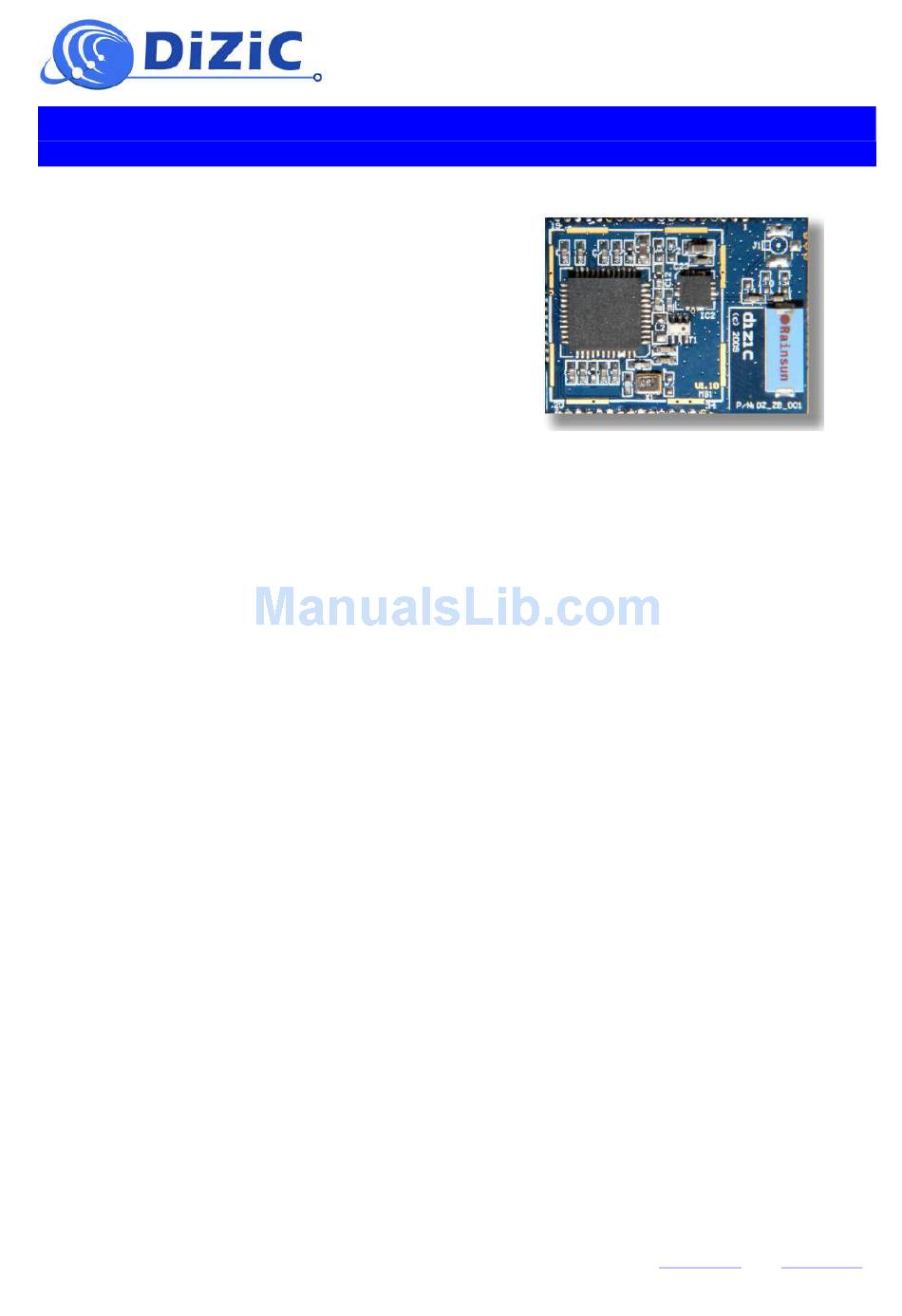

D/Z/C 802.15.4 STM32WRF Module with
RF front end and antenna
Key Features
• STM32W108 ZigBee / IEEE 802.15.4 SoC
• 32-bit ARM Cortex-M3 processor
• 128 kB of Flash and 8 kB of SRAM
• JTAG / SWD (programming and debugging)
• 2.4 GHz ISM supporting 16 channels
• Data rate up to 250 kbit/s
• 128-bit AES encryption
• Peripherals
• 24 GPIOs, SPI, USART, and I2C
• 12-bit ADC with up to 6 inputs
• 2x 16-bit timers
• DMA controller
• Standard module
• RX Sensitivity -99 dBm (-100 dBm Boost)
• TX Power 3 dBm (+7 dBm Boost)
• RF front end options
• Two Front End options
• Both with RX Sensitivity -105 dBm
• Both with TX Power +20 dBm
• RF Options
• Chip antenna, U.FL connector, or single port 50 Ohm
RF pad
• Shielding option for enhanced EMI protection
Ordering Information
DZ_ZB_[P] [O] [ S ] [ E ] , where:
[P] Power level options, one of: S (standard +7 dBm), R (Front End
with Power Level Detect +20 dBm), or T (Front End +20 dBm)
[O] Output options, one of: A (Embedded SMD antenna assembled on
module), P (Single ended 50 Ohm. RF Pad), or U (50 Ohm U.FL
coaxial connector)
[S] Stack options, one of: F (RF4CE stack), X (Proprietary stack), or
Z (EmberZNet PRO stack)
[E] EMI protection options, one of: S (standard, no shielding), or
M (enhanced, with metal shield)
Email: info@dizic.com | Web: www.dizic.com
