Summary of Contents for HDL HDL-MPR02-RF.18

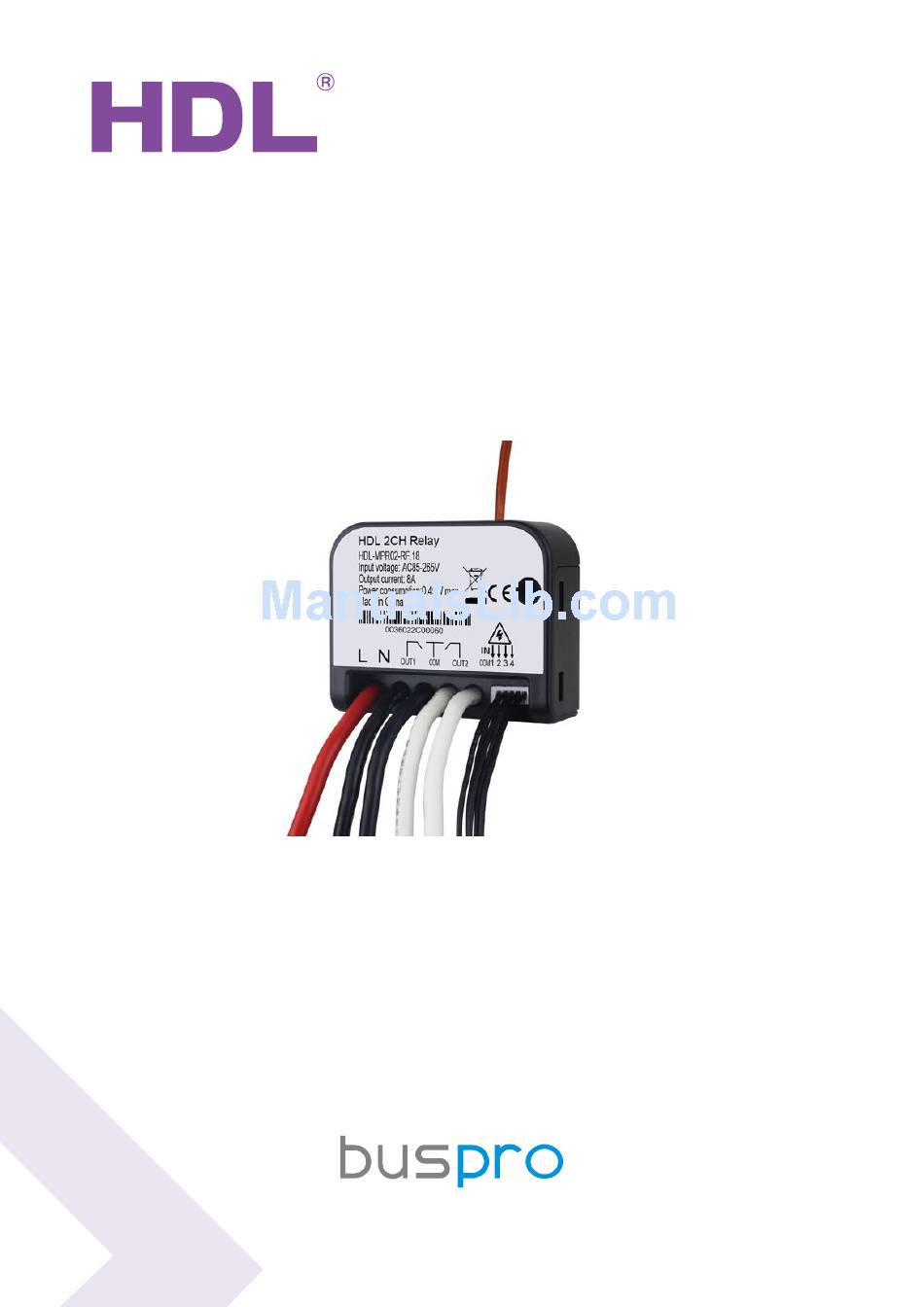

- Page 1 User manual Wireless 2CH Relay HDL-MPR02-RF.18 www.hdlautomation.com...
- Page 2 User Manual HDL-MPR02-RF.18 Document updates: Version Date Description V1.0 2015.09.05 Finish new document Wireless Relay –User Manual...
-
Page 3: Table Of Contents
User Manual HDL-MPR02-RF.18 INDEX 1. Overview............................1 1.1 General Information......................1 1.1.1 Description.......................1 1.1.2 Dimensions......................1 1.2 Functionalities Description....................1 1.3 Device Description......................2 2. Safety Instructions........................2 3. Technical Data..........................3 4. Important Notes..........................4 5. Software Configuration........................4 5.1 Basic Information....................... 4 5.1.1 Wireless Setting via Mesh Gateway..............4 5.1.2 Device configuration.................... -
Page 4: Overview
User Manual HDL-MPR02-RF.18 1. Overview 1.1 General Information 1.1.1 Description HDL-MPR02-RF.18 wireless 2 channels relay, has 4CH dry contact, can control target by switch. This module should be configured by wireless gateway. 1.1.2 Dimensions 44mm 17mm 36mm 36mm Wall box 1.2 Functionalities Description... -
Page 5: Device Description
User Manual HDL-MPR02-RF.18 control, security module, z-audio control Support IEEE.802.15.4 Support online upgrading Support easy programming 1.3 Device Description Antenna Programming button Dry contact Programming button: if it is working properly, the green light will flicker, press the button three times... -
Page 6: Technical Data
User Manual HDL-MPR02-RF.18 Electronic transformer 500W Halogen lamp 3500W Mercury vapor lamp *Uncompensated lamp: 700W *Parallel compensated lamp 700W Fluorescent lamp T5/T8 *Uncompensated lamp 875W *Parallel compensated lamp 500W *DUO lamp 500W Dulux lamp *Uncompensated lamp 375W *Parallel compensated lamp 375W 3. -
Page 7: Important Notes
User Manual HDL-MPR02-RF.18 Working relative humidity Up to 90% Storage temperature -20%~+60% Storage relative humidity Up to 93% Approved RoHS Product Information： Dimensions 44×36×17 (mm) Weight 39.7g Housing material Installation Wall box Protection degree IP20 Fire and null wire 1.5mm... - Page 8 User Manual HDL-MPR02-RF.18 1- Set the free frequency and unique PSK PWD for the gateway 2- Press the ‘PROG’ button 3 times continuously, the red LED will flash quickly that means the gateway enters the wireless setup mode. 3- Press the programming button of wireless 2CH relay 3 times continuously, the green LED will flash quickly, enter the setup mode.
-
Page 9: Device Configuration
(Band, Frequency and PSK). 7- Click ‘all Node Exit Setup’, then the wireless devices will exit the wireless setup mode 8- Go to the HDL Buspro setup tool’s main interface to search and add the wireless relay, then can start to configure it. -
Page 10: Channel
User Manual HDL-MPR02-RF.18 5.2 Channel 5.2.1 Channel Information Switching on delay: When receives the on command, will not switch on immediately but after the delay time. Protection delay: If a protection delay of 1 minute is set, and the relay channel is turned off, it cannot be turned on again until 1 minute later. -
Page 11: Configuration
User Manual HDL-MPR02-RF.18 5.3 Configuration This relay module has 4 dry contact inputs, they have the same functions as wired dry contact module. 5.3.1 Setting For Keys Key Enable: enable/disable the channels Panel Lock Key Enable: If be selected, can use panel to lock/unlock this channel. -
Page 12: Switch Type
User Manual HDL-MPR02-RF.18 5.3.3 Switch type Two different Switch types - Momentary and Toggle You can find two different types of switch from the market. Momentary Switch - When pressed, it is on, when released, it is off. If “ Electrical switch ” is selected for this kind of switch, a momentary effect can be produced. - Page 13 This key mode is originally designed for retrofit project where the end-users want to implement HDL wireless system, but they want to reserve the existing toggle buttons, the toggle buttons are to control one public area lighting (e.g., stair lighting) from multiple places.
-
Page 14: Unqualifiedde
User Manual HDL-MPR02-RF.18 Wiring Connect the two toggle buttons to two different dry contact channels Setting Select “Parallel switch” for both dry contact channels 5.3.4 Unqualifiedde Each channel can set the mode Switch mode: on/off control Dimmable increase: long press to dim up... -
Page 15: Dimming
User Manual HDL-MPR02-RF.18 5.3.6 Dimming Key no. : channel no./ switch no. Dimming value: Toggle- when turn on light, the brightness will go to 100% Memory- save the brightness, when turn on light, the brightness will go to last brightness before turn off 5.3.7 Target... -
Page 16: Low Limit
User Manual HDL-MPR02-RF.18 5.3.8 Low limit Set the dimming lower limit. The Lower limit is useful if you would like to skip the low level segment and dim from a certain level, say 50%. You want to skip it because maybe lower than 50% is impractical for you or maybe the load quality is not so good and trembles when at low level segment. -
Page 17: Note
User Manual HDL-MPR02-RF.18 6. Note ………………………………………………………………………………………………………. ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… Wireless Relay – User Manual...
