Summary of Contents for Gotemp THB4002
-

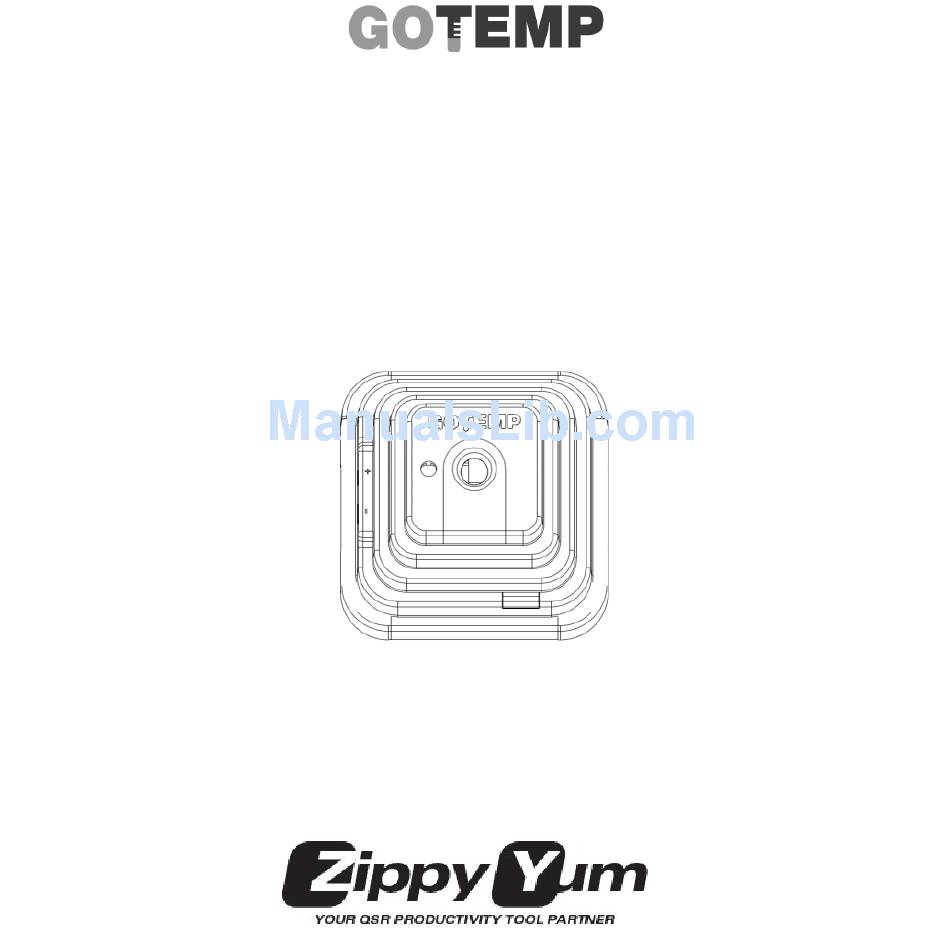

Page 1: Measuring Temperature
THB4002 GoTemp Food Infrared Thermometer With Laser Sighting And Thermocouple Jack User Guide Measuring Temperature The Smart Way Provided by... -
Page 2: Table Of Contents
Table Of Contents Description ..............3 Features ................ 4 Distance to Spot ............4 Reset ................5 Indicators............... 5 Bluetooth & Pairing ............6 Specifications ..............7 Proper Application and Operation ....... 9 Power Switch ..............11 Mounting Bracket ............11 Other Operational Considerations ....... -
Page 3: Description
GoTemp is a battery operated device and can be recharged via the standard micro USB connector from any computer or 5V charger. A K-type thermocouple connect- or is used to connect the insertion probe. -
Page 4: Features
The further away from the target, the larger is the area being measured. The ideal working range of GoTemp is between 25 mm and 300 mm (1 and 12inch- es). The laser pointer helps to indicate the measurement spot. To ensure accurate measurements, the measured spot must fill or exceed the field of view. -
Page 5: Reset
Reset To reset GoTemp, press and hold the button for 3 seconds. 5 orange blinks appear after the reset. Indicators GoTemp is equipped with two LEDs to indicate the device’s state. Please note that Amber color appears if both red and green LEDs are lit simultaneously. -
Page 6: Bluetooth & Pairing
Enough charge Green blink Bluetooth & Pairing GoTemp must be paired with smartphone before the first use. Every GoTemp device has a unique identifier printed on the back, it is known as MAC. The Mobile App will automatically connect to the... -
Page 7: Specifications
Specifications Model: THB4002 Bluetooth Power: 0dBm Operating Conditions Parameter Value -10 - 45°C (14 - 113°F) Storage Temperature 10 - 40°C (50 - 104°F) Operating Temperature 10 - 90% RH Humidity Charging Current <100mA Charging Voltage Battery Parameter Value Capacity... - Page 8 Probe Temperature Parameter Conditions Value -10 - 120°C (14 - 250°F) Measurement range Resolution 0.25°C (0.25°F) Accuracy at room Object temperature: ±1°C (2°F) temperature -10- 120°C Repeatability Within accuracy 1 second Response Time Infrared Temperature Parameter Conditions Value -10 - 120°C (14 - 250°F) Measurement range Resolution 0.1°C (0.1°F)
-
Page 9: Proper Application And Operation
AVOID STORING THE UNIT IN EXTREME TEMPERATURE CONDITIONS. DO NOT STORE INFRARED THERMOMETERS BELOW FREEZING TEMPERATURE OR WHERE THE RADIANT TEMPERATURE MAY EXCEED 48.9°C (120°F) Proper Application and Operation The IR thermometer only measures surface temperature, Use Probe For critical temperatures must be verified with an internal Internal Temper- temperature probe. - Page 10 GoTemp emissivity can be changed from 0.1 to 1.0 in 0.01 steps, refer to instruction in the mobile app to modify emissivity. GoTemp is designed to work between 10 °C and 40°C (50 - Precondition 104°F). In case a change in temperature happened like...
-
Page 11: Power Switch
Five orange blinks appear at power up. Make sure the LEDs are working, otherwise, plug charger and expect flashing orange light. Power button can be turned off if GoTemp is not used for long time, which will save battery and extend its life. -
Page 13: Other Operational Considerations
Maintenance Field Verification of Accuracy GoTemp is pre-calibrated. However, their accuracy can be verified in the field by using the following simple procedure. It is suggested that the accuracy of the in- strument be verified on a regular basis. - Page 14 Preparation: Prepare container by painting or applying the matte material to the outer sur- face. Verification Procedure: 1. Fill the aluminum container with refrigerated water, insert the temperature standard thermometer and allow the can and temperature-standard ther- mometer to come to equilibrium. 2.
-
Page 15: Cleaning Instructions
Cleaning Instructions To ensure an accurate temperature reading, the lens of the IR unit should be free of dirt, dust, moisture, fog, smoke and debris. To clean the lens, you would need two lint free cotton swabs. Moist a cotton swab and insert it in the aperture to scrub the deep lens then repeat the same using the dry cotton swab. -
Page 16: Laser Safety
Laser Safety Laser pointer in GoTemp is FDA 21 CFR 1040.10, subchapter J compliant. Please refer to laser specifications in specification section Warning! Avoid direct exposure of human eyes to laser light. Eye damage may result. Never point the laser light at another person. -
Page 17: Warranty
Warranty ZippyYum LLC warrants that this product, at the time of its sale by ZippyYum, is free of defects in material and workmanship and component failures under normal and proper use for a period of one (1) year from date of delivery and applies world- wide. -
Page 18: Certifications
Certifications GoTemp conforms to the following standards: • UL listed for UL2333 – Standard For Safety - Infrared Thermometers • UL EPH Classified for ANSI/NSF 2 – standard for • FCC CFR47 Part 15 Section 15.247:2014 • Industry Canada RSS-247 •... - Page 19 INFRARED FABRICATED FOOD RCM Cert. THERMOMETER SERVICE E481655 EQUIPMENT POC16104019 NSF/ANSI 2 SA44549 Industry Canada Industrie Canada FCC ID:2AE6ATHB4002 IC: 21861-THB4002...
-
Page 20: Fcc Compliance Statement
FCC Compliance FCC Part 15.19 Warning Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARM- FUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. -
Page 21: Ic Warning
—Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF warning statement The device has been evaluated to meet general RF exposure requirement. The device can beused in portable exposure condition without restriction. - Page 22 ZippyYum LLC 275 Centennial Way, #105, Tustin, CA 92780 Phone: +1 (888) 636-7557 Fax: +1 (866) 434-0883 www.zippyyum.com www.mangoe.com...
