Summary of Contents for Smarthome LampLinc Plus 2000SLS

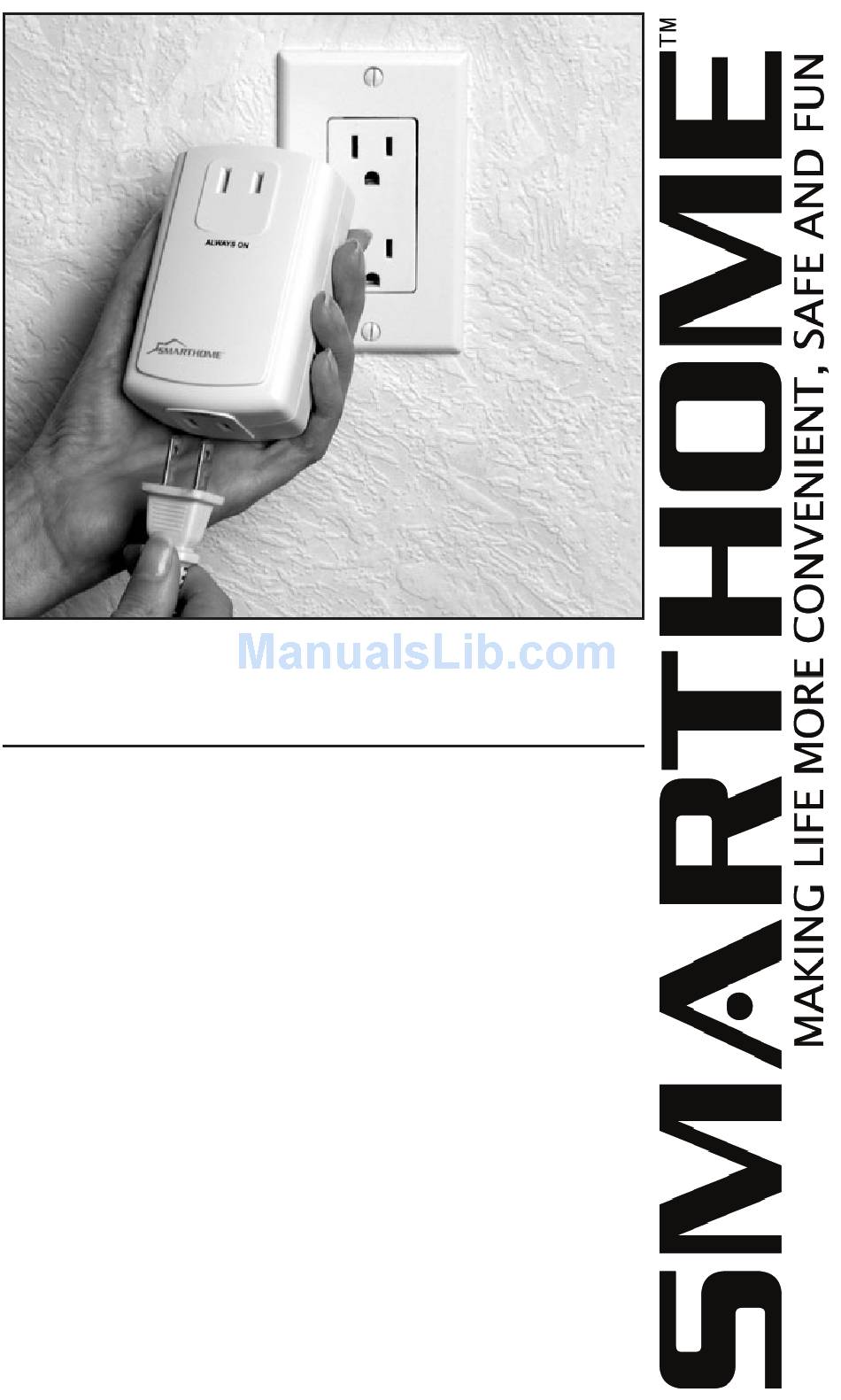

- Page 1 LampLinc Intelligent lamp modules packed with features For models: #2000SLS LampLinc Plus #2000SLS3 LampLinc Plus with ground pin #2000SHL LampLinc PLC #2000SHL3 LampLinc PLC with ground pin...
-
Page 2: Key Features
• Codes are electronically set (no code wheels) and remembered even if unplugged! • Two-year warranty Smarthome automation products have been intelligently engineered to complement the X10/PLC platform that all of our products are derived from, making it easier for you, the customer, to make changes to your home as your lifestyle changes. -
Page 3: Quick Start Instructions
Caution! Read and understand these instructions before installing. This device is intended for installation in accordance with the National Electric Code and local regulations in the United States, or the Canadian Electrical Code and local regulations in Canada. To reduce the risk of overheating and possible damage to other equipment, do not install this product to control a non-lighting load. - Page 4 Setting the Primary Address Each LampLinc requires a primary PLC address to operate. It ships from the factory with “A1” as the default address; it will also have this address after performing a fac- tory reset. Any of the 256 PLC addresses can be programmed. The LampLinc does not use flimsy code wheels or dials to set its primary address.
- Page 5 Advanced Primary Address Programming The LampLinc's Fade-On/Off rate and Default On-Level can be remotely set using a ControLinc Duo (Smarthome #4071), a Maxi-Controller (#4020) or an equivalent transmitter capable of sending Housecode and Unit Code without ON or OFF. These procedures and all the following ones will not work with a transmitter that sends the address with a command.
- Page 6 All Light On and All Units Off commands for the scene address' house code. LampLinc Plus is compatible with these other scene-enabled Smarthome products: • SwitchLinc 2-Way and Plus Dimmers •...
-
Page 7: Other Options
Removing a module from a Scene: 1. Transmit the “clear” sequence: 2. Using a controller, send the module’s primary address plus an ON or OFF. 3. Send the following command sequence: 4. Transmit the scene address (house and unit code) that is to be removed. The lamp’s light will blink indicating that the scene has been removed. - Page 8 Factory Reset (to default settings) The factory reset procedure can be used to clear the LampLinc’s memory and restore its factory default settings. This procedure will clear the unit of all scene addresses and fade-on/off rates. 1. Unplug the LampLinc from the receptacle for about 10 seconds. 2.
-
Page 9: Installation Tips
Installation Tips Due to the size of LampLinc, it will block the bottom outlet of a duplex wall receptacle if plugged into the top outlet. If possible, use the bottom outlet for the lamp module so that the other outlet is accessible for other use. For convenience, a pass through receptacle has been supplied on the lamp module so you don’t lose a receptacle. - Page 10 DO NOT defeat this safety fea- ture. If these solutions have been tried, the manual has been reviewed, and you still cannot resolve an issue you're having with the LampLinc, please call our Technical Support Dept. tech@smarthome.com at 949-221-9200 or e-mail...
- Page 11 PLC signals from being absorbed and raise the signal strength of the entire home. Smarthome has many filters that will fix the problem. An average home will need between three and five filters.
-
Page 12: Specifications
Seller's liability with respect to this product. For repair or replacement during the warranty period, call Smarthome customer service to receive an RA# (return authorization number), properly package the product (with the RA# clearly printed on the outside of the package) and send the product, along with all other required materials, to: Smarthome, Inc.
