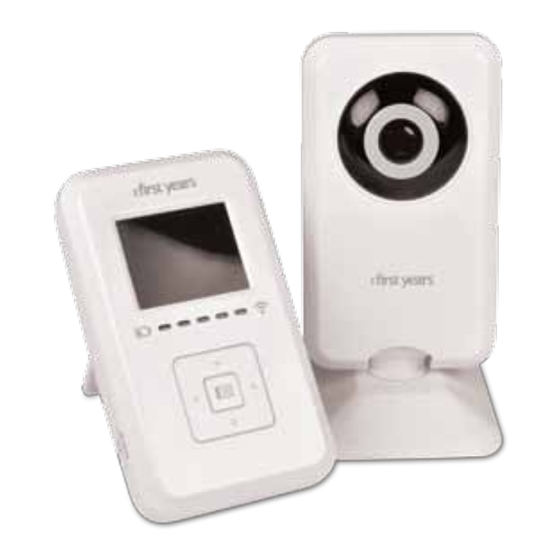

  • Page 1 Crisp & Clear View ™ Digital Video Monitor Y7500 and Y7520 Before returning this product to the store for any reason, please contact our Parent Service Center at 1-800-704-8697 Often, we can provide helpful tips and instructions to resolve your problem quickly over the phone. Check our website: www.thefirstyears.com for the most up-to-date instruction manual as well as tips and troubleshooting advice.

  • Page 2: Safety Instructions

    Crisp & Clear View™/Dual View Digital Video Monitor Safety InStructIonS this symbol is intended to warn the user of potential safety hazards. this symbol is intended to alert the user to a potential risk of electric shock and other electrical safety issues. WarnInG: • to prevent electric shock or strangling by the cord, KeeP out of cHILD’S reacH.
  • Page 3 English • follow all operating instructions. • Do not tamper with the plug under any circumstances. • Power Source – this product should be connected only to the power supply provided. • cleaning —Before cleaning, be sure to unplug. clean only as recommended in these instructions.
  • Page 4 The First Years Crisp & Clear View™ and Dual View Digital Video Monitor The First Years® Crisp & Clear View™ and Dual View Digital Video Monitor enables you to see and hear your infant from just about anywhere in your house.

  • Page 5: Table Of Contents

    English Contents Safety Instructions Parts Diagram Parent Unit Child Unit Quick Start Instructions To Set Up—Child Unit To Set Up—Parent Unit(s) To Use Display Sleep Mode Sound Activation Range Night Vision Beltclip/Stand Parent Unit Finder Feature Parent Unit Indicators and Controls Menu Choices –...

  • Page 6: Parts Diagram

    Crisp & Clear View™/Dual View Digital Video Monitor Parts Diagram Parent Unit Volume control button Power button Battery indicator Sound level indicator Connection indicator Directional pad Menu button Display screen Speaker Power jack Battery cover Belt clip/stand Front Back get ready for thefirstyears.com ™...

  • Page 7: Child Unit

    English Child Unit Microphone Power button Camera Adjustable-angle camera base Wall mount slots Power jack (not pictured) Also Included AC adapters (2) (not pictured) Front Back get ready for thefirstyears.com ™...

  • Page 8: Quick Start Instructions

    Crisp & Clear View™/Dual View Digital Video Monitor Quick Start Instructions IMPortant CHARGE BATTERY FOR 8 HOURS BEFORE INITIAL USE. For plug-in use: Connect one of the AC adapters to power jack and plug cord into wall outlet. You’ll find detailed instructions on the pages that follow. Please read the Safety and Warnings Instructions on pages 2–3.

  • Page 9: To Set Up-Child Unit

    English To Set Up —Child Unit 1. Position the Child Unit 4 to 6 feet from your child’s crib or the area you wish to view. NEVER position the unit within a child’s reach. 2. Insert the connector on the AC adapter into the jack on the back of the unit, then plug the adapter into an electrical outlet.

  • Page 10: To Set Up-Parent Unit(S)

    Crisp & Clear View™/Dual View Digital Video Monitor To Set Up – Parent Unit(s) To install and charge battery pack 1. Loosen the screw to release the battery compartment cover. Then, slide the cover off. 2. Insert the plug on the battery pack into the connector inside the battery compartment.

  • Page 11: To Use

    English To Use Child Unit Parent Unit Parent Unit (2 supplied with model Y7520) 1. Push down the power button on the Child Unit to turn on. 2. Push down the power button on the Parent Unit(s) to turn on. Connection indicator will blink, and start-up graphics will be displayed on the screen.

  • Page 12: Display Sleep Mode

    Crisp & Clear View™/Dual View Digital Video Monitor To turn the Parent Unit(s) off Hold down the power button for 2 seconds or until the power light goes out. To turn the Child Unit off Hold down the power button for 2 seconds or until the power light goes out. Tip: A loud screeching sound indicates the Parent Unit is too close to the Child Unit.

  • Page 13: Night Vision

    English workable range, walk though your house and yard to check for the volume of sounds being transmitted and the clarity of images being displayed. You can try turning the position of the Parent unit to gain the best reception. Interference Other 2.4 GHz devices, such as Cordless phones and Wireless Routers, may interfere with your Crisp &...

  • Page 14: Parent Unit Finder Feature

    Crisp & Clear View™/Dual View Digital Video Monitor The Parent Unit will beep, and continue beeping until it is found and turned off (or the batteries are exhausted). Turn Child Unit on before turning the Parent Unit back on. Note: This feature will not work if Parent Unit is turned off or has lost power due to a dead battery.

  • Page 15: Video Display

    English Volume Control [ + , - ] Press either side of the volume control button to make sounds louder (+) or softer (-). Video Display The display screen will show live images being transmitted by the Child Unit. Menu Button The button is used to select the Menu mode.

  • Page 16: Menu Choices-Your Preferences For Selected Features

    Crisp & Clear View™/Dual View Digital Video Monitor Menu Choices—Your Preferences for Selected Features You have the option of setting menu preferences for the Monitor features listed below. To review or change any preferences, press the Menu button. Use the directional pad to scroll through the available menu choices.
  • Page 17 English 1. Press the Menu button. 2. Use the top or bottom of the directional pad to scroll through the list of preferences until “Display Sleep Mode” is highlighted. 3. Press the Right button. 4. A “Display Sleep Mode Status” screen will appear. The current setting will be highlighted.

  • Page 18: Child Unit Indicators And Controls

    Crisp & Clear View™/Dual View Digital Video Monitor Front Back Child Unit Indicators and Controls Power button • Push to turn on and hold down 2 seconds to turn off. • Green glow indicates power. • No light indicates no power. Unit will not work until turned on, connected to AC adapter.

  • Page 19: Recharging/Replacing Batteries

    English Recharging/Replacing Batteries Parent Unit: If Power Indicator on the Parent Unit glows red when unit is turned on, batteries are low. If indicator does not light at all, batteries may be dead. Recharge batteries by connecting AC adapter cord to power jack and plugging it into wall outlet.
  • Page 20 Crisp & Clear View™/Dual View Digital Video Monitor WarnInG Keep batteries away from children. Parents are urged to exercise care in the storage, use and disposal of all batteries. Do not dispose of batteries in a fire. They may explode. To avoid battery leakage: • Batteries must be removed and inserted under adult supervision; •...

  • Page 21: Pairing Of Parent And Child Units

    English Pairing of Parent and Child Units The Parent Unit and Child Unit are digitally paired at the factory. This means they are digitally encrypted with the same electronic code so that they can securely communicate with each other and not be confused by the signals sent out by other electronic devices, such as cell phones or other monitors.

  • Page 22: Troubleshooting

    Crisp & Clear View™/Dual View Digital Video Monitor Troubleshooting For latest troubleshooting information, please check our website www.firstyears.com. Problem Possible Cause Solution Parent Unit(s) No power • Press power button. • Unit is not turned on. (No lights on unit) •...
  • Page 23 English Troubleshooting Problem Possible Cause Solution • Be sure Parent Unit • Units too close together. Noisy feedback is at least 3 feet (High-pitched “screech”) from Child Unit. • Lower volume. • Volume on Parent unit is too high. Parent Unit No display image or sound, •...

  • Page 24: Fcc Statement

    Crisp & Clear View™/Dual View Digital Video Monitor Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 25: Warranty

    English Warranty Our Limited Warranty and Warranty Period When we use the terms “we,” “us,” and “our,” we are referring to TOMY, and when we use the terms “you and “your,” we mean the original end-user customer. Our products are guaranteed to be free from defects in material and workmanship under normal and intended use for a period of 90 days from the date of your purchase.
