Tzonedigital_TT11 V1.5 June9, 2016
TZ-TT11
Temperature & humidity Transmitter
User Guide V1.5

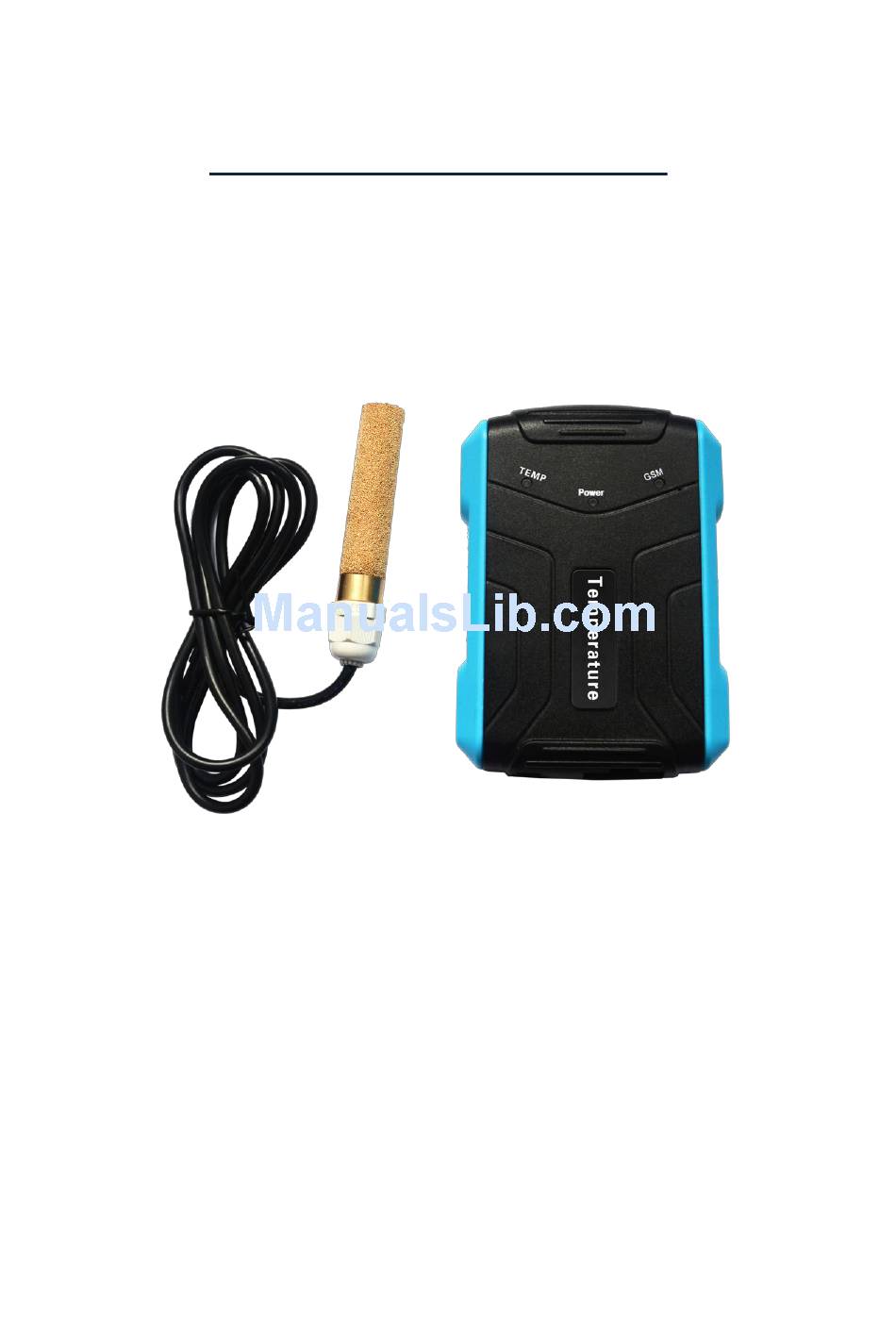

1. Product overview
Temperature Transmitter (hereafter referred as TT11) is with one digital temperature
/humidity transmitter, TT11 embedded GSM module, need to inset SIM card use,
built-in 3.7V/4500mAh rechargeable battery and can connect 5V external power for
charging. TT11 is with long standby time and only wakes up when it is
time to send data, or when the user operates it. Other than this, it is in sleep state so
can be used for a longer time to bring you more convenience.
Advertisement
Related Manuals for Tzone TZ-TT11
Summary of Contents for Tzone TZ-TT11
-
Page 1: Product Overview
Tzonedigital_TT11 V1.5 June9, 2016 TZ-TT11 Temperature & humidity Transmitter User Guide V1.5 1. Product overview Temperature Transmitter (hereafter referred as TT11) is with one digital temperature /humidity transmitter, TT11 embedded GSM module, need to inset SIM card use, built-in 3.7V/4500mAh rechargeable battery and can connect 5V external power for charging. - Page 2 Tzonedigital_TT11 V1.5 June9, 2016 Temperature Transmitter can collect high-precision temperature/humidity quickly, and then transmit to the server through GPRS. It is widely used in cold chain logistics, medicine, transportation and other industries. 2. Specification Specification Details Dimension 122mm*81mm*30.8mm Exterior Power Supply 5V (USB charge) Battery Built-in 3.7V/4500mAh Lithium battery...
- Page 3 Tzonedigital_TT11 V1.5 June9, 2016 Indicators and interface Hardware Function GSM LED(Green) A. Three LEDs Power LED(Red) Temperature LED (Blue) B. USB Port Configure the machine and charging C. Sockets Connect the digital thermometer D. SIM card Insert SIM card, send the GPRS data 4.
- Page 4 Below is a table tells more detail information about the protocol. Number Data Data block Meaning of bytes Content TZone company identifier, this is the header of every Start bits ‘T’ ‘Z’ packet The bytes length from the start at protocol number to the Packet length Variable end at the CRC.
- Page 5 Tzonedigital_TT11 V1.5 June9, 2016 Firmware version Variable 0xFF 0xFF0xFF0xFF = 255.255.255.255 BCD format, i.e. 0x08 0x66 0x10 0x40 0x26 x17 0x78 0x01 IMEI Variable = 8661040026177801 The time and date when packet the data. RCT time date Variable The sequence is Year Month Day Hour Minute Second GSM LBS’s data length excludes LBS data length part, if LBS data length Variable...
- Page 6 Tzonedigital_TT11 V1.5 June9, 2016 Bit 7 to bit 6 are reserved for future use. Bit 5: 1 Internet connection is established 0 Internet connection is not established Bit4: 1 GPRS is registered successfully 0 GPRS is not registered Bit3: 1 The GSM is in roaming mode GSM status Variable 0 The GSM is in home network mode...
- Page 7 Tzonedigital_TT11 V1.5 June9, 2016 6. Use the GPRS function Notes: You can set it via SMS or use the same command via serial port tool. Step1: Set the APN (Access Point Name) Different network of provider have the different APN at every country, if you don't know, please refer to the attachment.
- Page 8 Tzonedigital_TT11 V1.5 June9, 2016 000000,015,1,gateway.gotracking.net,54929# If you send the command by USB to device, the serial port tool will shows: CMD bytes: 2B *000000,015,1,gateway.gotracking.net,54929# ComdType:015(SETIPANDPORT) Mode:01 IP/Domain Name:gateway.gotracking.net Port:54929 Step3: Set GPRS time interval Format: *$$$$$$,018,X# X: the time interval (unit is min), For example:*000000,018,1# The device will send GPRS every1 minute and no times limit.
- Page 9 Tzonedigital_TT11 V1.5 June9, 2016 Request current machine *$$$$$$,000# The machine will reply in the form information of SMS Modify user password *$$$$$$,001,@@@@@@# $$$$$$ is old password @@@@@@ is new Password Set the high/low temperature and *$$$$$$,003,A,B,C,D,X# A=[-40~125],high-temperature humidity alarm function threshold(unit:min,default:100) B=[-40~125],low-temperature When...
- Page 10 Tzonedigital_TT11 V1.5 June9, 2016 Minute:46 Second:30 Extend setting *$$$$$$,008,ABCDEFG# A=0, Disable machine information report function which get machine information SMS by Calling A=1, Enable machine information report function which get machine information SMS by Calling(default) B=0,disable GPRS ACK function(default); B=1,enable GPRS ACK function Note: the machine once every send GPRS data to the server, the server...
- Page 11 Tzonedigital_TT11 V1.5 June9, 2016 Y, SMS number Note: only send a sms alarm when over or below the threshold, so please the first set 020 command, then set 003 command. Clear data flash *$$$$$$,500# Clear history in the flash memory Initialization *$$$$$$,990,099# It will set all parameter to factory...
