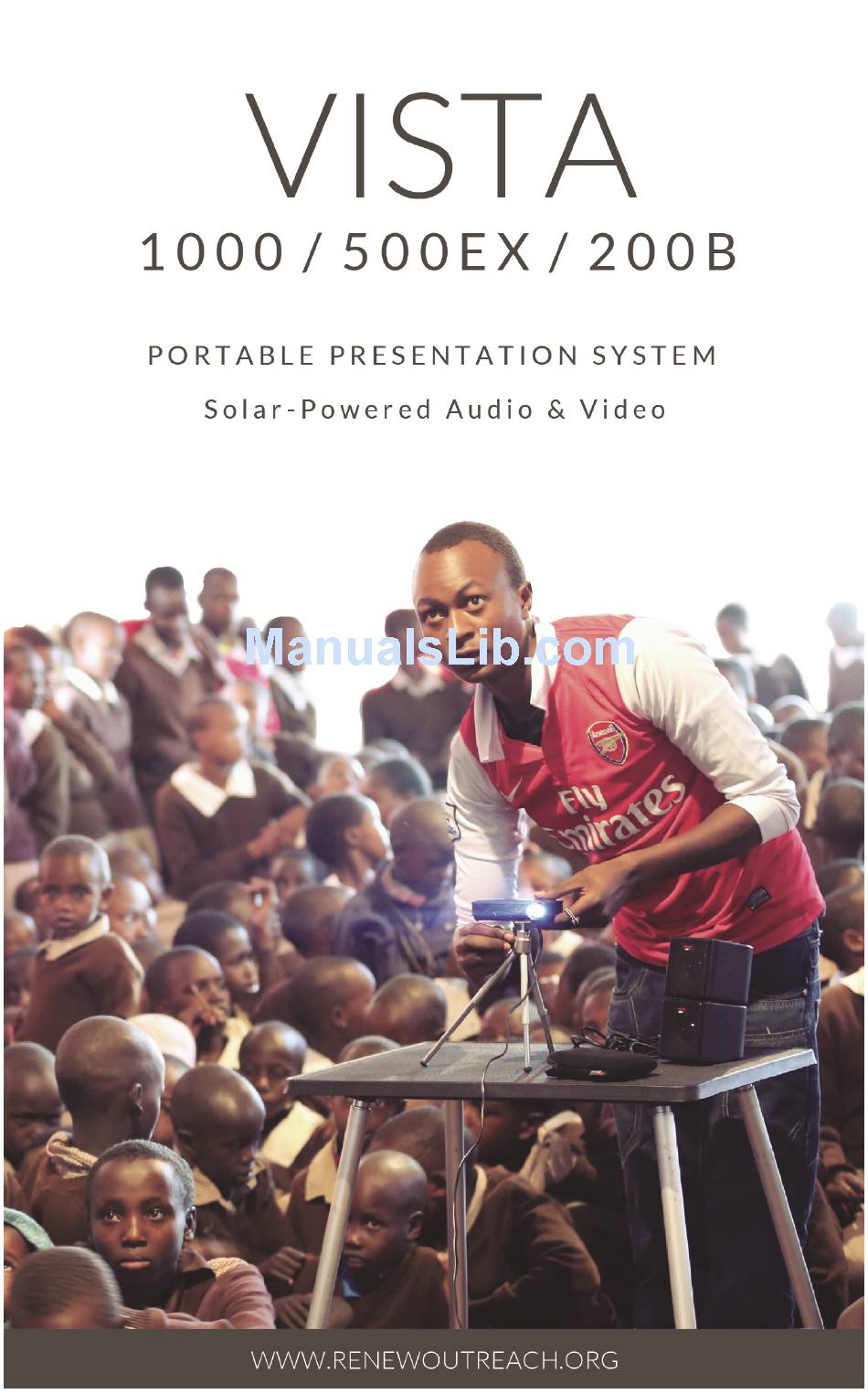

Summary of Contents for Vista 1000
- Page 2 FCC Emissions Information This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Table of Contents Introduction ................... 1 Operating the Amp ................ 2-3 Operating Projector………………………………………………………..4 Charging the Battery ................5 Packing for Transport……………………………………………………..6 Packing the Vista 1000…………………………………………………….7 Packing the Vista 500 EX………………………………………………...8 Packing the Vista 200B.……………...…………………………………...9 Technical Specifications ……………………………………………10-13 Troubleshooting ................. 14-18... -
Page 4: Introduction
500 or 1000 people! The Vista systems are capable of projecting a 92“ image in darkness from an SD card in the projector or any other audio/video player. It can be configured for showing video in small rooms or large outdoor venues exceeding 1,000 attendees. -
Page 5: Operating The Amp
Operating the Amp Refer to Vista Quick Start Directions for visual setup instructions. Power 1. Connect the blue end of the “Battery to Amp Cable” to Power Plant Battery. 2. Check that Renew Amp is powered OFF (“O” is down). -
Page 6: Operating The Amp
To reduce power consumption, turn off any devices that you are not actively using. The Vista system can also be powered from wall power by using the included Amp AC adapter and projector AC adapter. Using the Vista to play music or other media before a... -
Page 7: Operating Projector
Operating the Projector The projector’s power button is located on the side of the unit. Slide it to turn on the projector. Projector connects to the Renew Amp using the Line Out Port and DC In Port on the side of the unit. ... -
Page 8: Charging The Battery
Charging the Battery Using the AC Charger (Power Plant 150) Charging time is 4-5 hours for an empty battery; the smart charger shuts off when the battery is full. It is a good practice to leave the bat- tery charging overnight and to always have some charge on the battery for storage. -
Page 9: Packing For Transport
A red charge indicator light shows that the battery is still charging. A green charge indicator light shows a full battery or cloud cover. Packing for Transport Vista Backpack System (Vista 1000) The Backpack may be checked through as luggage at the airport. We suggest that you take out the projector and pack it in your carry-on as it is the most sensitive item in the package. -
Page 10: Packing The Vista 1000
Packing Vista 1000 with Marine + Horn Speaker Flashlight + Mics Amp AC Adapter Battery + Battery Charger Projector + Projector/Amp Cables Speaker, Mic + Solar Cables Horn Speaker Area Light Screen, Poles and Tripod Solar Panel Place tripod shelf on... -
Page 11: Packing The Vista 500 Ex
The Backpack may be checked through as luggage at the air- port. We suggest that you take out the projector and pack it in your carry-on as it is the most sensitive item in the package. Packing the Vista 500 Solar Panel Flashlight... -
Page 12: Packing The Vista 200B
The Backpack may be checked through as luggage at the air- port. We suggest that you take out the projector and pack it in your carry-on as it is the most sensitive item in the package. Packing the Vista 200 Solar Panel + Cable Additional... -
Page 13: Technical Specifications
Technical Specifications Solar Panel (30W) Nominal 30W output (cloudless day, direct sunlight) Operating Voltage = 28V Protect from extreme cold (freezing) Use extreme care in fold- ing/unfolding the solar panel if air temperatures are below 45° F (7° C) to prevent damage. Solar Panel (20W): ... - Page 14 Brightness: 300 lumens in bright mode Screen size: 120+” maximum Resolution: 1280 x 720 (16:9) native Contrast Ratio: 1000:1 Dimensions: 4.5” x 4.1” x “1.8” Weight: 0.9 lbs Input/Outputs: HDMI, miniVGA, Composite A/V, 3.5mm Stereo Headphone, USB-A ...
- Page 15 Technical Specifications Power Plant 150 Battery: Li Polymer battery pack Ratings: 14.8V, 150 WH UN T1-T8 approved for air transport Battery Life: 70% capacity @ 500 charge/discharge cycles Exposure to 120° F (49° C) or above will shorten battery life ...
-
Page 16: Technical Specifications
Technical Specifications Battery Storage: Before storage: Batteries need to be stored with a partial charge. Leaving the batteries in storage for extended periods with little to no charge will damage them. Charge the battery to 3-4 of the 4 blue power gauge LED’s before storing them. -
Page 17: Troubleshooting
Battery capacity is also affected by air temperature. Do not al- low your Vista battery to be heated directly by the sun at any time. Your battery should be kept room temperature while charging. -
Page 18: Troubleshooting
Power the Vista with your AC power adapter. The Power Plant 150 battery may also be charged separately using the AC Charger while the Vista is running from the AC Adapter. Battery charger flashes alternating red & green blinking red ... - Page 19 Check volume level on Amp and set to maximum volume. Check that all speakers are connected. Vista is available with a variety of speakers such as: - Marine speakers, which are intended for large groups inside or outside.
