JASTEC Car-Doctor Operating Manual

Wireless automotive scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual

Advertisement

Table of Contents
loading

Summary of Contents for JASTEC Car-Doctor

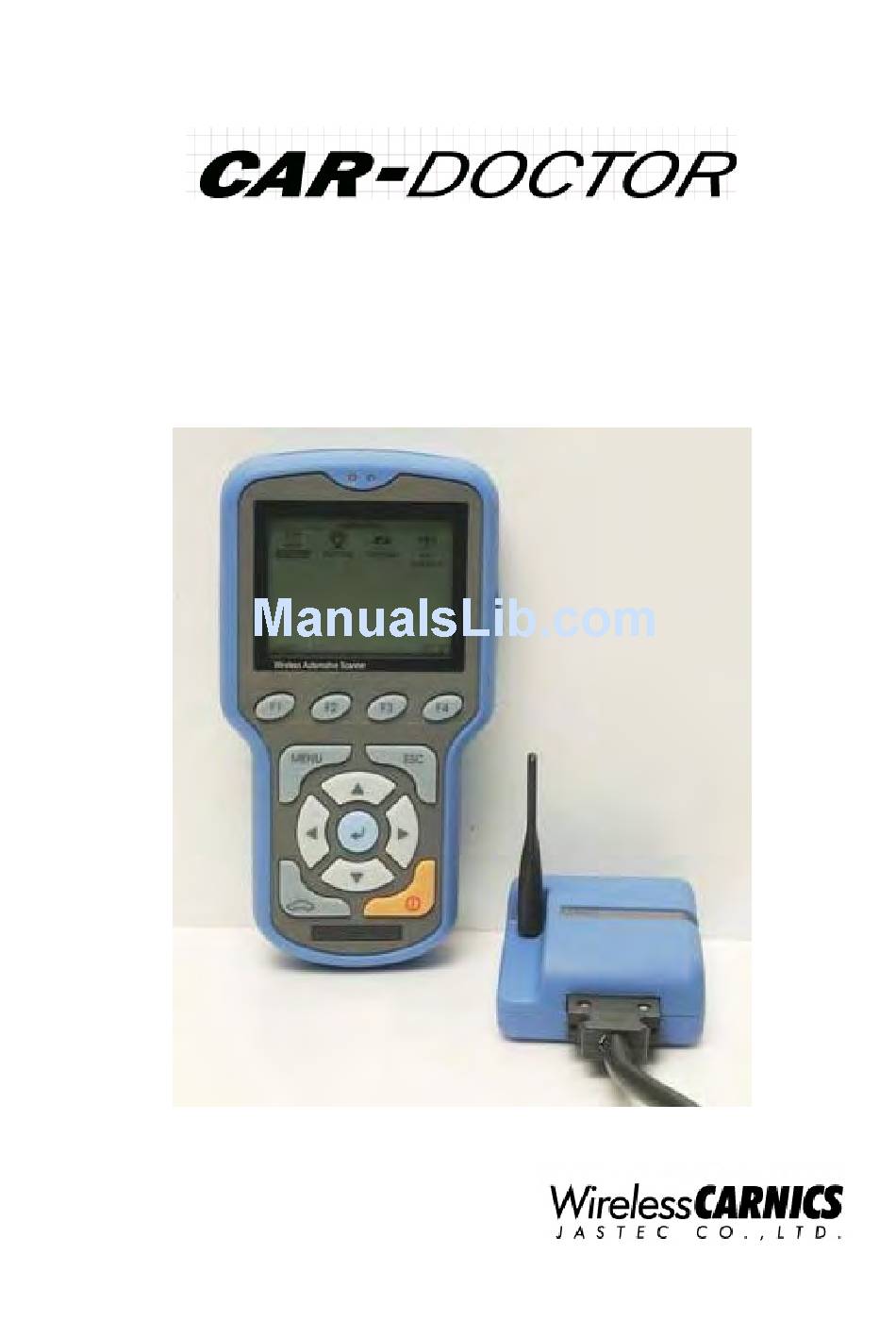

  • Page 1 Operating Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT NOTICE..…………………………………………………. I. OUTLINE ……………………………………………….………………. 1. COMPONENTS…………………………………………………………………… 1.1 Components Table……………………………………………….…………………. 1.2 Connection System ………………………………………………………………… 2. FEATURES & FUNCIONS……………………………………………………. 2.1 Features ………………………………………………………………………………… 2.2 Functions ……………………………………………………………………………… 3. SPECIFICATION………………………………………………………………. 3.1 Main Body………………………………………………………………………………… 3.2 Wireless Diagnostic Module……………………………………………………. 3.3 Environmental Features…………………………………………………………… 4. MAIN BODY………………………………………………………………………. 4.1 External Shape……………….………………………………………………………...
  • Page 3 9.1 Installation and Removal …………………………………………… 9.2 Program Card………………………………………………….... II. HOW TO USE……………………………………………………………. 1. POWER ON/OFF…………………………………………………………………. 2. MENU…………………………………………………………………………………. 2.1 MAIN MENU ….……….…………….……….…………………………………………. 2.2 SYSTEM MENU….……….………. …………………………………………………… 2.3 PRINT….……….……………………………………………………………………………. 2.4 DOWNLOAD….……….… …………………….…………………….………………. 2.5 QUICK START….……….……………………………………………………………… 2.6 POWER….……….…………………………………………………….………………... 2.7 Tool Info.…………………………………………………………………………….….. 3. MAIN MENU(DIAGNOSIS)………………………………………………… 3.1 Car Selection……………………………………………………………..…………….
  • Page 4 Doctor. The Car-Doctor uses a wireless communication system that enables easy and convenient diagnosis and repair of vehicle defects. Please carefully read this manual before using the Car-Doctor to ensure getting the utmost efficiency with the diagnostic system and to shorten the maintenance hours.

  • Page 5: Important Notice

    IMPORTANT NOTICE Please read and follow the following warnings and precautions for the safe and effective use of the Car-Doctor. Any defect or damage caused by misuse of the product cannot be covered by the warranty for free A/S. WARNING! 1.
  • Page 6 FCC NOTICE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This devices may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules.

  • Page 7: Outline

    I. OUTLINE 12Mbps 2.4GHz Wireless Communication Wireless Module Diagnostic Wireless Communication Automotive Scanner [Picture I-1. Outline]...

  • Page 8: Components

    1. COMPONENTS [Picture I-2. Components]...

  • Page 9: Components Table

    Components Table Component Name Component No. 068-M3012 Operating Manual MJJ-CR6-E0001 Main Body 068-E0001 Program Card (built into the main body) JXD-128 Rechargeable Battery (main) JBT-01 Program Card Case OBD-II 16P Adaptor CB-96-0063 GM Daewoo 12P Adaptor CB-96-0061 Ssangyong OBD-II 16P Adaptor CB-96-0063S Kia 20P Adaptor CB-96-0064...

  • Page 10: Connection System

    Benz 38P Adaptor(Optional) 068-E0004 ※ Diagnostic adaptors and cables of No. 7 and 16 may vary depending on product type. 1. 2 Connection System [Picture I-3. Car-Doctor System]...

  • Page 11: Features

    1) Wireless Communication System Through the high-speed data transmission function and the application of highly stable wireless system, the Car-Doctor can diagnose a car in close range while moving. 2) 32-BIT High-performance CPU The 32-BIT high-speed CPU enables faster and more accurate processing of data, and to have various itemized data that are helpful in identifying source in defects diagnosis.

  • Page 12: Functions

    Handy-type design, high-resolution and easy-to-use LCD that is small and light, with soft-touch key pad and large buttons for easy usage. 2.2 Function 1) MAIN MENU: Car Diagnosis Checkup Function Defect Diagnosis and Data Check Engine, automatic transmission, ABS, airbag, suspension, traxion, air-conditioner Removal of Defects Data Analysis and Storage Graph Function (Line/Bar Graph)
  • Page 13 3.1 Main Body Dark gray and blue, Dual injection Case Interior: ABS material; Exterior : Urethane Monochrome graphic LCD (Resolution: 320 × 240) Display Power LED (Red/Green), Communication LED (Red/Green ) Material: Rubber Key Pad Function Keys: 4; Operation Keys: 4; Direction Keys: 4; Power Key: 1 32-Bit High Performance CPU Main CPU...
  • Page 14 3.2 Wireless Diagnostic Module Dark gray and blue, Dual injection Case Interior: ABS material; Exterior : Urethane Display Power LED (Red/Green), Communication LED (Red/Green ) Frequency : sharing 2.4-GHz frequency band Wireless Speed: 125 K–1 Mbps Communication Ultra-sensitive Built-in Antenna , 90˚ rotation 26 PIN Input/Output Terminal (power input, communication input/output ) Vehicle...

  • Page 15: Main Body

    4. Main Body 4.1 External Shape ① LCD Screen ⑤ RS-232 Port ⑧Main Body Support ② Key Pad ⑥ USB Port Rechargeable Battery ⑨ ⑦ Program Card Slot Status LED Display ③ ④ Power Connector [Picture I-4. External Shape]...

  • Page 16: Key Pad Components

    4.2 Key Pad Components MENU ▲ ◀ ▶ ▼ DIAG ① Function Key F1,F2,F3, F4 ④ Direction Key ⑦ Power Key PWR ② MENU Key ⑤ ENTER Key ENT ③ ESC Key ⑥ Diagnosis Key DIAG [Picture I-5. Key Pad] 4.3 Key Function...

  • Page 17: Status Led Display

    Component Function Four function keys are located on right below the LCD screen. Because the functions vary according to each mode, the mechanic can select the desired item and display it at each mode. Function Key Function Key Operation for Car Diagnosis and Checkup - F1 (Item Fixing): Fixing the item the cursor selected F1, F2, F3, F4 - F2 (Item Cancel): Canceling the fixed item...
  • Page 18 ① PWR: Power LED ② COM: Communication LED [Picture I-6. LED Display] 4.4.1 PWR LED: Upper Left Displays the current status of power and battery No Lighting Normal state Red Lighting Charging state Power ON Green Lighting Indicates proper charging state Indicates battery fully...

  • Page 19: External Shape & Connection

    5.1 External Shape & Connection ① Status LED Display ③ Main Connector (26 PIN) ⑤ Car Adaptor ② Antenna ④ Main Cable (26–19 PIN) [Picture I-7. Wireless Module] Connection Sequence ① Connect main cable 26-pin connector to the main connector (put it to full until it is clicked).

  • Page 20: Status Led Display

    5.2 Status LED Display ① PWR: Power LED ② COM: Communication LED [Picture I-8. Status LED Display] 5.2.1 PWR LED: Red LED Display the current power state. If the power is turned on, the red light comes on. 5.2.2 COM LED: Upper Right Display the current vehicle communication status.(Communication Status between Wireless Module and Vehicle) •...
  • Page 21 ① Cigar Lighter Cable ② Main Cable ③ Car Adaptor [Picture I-9. Vehicle Connection] Picture 1-9 shows how to connect the Car-Doctor to the diagnostic connector of the vehicle. Connect cable to the diagnostic connector of vehicle KEY-ON vehicle or start the vehicle...

  • Page 22: Cigar Lighter Power Supply

    5.4 Cigar Lighter Power Supply ① Main Cable ② Cigar Lighter Cable DC Jack [Picture I-10. Cigar Lighter Power Connection] The wireless module receives the battery power of the vehicle through the main cable. However, power may not output through the diagnostic connector in some vehicles.

  • Page 23: Ac/Dc Power Adaptor

    ② USB Cable ③ USB-A Connector [Picture I-11. Computer Connection] The Car-Doctor supports the communication with the computer with its expanded function. Connection Method Insert the B connector of the cable into the USB connector on the upper side of the main body.
  • Page 24 ① Power Supply Jack ② AC/DC Power Adaptor ③ AC Power Plug [Picture I-12. AC/DC Power Adaptor] AC/DC power adaptor is used for charging and external power supply. Input: AC 100 230V, 50/60Hz – Output: DC 12V/1.2A CAUTION! Please use only the AC/DC power adaptor provided with the device. Unauthorized products may seriously damage the equipment.

  • Page 25: Rechargeable Battery

    8. RECHARGEABLE BATTERY 8.1 Insertion and Removal ① Lock Lever ③ Charger ② Rechargeable Battery ④ PWR LED [Picture I-13. Battery Insertion/Removal] Removal: Push up the lock lever on the back of the main body as seen in the above picture, then slightly pull the upper part of the battery. Charging: Insert the battery as seen in the above picture to begin charging.

  • Page 26: Charging

    AC/DC Power Adaptor DC Jack ① [Picture I-14. Power Connection for Charging] The Car-Doctor can be also charged in its main body. In addition, it can be charged with the provided charger and back-up battery. Charging Method Supply power by connecting AC/DC power adaptor.

  • Page 27: Li-Ion Rechargeable Battery

    (prevents from overheating and explosion). 8.3 Li-ion Rechargeable Battery 8.3.1 Specifications Car-Doctor uses Li-ion rechargeable battery (The Li-ion battery is of good quality and its expected lifespan is much longer than existing Ni-Cd or Ni-Mh batteries). Final Charge Voltage: 8.0–8.4 [V], 1700 [mAH]...

  • Page 28: Program Card

    9. PROGRAM CARD 9.1 Installation and Removal ① Program Card ② Card Protection Cover ③ Card Connector [Picture I-15. Program Card Installation] Program Card Removal After turning off the power, open the card protection cover downwards and pull out the end of the program card inserted in connector.

  • Page 29: Program Card

    Note: Data Back-up If there's stored data, transmit and save the data to the computer (by uploading through USB), and replace the program card. 9.2 Program Card The program card has built-in flash memory. With the high capacity of basic 128 MB, one card is enough for the diagnosis and data storage.

  • Page 30: How To Use

    Turning on the device boots up the Car-Doctor. Boot Screen During boot up of the OS…. During boot up of application…. During boot up of database…. It takes approximately 50-60 seconds to complete the boot up. Do not turn off or operate the Car-Doctor during boot up.
  • Page 31 ) key to turn off the power. Selecting “LCD OFF” turns off the LCD by the power-saving function. The power- saving function enables longer use of the Car-Doctor. If you want to use it again, just press any key to turn on the LCD.

  • Page 32: Menu

    2. MENU How to Select: Press the Menu key, and the menu item will pop up in a box on the lower left. Picture 2.1 [Menu Screen] The menu item appears by pressing the MENU on the key pad. This menu item includes: 1.

  • Page 33: Main Menu

    2.1 MAIN MENU Select MAIN MENU. Picture 2.2 [The screen after selecting Main Menu] The MAIN MENU shows car makers that the user may choose corresponding to the vehicle to diagnose. Press the Enter key ( ) after selecting MAIN MENU to go to the screen of car maker selection.

  • Page 34: System Menu

    Select SYSTEM MENU. Picture 2.3 [SYSTEM Setup Screen] The system-related mode of the Car-Doctor gives the information on the equipment of the main body and memory capacity. With this mode, one can check and adjust settings for brightness/contrast, clock, battery info, LCD test, buzzer, and RF test.

  • Page 35: Quick Start

    QUICK START allows the user to save the item that was recently diagnosed. The Car-Doctor should be used at least once to use QUICK START. The Car-Doctor saves the last diagnosed item, and QUICK START enables to directly run the saved item.

  • Page 36: Power

    2.6 POWER Select POWER. Picture 2.5 [Power Key Screen] By selecting POWER, it shows the LCD OFF, POWER OFF, and CANCEL items. LCD turns off when chose LCD OFF menu. To switch on the LCD, just press the Enter key ( ). To turn off the main body, select the POWER OFF Key.

  • Page 37: Tool Info

    How to Select: Press the Menu key, and select TOOL INFO. Picture 2.6 [TOOL INFO screen] The TOOL INFO displays the Car-Doctor-related information on equipment, version, and DB, etc. This item can also be accessed by selecting the TOOL Info...

  • Page 38: Main Menu(Diagnosis)

    [Car Maker Selection] Picture 3.1 [Maker Menu Screen] When the user runs the Car-Doctor, the first screen that appears is the car maker menu. In this screen, press Enter key ( ) after selecting the maker of the car the user wants to diagnose.
  • Page 39 [Car Selection] Picture 3.2 [Vehicle Selection Screen] This screen displays the list of different car models under a particular car maker. After selecting a car to be diagnosed, please press the Enter key ( ). The diagnosable systems of the selected car will be displayed in the next screen [TRANSFER] Select car model (using the up/down and left/right arrows) →...
  • Page 40 [System Selection] Picture 3.3 [Diagnosis Items] The above screen lists the diagnosable systems of the selected car. Select the system you want to diagnose, and press the Enter key ( ). [TRANSFER] Select system (using the up/down and left/right arrows) → Press Enter key ( ) [NEXT: ] Detailed Item Selection...
  • Page 41 [Detailed Item Selection] Picture 3.4 [Detailed Item Selection] The above screen shows the detailed items of car. After selecting one of the items to be diagnosed, please press the Enter key ( ). [TRANSFER] Select item (using the up/down and left/right arrows) → Press Enter key ( ) [NEXT: ] Diagnosable Item Selection...
  • Page 42 [Diagnosable Item Selection] Picture 3.5 [Diagnosis Item on Engine Type 2.0] The above screen shows the items that can be diagnosed. [TRANSFER] Select item (using the up/down and left/right arrows) → Press Enter key ( ) [PREVIOUS: ESC] System Selection...

  • Page 43: Self-Diagnosis

    3.2 Self-Diagnosis [Car Maker Selection] → [Car Selection] → [System Selection] → [Detailed Item Selection] → [Diagnosable Item Selection] → [1. Self- Diagnosis Selection] Selecting a detailed item in picture 3.4 displays the diagnosable items, as seen in picture 3.5. Select Self-Diagnosis item among the diagnosable items. [Self-Diagnosis] Picture 3.6 [Diagnosis Code Output Screen] In case an error occurs with the selected ECM, the fault code is displayed in the...

  • Page 44: Service Data

    3.2 Service Data [Car Maker Selection] → [Car Selection] → [System Selection] → [Detailed Item Selection] → [Diagnosable Item Selection] → [2. Service Data Selection] Selecting the detailed item in picture 3.4 shows the diagnosable items as seen in picture 3.5. Select Service Data item among the diagnosable items. [Service Data] Picture 3.7 [Sensor Data Output Screen] Picture 3.7 is the output screen on the service data.

  • Page 45: How To Use The Actuator Mode

    3.5. Select Actuator item among the diagnosable items. Picture 3.8 [Actuator Items] This is the mode to forcibly start and stop the actuator using the Car-Doctor. Selecting the actuator function displays the actuator items that can be forcibly started or stopped. Select the desired item, and press the Enter key ( ).
  • Page 46 Picture 3.9 [Actuator Start/Stop] Change the vehicle status into the status specified in the test conditions before the actuator test. In case there’s test time, press the F1 START button, and the actuator will be operated during the test time and will automatically stop. In case there’s no test time, press the F1 START button to begin the test, and press F2 STOP to finish the test.

  • Page 47: Ecu Id Check

    3.4 ECU ID Check [Car Maker Selection] → [Car Selection] → [System Selection] → [Detailed Item Selection] → [Diagnosable Item Selection] → [4. ECU ID Check Selection] Selecting the detailed item in picture 3.4 shows the diagnosable items as seen in picture 3.5.

  • Page 48: System Menu

    4. SYSTEM MENU 4.1 LCD Brightness Control & Save Mode Time Setting Select contrast icon on the SYSTEM MENU. Picture 4.1 [LCD Brightness Control Screen] 4.1.1 LCD Brightness Control Follow the succeeding instructions to adjust the LCD brightness of the Car- Doctor.
  • Page 49 Select the clock icon on the SYSTEM MENU. Picture 4.2 [Clock Setting Screen] The time should be set the first time the Car-Doctor is used. Setting the time is done as follows; Left/Right ( ) Key: Allows the selection of year, month, day, hour, minute, and second.

  • Page 50: Buzzer Setting

    4.3 Buzzer Setting Select the Buzzer icon on the SYSTEM MENU. Picture 4.3 [Buzzer Setting Screen] Car-Doctor can set the sounds when you press keys. This is the way to set the buzzer. Left/Right ( , ) Key: Sets the volume of the buzzer.

  • Page 51: Lcd Test

    Select the LCD Test icon on the SYSTEM MENU Picture 4.4 [LCD TEST Screen] The Car-Doctor can check whether the LCD has Dot Defect through the LCD Test. As seen in picture 4.4, the screen is reversed every second, during which the user must check for any pixel defect.

  • Page 52: Memory Information

    Select Memory icon on the SYSTEM MENU Picture 4.5 [Memory Information Screen] The Car-Doctor shows the internal memory capacity of the equipment, the memory capacity, and the used capacity of the program card. Picture 4.5 shows the information on memory capacity and used capacity of the equipment in the upper menu.

  • Page 53: Key Test

    4.6 KEY TEST Select KEY PAD icon on the SYSTEM MENU. Picture 4.6 [KEY PAD Screen] To check whether there’s any problem in keys, press any key. Then the key you pressed will be reserved to check the problem. To return to the previous item, select the ESC key. To return to the System Menu after checking KEY PAD, press the ESC key twice.

  • Page 54: Battery Voltage Information

    4.7 Battery Voltage Information Select Battery icon on the SYSTEM MENU. Picture 4.7 [Battery Voltage Info Screen] The upper graph indicates the current battery voltage. In case the battery voltage is low, please recharge. The lower graph indicates the DC input voltage (external power). To return to the previous item, select the ESC key.

  • Page 55: Rf-Test

    4.8 RF-TEST Select RF-TEST icon on the SYSTEM MENU to access the TEST screen. The following shows the way to connect. 4.8.1 How to Connect ① Self-Test Adaptor AC/DC Power Adaptor DC Jack ② [Picture 4.16 Self-Test Adaptor Connection] ① Connect the main cable and the Self-Test adaptor to the wireless module. ②...
  • Page 56 4.8.2 RF TEST Screen Picture 4.8 [TEST Screen] RF Test checks the status of communication between the main body and the wireless module, whether the wireless module has any defect or not. (Checking the communication circuit of the wireless module) ①...

  • Page 57: Update

    4.9 UPDATE Select the Update icon on the SYSTEM MENU. Update is used when Car-Doctor adds a new car or upgrades applications. It is also used in updating the firmware of the wireless module. For further details, see the provided manual.

  • Page 58: Appendix

    III. APPENDIX 1. Types of Car Adaptors (Diagnostic Connector)………………… 2. PC Program (Dr. Sync) Operating Manual…………………………...
  • Page 59 Types of Car Adaptors (Diagnostic Connectors) PART NO. SHAPE FUNCTION OBD-II 16 Pin Adaptor Enables diagnosis of vehicles by connecting to the diagnostic CB-96-0063 connector of OBD-II vehicle. Daewoo 12 Pin Adaptor Enables diagnosis of vehicles by connecting to the 16 pin CB-96-0061 diagnostic connector...
  • Page 60 Samsung Adaptor (14 Pin) Enables diagnosis of vehicles by connecting to the 14 pin CB-97-0046 diagnostic connector of general vehicle types. Hyundai Adaptor (12 Pin) Enables diagnosis of vehicles by connecting to the 12 pin CB-96-0065 diagnostic connector of general vehicle types.
  • Page 61 Honda 3P Enables diagnosis of vehicles by connecting to the 3 pin 068-M1002 diagnostic connector of general vehicle types Enables diagnosis of vehicles BMW 20P by connecting to the 3 pin 068-M1003 diagnostic connector of general vehicle types Enables diagnosis of vehicles by connecting to the 3 pin Benz 3P 068-M1005...
  • Page 62 Operating Manual Edition published in February 2006 Author: JASTEC CO., LTD. Publisher: JASTEC CO., LTD. Editing/Printing: JASTEC CO., LTD. Registration No.: Registration Date: February 2006 92-7, Geumgok-dong, Bundang, Seongnam-si, Gyeonggi-do, South Korea TEL: +82 31 719 5170, 2747 (DIRECT) FAX: +82 31 719 5177 All rights reserved.
