VectorQuads VTC250 Assembly Manual

Tricopter
Hide thumbs

Advertisement

Quick Links

Download this manual
V
E C TO R
VTC250 ASSEMBLY MANUAL
Q
UA D S
Product ID.
Ver.
: VTC250
: 1.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the VTC250 and is the answer not in the manual?

Questions and answers

Summary of Contents for VectorQuads VTC250

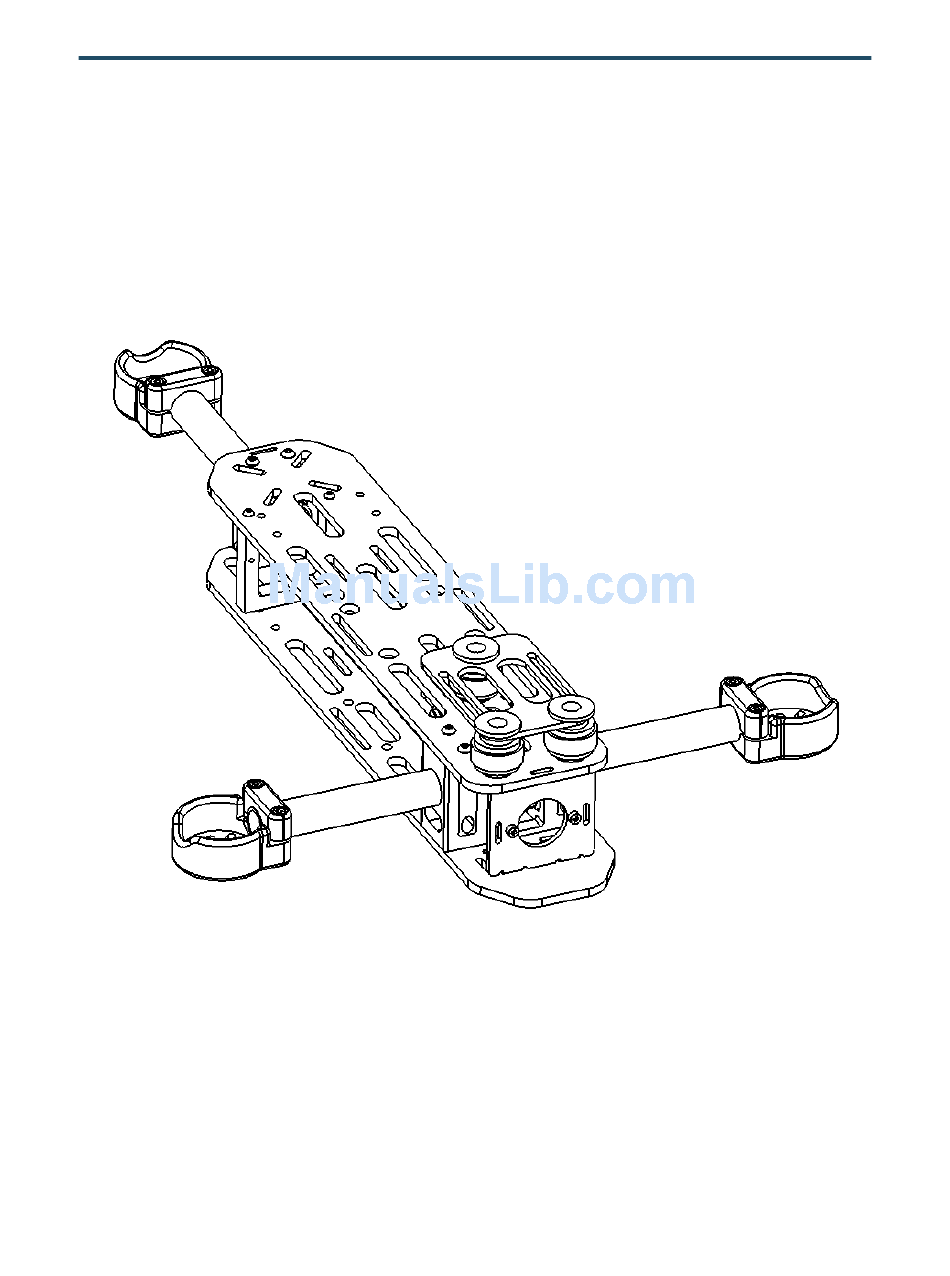

  • Page 1 E C TO R UA D S VTC250 ASSEMBLY MANUAL Product ID. : VTC250 Ver. : 1.00...

  • Page 2: Parts List

    UA D S Introduction The VTC250 tricopter features a simple tilting rotor design allowing level forward flight. In addition to the supplied hex keys, you will need a Phillips screw driver during this build. It is recommended you use blue loctite (or equivalent product) on all screws inserted into metal parts only. Do not use any thread locking substances on any of the plastic parts.
  • Page 3 E C TO R UA D S Vibration Dampening Rubber Ball Motor Mount Motor Mount Clamp Servo Mount Frame Tube Clamp Tail Tube Pivot Block Tube Pivot Block Base Plate Top Plate HD Camera Plate FPV Camera Plate 12mm Tail Tube 12mm Tube...
  • Page 4 E C TO R UA D S Pivot Tube Assembly 1. Slide the Alloy Steel Dowel Pin M2x16 onto the Rod End. Insert the Alloy Steel Dowel Pin M2x16 into the holes on the Tube Clamps as shown. 2. Position the Tube Clamp assembly within the Tube Pivot Block and push the 12mm Tube through the holes using a twisting motion.
  • Page 5 E C TO R UA D S 4. Make sure the rod ends are pointing towards the center of the base plate and the cutout on the tubes on the opposite side towards the ends. Mount the tube assembly onto the Base Plate using four Button Head Socket Cap Screw M2.5x0.45x8 on the same side as the countersunk holes.
  • Page 6 E C TO R UA D S 6. Mount the Servo Mount Frame onto the 7. Mount the tail Servo Mount Frame onto base plate using two Flat Head Phillips the base plate using two Pan Head Screw 9mm Length. Do not over tighten Phillips Screw 9mm Length.
  • Page 7 E C TO R UA D S 9. Using a suitable servo controller, center the servo spline. Push the servo horn onto the spline and secure in place using the M3 screw supplied with your servo. 10. Slide the Short Push Rod through the Servo 11.
  • Page 8 E C TO R UA D S 13. Using a suitable servo controller, center the tail servo spline. Align the flat surface on the Servo Tube Hub to the Base Plate and push onto the spline. Secure in place using the M3 screw supplied with your servo.
  • Page 9 E C TO R UA D S 16. Install the Vibration Dampening Rubber Balls and HD Camera Plate onto the Top Plate noting the location of the countersunk holes. Prepare the FPV Camera Plate at this time as well. 17. Mount the top plate and FPV camera plate 18.

  • Page 10: Mechanical Specifications

    E C TO R UA D S Mechanical Specifications Empty Weight (excluding servo): 193g Length: 334mm Width: 232mm Height: 54mm Tilt Rotor Angle: +50º / -40º Tail Rotor Angle: +45º / -45º...
