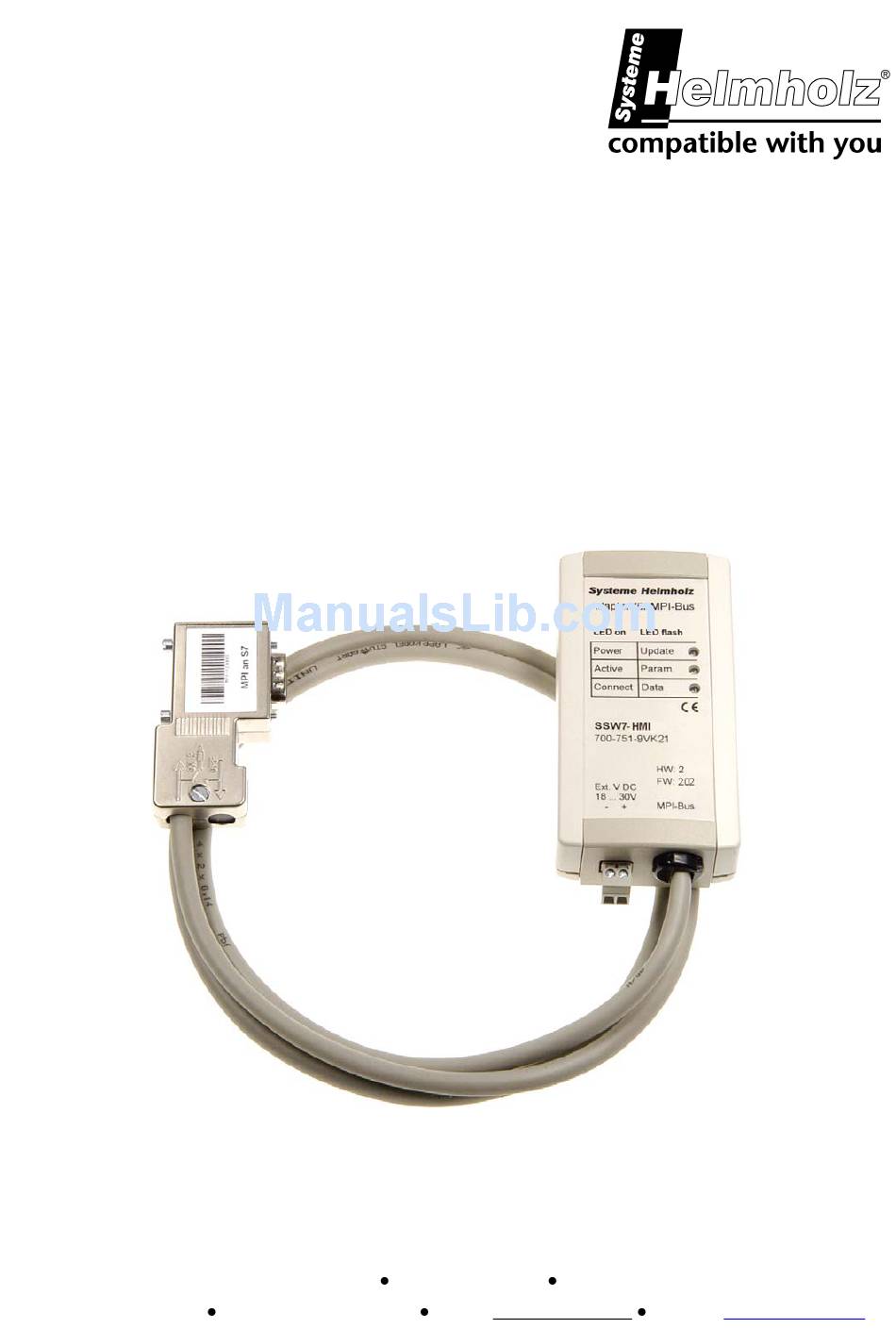

SSW7-HMI
Adapter for MPI Bus with HMI Protocol
700-751-9VK21
User Manual
Version: 4 / 20.03.2009
HW 1 / FW 2.02 and later
Order number of manual: 900-751-9VK21/en
Systeme Helmholz GmbH
Hannberger Weg 2
D-91091 Großenseebach
Phone: +49 9135 7380-0
Fax: +49 9135 7380-110
E-Mail: info@helmholz.de
Internet:
www.helmholz.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSW7-HMI and is the answer not in the manual?

Questions and answers

Summary of Contents for Systeme Helmholz SSW7-HMI

  • Page 1 Adapter for MPI Bus with HMI Protocol 700-751-9VK21 User Manual Version: 4 / 20.03.2009 HW 1 / FW 2.02 and later Order number of manual: 900-751-9VK21/en Systeme Helmholz GmbH Hannberger Weg 2 D-91091 Großenseebach Phone: +49 9135 7380-0 Fax: +49 9135 7380-110 E-Mail: info@helmholz.de Internet: www.helmholz.de...
  • Page 3 (photocopy, microfilm, or other method) without the express written permission of Systeme Helmholz GmbH, not even for use as training material, or using electronic systems. All rights reserved in the case of a patent grant or registration of a utility model or design.
  • Page 4 When extending the MPI bus, please follow the relevant configuring guidelines as defined in the documentation of your PLC. The SSW7-HMI and the extension cable do not contain any terminating resistors. A standard rail bracket (700-751-HSH01) is available for the SSW7- HMI.
  • Page 5 LED displays The three LEDs on the top of the device provide you with information about the operating status of the SSW7-HMI. You can use them to locate sources of error quickly. The LEDs have three different states: Off, on, blinking. If the LED is off, none of the labeled states applies.
  • Page 6 Technical data Order number SSW7-HMI 700-751-9VK21 Dimensions 105 x 53 x 29 mm (LxWxH) Weight Approx. 180g (incl. MPI cable & connector) MPI interface Type: RS485, electr. isolated Transmission rate: 19.2 kbit/s or 187.5 kbit/s Cable: 1.2m, no terminating resistors...

  • Page 7: Pin Assignment

    Pin assignment SUBD connector PC SUBD connector MPI n.c. M24V DATA.B RTS AS 0V (M5V) +24V DATA.A RTS PG Connecting cable MPI-Extension cable (700-751-6VKx1): PC to SSW7-HMI (700-751-7VKx1): SSW7-HMI Page: 7...
