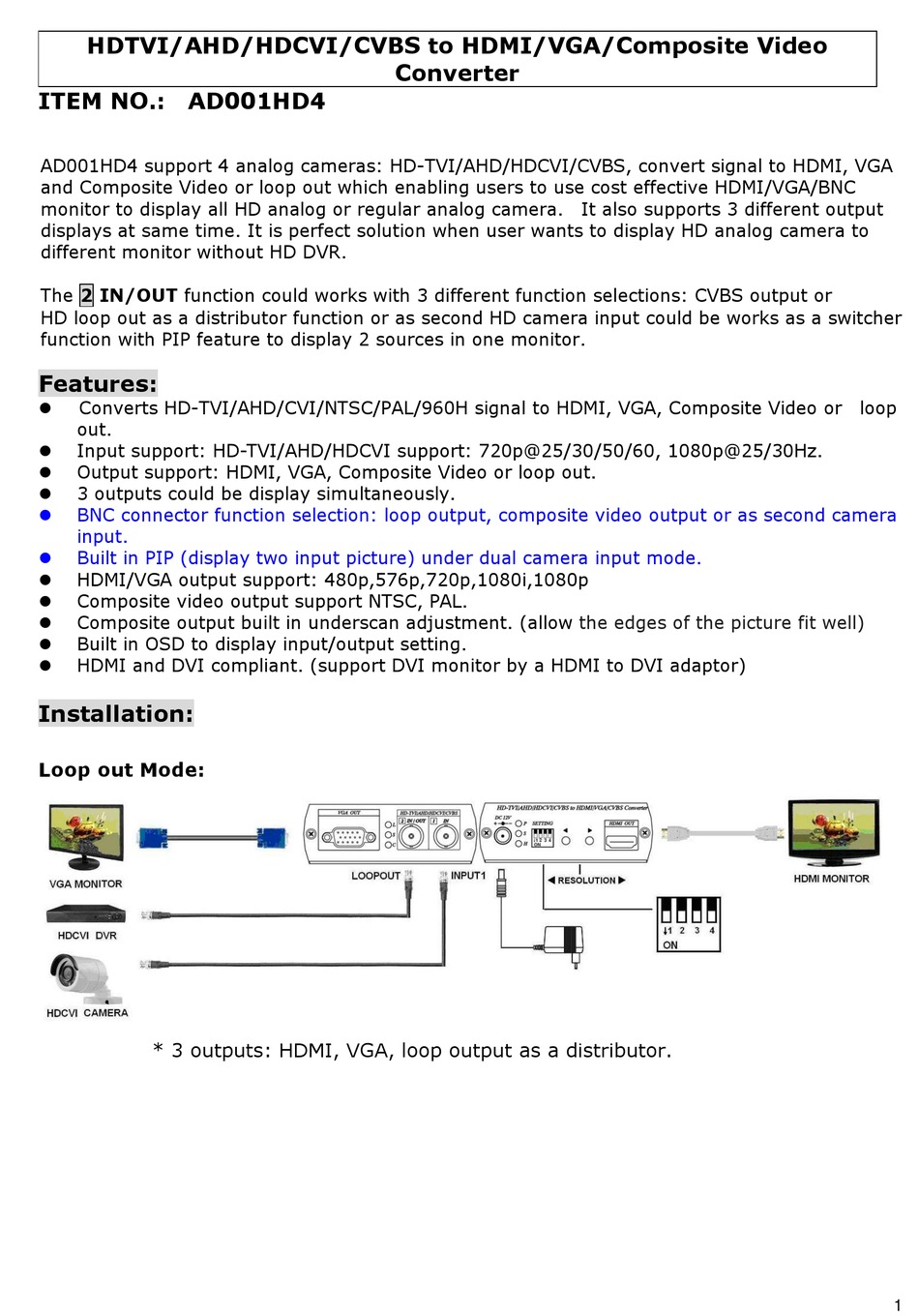

Smart Cabling & Transmission AD001HD4 User Manual

HDTVI/AHD/HDCVI/CVBS to HDMI/VGA/Composite Video
ITEM NO.: AD001HD4
AD001HD4 support 4 analog cameras: HD-TVI/AHD/HDCVI/CVBS, convert signal to HDMI, VGA
and Composite Video or loop out which enabling users to use cost effective HDMI/VGA/BNC
monitor to display all HD analog or regular analog camera. It also supports 3 different output
displays at same time. It is perfect solution when user wants to display HD analog camera to
different monitor without HD DVR.
The 2 IN/OUT function could works with 3 different function selections: CVBS output or
HD loop out as a distributor function or as second HD camera input could be works as a switcher
function with PIP feature to display 2 sources in one monitor.

Features:

Converts HD-TVI/AHD/CVI/NTSC/PAL/960H signal to HDMI, VGA, Composite Video or loop

out.
Input support: HD-TVI/AHD/HDCVI support: 720p@25/30/50/60, 1080p@25/30Hz.

Output support: HDMI, VGA, Composite Video or loop out.

3 outputs could be display simultaneously.

BNC connector function selection: loop output, composite video output or as second camera

input.
Built in PIP (display two input picture) under dual camera input mode.

HDMI/VGA output support: 480p,576p,720p,1080i,1080p

Composite video output support NTSC, PAL.

Composite output built in underscan adjustment. (allow

Built in OSD to display input/output setting.

HDMI and DVI compliant. (support DVI monitor by a HDMI to DVI adaptor)


Installation:

Loop out Mode:
* 3 outputs: HDMI, VGA, loop output as a distributor.
Converter
the edges of the picture fit well)
1
