Summary of Contents for BIG ASS FANS BAS-LTB1-0505
-

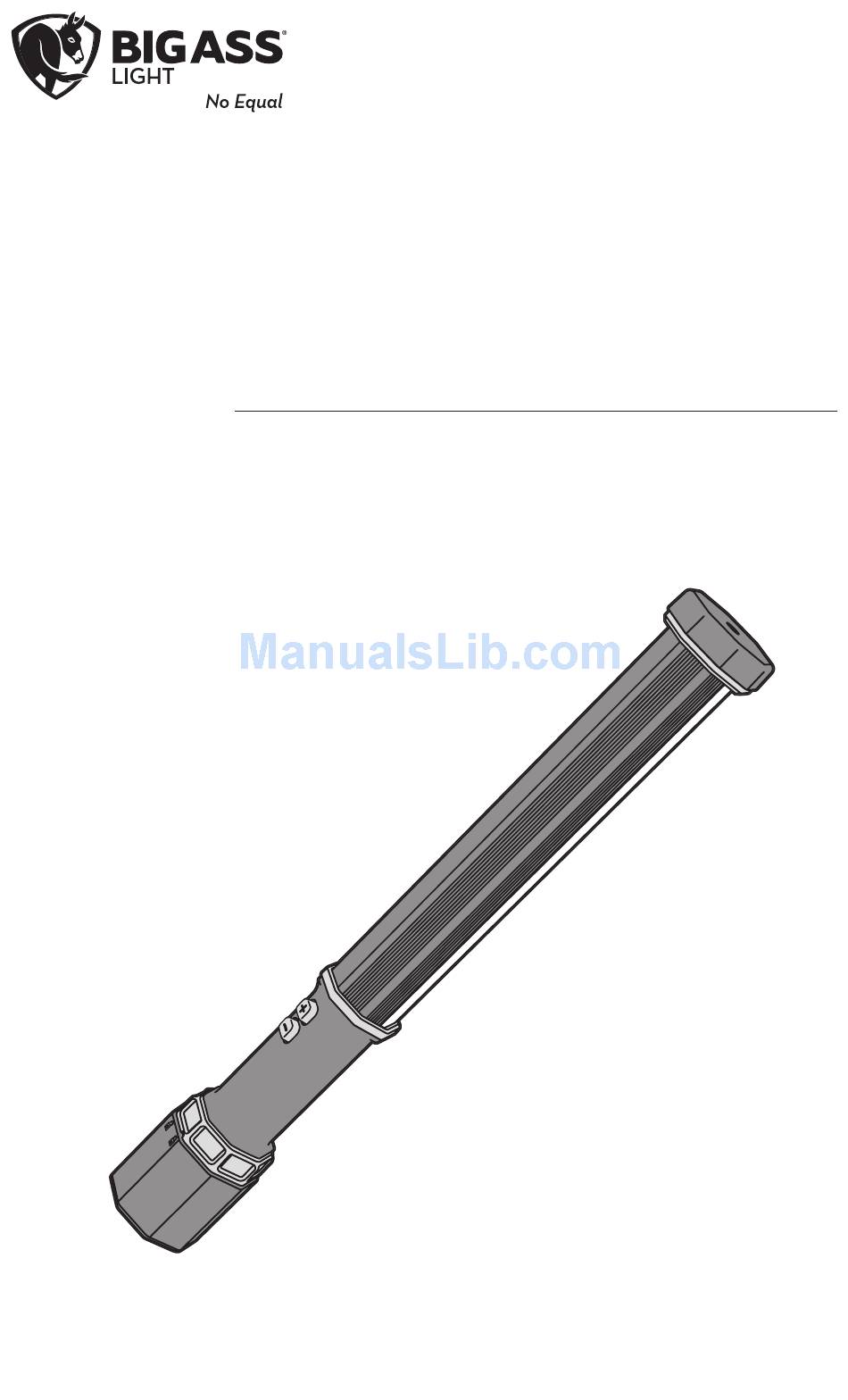

Page 1: User Guide
USER GUIDE Big Ass Light Bar For help, call 877-244-3267 or visit www.bigasslight.com/service... - Page 2 READ AND SAVE THESE INSTRUCTIONS Retain this installation guide for maintenance and troubleshooting. WARNING: Do not strike, throw, or subject the battery to severe physical shock. WARNING: Do not attempt to disassemble or modify the battery in any way. WARNING: Do not place the battery in a microwave or pressurized container.
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Light Bar Model BAS-LTB1-0505 Weight (with battery) 4 lb 11 oz (2.13 kg) Dimensions 23.6 × 2 in. (600 × 51 mm) IP rating IP67 Battery and Charger Nominal Voltage Average 14.4 VDC Charging Voltage 16.4 VDC Capacity... -
Page 4: Installing The Battery
INSTALLING THE BATTERY To install the battery, insert the battery into the base of Light Bar, and then rotate the locking ring until the indicator mark is above the “locked” icon. Test operation by pressing the button To remove the battery, rotate the locking ring to the “unlocked” icon, and pull out the battery. -
Page 5: Minus Button
USING THE LIGHT BAR Plus button Press once to turn on. Press to increase brightness. Press and hold to quickly bring the light to full brightness. Minus button Press and hold to turn off. Press to decrease brightness. Brightness levels Level Brightness (lumens)* 80 lm... -
Page 6: Charge The Battery
CHARGING Check charge level Check the charge level by pressing the Test button. Indicators Charge Test Charge Four solid 75–100% Three solid 50–74% Two solid 25–49% One solid 10–24% One flashing < 10% Charge the battery To charge the battery, plug the charging station into AC power. Insert the battery into the charging station so that it is tightly seated. -
Page 7: Preventive Maintenance
PREVENTIVE MAINTENANCE CAUTION: Do not clean the fixture, especially the lens, with scouring pads. Overexposure to certain chemicals such as toluene, acetone, ethyl acetate, or ethylene dicholoride could cause damage. Clean the light bar periodically with a damp cloth. Methanol, ammonia, and n-hexane-based cleaners can be used on the lens without risk of damage. - Page 8 BAL-INST-162-MUL-01 REV. A 1 (877) BIG-FANS | WWW.BIGASSLIGHT.COM...
