Summary of Contents for Air Design CSV21N

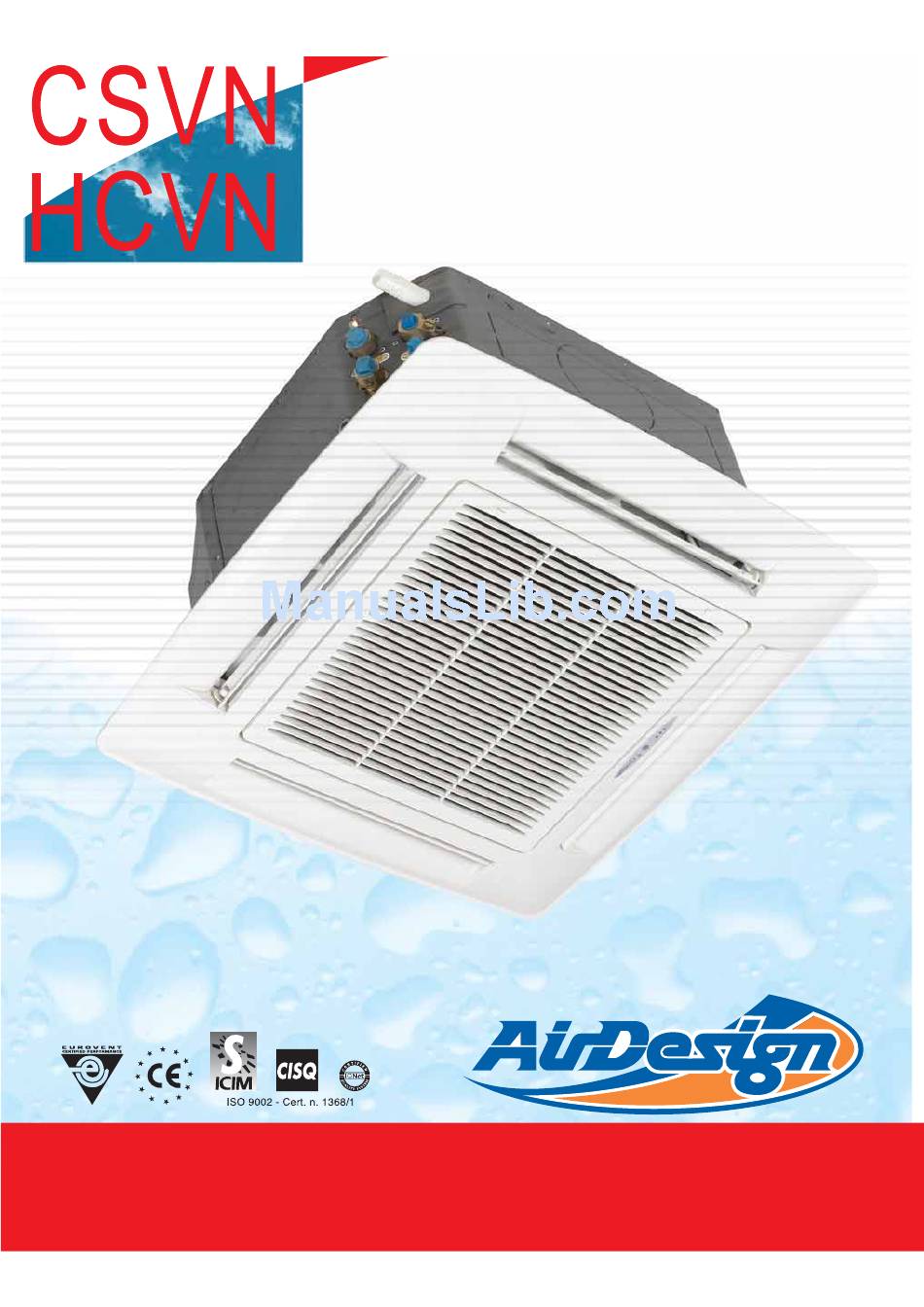

- Page 1 >> INSTALLATION, USE AND MAINTENANCE GUIDE WATER CASSETTES MI CSVN-HCVN 0000 0505 AUS 01...
-
Page 2: Table Of Contents
CONTENTS PART TWO: FOR THE USER PART ONE: FOR THE INSTALLER RECOMMENDATIONS FOR THE USER GENERAL DIMENSION FOR 2 PIPE WATER CASSETTES WATER CASSETTE OPERATION GENERAL DIMENSION FOR 4 PIPE WATER CASSETTES I.R. REMOTE CONTROL remote control operation 14-15 GENERAL TECHNICAL DATA FOR 2 PIPE WATER CASSETTES CORRECTION COEFFICIENTS FOR DIFFERENT SPEED WALL-MOUNTED CONTROL: CD2/X7 15-16... -
Page 3: General Dimension For 2 Pipe Water Cassettes
Condensate fitting Ø 24 fitting Ø 27 Fig. 01 Fig. 02 GENERAL DIMENSIONS FOR 2 PIPE WATER CASSETTES MODEL CSV21N CSV22N CSV23N CSV24N HCV31N HCV32N HCV33N HCV34N Fans number n° Coils number n° Rows number n° Hydraulic fittings (Ø female gas) Ø... -
Page 4: General Dimension For 4 Pipe Water Cassettes
MOD. CSV41N - CSV42N - CSV43N - CSV44N MOD. HCV51 - HCV52N - HCV53N - HCV54N 34.5 Condensate Condensate fitting Ø 24 fitting Ø 27 Fig. 03 Fig. 04 GENERAL DIMENSIONS FOR 4 PIPE WATER CASSETTES MODEL CSV41N CSV42N CSV43N CSV44N HCV51N HCV52N HCV53N HCV54N Fans number n°... -
Page 5: General Technical Data For 2 Pipe Water Cassettes
WATER CASSETTES GENERAL TECHNICAL DATA FOR 2 PIPE WATER CASSETTES MODEL CSV21N CSV22N CSV23N CSV24N HCV31N HCV32N HCV33N HCV34N 1.980 2.870 3.260 4.490 5.730 6.760 8.080 10.540 Total cooling capacity Frig/h 1.707 2.474 2.810 3.871 4.940 5.828 6.966 9.086 1.505 2.009... -
Page 6: General Technical Data For 4 Pipe Water Cassettes
GENERAL TECHNICAL DATA FOR 4 PIPE WATER CASSETTES MODEL CSV41N CSV42N CSV43N CSV44N HCV51N HCV52N HCV53N HCV54N 1.450 2.020 2.860 3.460 4.790 5.910 7.040 9.300 Total cooling capacity Frig/h 1.250 1.741 2.466 2.983 4.129 5.095 6.069 8.017 1.204 1.515 2.174 2.664 3.496 4.313... -
Page 7: Working Limits
WATER CASSETTES WORKING LIMITS Maximum inlet water temperature 70 °C Maximal inlet air temperature 32 °C Minimum inlet water temperature + 4 °C Minimal inlet air temperature + 4 °C Maximal working pressure 8 bar ATTENTION! Air stratification increases with a rise in water inlet temperature! GENERAL FEATURES AND MAIN COMPONENTS Airflow direction louvers EMERGENCY switch (used to switch on the air conditioner manually, without... -
Page 8: Recommendations For The Installer
RECCOMENDATIONS FOR THE INSTALLER INSTALLATION ACCESSORIES Upon receiving the unit check for any damage, which should be reported n. 1 Cardboard mounting template; immediately. For the water cassette to operate correctly, it should be installed n. 2 Batteries; according to the instructions given in this manual. Removal of a water cassette n. -
Page 9: Fixing The Panel
WATER CASSETTES Fig. 13 Fig. 11 FIXING THE PANEL After installation of the unit, mount the grille using the 4 screws provided (fig. 12). N.B.: It is very important to fix the grille in the right position for correct connection of the receiver panel to the unit. A= Knockout for air supply to an adjacent room Ø... -
Page 10: Installation Of Auxiliary Condensate Drain Pan
avoid the formation of condensation, which could drip onto suspended ceilings Fig. 20: When several units are installed near to each other and only one causing considerable problems. condensate drain hose is used, make sure that the capacity of the hose is The water connections are fixed to the unit body to avoid damage when pipes are sufficient and that it is positioned on a slightly lower level than the appliance. - Page 11 WATER CASSETTES WIRING DIAGRAM OF 2 PIPE SYSTEM WATER CASSETTE WITH I.R. (CSVN + HCVN) LEGEND Connector Timer Sleep Power Earth Phase REC1 Neutral I.R. RECEIVER Fan motor(230Vac/50Hz) WATER TEMPERATURE SENSOR Louvre motor (230Vac/50Hz) Drain pump (230Vac/50Hz) AIR TEMPERATURE SENSOR Float switch (NC) SM limit switch (60x60 cassette) Safety switch (90x90 cassette: when opening...
- Page 12 WIRING DIAGRAM OF 2 PIPE SYSTEM WATER CASSETTE WITH WALL MOUNTED CONTROL (CSVN + HCVN) LEGEND OPTIONAL: AIR TEMPERATURE SENSOR Connector TRANSFORMER TEMPERATURE Earth CONTROLLER WATER TEMPERATURE SENSOR Phase Neutral Fan motor(230Vac/50Hz) POWER TIMER SLEEP COMP COOL MODE MODE P18 P19 Louvre motor (230Vac/50Hz) TEMP TEMP...
-
Page 13: Wiring Diagram Without Control (Csvn)
WATER CASSETTES WIRING DIAGRAM WITHOUT CONTROL (CSVN) LEGEND FRONTAL PANEL Connector Earth Fan motor (230Vac/50Hz) Louver motor electrical supply Louvre motor (230Vac/50Hz) (movimentazione230Vac/50 Hz ) black Condensate pump (230Vac/50Hz) black Float switch (NC) Drain pump electrical supply Common black (230Vac/50 Hz Timer white black... -
Page 14: Remote Control
THE INFRARED REMOTE CONTROLLER I.R. REMOTE CONTROL OPERATIONS FAN When the MODE button is pressed and the FAN mode is selected, the Fig. 30 cassette will operate as an electrical fan only Fig. 32 COOLING When the MODE button is pressed and COOL is selected, the cassette cools the room and at the same time reduces the humidity in the air. -
Page 15: Wall-Mounted Control: Cd2/X7
WATER CASSETTES received the signal. - if the room temperature is above 26°C the appliance will start the cooling cycle. This will continue until the temperature drops below 24°C. Fig. 40 Fig. 36 TIMED SWITCHING OFF To set timed switching off, the appliance must be on or the timed switching on function must be set. -
Page 16: Wall-Mounted Control Operation
satisfied, or within 3 minutes preceding cycle start: when the water reaches the Activates the SLEEP mode. This mode automatically adjusts the temperature float, its contact opens and activates the pump for 3 minutes; when the 3 minutes in order to provide maximum comfort during the nighttime hours and save have elapsed, if the float does not close its contact again (water drainage), the energy. -
Page 17: Tips For Best Use
WATER CASSETTES COOL • Press the MIN button to set the minutes; • Press the START button again. The display stops blinking. The writing COOL appears on the air-conditioner control display. The unit operates in the air-conditioning mode. To cancel this function, press the START button again. Automatic stop - the zone valve starts if Troom Tset+1 - the zone valve stops if Troom Tset... -
Page 18: Filter Cleaning
FILTER CLEANING Filter cleaning is essential for the good appliance efficiency. Remove the filters by pulling them gently sideways and pressing lightly on the points shown in fig. 51. Fig. 51 Clean the filters with a vacuum cleaner or wash them with lukewarm water and mild detergent. - Page 19 Air Design reserves the right to make changes in design or specification to products without notice or obligation and to change or discontinue models. Air Design Pty. Ltd. 45 Nestor Drive, MEADOWBROOK - QLD 4131 Tel. (07) 32 999 888 - Fax. (07) 32 999 800 Web.
