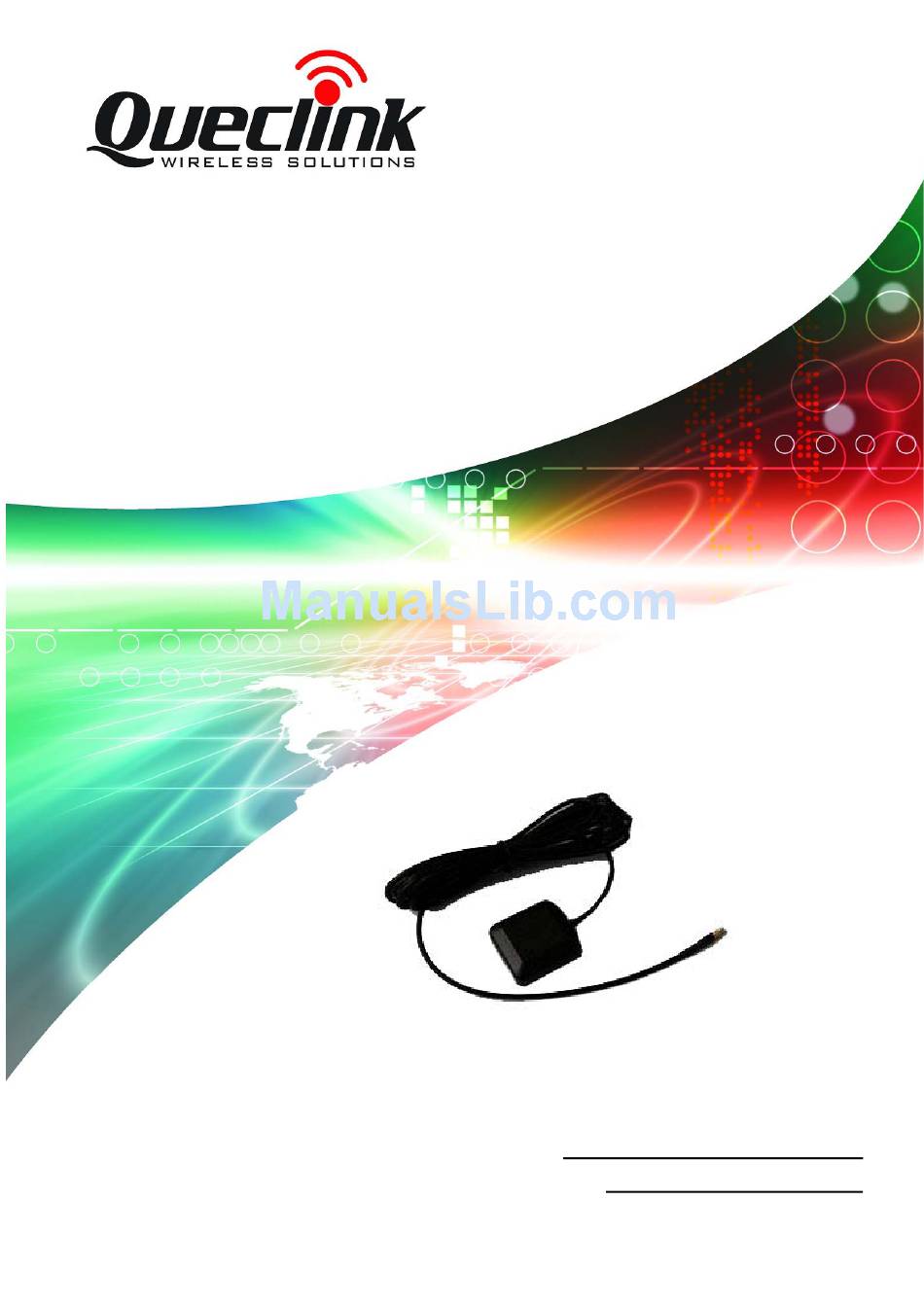

- Page 1 Antenna_GPS_MMCX_3M User Guide For GL200 Devices ACCEAAG200UG001 Revision: 1.00 http://www.queclink.com sales@queclink.com...
- Page 2 ACCEAAG200UG001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
Antenna_GPS_MMCX_3M User Guide Contents Contents ............................2 0. Revision history ..........................3 1. General Description ........................4 2. Electrical Specification .........................5 2.1. Patch: (measured with 70*70mm ground plane)..............5 2.2. LNA.............................5 2.3. Cable and Connect loss .......................5 3. Dimensions ...........................6 ACCEAAG200UG001 - 2 -... -
Page 4: Revision History
Antenna_GPS_MMCX_3M User Guide 0. Revision history Revision Date Author Description of change 1.00 2012-06-15 Cid Xu Initial ACCEAAG200UG001 - 3 -... -
Page 5: General Description
Antenna_GPS_MMCX_3M User Guide 1. General Description Antenna_GPS_MMCX_3M is a GPS Active Antenna with MMCX type RF connector. The cable length is 3m. ACCEAAG200UG001 - 4 -... -
Page 6: Electrical Specification
Antenna_GPS_MMCX_3M User Guide 2. Electrical Specification 2.1. Patch: (measured with 70*70mm ground plane) Characteristics Specification Center Frequency 1610 MHz ±2.5 MHz Center Frequency error specifications ≦-20 dB Center Frequency return loss (S Bandwidth point return loss -10 dB Bandwidth 10 MHz min Center Frequency impedance specification 50Ω(typ) 2.2. -
Page 7: Dimensions
Antenna_GPS_MMCX_3M User Guide 3. Dimensions Connector Appearance: MMCX PLUG ACCEAAG200UG001 - 6 -...
