Summary of Contents for visual engineering IQS

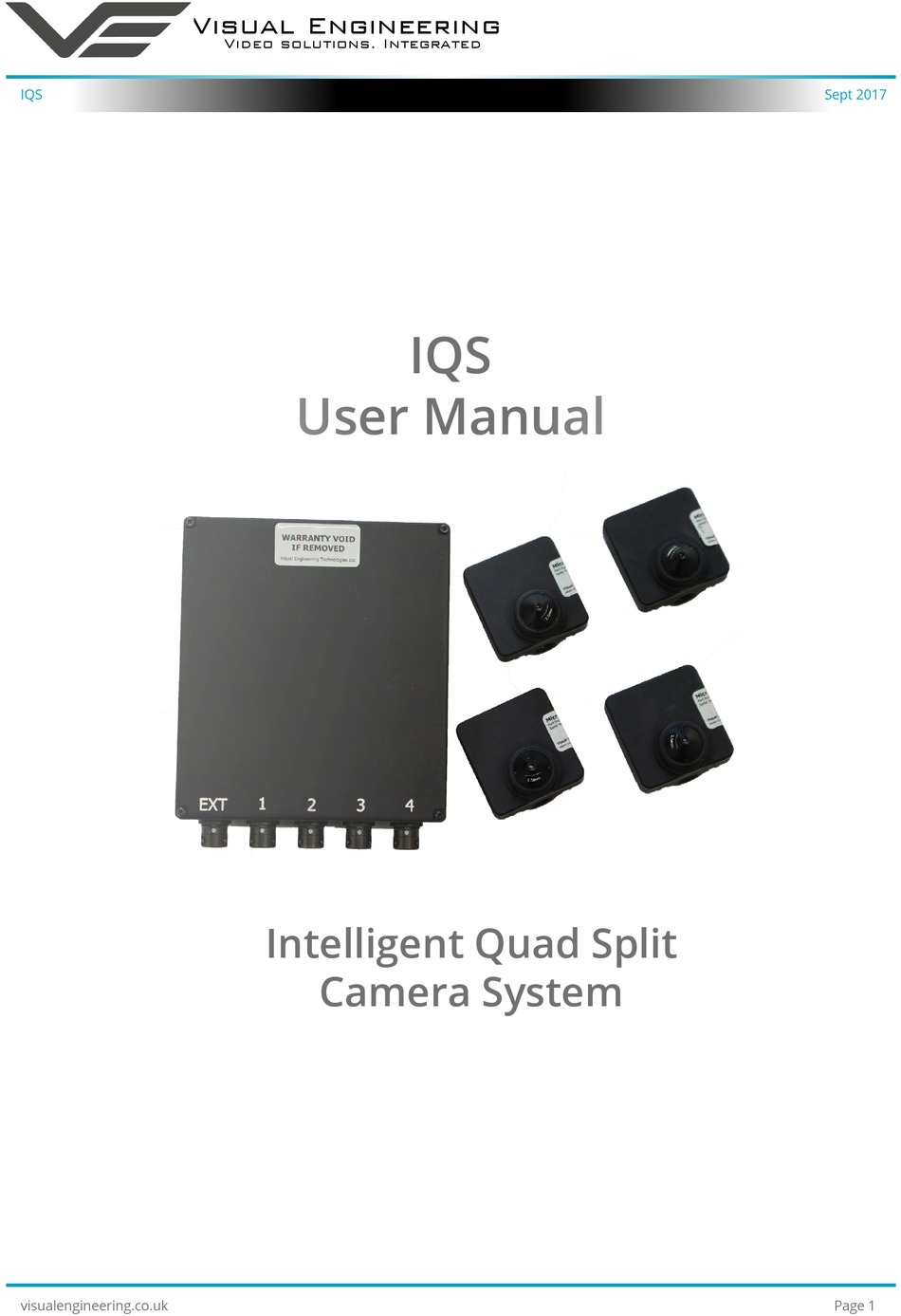

- Page 1 Visual Engineering Video solutions. Integrated Sept 2017 User Manual Intelligent Quad Split Camera System visualengineering.co.uk Page 1...
-
Page 2: Table Of Contents
IQS Introduction ........ -
Page 3: Change History
Warranty and Support All Visual Engineering products are supplied as standard with a 12 month ‘Return to Base’ warranty. In the event of a suspected product failure, users should contact the Visual Engineering support team on the telephone number +44 (0) 1206 211842 or please email us at: support@visualengineering.co.uk... -
Page 4: Iqs Introduction
To provide greater over-lapping coverage, IQS units can be cascaded together to increase the number of available camera inputs. To the outside world the IQS appears as a standard PTZ camera, responding to both Sony Visca and PelcoD protocols over RS232 or RS485 communications standards. -
Page 5: The Iqs Kit
Part Numbers The part number for the complete IQS kit is: • IQS Camera System 110-3417 The IQS kit contents are listed below, along with their part numbers: • 1 x IQS Control Module 110-8882 • 4 x ATM Camera 110-8659 •... -
Page 6: Connections
Sept 2017 Connections Each ATM camera is connected to the IQS module using the four ATM interface cables (110-3994). The AC/DC power supply is plugged into the IQS power comms cable (110-3993). The IQS power comms cable can then be connected to the IQS module. -
Page 7: Camera Setup
Sept 2017 Camera Setup Field of View The IQS camera system allows multiple solid state PTZ cameras to be connected together at a single point of control, allowing 360º coverage with no moving parts. Particularly suited to vehicle fits, the IQS module together with four ATM cameras can be concealed behind a 1.5mm aperture, covering all four sides of the... -
Page 8: Pan Movement
60º Camera Switch Over As the camera shown above pans to the far right of its pan axis the IQS module will switch to the next ATM camera in the cluster at the far left of its pan axis. -
Page 9: Software Control
Sept 2017 Software Control The IQS supports serial communication control over RS232 and RS485. It supports PelcoD, PelcoP and Sony Visca protocols. The user may choose to use a software controller of their choice or use the VE Camera Controller. - Page 10 COM port. In the example below the port COM3 has been selected. Now select Connect. Now connect the USB serial to comms lead 9 way D-type connector to the IQS Power Comms Cable 110-3993.
-
Page 11: Atm Camera
Visual Engineering Video solutions. Integrated Sept 2017 ATM Camera Joystick Description On the rear of the ATM camera there is a mini joystick which allows the user to control a range of functions within the camera. 5 Way Molex male... -
Page 12: Osd
Visual Engineering Video solutions. Integrated Sept 2017 The camera supports an On Screen Display. To enter this feature press the centre of the mini joystick in for about five seconds, the mini joystick can be found on the rear of the ATM camera. -
Page 13: Changing The Lens
Visual Engineering Video solutions. Integrated Sept 2017 Changing the Lens The ATM camera can be fitted with Lens options can be different lenses simply swapped out by according to the field screwing a new lens into of view required for a the front thread of the ATM particular scenario. -
Page 14: Specifications
60º DC In 9 to 18V Available Zoom 3x lossless Power Consumption 2.5W Sensitivity 0.1 Lux IQS Module Weight 200 grams Resolution > 2000TVL IQS Module Dimensions 80 x 80 x 22mm > 50dB ATM Camera Weight Lens Type S mount M12 ATM Camera Dimensions 30 x 28.5 x 8mm... -
Page 15: Dimensions
Visual Engineering Video solutions. Integrated Sept 2017 Dimensions IQS Module ATM Camera Visual Engineering Technologies LTD Kemps Farm Stanway Colchester Essex Tel: +44 (0)1206 211842 CO3 8NB Web: www.visualengineering.co.uk Email: sales@visualengineering.co.uk visualengineering.co.uk Page 15...
