Thank you for purchasing the PIAA Sports Horn System
Please read this entire manual before installation and use.
Your specific installation may require additional wiring connectors
CAUTION

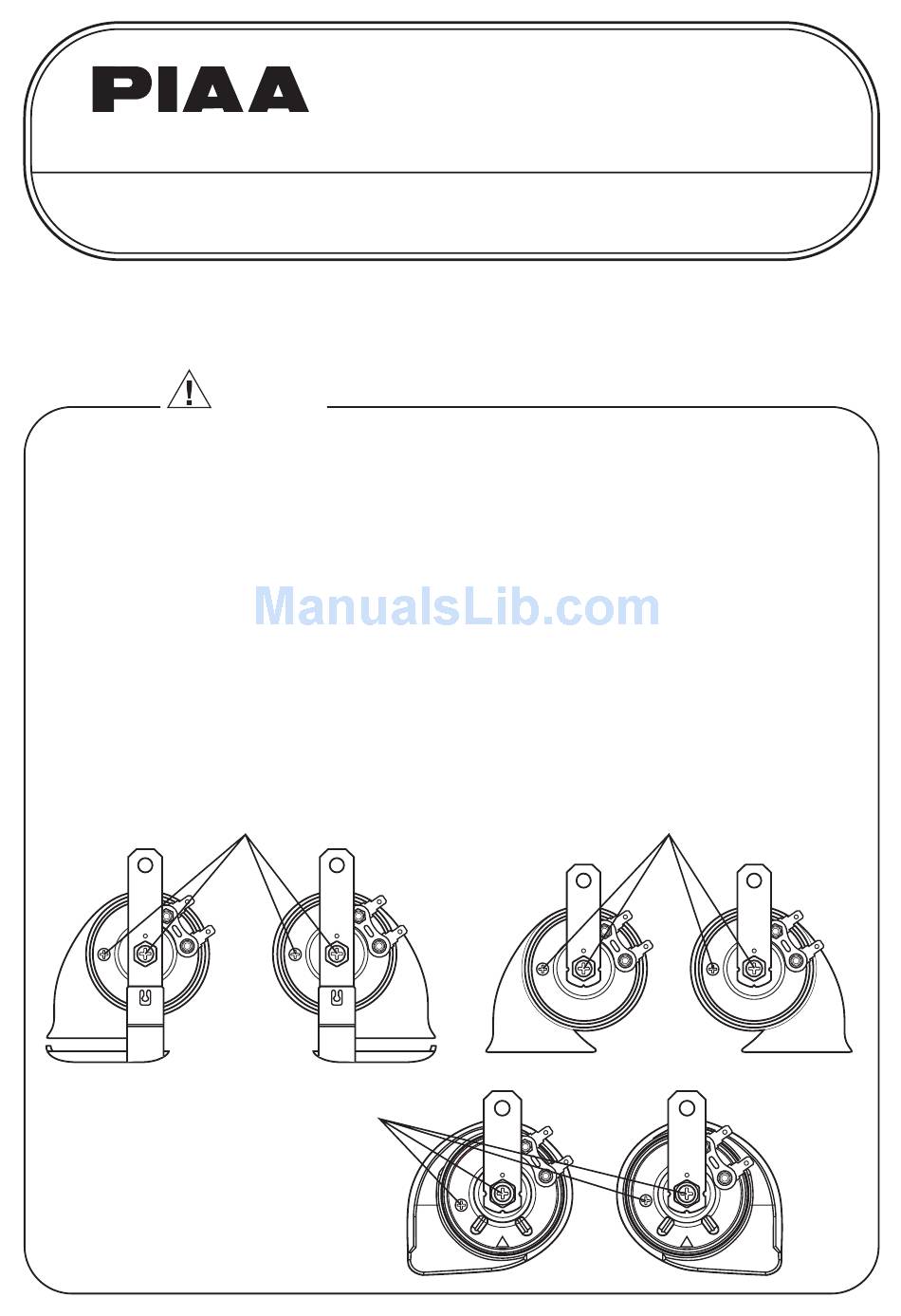

1.Do not remove or alter the screw or the bracket on the back side of the horns.
Doing so may alter their performance or may disable them.
2.Install the horns so the open end with the cover points down.
3.Do not install and wire the PIAA Sports Horns so they work with the factory
installed horns. Doing so may overload the circuit or may not pass local
noise regulations.
4.Install the PIAA Sports Horn in a location that will not get direct water spray
or dust.
5.Install the PIAA Sports Horns in a location that is away from hot
engine components.
6.Do not paint or apply any type on chrome plating or powder coating
to the PIAA Sports Horn. Doing so may alter the tone or function of the horn.
DO NOT REMOVE!
DO NOT REMOVE!
SPORTS HORN
Installation Instructions
that are commonly available.
DO NOT REMOVE!
- 1 -
PKI-0005-2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for PI 85110
-
Page 1: Installation Instructions
SPORTS HORN Installation Instructions Thank you for purchasing the PIAA Sports Horn System Please read this entire manual before installation and use. Your specific installation may require additional wiring connectors that are commonly available. CAUTION 1.Do not remove or alter the screw or the bracket on the back side of the horns. Doing so may alter their performance or may disable them. - Page 2 CONTENTS One – horn A One – horn B One – horn A One – horn B One – horn A One – horn B Two - ground(-) wires. ※ Please note the Standard PIAA Sports Horn is shown in all images. However, the installation process is the same for PIAA Superior Bass Horn and PIAA Slender Horn (Slim Line Sports Horn).
- Page 3 INSTALLATION Locate the factory horn(s) and determine what type of installation is involved. There are four wiring installation scenarios (A,B,C,D), study each one and determine which one fits your application. When mounting the PIAA Sports Horns, mount them to a sturdy location with minimal vibration.
- Page 4 INSTALLATION (Cont'd) INSTALLATION TYPE B Two factory horns each with a single wire plug. PARTS NEEDED: Two insulated 1/4" female blade connectors 1.Cut off the factory plugs and crimp on insulated 1/4" female blade connectors to each factory positive (+) wire. 2.Plug the new 1/4”...
- Page 5 INSTALLATION (Cont'd) INSTALLATION TYPE C Single factory horn with a single wire plug. PARTS NEEDED: Two insulated 1/4" female blade connectors, approximately 3ft of 16AWG insulated wire, one splice connector 1.Cut off the factory plug and splice two lengths of wire to the factory positive (+) horn wire.
- Page 6 INSTALLATION (Cont'd) INSTALLATION TYPE D Single factory horn with two 1/4” blade connectors. PARTS NEEDED: Four insulated 1/4" female blade connectors, approximately 5-6ft of 16AWG insulated wire, two splice connectors 1.With an assistant to honk the horn use a test light or volt meter to determine which wire is positive (+) and negative (-) 2.Cut off the factory 1/4”...
- Page 7 ���� - 7 - PKI-0005-2...
