User Manual

db Nexus (dbNEXII) - Networked Access Control Solution
db Nexus (dbNEXIII) - Networked Access Control Solution
db Sentry (dbSAI) - Standalone Access Control Solution
db Tracker (dbTRI) - Time and Attendance System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dbNEXII and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus Biometrics dbNEXII

  • Page 1: User Manual

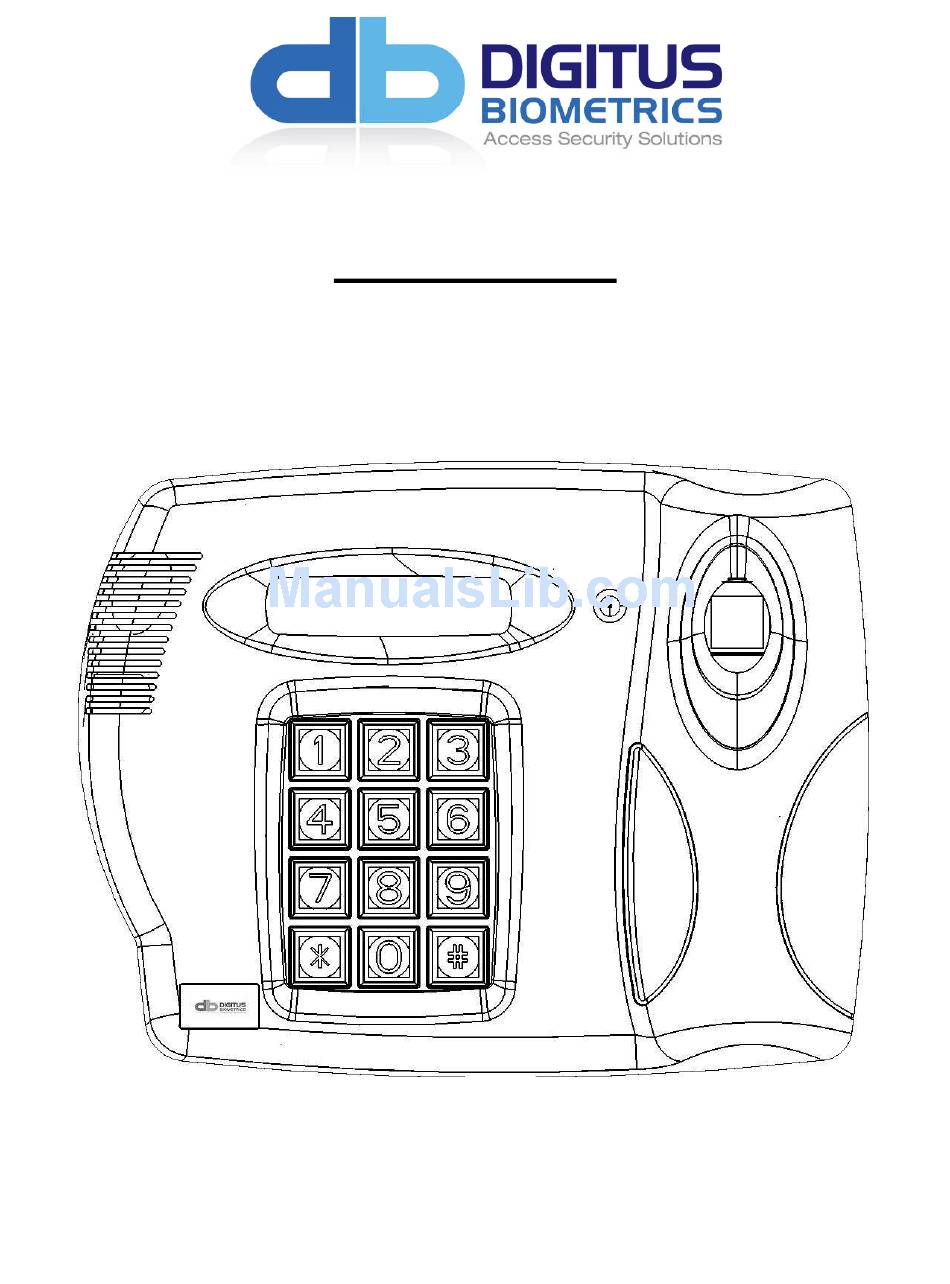

    User Manual db Nexus (dbNEXII) - Networked Access Control Solution db Nexus (dbNEXIII) - Networked Access Control Solution db Sentry (dbSAI) - Standalone Access Control Solution db Tracker (dbTRI) - Time and Attendance System...

  • Page 2: Table Of Contents

    Creating Time Codes Via the Menus ..................14 Setting the IP Address Via the Menus..................16 Appendix 1 - Menu Maps ......................17 Appendix 2 - Troubleshooting ....................23 Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 2 of 27...
  • Page 3 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 3 of 27...

  • Page 4: Initial Setup

    If you choose not to enroll managers via the Head Unit at this point, the unit will need to be networked and users enrolled onto the unit via the DAS Management Software. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 4 of 27...
  • Page 5 Note: You should either use a different finger or preferably a different person for the 2nd enrolled finger. After about 1 second the Head Unit will display: › Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 5 of 27...
  • Page 6 The unit can be tested by entering the PIN number on the Head Unit keypad and placing the correct finger on the fingerprint scanner. The Head Unit LCD will display: ACCESS GRANTED Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 6 of 27...

  • Page 7: Using The Unit To Gain Access

    All the Digitus Units are configurable as to which credentials are enabled or disabled. The dbNEXII, dbSAI and dbTRI have 2 credentials, a PIN number and a Fingerprint. The dbNEXIII also has PIN and Fingerprint, but additionally has the RFID credential.

  • Page 8: Correct Use Of Fingerprint

    ALONG THE FINGERPRINT SCANNER) Place your finger down onto the center of the fingerprint scanner. Do not press down hard, only apply a slight amount of pressure. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 8 of 27...

  • Page 9: Successful Access

    NO FINGER TEMPLATE FOUND - A user exists at the Index specified, however no finger templates have been uploaded to the unit for that user The status LED on the head unit will turn red. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 9 of 27...

  • Page 10: Entering The Menu After Initial Setup

    Operations Menu - Unit settings. Turn any feature on or off via this menu. › Time Menu - Set the unit's date and time. Create Time Codes. › Network Menu - Set the unit's network settings › Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 10 of 27...

  • Page 11: Add A User Via The Menus

    Press the 1 (one) key until you see the following displayed: Add User Enter ID [ Press the 0 (zero) key until you see the following displayed: Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 11 of 27...

  • Page 12: Deleting A User Via The Menus

    Press the 0 (zero) key until you see the following displayed: Delete User Enter ID [ Enter a 4-digit PIN number of the user to be deleted. The user is now deleted. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 12 of 27...

  • Page 13: Unit Configuration

    3 credentials. Press 1 to enable a credential or 0 to disable Press 1 when prompted to save the new configuration data. › Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 13 of 27...

  • Page 14: Setting The Unit's Real-Time Clock Via The Menus

    Enter the time code number you want to create or edit, valid entries are 01 thru 99. You will then be prompted to enter the 1st Time Code for Sunday. 1st Time Code: SUN: HH:MM-HH:MM Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 14 of 27...
  • Page 15 Once all time have been entered, you will be prompted: Save Time Code? Yes=1 No=0 Press the 1 (one) key to save the time code. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 15 of 27...

  • Page 16: Setting The Ip Address Via The Menus

    Once you have entered the IP Address, Subnet Mask and Default Gateway you will be see the following: Save Settings? Yes=1 No=0 Click 1 to save the IP settings. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 16 of 27...

  • Page 17: Appendix 1 - Menu Maps

    Appendix 1 - Menu Maps Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 17 of 27...
  • Page 18 Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 18 of 27...
  • Page 19 Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 19 of 27...
  • Page 20 Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 20 of 27...
  • Page 21 Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 21 of 27...
  • Page 22 Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 22 of 27...

  • Page 23: Appendix 2 - Troubleshooting

    PCB inside the Head Unit and is labeled "Sensor". Power the unit down and check this cable is properly seated at both ends. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 23 of 27...

  • Page 24: Digitus Biometrics, Inc

    Try pressing 0 (zero) on the Head Unit keypad. The contrast may have been set very low, making the characters invisible. ---------------------------/--------------------------- Problem The Control Unit powers up but the Head Unit does not. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 24 of 27...

  • Page 25: Digitus Biometrics, Inc

    Control Unit and/or battery. If the Control Unit will not power up, even after changing the input fuse, contact your vendor for support. ---------------------------/--------------------------- Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 25 of 27...

  • Page 26: Digitus Biometrics, Inc

    GND and NC on the FIRE connector are connected together (refer to Installation Manual). ---------------------------/--------------------------- Problem When you power the Control Unit up you hear the door relay click open and stay open. Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 26 of 27...
  • Page 27 Digitus Biometrics, Inc. 116A East Oglethorpe Avenue Savannah, GA 31401 USA Phone: 912-231-8175 Fax: 912-344-4548 www.digitus-biometrics.com support@digitus-biometrics.com Digitus Biometrics, Inc. User Manual - Models: dbNEXII, dbNEXIII, dbSAI, dbTRI Page 27 of 27...
