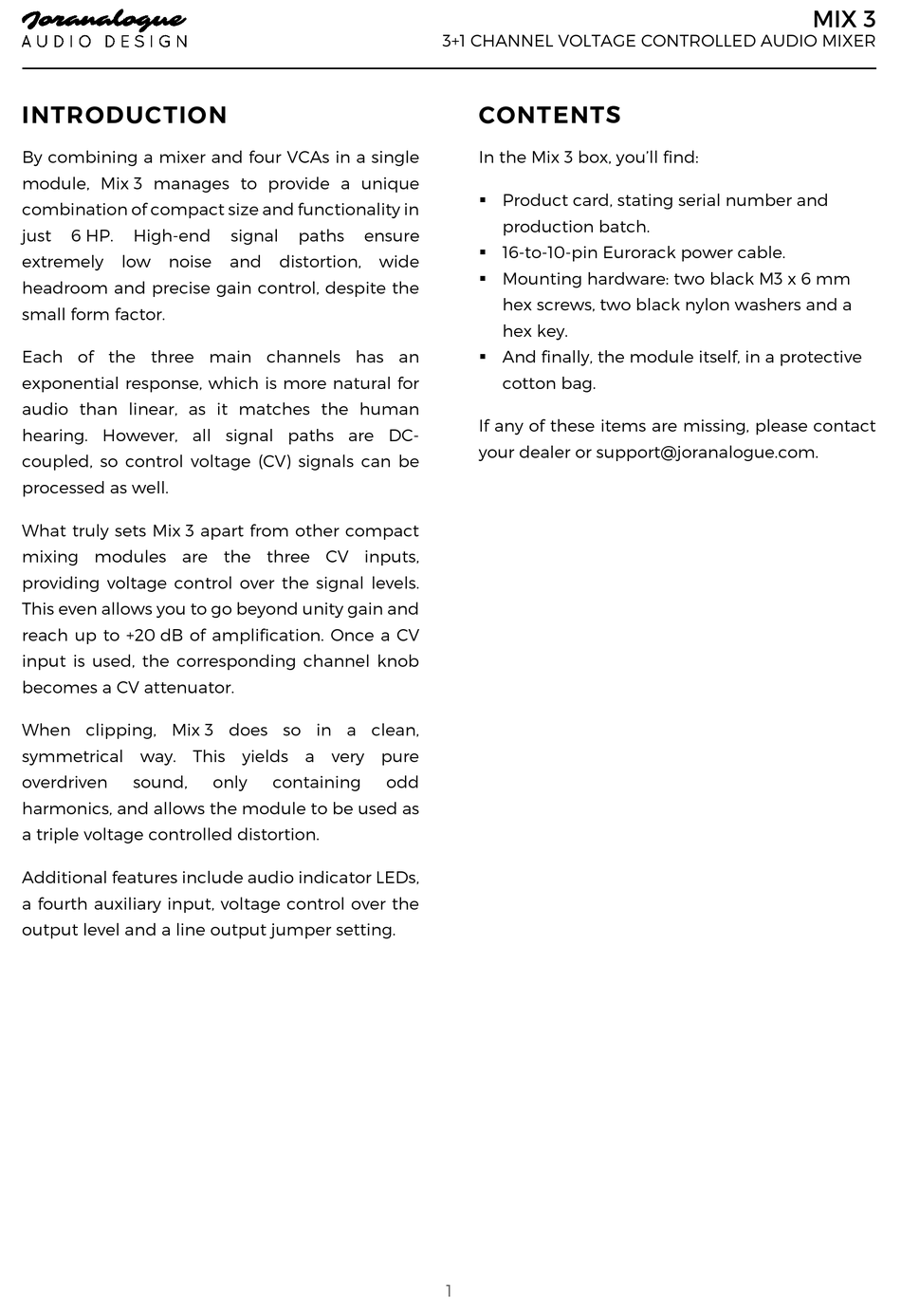

Joranalogue Audio Design Mix 3 User Manual

INTRODUCTION
By combining a mixer and four VCAs in a single
module, Mix 3 manages to provide a unique
combination of compact size and functionality in
just 6 HP. High-end
extremely low noise
headroom and precise gain control, despite the
small form factor.
Each of the three main channels has an
exponential response, which is more natural for
audio than linear, as it matches the human
hearing. However, all signal paths are DC-
coupled, so control voltage (CV) signals can be
processed as well.
What truly sets Mix 3 apart from other compact
mixing modules are the three CV inputs,
providing voltage control over the signal levels.
This even allows you to go beyond unity gain and
reach up to +20 dB of amplification. Once a CV
input is used, the corresponding channel knob
becomes a CV attenuator.
When clipping, Mix 3 does so in a clean,
symmetrical way. This yields a very pure
overdriven sound,
harmonics, and allows the module to be used as
a triple voltage controlled distortion.
Additional features include audio indicator LEDs,
a fourth auxiliary input, voltage control over the
output level and a line output jumper setting.
signal paths ensure
and distortion, wide
only containing
3+1 CHANNEL VOLTAGE CONTROLLED AUDIO MIXER
CONTENTS
In the Mix 3 box, you'll find:
 Product card, stating serial number and
production batch.
 16-to-10-pin Eurorack power cable.
 Mounting hardware: two black M3 x 6 mm
hex screws, two black nylon washers and a
hex key.
 And finally, the module itself, in a protective
cotton bag.
If any of these items are missing, please contact
your dealer or support@joranalogue.com.
odd
1
MIX 3
