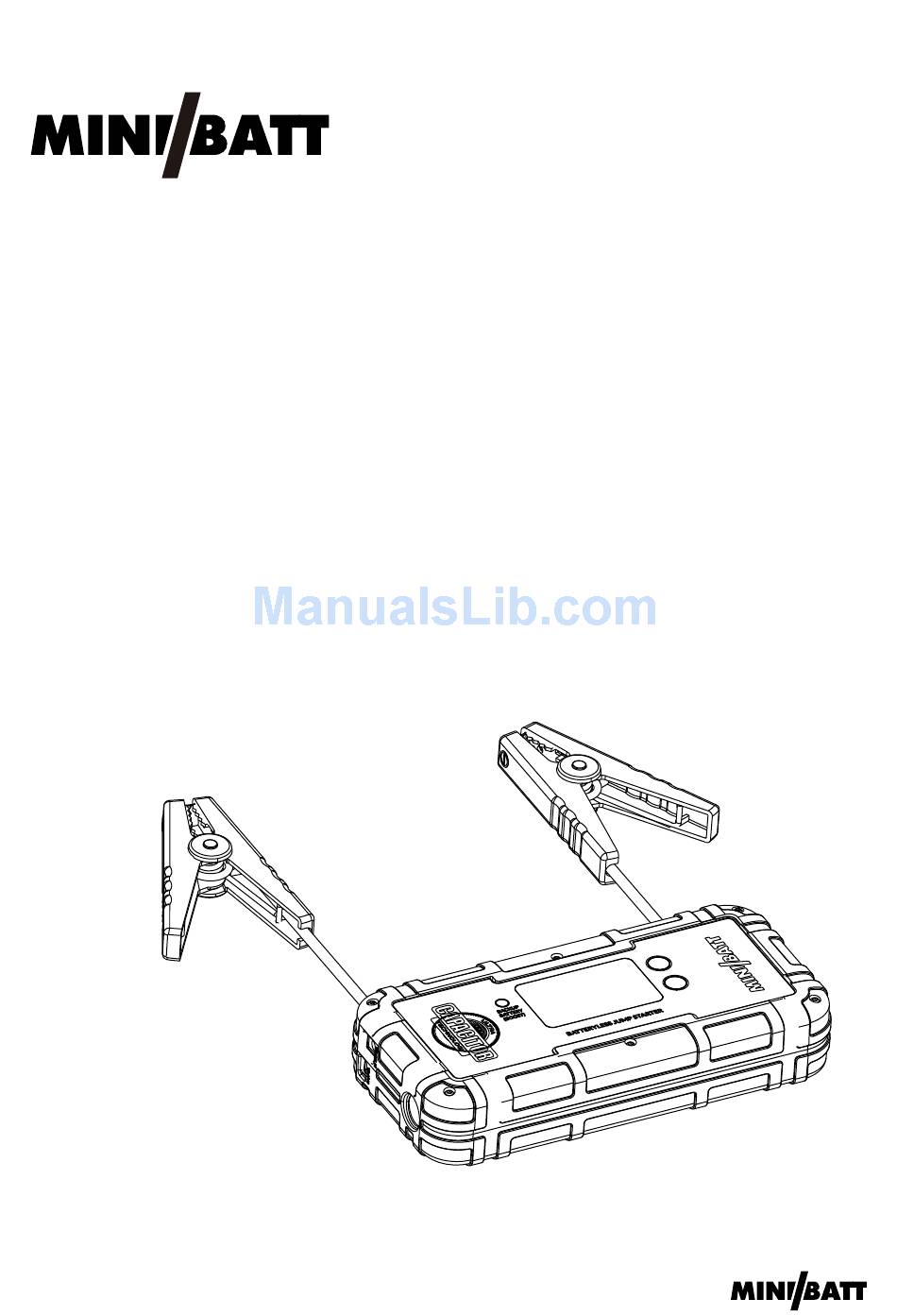

- Page 1 USER MANUAL Thank you for choosing the MINIBATT ULTRA-C jump starter! Always follow basic safety precautions when using electrical appliances. Read all instructions carefully, Please keep this instruction manual for easy reference. Model: miniBatt ULTRA-C ENGLISH...
-
Page 2: Product Layout
A. PRODUCT LAYOUT: Battery Clamps LCD Display Switch LED Switch 5V 2A input port LED Flash Light Backup Battery 12V 10A input port (boost) Switch B. DISPLAY DESCRIPTION: Car battery inner Car battery voltage resistance Backup battery percentage Capacitor voltage ENGLISH... -
Page 3: Key Instructions
C. KEY INSTRUCTIONS: 1. Switch button: touch switch button , LCD screen lights up. 2. Backup battery button: Press backup battery button over 2 seconds to charge the ultra-capacitor. When LCD screen shows “JUMP STARTREADY” and backup battery can automatically output for ultra-capacitor after 10 seconds. - Page 4 ”JUMP START REDAY” , the ultra capacitor can jump start the car. Fi g 3 4. Use 12V cigarette lighter to charge it(Fig 3 shows) after two minutes, the MINIBATT ULTRA-C voltage shows 15V,it can jump start the car. Fi g 4 ENGLISH...
- Page 5 5. Use the AC adapter to charge it(Fig 4 shows) after 20min and the LCD displayer shows the ultra capacitor voltage 15V, it can jump start the car. Fi g 5 6. Use the power bank to charge it(Fig 5 shows, optional）after 20min, and the LCD displayer shows the ultra capacitor voltage 15V, it can jump start the car.
-
Page 6: Lista De Piezas
F. LISTA DE PIEZAS: Parts Name Quantity Host Switch cable Car adapter User Manual G. TECHNICAL SPECIFICATIONS:： Size: 250x120x50mm Weight:） 1300g Backup Battery Capacity: 6000 mAh Output: 12V cars Jump Start Input: 5V 2A,12V 10A Peak current: 700A 20min(5V2A),2min(12V10A) Charging time for capacitor 45S(car battery),4min(back-up battery) 4 hours (5V 2A) Charging time for back-up battery:... -
Page 7: Troubleshooting
2.Q. How many ways can charge this product? And how long for each way? A. Total 4 ways: this product can be charged with 5V/2A USB cable (20minutes), 12V/10A car charger (2 minutes), backup battery inside(4minutes) and normal car battery(45 seconds). 3.Q. - Page 8 K. Warning: 1. Read the instruction manual carefully before using this unit. 2. Jump for 12V vehicles only, it would be hazard if for other jumping. It is forbidden to use for other machines such as aircraft,ship and so 3. Caution while using this unit. 4.
- Page 9 19. DO NOT operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. 20. DO NOT modify or disassemble MINIBATT ULTRA-C. Only a repair technician may repair this unit. 21. DO NOT expose product to extreme heat or fire.
-
Page 10: Warranty Information
L. WARRANTY INFORMATION: We offer a limited warranty for this product against any defects in material and workmanship for a period of 2 years from the date of purchase by the end user/consumer. The conditions of the warranty are as follows: 1. - Page 11 Overcharge and Fuse Protection Against-reverse Plug Overdischarge Protection Applied Standard: GB/T 18287 - 2000 MINIBATT Europe VAT: ESB-08882151 Ctra. de Vic 99-101 08160 Montmeló SPAIN www.miniBatt.com ENGLISH...
