Starterkit-T335

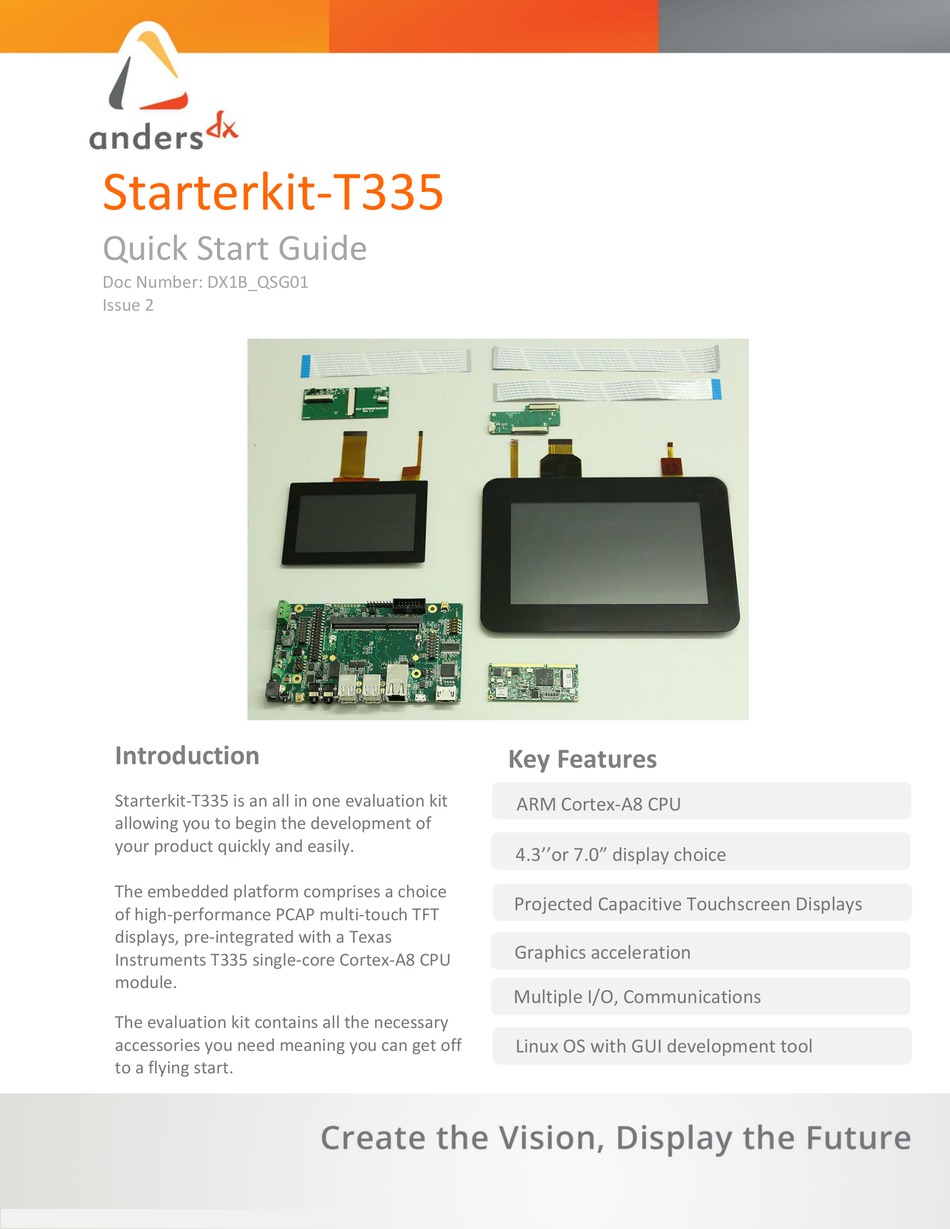

Quick Start Guide
Doc Number: DX1B_QSG01
Issue 2
Introduction
Starterkit-T335 is an all in one evaluation kit
allowing you to begin the development of
your product quickly and easily.
The embedded platform comprises a choice
of high-performance PCAP multi-touch TFT
displays, pre-integrated with a Texas
Instruments T335 single-core Cortex-A8 CPU
module.
The evaluation kit contains all the necessary
accessories you need meaning you can get off
to a flying start.
Key Features
• Scalable solution for next generation devices.
ARM Cortex-A8 CPU
4.3''or 7.0" display choice
Projected Capacitive Touchscreen Displays
ARM based 1GHz processor
Graphics acceleration
Multiple I/O, Communications
• 1GHz processor
Linux OS with GUI development tool
Page 1 of 14
Advertisement
Table of Contents
Summary of Contents for Anders DX Starterkit-T335
-
Page 1: Quick Start Guide
Doc Number: DX1B_QSG01 Issue 2 Introduction Key Features • Scalable solution for next generation devices. Starterkit-T335 is an all in one evaluation kit ARM Cortex-A8 CPU allowing you to begin the development of your product quickly and easily. 4.3’’or 7.0” display choice... -
Page 2: Document History
Document History Authored Approved Date Revision Description 23/3/2017 Document created C. Madella Product Manager 05/04/2017 Modified descriptions L.C. Tran Product for DX1B and added Manager pictures 06/04/2017 First Release L.C. Tran Product Manager 28/04/2017 Product name G. Losito Product changed Manager Cover Page updated Layout updated... -
Page 3: Table Of Contents
Contents DOCUMENT HISTORY ..............................2 INTRODUCTION ..............................4 ..................................4 URPOSE .................................... 4 COPE ..............................4 ECHNICAL SSISTANCE ..................................4 EFERENCE PACKAGE DESCRIPTION............................5 ................................5 ACKAGE ONTENT MECHANICAL INFORMATION ..........................7 : ................................7 ARRIER OARD ASSEMBLY AND BASIC SET-UP ..........................8 .......................... -
Page 4: Introduction
Introduction 1.1 Purpose This document is an introduction to the use of our Starterkit-T335 product range. 1.2 Scope This document is intended for all users that receive the platform for the first time. 1.3 Technical Assistance For more technical details, please visit the Starterkit-T335 Product Wiki Page: https://andersdx.atlassian.net/wiki/display/PRODDX1A/Starterkit-T335+Home... -
Page 5: Package Description
Package Description The Starterkits-T335 is an all in one embedded solution with multi-touch display. The platform comprises high-performance PCAP multi-touch TFT displays pre-integrated with a Texas Instrument T335 single-core Cortex-A8 CPU module and it supports 2 display variants: Size Features Viewing Angle Contrast Resolution... - Page 6 SCF0700C48GGU33 Interface Kit required to Integrate 7" IK1B-002A WVGA (SCF0700C48GGU33) Display Note: Please, make sure to have both the Part Number and the Serial Number handy when you contact Anders DX for provisioning and issue support. Page 6 of 14...
-
Page 7: Mechanical Information
Mechanical Information 3.1 Carrier Board: Rear IO panel Front Side Diagram Page 7 of 14... -
Page 8: Assembly And Basic Set-Up
Assembly and Basic Set-Up 4.1 Display and Base Board Connections Connect the FFC as followed: 4.3” Display Baseboard 7.0” Display Page 8 of 14... -
Page 9: Core Module Connection
4.2 Core Module Connection Insert and push in Push down 4.3 Final Assembled Unit Page 9 of 14... -
Page 10: Installing Software Image
Installing Software Image 5.1 Download Images Starterkits-T335 Pre-built Images for all variants can be found at below link: https://bitbucket.org/andersdx/starterkit-t335_prebuilt_images/downloads/?tab=tags It’s always advisable to download the latest release which will have a correspondent label “Latest_Release”. You can choose among .zip, .gz or .bz2 file format. Download buttons 5.2 Place the content on SD Card Unzipping the downloaded file locally, the content should look like in the picture below and the... -
Page 11: Install The Image Onto The Device
Then format a standard SD-Card as FAT16 or FAT32 file system if not yet done and copy the content of the “common_binaries” folder in the root of the SD-Card. Finally, pick the specific configuration script “boot.scr” from the corresponding folder of your Display size “dx1_XXX_config”. - Page 12 NOTE: *Some PC may not have a RS232 port available. Use commercially available RS232 to USB converter instead. 3. The terminal emulator will display bootloader debug traces while installing. The installation will be completed once the following messages are displayed: Page 12 of 14...
-
Page 13: Boot Up And Device Control
Boot Up and Device Control 1. Plug in the power supply and press the switch [SW1]. A green LED [DS1] on the baseboard will be persistently on showing that it is properly powered on and another green LED [DS1] on the core module will be blinking indicating that there is activity. -
Page 14: Support Resource
Support Resource For more technical information and detailed user-guides, please check our Starterkits-T335 Product Wiki Page: https://andersdx.atlassian.net/wiki/spaces/PRODDX1A/overview or access our Customer Support portal for any issues and queries: https://andersdx.atlassian.net/servicedesk/customer/dxsup Page 14 of 14...
