Summary of Contents for WaiLan DeltaFire 500

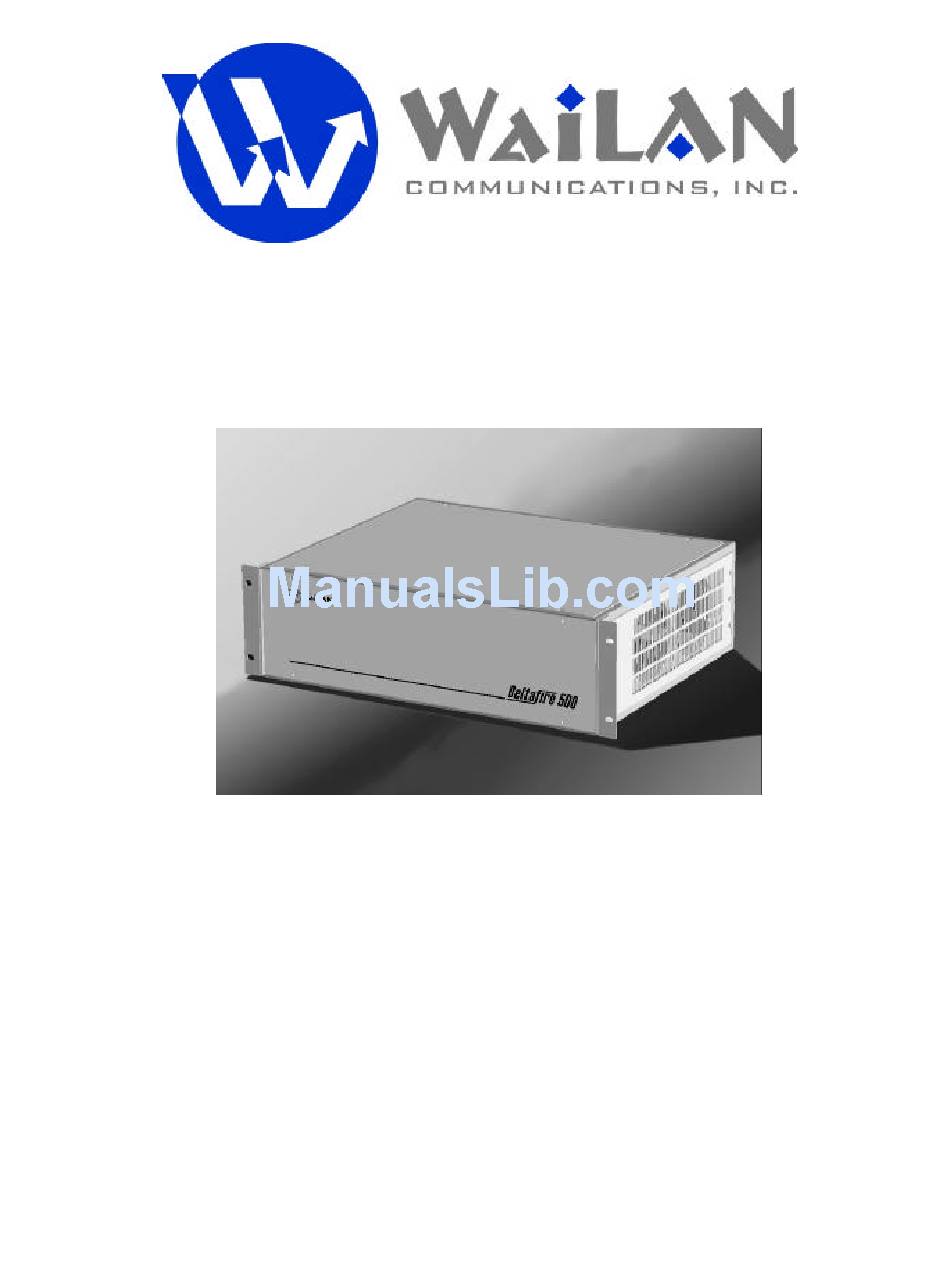

  • Page 1 DeltaFire User’s Guide...
  • Page 2 2032 Bering Drive San Jose, CA 95131 Phone: 408.452.8081 Fax: 408.452.8381 URL: www.wailan.com Notice: AGATE™ and DeltaFire™ are trademarks of WaiLAN Communications, Inc. All other company or product names mentioned are the property of their respective owners. All rights reserved.
  • Page 3 Immediately upon unpacking the DeltaFire device, inspect for external damage. If the unit has been damaged in any way, do not attempt to operate it and return it immediately to WaiLAN Communications, Inc. Do not connect the AC power adapter to an AC power source if the cord or the plug of the adapter is frayed or split.

  • Page 4: Table Of Contents

    DeltaFire 500 User’s Guide ABLE OF ONTENTS INTRODUCTION..............................3 PRODUCT DESCRIPTION ..........................3 INSTALLATION ..............................4 Connections ............................. 4 LED Indicators............................4 Telephone Wire Requirements........................5 Installation Diagram ..........................5 SYSTEM MANAGEMENT..........................6 Accessing System............................. 6 Console ..............................6 Telnet............................... 6 CONFIGURATIONS &...

  • Page 5: Introduction

    LED indication, and troubleshooting. PRODUCT DESCRIPTION DeltaFire 500 is the industry’s first xDSL access switch router, which combines LAN switching, IP routing and high-speed xDSL technologies. It is truly a high-speed remote LAN/WAN access device utilizing RADSL WaiDSL™, RADSL and MSDSL.

  • Page 6: Installation

    DeltaFire 500 User’s Guide INSTALLATION Connections (1) Fan Module (2) Power Supply 1 (3) Power Supply 2 (optional) (4) Control Card: Console Port, RS-232 (DB-9 Female Connector): Console serial port for system configuration LAN Network Port: Standard 10/100Base-T Ethernet interface port (RJ-45 Jack)

  • Page 7: Telephone Wire Requirements

    DeltaFire 500 User’s Guide Telephone Wire Requirements The telephone circuits recommended for the DeltaFire are commonly known as Dry Line, Dry Pair, Raw Copper Line, or Alarm Circuit. Now, it is often referred as DSL Line or ADSL Line. When ordering a DSL line from a Telco, make sure to tell the telephone company that you need a line with no load coils or bridge taps on it.

  • Page 8: System Management

    After making a connection to the DeltaFire device press <Enter> a few times to see the screen below. Select the desired function by entering the corresponding number. Console Management, Version DeltaFire 1.0 Beta (Feb 15 1999) Copyright (C) 1998-1999, WaiLAN Communications, Inc. Main Menu 1. System Information 2.

  • Page 9: Default Password

    Board in on the following line. The tenth and eleventh lines display the Hardware Revision and Software Version. (You should check the WaiLAN Web site (www.wailan.com) to see if the software is the latest version; if not, you should upgrade your software.) The last four lines notify the user of the current ROM, RAM size, the baud rate of the serial port and the current speed of the fast Ethernet port.

  • Page 10: Traffic Statistics

    DeltaFire 500 User’s Guide Traffic Statistics The Statistics sub-menu 2 provides traffic statistics from/to the Ethernet port and from/to DSL ports RX: Number of packets received TX: Number of packets transmitted ERR: Number of errors while receiving Note: The 6-port line cards are counted from top to bottom, i.e. the top card is Slot 1.

  • Page 11: Port Configuration

    DeltaFire 500 User’s Guide Port Configuration The Port Configuration Sub-Menu 4 is used to configure the individual DSL ports. The port name and the administration can be assigned. The type of card, DFLC200 MSDSL or DFLC700 RADSL, the speed and the operating status are automatically detected.

  • Page 12: Static Routing Table

    DeltaFire 500 User’s Guide Static Routing Table The Static Routing Table Sub-Menu 6 allows the user to configure a network that is not directly connected to DeltaFire ports. The Slot number (line card) and port number specifies that port that connects to the network.

  • Page 13: Reset

    Have the new software ready and know the file location. Make sure you have the tftp command file in your system. You can download the tftp DOS Version from WaiLAN’s Web site (www.wailan.com) under SUPPORT. Enter the following command at a PC DOS prompt (if you use tftp DOS Version) or at your normal tftp environment: (the firmware file should be in the current directory): tftp -i [DeltaFire’s IP Address] put [download_filename]...
  • Page 14 DeltaFire 500 User’s Guide Note: WaiLAN provides information about Web sites to assist our customers in obtaining potentially useful information. WaiLAN is not affiliated with these Web sites and is not responsible for their content or any changes to their URLs.
  • Page 15 DeltaFire 500 User’s Guide • Limit Access to SNMP Hosts option • Communities table • SNMP Management Hosts table • Trap Destinations table These items are described below. Selecting Settings for SNMP Options You can enter and edit text in the following fields in the SNMP Configuration screen: •...
  • Page 16 DeltaFire 500 User’s Guide Defining Communities Information You need to define the communities to which the DeltaFire device belongs. You can assign the device to up to 12 communities. The community information determines which hosts on the network are allowed to do the following: •...

  • Page 17: Snmp Support

    SNMP Features Supported The main features of the DeltaFire devices’ SNMP support are as follows: • Supports standard MIB-II MIBs, as defined in RFC 1213. • Supports two WaiLAN private MIBs: wailan.mib and df500.mib. 311-090001 © 1999 WaiLAN Communications, Inc.

  • Page 18: Troubleshooting

    DeltaFire 500 User’s Guide TROUBLESHOOTING If your device fails to operate properly, follow the troubleshooting procedure listed in Table 1. If DeltaFire device is still not working, turn off the power and contact Technical Support (see the section DeltaFire entitled Technical Support Information).

  • Page 19: Appendix A Technical Specifications

    DeltaFire 500 User’s Guide Appendix A: Technical Specifications Table 2: Technical Specifications Items Specifications Line Code MSDSL/RADSL (CAP 8 ~ CAP 256) 128 K ~ 2.304 Mbps MSDSL Serial Payload (Full-duplex) 264 K – 7.104 Mbps RADSL 72 Kbauds ~ 386.6 Kbauds MSDSL Baud Rate 136 Kbauds –...

  • Page 20: Table 4: Radsl Line Card Rate At Different Cable Lengths

    17.2/5.2 11.4/3.5 17.8/5.4 12.2/3.7 19.3/5.9 Config. NO.4 13.3/4.1 20.2/6.2 14.1/4.3 21.6/6.6 14.5/4.4 22.2/6.8 15.4/4.7 23.3/7.1 Note: Configuration 5 to 8 can not be used on AGATE 700 when connected to DeltaFire 500. 311-090001 © 1999 WaiLAN Communications, Inc. Page 18...

  • Page 21: Appendix B Port Pin Layouts

    DeltaFire 500 User’s Guide Appendix B: Port Pin Layouts Table 5: Layout for 6-Port DSL lines to 50-PIN telco connector PIN Assignment Port 1, Ring Port 1, Tip Port 2, Ring Port 2, Tip Port 3, Ring Port 3, Tip...

  • Page 22: Table 6: Console Port Pin Layout (Rs-232)

    DeltaFire 500 User’s Guide Table 6: Console Port Pin Layout (RS-232) DB-9 PIN Direction PIN Assignment OUTPUT INPUT ⇔ Signal /Common Ground Table 7: 10/100Base-T Port RJ-45 Pin Layout RJ-45 PIN Direction PIN Assignment OUTPUT TXD+ OUTPUT TXD- INPUT RXD+...

  • Page 23: User's Reference Form

    DeltaFire 500 User’s Guide User’s Reference Form DeltaFire 500 DeltaFire 500 Location: ___________________; System Install Date: __________________ The firmware version is: __________________; Console Management Password: _________ The Ethernet Address assigned: ________________; IP Address assigned: ________________ System Install Date: _________________ Serial Number: _______________...
  • Page 24 DeltaFire 500 User’s Guide Unit 8 Unit 8 Location: ___________________________________; System Install Date: ______________________________ The firmware version is: ____________________________; The console management password is: ________________ Line/Circuit Number: ________________________; Copper pair’s length: ________(Kft/Km), Impedance: ___________(Ω) The Ethernet Address assigned: _____________________; IP Address assigned: ______________________________ Unit 9 Unit 9 Location: ___________________________________;...
  • Page 25 DeltaFire 500 User’s Guide Unit 18 Unit 18 Location: ___________________________________; System Install Date: ______________________________ The firmware version is: ____________________________; The console management password is: ________________ Line/Circuit Number: ________________________; Copper pair’s length: ________(Kft/Km), Impedance: ___________(Ω) The Ethernet Address assigned: _____________________; IP Address assigned: ______________________________ Unit 19 Unit 19 Location: __________________________________;...

  • Page 26: Technical Support Information

    DeltaFire 500 User’s Guide Technical Support Information WaiLAN Communications, Inc. 2032 Bering Drive San Jose, CA 95131 Technical Support: Phone: 408.452.8081 FAX: 408.452.8381 Email: support@wailan.com Response within one working day URL: www.wailan.com – for additional information, diagrams and firmware updates 311-090001 ©...
  • Page 27 Printed in USA $15.00 311-090001 © 1998 WaiLAN Communications, Inc. All Rights Reserved...
