Avon II Assembly Manual

Aluminium cored glazing bars

Construct suitable framework. The rafters upon which the bars

will sit should be positioned at 'width of sheet + 20mm' centres.

So if you're using 1045mm wide sheeting, position the rafters at 1065mm

centres.

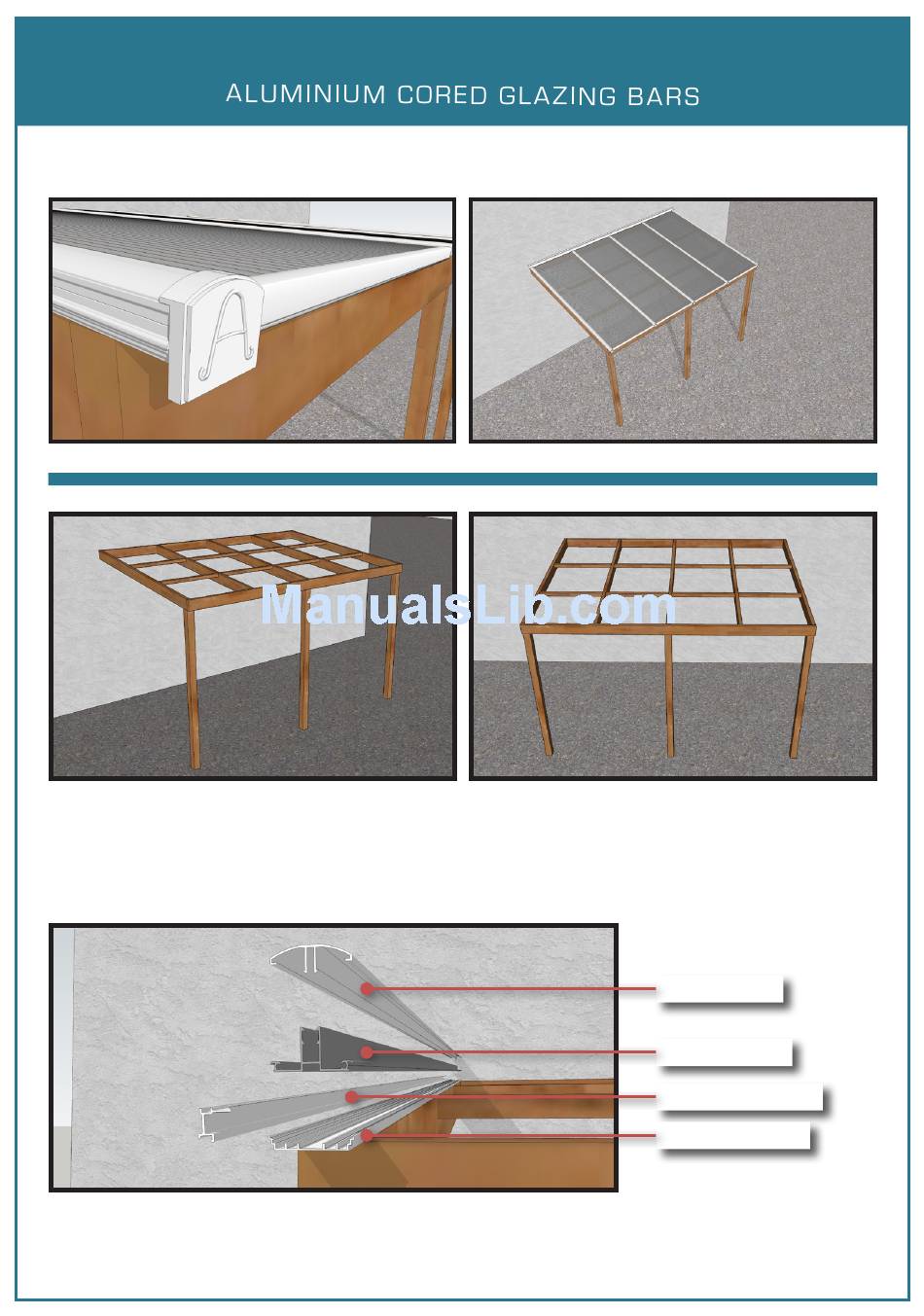

diagram showing how the components fit together to form a

typical avon bar. these parts should be cut to the same length

as the rafters with an additional overhang of 60MM

Avon I I Ca nopy

a s s e m b l y G U I D E

pvc top-cap

aluminium core

pvc end bar infill

pvc bottom-cap

Table of Contents

Need help?

Do you have a question about the Avon II and is the answer not in the manual?

Page 1 60MM...
Page 2 Clip aluminium Fix the connected aluminium bar into the plastic base and base to the centre of each rafter. Drill and fix along the rafter at approximately 600 centres. eaves retainer timber beam Position the eaves retainers between each bar. Align the small nib on the bottom of the eaves retainer with the edge of the timber beam.
Page 3 PREPARING THE POLYCARBONATE SHEET The protective film on the sheets should be peeled back approximately 50mm on all edges and on both sides. Ensuring the sheet is free from dust moisture and any other debris the sheet tapes should be applied to the two sheet ends. Vent tape for the gutter end and and ali tape for the wall end.
Page 4 Position the sheets into place. The bottom lip of the sheet enclosure should tuck in to the eaves retainer which will help hold the sheet in place. Once the sheets are in, click the top-cap firmly into place. For the two bars at each end, place the bar infill into place before adding the top cap.
Page 5 click the face covering into Finally fix the bar endcap place into place with 2 screws. Fix PVC flashing to wall and cut appropriately to sit across canopy.
