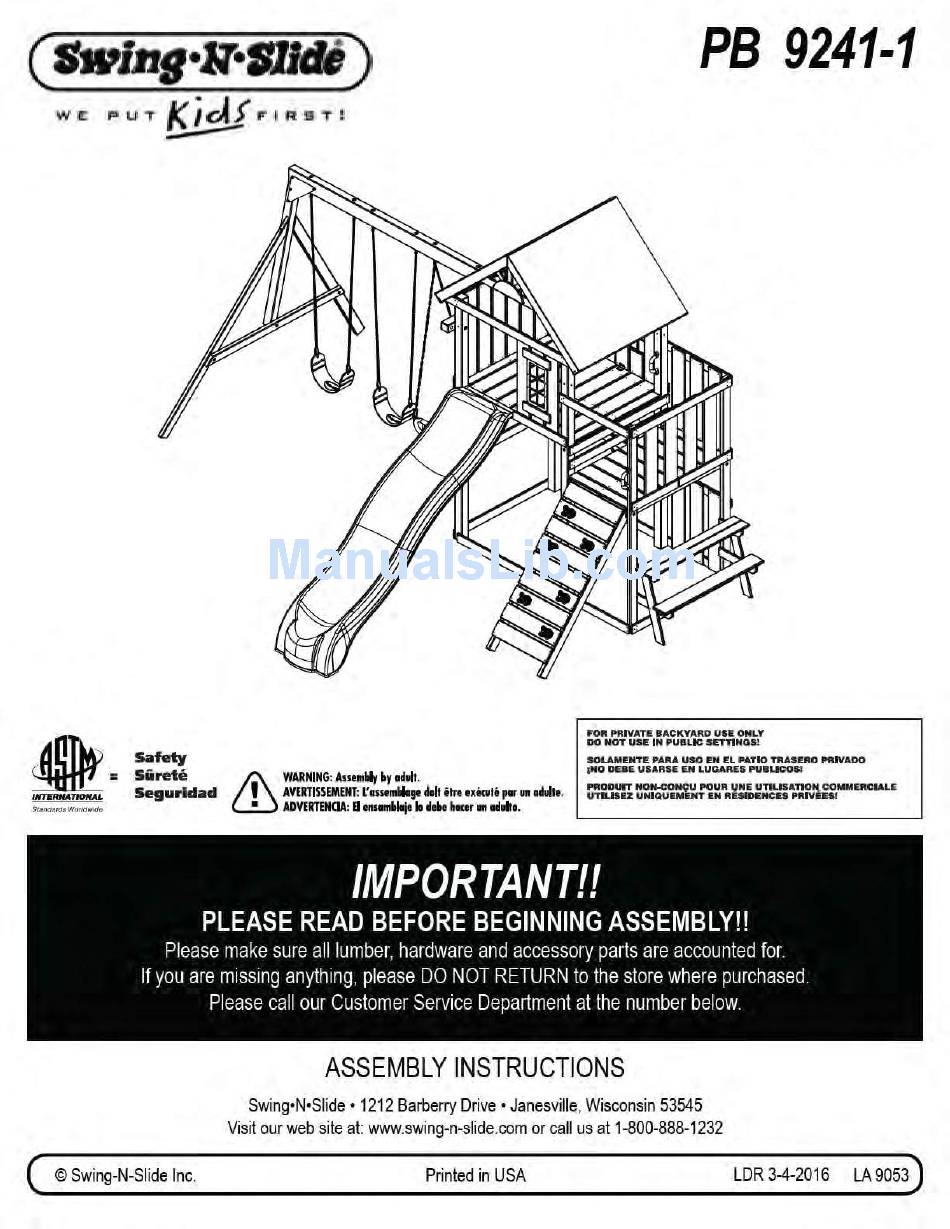

Summary of Contents for Swing-N-Slide PB 9241-1

  • Page 3 PLAYSET MAINTENANCE Cosmetic defects that do not affect the structural integrity of the product, or natural defects of wood such as warping, splitting, checking, twisting, shrinkage, swelling or any other physical properties of wood that do not present a safety hazard, are not covered by our warranty. To help minimize these natural defects we recommend applying a sealer or stain every two or three years, or more often as the climate dictates. Power washing, sanding or other preparatory methods should be used prior to sealing or staining. Periodic maintenance is required to ensure safe enjoyment of your playset and accessories. Read and follow the Playset Checklist below to reduce the likelihood of serious or fatal injury. Use the checklists as a guide for proper playset care and maintenance. PLAYSET CHECKLIST At the beginning of each play season: Tighten all hardware. Lubricate all metallic moving parts per manufacturer's instructions. Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. Check all moving parts including swing seats, ropes, cables, and chains for wear, rust, or other deterioration. Replace as needed. Check metal parts for rust. If found, sand and repaint using a nonleaded-based paint meeting the requirements of 16 CFR 1303. Check all wood members for deterioration and splinters. Sand down splinters and replace deteriorating wood members. Reinstall any plastic parts, such as swing seats or any other items that were removed for the cold season. Rake and check depth of loose fill protective surfacing materials to prevent compaction and to maintain appropriate depth. Replace as necessary. Twice a month during play season: Tighten all hardware. Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. Rake and check depth of loose fill protective surfacing materials to prevent compaction and to maintain appropriate depth. Replace as necessary. Once a month during play season: Lubricate all metallic moving parts per manufacturer's instructions.
  • Page 5 PLAYEST SAFETY ZONE 14’-0’’ 6’ 16’-3’’ 6’ 28’-0’’ 14’-0’’ 6’ 28’-3’’ MINIMUM USE ZONE FOR PLAY EQUIPMENT SHALL EXTEND NO LESS THAN 72” FROM ALL SIDES OF THE PLAY STRUCTURE. SWING USE ZONE EXTENDS NO LESS THAN 168”. SWINGS MUST HAVE A MINIMUM CLEARANCE OF 8” ABOVE THE PROTECTIVE SURFACING. xx x-x/x 10 3 83 to Swing Hanger...
  • Page 11 LADDER MODULE SA6005 002] / x 3 PICNIC TABLE MODULE SA6018 0 [PF 6021] 5 8 x 5-3/8 x 30 3/ (1) [PF 029] 5/8 3 3/8 x 20-1 2 BOARD LIST BOARD LIST 058] 5/8’’ x 3 3/8 x 30’’ 1’’...
  • Page 59 Swing-N-Slide® will repair, or at its discretion, replace any part within the stated warranty period which is defective in workmanship or materials. This decision is subject to verification of the defect upon delivery of the defective part to Swing-N-Slide® at 1212 Barberry Drive, Janesville, Wisconsin, 53545.
  • Page 60 Call our Customer Support Representatives 1-800-888-1232 Available Monday - Friday, 7am - 5pm (CST) Weekend support available April through July Technical support from experienced Swing-N-Slide customer service representatives who have actually built a swing set themselves. © Swing-N-Slide Inc. 2016 Printed in USA...
