Description:

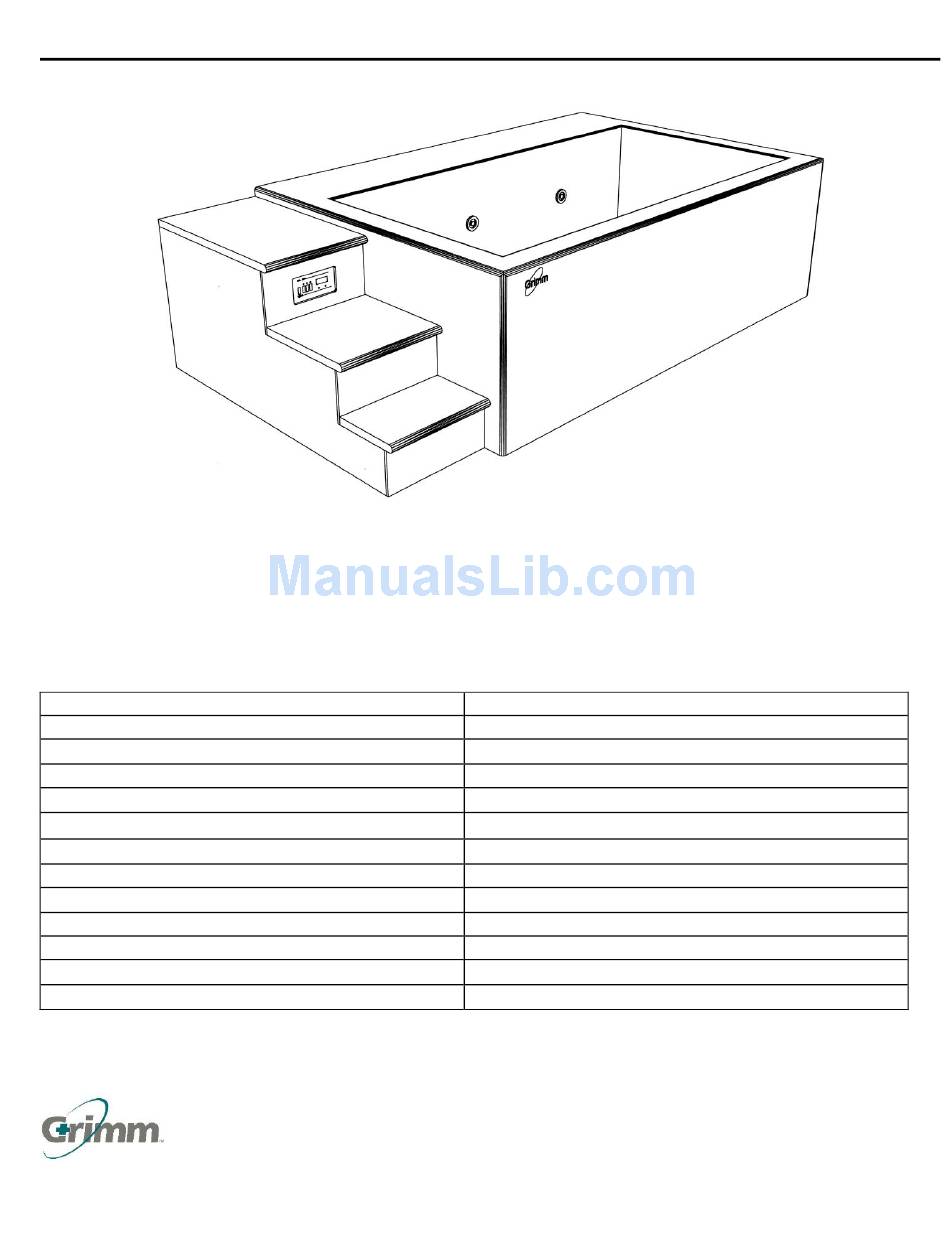

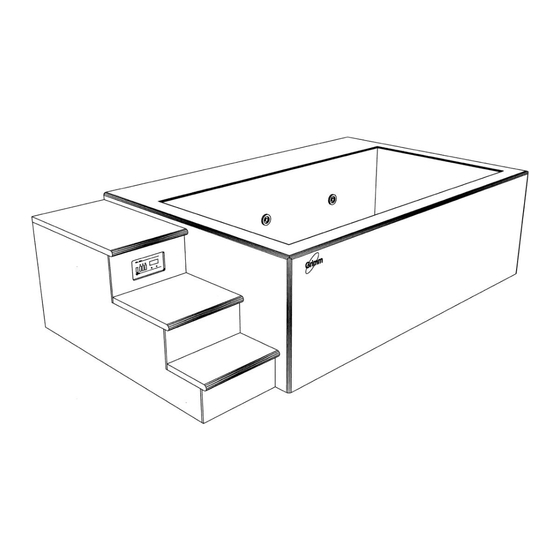

The Model 4500 CRYOTherm Single-Tank Console provides comfortable and convenient cold hydrotherapy. Water
in the tank is precisely maintained at selected temperatures with a robust refrigeration system and electronic
temperature control.
Specifications:
Weight / Tanks Empty
Weight / Tanks Full
Tank Dimensions
Tank Capacity
Temperature Range
Tank Construction
Exterior Construction
Voltage
Full Load Amperage
Circuit Breaker
Refrigeration Capacity
Pump
Hydrotherapy Jets
Please read thoroughly before use and retain for later reference
Grimm Scientific Industries, Inc.
P.O. Box 2143, Marietta, OH 45750
www.grimmscientific.com
1,950 Pounds
6,186 Pounds
94" L x 48" W x 28" D
508 Gallons
40 F to 70 F
12 Gauge, Type 304 Stainless Steel
Dupont Cameo White Corian
208 Volt, Single Phase, 60 Hertz
24 Amps
2 Pole, 30 Amp, GFCI
2 1/4 Ton
1 1/2 HP, Dual Speed
Six
Tel: 800-223-5395
Fax: 740-374-5745
e-mail: grimm@ee.net
User's Manual
Page 1
090205.1.12.16
