ptf

Precise Time and Frequency, Inc

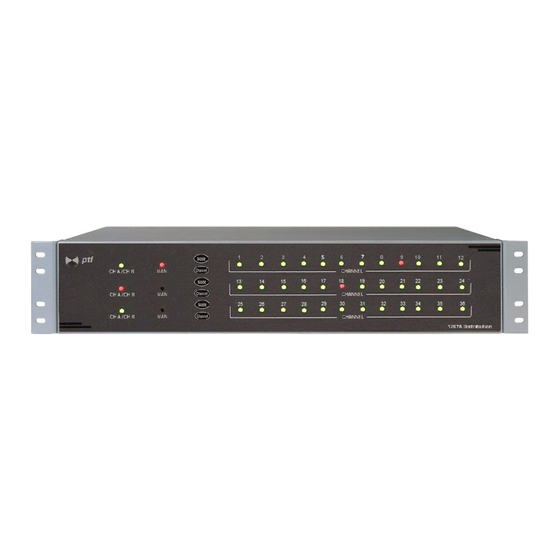

ptf 1226 Auto Switch

Operation and Maintenance Manual

Document # 11323

Revision

Table of Contents

Need help?

Do you have a question about the ptf 1226 and is the answer not in the manual?

Questions and answers

Summary of Contents for Precise Time and Frequency ptf 1226

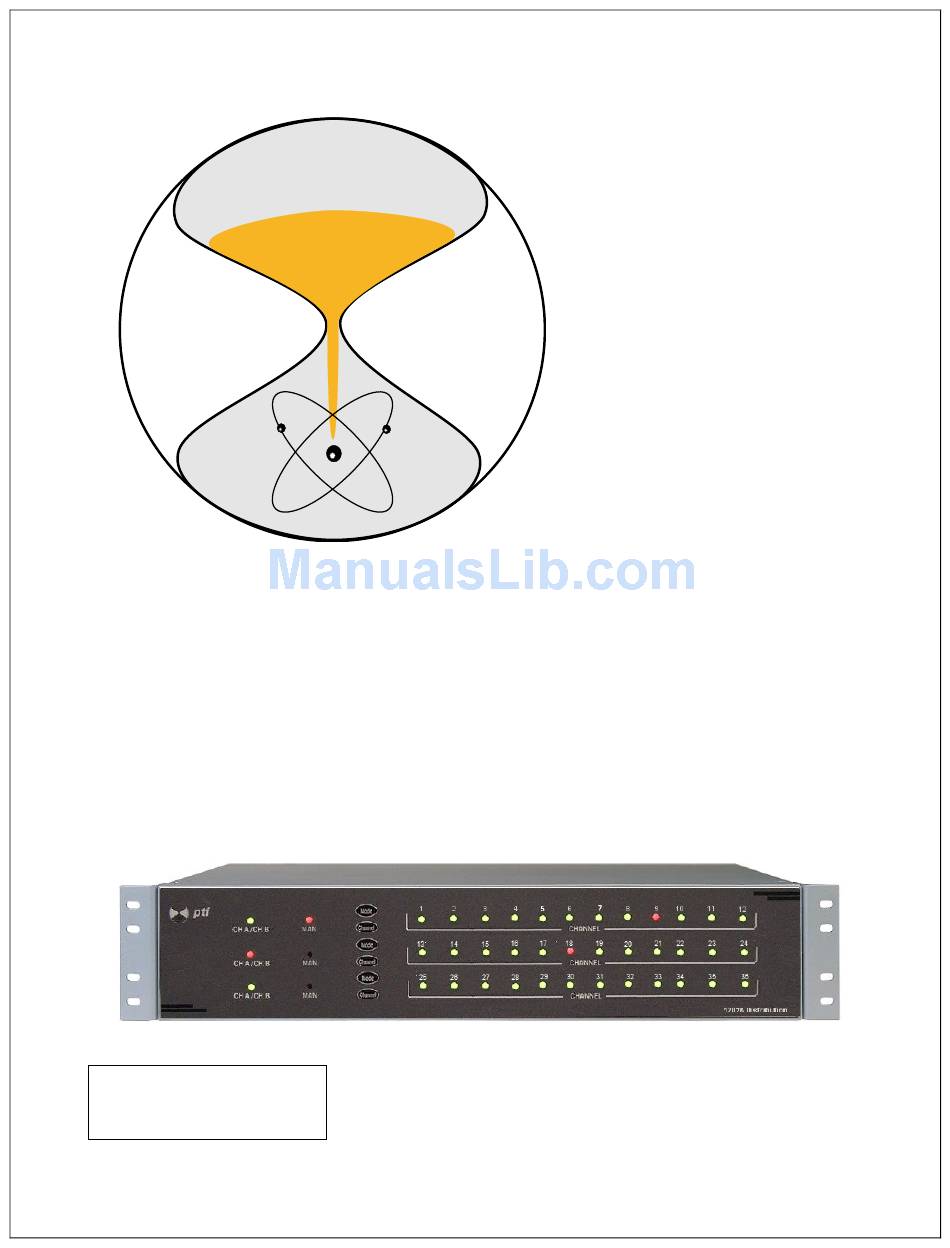

Page 1 Precise Time and Frequency, Inc ptf 1226 Auto Switch Operation and Maintenance Manual Document # 11323 Revision...
Page 2 Certificate of Conformance This certificate confirms that the following equipment: Unit type: ptf 1226 Auto Switch Serial Number: __________________________ has successfully passed a FINAL ACCEPTANCE TEST and conforms in all respects of form, fit, and function to current specifications, including regulatory requirements and certifications.
Page 3 Declaration of Conformity This certificate confirms that the following equipment: Unit type: ptf 1226 Auto Switch with Distribution is in conformity with the relevant provisions of the following standard(s) or other normative document(s): EU EMC Directive 89/336/EEC: EN55022 Limits and methods of measurements of radio disturbance...
Page 4 Introduction Congratulations on your purchase of the ptf 1226 Auto Switch with Distribution unit, with a comprehensive remote Monitor/Control interface! This product meets the highest standards of quality and reliability, and Precise Time and Frequency, Inc wants to insure that you enjoy the maximum benefits and functionality that this unit can provide.
Page 5: Table Of Contents
CONTENTS Technical Overview Specifications Unpacking/Inspection/Installation Operation Monitor/Control Interface Maintenance Contact Information – Technical Assistance...
Page 6: Technical Overview
1. ptf 1226 Auto Switch with Distribution - Technical Overview The ptf 1226 is an extension on the prvious ptf 1226A, and adds additional inputs capability, additional output capability, and enhanced monitoring and control. The unit is configurable according to application requirements and can house up to 3 channel pairs of auto switch input, and up to 36 distribution outputs all housed in one, 2U high rack mounting unit.
Page 7: Specifications
Telnet and Serial interfaces can be used to control individual channel modes (Auto or Manual) and to select channel inputs (Primary or Backup). 2. ptf 1226 Auto Switch/Distribution - Specifications 2.1.1. Electrical RF Inputs – 2 per RF channel*...
Page 8 Distribution Outputs RF Outputs* Frequency Range 900kHz to 20MHz Level 1 V rms/13dBm (nominal) – will accept 0 to 15 dBm Load Impedance Connectors Digital Outputs* Frequency Range 0.01 Hz to 10MHz Levels TTL low (<0.5V) TTL High(>3V) Load Impedance Connectors IRIG B Time Code Outputs* Frequency Range...
Page 9 2.1.3. Dimensions ptf 1226 2U Chassis (HxWxD) 3.5 x 17 x 12 inches 2.1.4. Weight Chassis <15 pounds (dependent upon configuration) 2.1.5. Environmental Operating Temperature: 0º C to +55º C Storage Temperature: -40º C to +70º C Relative Humidity up to 95% RH non-condensing...
Page 10: Unpacking/Inspection/Installation
3. Unpacking/Inspection/Installation 3.1. Unpacking/Inspection The ptf 1226 Auto Switch together with accessories is shipped in a custom designed package. Upon receipt the equipment should first be visually inspected for any signs of visible damage. If visible damage is apparent immediate notification should be given to both Precise Time and Frequency, Inc., and the carrier responsible for...
Page 11: Operation
4. ptf 1226 – Operation Operation of the ptf 1226 is extremely straightforward. Once all of the required input and output connections have been made power can be applied for the unit. Power input connector Ch 1 Channel outputs 1 through 36...
Page 12: Monitor/Control Interface
5. Monitor / Control Interfaces 5.1. Telnet 5.1.1. Command Format The telnet interface is designed as a machine interface, and therefore characters sent to the unit are not echoed as this imposes undue difficulties on the transmitting device. Command format is of the form : [Command][Space][Data][Enter] Where;...
Page 13 5.1.2. Login To login to the unit via the telnet interface, it is necessary to provide a user name and password. The user name is user definable, e.g. Admin. The password can be numbers only and the default password is 123456. 5.1.3.
Page 14 57600 IP SNMP xxx.xxx.xxx.xxx IP address of SNMP manager SNMP Traps String On / Off IP NTP xxx.xxx.xxx.xxx IP address of NTP SERV server NTP u/d int Integer 0 to 0 = no timeout 100000(seconds) Man Timeout Integer 0 to 0 = no timeout 100000(seconds) TNET Port...
Page 15 5.1.4. Help Screens When used with a standard interface such as Hyper terminal, it can be helpful to be able to quickly see available commands and their formats. The unit includes both a summary help screen, that provides a quick reference for available commands, and reports the currently set values of the various parameters, and also multi-line help for each of the commands.
Page 16 Summary Help Screen...
Page 17 Expanded help on specific commands...
Page 18 5.1.5. Status, Opstat, and Anstat Commands The Status command is provided as a means of obtaining a quick summary of the status of the unit, and provides summary information on each of the Auto switch channels, together with other settings such as the Manual mode and telnet timeouts, Ethernet status etc.
Page 19 The Anstat command is provides a summary representation of the analog RF output values for each of the RF channel inputs and outputs. Anstat Screen Note: Internally the outputs are provided through individual modules referred to as “Quad Blocks”, providing 4 outputs (either RF, Digital, or Time Code) per module. The unit is also divided into three rows of 12 outputs, the top row being referred to as Row A, the middle as row B, and the bottom as row C.
Page 20 5.2. RS 232 5.2.1. Configuration The RS232 port factory default setting is 57600-8N1, but may be changed through the RS232 menu. 5.2.2. Command Format The RS232 command format has been designed to have an identical look and feel as the telnet interface. The main difference is that the RS232 is primarily provided for local control and therefore the commands are echoed.
Page 21 5.3. SNMP Agent 5.3.1. General The Auto switch/Distribution unit includes an SNMP agent (SNMPv1) using the standard UDP interface and providing basic information on the unit (location, capabilities etc.) together with traps on alarm conditions that are sent to the address set as the SNMP manager IP address.
Page 22 SNMP Query Screen...
Page 23 SNMP Trap Ringer Screen...
Page 24 The SMI and MIB files for the SNMP manager are shown in the following pages; SMI File; -- ***************************************************************** -- Precise-SMI.txt: Precise Time and Frequency Enterprise Structure of Management Information -- September 2003 Les Herbst -- Copyright (c) 2003 by PTF Inc -- All rights reserved.
Page 25 MIB File; -- ************************************************************** -- ************************************************************** -- -- Copyright 2009 Precise Time and Frequency Inc -- DESCRIPTION: This file contains the ptf 1220X Auto Switch with Distribution Remote Monitor private MIB. -- ************************************************************** -- ************************************************************** PRECISE1220Xv3-MIB DEFINITIONS ::= BEGIN IMPORTS...
Page 26 -- 1.3.6.1.4.1.18507.2 precise_phone OBJECT-TYPE SYNTAX OCTET STRING ACCESS read-only STATUS mandatory ::= { preciseinc 2 } -- 1.3.6.1.4.1.18507.3 precise_email OBJECT-TYPE SYNTAX OCTET STRING ACCESS read-only STATUS mandatory ::= { preciseinc 3 } -- So it goes private-enterprises-preciseinc - ptfproduct -producttype -- assume only one 'product' or device handled by one resident snmp agent -- on that product -- 1.3.6.1.4.1.18507.9.1...
Page 27 STATUS mandatory ::= { ptf1220Xmodules 1 } -- 1.3.6.1.4.1.18507.9.7.2 has_telnet OBJECT-TYPE SYNTAX OCTET STRING ACCESS read-only STATUS mandatory ::= { ptf1220Xmodules 2 } -- 1.3.6.1.4.1.18507.9.7.3 has_snmp OBJECT-TYPE SYNTAX OCTET STRING ACCESS read-only STATUS mandatory ::= { ptf1220Xmodules 3 } -- 1.3.6.1.4.1.18507.9.7.4 has_http OBJECT-TYPE SYNTAX OCTET STRING ACCESS read-only...
Page 28 SYNTAX OCTET STRING ACCESS read-only STATUS mandatory ::= { ptf1220Xmodules 8 } -- 1.3.6.1.4.1.18507.9.7.9 has_DIG_Distr OBJECT-TYPE SYNTAX OCTET STRING ACCESS read-only STATUS mandatory ::= { ptf1220Xmodules 9 } -- 1.3.6.1.4.1.18507.9.7.10 has_IRIG_Distr OBJECT-TYPE SYNTAX OCTET STRING ACCESS read-only STATUS mandatory ::= { ptf1220Xmodules 10 } -- 1.3.6.1.4.1.18507.9.8.1 up_time OBJECT-TYPE SYNTAX TimeTicks...
Page 29 ::= { ptf1220Xdata 3 } -- 1.3.6.1.4.1.18507.9.8.4 num_channel_changes OBJECT-TYPE SYNTAX Counter ACCESS read-only STATUS mandatory ::= { ptf1220Xdata 4 } -- 1.3.6.1.4.1.18507.9.8.5 num_faults_detected OBJECT-TYPE SYNTAX Counter ACCESS read-only STATUS mandatory ::= { ptf1220Xdata 5 } -- 1.3.6.1.4.1.18507.9.8.6 num_traps_sent OBJECT-TYPE SYNTAX Counter ACCESS read-only STATUS mandatory ::= { ptf1220Xdata 6 }...
Page 30 5.5. HTTP, Web Interface The ptf 1226 web interface allows a sub set of the commands to be entered via a web page through a standard web browser. The commands available on the web interface are shown in the table below, and can also be viewed on the web interface “vali commands”...
Page 31 5.5.1. Web pages To log onto the web pages the user must enter a user name and the system password. User name for the web interface is “admin” (all lower case).The log in screen and web pages are shown below; Login Screen...
Page 32 Command Entry Page Status Response Page...
Page 33 Anstat Response Page To logout of the web interface close the browser.
Page 34 5.6. Local (Front Panel) The ptf 1226 Auto switch/Distribution unit front panel layout is shown below; Front Panel Layout 5.6.1. Commands Each of the (three) input channels of the unit can be configured as either in Auto or Manual mode.
Page 35: Maintenance
6. Maintenance 6.1. Overview The ptf 1226 Auto Switch/Distribution unit uses state-of-the art solid state and semi-conductor, primarily surface mount, components. All of the components are selected for their inherent high reliability, and advanced techniques with highly sophisticated equipment, are used for assembly and test of the unit.
Page 36: Contact Information - Technical Assistance
7. Contact Information – Technical Assistance The Precise Time and Frequency, Inc service department normal hours of operation are from Monday to Friday, between the hours of 8.00 a.m. and 5.00 p.m. US Eastern Standard Time. Before returning any equipment for service or repair please contact our service department for an RMA number.
