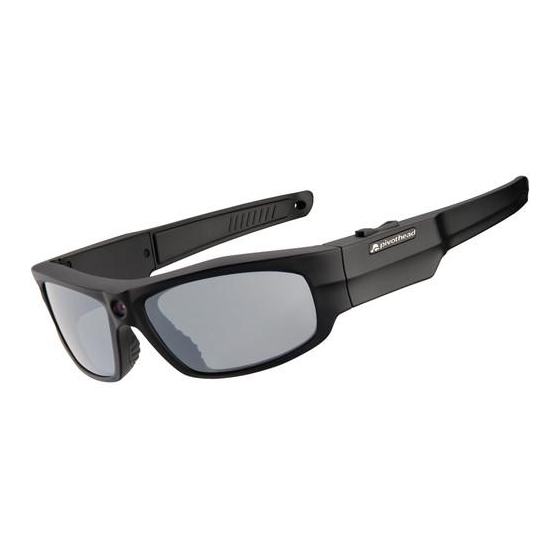

Pivothead HDHF Video Recorder Eyewear
High Definition Hand Free Device
Draft 4 – 2012-5-7
Features Recording:
• Brilliant HD Video & Audio Recording
• Continuous Auto Focus
• Still Image Capture During Video
• Burst Still Image Capture
• Black & White Video / Photo Settings
• Simple to Use and Easy to Share
• Numerous Control Setting Options
• PC, Mac, iOS and Android Apps
Features Sun Glasses:
• Ultra Light Weight Impact-Resistant Frames
• Polarized, Revo, and Photochromic lenses
• 4 Models, 16 styles
Advertisement
Table of Contents
Summary of Contents for Pivothead PV52891720
- Page 1 Pivothead HDHF Video Recorder Eyewear High Definition Hand Free Device Draft 4 – 2012-5-7 Features Recording: • Brilliant HD Video & Audio Recording • Continuous Auto Focus • Still Image Capture During Video • Burst Still Image Capture • Black & White Video / Photo Settings •...
-
Page 2: Table Of Contents
1. Table of Contents Table of Contents ..................2 Pivothead HDHF Eye Video Recorder Features: ........... 3 Getting started ....................3 Powering ON and OFF the glasses ............... 4 Record Video ......................4 Take Still Shots ....................... 5 Real Time Clock ..................... 5 Auto Power Off ....................... -
Page 3: Pivothead Hdhf Eye Video Recorder Features
You will find more information related to the products, Control Setting software user manual, news, info about our accessories, etc. Pivothead will also release new features under the form of Firmware and Application Upgrades. Visit our site regularly to get the latest information. You can also register for our monthly newsletter to keep track of the new features. -
Page 4: Powering On And Off The Glasses
Pressing the Photo Recording Button (B2) will start taking picture. Give it a try! 4. Powering ON and OFF the glasses A Steady Blue LED light (D) indicates that the PIVOTHEAD HDHF recorder is switched ON. • To power ON the PIVOTHEAD HDHF recorder: Press and release the power button when the device is switched OFF. -
Page 5: B) Take Still Shots
‣ See PHOTO RESOLUTION MODES for more information c) Real Time Clock The Pivothead Recorder is equipped with a Real Time Clock features. You do not need to set up the date into the device. Just plug the glasses into the computer, launch the computer Application (Please refer to Chapter 4). -
Page 6: E) Ntsc / Pal Setting
During the installation, you will be asked to confirm the installation folder (you can change it if needed) If you have already installed an older Pivothead Application, it will be removed automatically. Just accept when the computer informs you about this old version, and the old application will be removed automatically, then the new one will be installed. -
Page 7: H) Connecting The Glasses To The Computer
4.1 Access your media content using a file explorer: If you have autopen setup, Windows will offer to open the Mass Storage (the storage disk name is PIVOTHEAD) into the file explorer. You can then find your media (images and videos) in the folder DCIM\HDHFRxxx\ 4.2 Opening the Pivothead Application:... -
Page 8: Computer (Mac/Pc) Application
Computer (Mac/PC) application: The Application User Interface is separated in 3 zones. The top area provides the User with some general functions: DCS Reset, Files Download and Online Support link. Below, the left side lets the user control the Video settings (pay attention to the Quick mode and the Manual mode) and the right side the photo settings. -
Page 9: Quick Video And Manual Video Modes, General Video Options
4. Quick Video and Manual Video modes, General video options: i) Quick Video modes The Pivothead HDHF Recorder provides “in one click” several recording modes allowing you to get the best video possible based on your activity or environment: Active Mode (default setting): When you are on the move, looking at things up close and far away (high battery consumption). -
Page 10: J) Manual Video Modes
Focus: The focus setting allows the Recorder to adjust the lens to obtain a sharp recording. The Pivothead HDHF Recorder has the below options: Continuous Auto Focus (CAF): The Recorder controls the focus during all recording to get the sharpest picture. This setting can be used when the distance to the subject/action can change from close to far (default setting). -
Page 11: L) Photo Manual Setting
720@60 fps -> highest Frames Per Second setting, for quick action recording. 720@30 fps -> highest duration storage and the lower battery consumption. Pivothead Watermark: Select ON to add the Pivothead watermark in the Right Bottom corner of your video. Select OFF otherwise. TIME/DATE Stamp Select ON to print the time and date of the recording onto the video while recording. - Page 12 Focus: The focus setting allows the Recorder to adjust the lens to obtain the sharpest picture. The Pivothead HDHF Recorder has the following options: Auto: The Recorder will focus from 4' to infinite. This setting can be used when the distance to the subject/action is greater than 3 1/2' (default setting).
- Page 13 Select ON to print the date the picture is taken on the Photo. Select OFF otherwise. Pivothead Watermark: Select ON to add the Pivothead watermark in the Right Bottom of your pictures. Select OFF otherwise. Exposure: The Exposure setting allows you to improve the picture quality in extreme light conditions.
-
Page 14: To Transfer Video And Photo Files To A Computer
5. To transfer video and photo files to a computer The “One Click Download Button” The Pivothead software provides you a very simple way to download all your Videos and Pictures onto the computer: The “One Click Download Button”. Clicking on this button will copy your glasses media content (Videos and Photos) on your computer, in the Pivothead\Date\ folder located on the your desktop. -
Page 15: View Your Pictures, Play Your Video
USB memory stick. Our FAQ shows how to operate from the recent Sony, Samsung HDTV and various DVD players. Please check our FAQ on Pivothead website if you have problem viewing video on your device. -
Page 16: Battery
7. Battery Battery Life Fully charged, the battery will provide approximately 1 hour of video recording time in 720p30 (50 minutes in 1080p). Blue LED blinking slowly indicates that battery level is low (below 10%) Blue LED blinking quickly indicates that battery level is very low (below 3%). The LED will blink 5 times then the glasses will automatically shut down. -
Page 17: Glossary
8. Glossary: AF (Auto Focus) A system that automatically focuses the camera lens on the subject. Your camera uses the contrast to focus automatically. EV Compensation This feature allows you to quickly adjust the exposure value measured by the camera, in limited increments, to improve the exposure of your photos. Set the EV compensation to -1.0 EV to adjust the value one step darker and 1.0 EV to one step brighter. -
Page 18: Technical Specification
9. Technical Specification Operating temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F) Used battery: Lithium-ion battery – High Voltage: 4.2V – Low Voltage: 3.4V – Normal Voltage: 3.7V 10. -
Page 19: Fcc
Cape Evolution is not responsible for any illegal action taken while recording or editing video or still images captured with our products. The Pivothead products are intended to be used to capture images and recordings in strict compliance with all applicable federal, state and local laws and regulations. - Page 20 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
