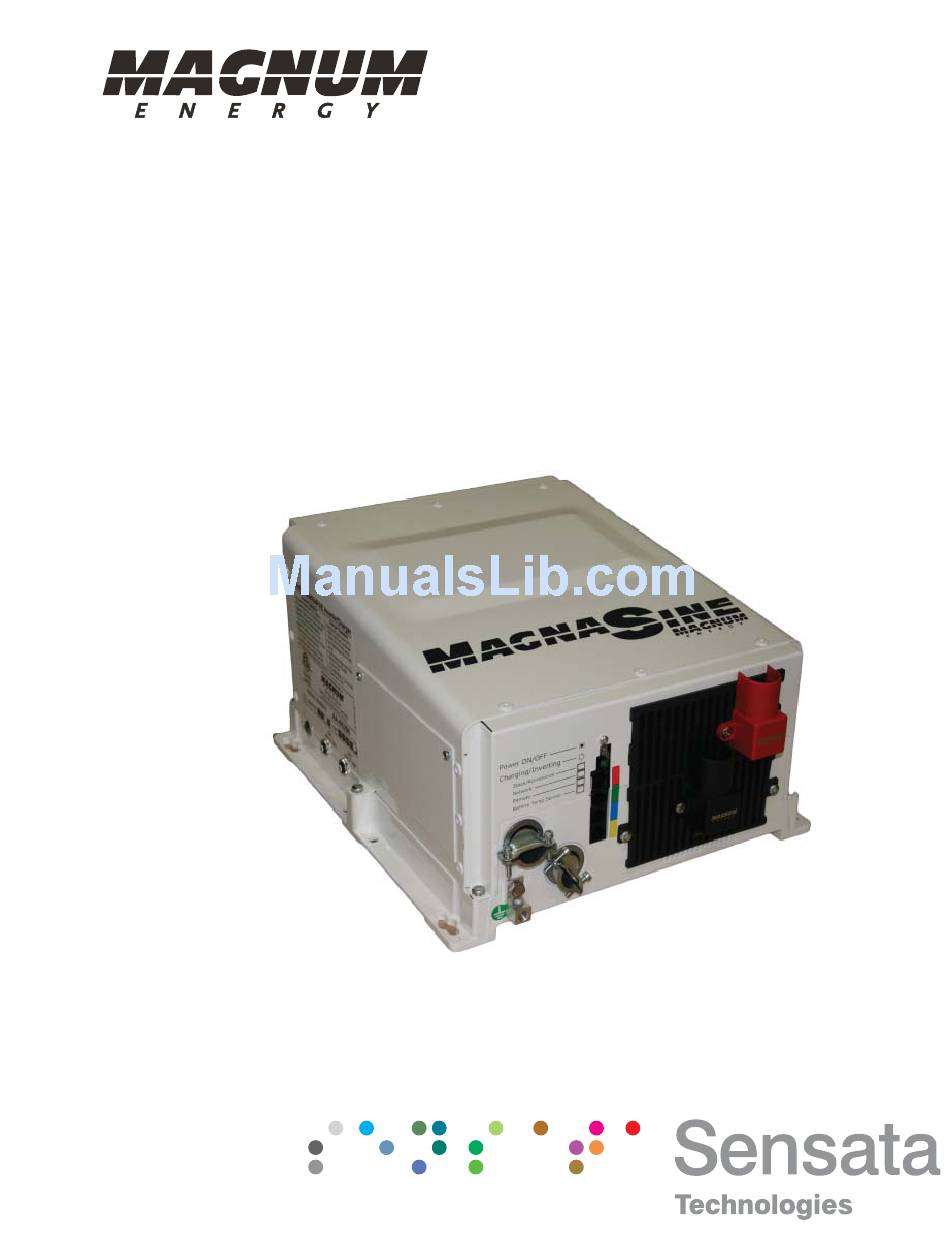

- Page 1 MS-PAE Series Pure Sine Wave Inverter/Charger Owner’s Manual...
-
Page 2: Copyright Notice
This MS-PAE inverter/charger was proudly assembled and tested in the United States. At Sensata, we are committed to providing you with quality products and services, and hope that your experience with us is pleasant and professional. -
Page 3: Safety Precautions
System grounding, if required, is the responsibility of the system installer and must comply with local and national electrical codes and standards. Refer to the Section 2.4 “Grounding Inverters” for more information. Page ii © 2017 Sensata Technologies... -
Page 4: Battery Safety
CAUTION: This symbol indicates that failure to take a specifi ed action could result in damage to the equipment. Info: This symbol indicates information that emphasizes or supplements important points of the main text. © 2017 Sensata Technologies Page iii... - Page 5 La terre du système, si nécessaire, est de la responsabilité de l’installateur du système et doit se conformer à des codes locaux et nationaux et les normes électriques. Reportez-vous à la Section 2.4 Mise à la terre Onduleurs dans le chapitre d’installation pour plus d’informations. Page iv © 2017 Sensata Technologies...
- Page 6 ATTENTION: Ce symbole indique que le défaut de prendre une action spécifi ée peut entraîner des dommages à l’équipement. Info: Ce symbole indique une information qui met l’accent ou des suppléments points importants du texte principal. © 2017 Sensata Technologies Page v...
-
Page 7: Table Of Contents
Functional Test for a Single MS-PAE Inverter .............30 Operation ......................31 Inverter Mode ....................31 Standby Mode ....................32 3.2.1 Battery Charging ..................32 3.2.2 Transfer Time .....................34 Battery Temperature Sensor Operation .............34 Protection Circuitry Operation ................35 Inverter Start-Up ...................36 Factory Default Values ...................37 Page vi © 2017 Sensata Technologies... - Page 8 Appendix C – Power Consumption and Output Waveforms ........57 Appliance Power Consumption .................57 Inverter Output Waveforms ................57 Appendix D – Inverter/Charger Terminology ............58 Appendix E – Warranty and Service ................60 Limited Warranty ...................60 How to Receive Repair Service ................60 © 2017 Sensata Technologies Page vii...
- Page 9 Figure 4-4, Battery Connections in a Parallel System ............42 Figure 4-5, ME-RTR (Port) Master/Slave Displays ..............44 Figure 6-1, Performing an Inverter Reset .................48 Figure A-1, MS4024PAE Efficiency Chart ................50 Figure A-2, MS4448PAE Efficiency Chart ................50 Figure B-1, Series Battery Wiring ..................54 Figure B-2, Parallel Battery Wiring ..................54...
-
Page 10: Introduction
Introduction Introduction Congratulations on your purchase of the MS-PAE Series inverter/charger from Sensata. The MS- PAE Series is a “pure” sine wave, standalone, non-grid interactive inverter designed to provide 120 and 240 VAC in a single unit to power loads when inverting/charging. It has two 120 VAC lines (L1 and L2), a neutral and a ground. -
Page 11: How The Ms-Pae Series Inverter/Charger Works
Accessories” for more information on these products. Info: For the MS-PAE Series inverter/charger to perform optimally, a minimum battery bank of 200 AH is recommended for moderate loads (<1000W), and greater than 400 AH for heavy loads (≥1000W). Page 2 © 2017 Sensata Technologies... -
Page 12: Features And Benefi Ts
(red label – RJ45 connection) Network Port (green label – RJ11 connection) Remote Port (blue label – RJ11 connection) Battery Temp Sensor Port (yellow label – RJ11 connection) Figure 1-1, Power Switch, Status LED, and Accessory Connection Ports © 2017 Sensata Technologies Page 3... -
Page 13: Figure 1-2, Electrical Connection Points
Mounting Flange – secures the inverter to a shelf or wall. Intake Air Vents (and on right side) Positive (+) DC Terminal AC Entry/Exit Negative (–) Connections DC Terminal Mounting Equipment Flange Ground Terminal Figure 1-2, Electrical Connection Points Page 4 © 2017 Sensata Technologies... -
Page 14: Figure 1-3, Left Side Features
30 amps per leg, or damage to the relays may occur. Model/Serial Number Label AC Access Cover Exhaust Air Vents (back side and on right side) Input Circuit Breakers Figure 1-3, Left Side Features © 2017 Sensata Technologies Page 5... -
Page 15: Installation
If items appear to be missing or damaged, contact your authorized Magnum product dealer or Sensata. If at all possible, keep your shipping box. It will help protect your inverter from damage if it ever needs to be returned for service. Save your proof-of-purchase as a record of your ownership;... -
Page 16: Figure 2-1, Simplified Installation Diagram - Single Inverter
(Magnum Accessory) Battery Bank ME-SBC Smart Battery Note: See Figure 4-1 for a Combiner simplified diagram showing (Magnum Accessory) multiple inverters in a stacked configuration. Figure 2-1, Simplifi ed Installation Diagram – Single Inverter © 2017 Sensata Technologies Page 7... -
Page 17: Locating The Inverter
Away from sensitive electronic equipment – High powered inverters can generate levels of RFI (Radio Frequency Interference). Locate any electronic equipment susceptible to radio frequency and electromagnetic interference as far away from the inverter as possible. Page 8 © 2017 Sensata Technologies... -
Page 18: Mounting The Inverter
Info: Sensata provides a back plate with a suitable surface for mounting the inverter. These back plates also provide the ability to mount either the MMP Series enclosure (PN: BP-MMP) or the MP Series Enclosure (PN: BP-S, Single Plate or BP-D, Dual Plate). -
Page 19: Figure 2-3, Ms-Pae Series Dimensions
Installation Figure 2-3, MS-PAE Series Dimensions Page 10 © 2017 Sensata Technologies... -
Page 20: Wiring The Inverter
This is normally done by feeding the wires through conduit. Sensata provides a conduit box (ME-CB or MPX-CB), a single inverter enclosure (MMP Series), and a multiple inverter enclosure (MP Series) that include knockouts to conveniently accommodate AC/DC wiring enclosed and protected by conduit. -
Page 21: Dc Wiring
DC terminals can cause the bolts to strip and snap/break off. • A brief spark or arc may occur when connecting live battery cables to the inverter’s DC terminals; this is normal and due to the inverter’s internal capacitors being charged. Page 12 © 2017 Sensata Technologies... -
Page 22: Figure 2-4, Dc And Battery Temperature Sensor Wiring
Battery Bank’s Equipment Ground Wire Battery Bank’s Negative Cable Battery Bank’s Positive Cable DC System Grounding Point [Electrode Conductor (i.e., ground rod)] Battery Bank Figure 2-4, DC and Battery Temperature Sensor Wiring © 2017 Sensata Technologies Page 13... -
Page 23: Dc Wire Sizing
– Per the NEC, the DC grounding electrode conductor can be a #6 AWG conductor if that is the only connection to the grounding electrode and that grounding electrode is a rod, pipe, or plate electrode. Page 14 © 2017 Sensata Technologies... -
Page 24: Dc Cable Connections
Terminal between the cable Battery Battery ring lug and (5/16 - 18 bolt, Cable Post battery post 5/8" length) (with ring lug) Figure 2-5, Battery Hardware Figure 2-6, Inverter DC Hardware Installation Installation © 2017 Sensata Technologies Page 15... -
Page 25: Wiring The Battery Bank
3. Connect the RJ11 connector end of the BTS cable to the BTS port (yellow label) on the inverter. (2.5 cm) ~2" (5.1 cm) ~1" FRONT VIEW ~¾” (1.9 cm) 0.375" diameter Cable (~1 cm) SIDE VIEW ~½” (1.3 cm) Figure 2-7, Battery Temperature Sensor Page 16 © 2017 Sensata Technologies... -
Page 26: Wiring The Inverter To The Battery Bank
(see Figure 1-2). If the batteries are in an enclosure, perform a fi nal check of the connections to the battery terminals, then close and secure the battery enclosure. © 2017 Sensata Technologies Page 17... -
Page 27: Ac Wiring
Note¹ – Per NEC, if the breaker is not rated for 100% continuous duty it must be derated by 80%. Note² – Copper wire rated with 194°F (90°C) insulation at an ambient temp of 86°F (30°C). Page 18 © 2017 Sensata Technologies... -
Page 28: Recommended Ground Fault Circuit Interruption (Gfci) Breakers
Installation 2.3.3 Recommended Ground Fault Circuit Interruption (GFCI) Breakers In compliance with UL standards, Sensata has tested some GFCIs to ensure they function properly when connected to the inverter’s AC output. See WARNING below. WARNING: Risk of electric shock. Use only the following GFCIs [receptacle(s) or circuit breaker(s)]: Leviton #8899-A, N7899, GFNT1 and GNNT2. -
Page 29: Wiring The Ac Input And Output
The AC input and output wiring in the MS-PAE Series inverter should be complete. Prior to re- attaching the AC access cover, review all AC wiring to ensure all connections are correct and secure. Page 20 © 2017 Sensata Technologies... -
Page 30: Figure 2-9, Ac Wiring (Single Unit On A Mmp Enclosure)
AC bypass switch assembly when using a MMP enclosure. Sub-Panel and Outlets (Inverter AC Loads) Main Panel (Utility/Generator ≤30A per leg) Figure 2-9, AC Wiring (Single unit on a MMP enclosure) © 2017 Sensata Technologies Page 21... -
Page 31: Using The Ms-Pae With Three-Phase Power
120° out-of-phase (from the three-phase source input) to 180° out-of- phase (split-phase inverter output). This phase mismatch will cause the inverter’s input 30-amp breaker(s) to open and may cause other damage to the inverter. Page 22 © 2017 Sensata Technologies... -
Page 32: Figure 2-10, Connecting The Ms-Pae To Three-Phase Power Using A Buck-Boost Transformer
Info: If providing only 120 volts to the inverter input, the charger must be turned down to 50% to prevent overheating from occurring. MS-PAE SERIES 3-PHASE WYE H1 OUT H1 IN N IN N OUT NEUTRAL H2 IN H2 OUT Figure 2-11, Connecting the MS-PAE Directly to Three-Phase Power © 2017 Sensata Technologies Page 23... -
Page 33: Grounding Inverters
Neutral Negative AC Ground DC Ground Grounding GEC-AC System GEC-DC Grounding Electrode Grounding Electrode Grounding Electrode (AC side dedicated) (AC and DC sides shared) (DC side dedicated) Figure 2-12, Grounding System for MS-PAE Series Page 24 © 2017 Sensata Technologies... -
Page 34: Sizing The Grounding Electrode Conductors (Gec)
AC Ground DC Ground EGC-AC EGC-DC Grounding System GEC-DC GEC-AC Grounding Electrode Grounding Electrode (AC side dedicated) (DC side dedicated) Figure 2-13, Method 1 – DC Ground Rod with Multiple Connections (using multiple grounding electrodes) © 2017 Sensata Technologies Page 25... -
Page 35: Figure 2-14, Method 2 - Dc Ground Rod With Multiple Connections
MS-PAE Series Inverter/Charger Panel Panel Positive Neutral Negative Neutral Negative AC Ground DC Ground EGC-AC EGC-DC GEC-AC Grounding System GEC-DC Grounding Electrode (DC side dedicated) Figure 2-15, Method 3 – DC Ground Rod with Single Connection Page 26 © 2017 Sensata Technologies... -
Page 36: System Bonding Jumper
#12 AWG (3.3 mm 30 to 60 amps #10 AWG (5.3 mm 100 amps #8 AWG (8.4 mm 200 amps #6 AWG (13.3 mm 300 amps #4 AWG (21.1 mm 400 amps #3 AWG (26.6 mm © 2017 Sensata Technologies Page 27... -
Page 37: Installing Lightning Arrestors
. PN: 62-0002 Rev B Figure 2-16, Warning Label Page 28 © 2017 Sensata Technologies... -
Page 38: Inverter Power Identifi Cation And Disconnect Location
3. Verify all AC connections are correct and torqued to a maximum of 16 in lbf (1.8 N-m). 4. Replace the covers on the main electrical/distribution panel. 5. Replace the chassis access cover. Info: If required by code, have the installation inspected by an electrical inspector. © 2017 Sensata Technologies Page 29... -
Page 39: Functional Test For A Single Ms-Pae Inverter
Troubleshooting section. AC Terminal Block AC Output 120VAC (+/- 5%) AC Output 240VAC (+/- 5%) AC Output 120VAC (+/- 5%) Neutral to Ground < 0.5VAC Figure 2-17, AC Voltage Checks Page 30 © 2017 Sensata Technologies... -
Page 40: Operation
AC HOT 1 OUT CB2 (30A) Relay 2 AC HOT 2 IN AC HOT 2 OUT Relay 3 AC NEUTRAL AC NEUTRAL DC NEGATIVE DC POSITIVE FET Bridge Power Transformer Figure 3-1, Power Flow – Inverter Mode © 2017 Sensata Technologies Page 31... -
Page 41: Standby Mode
While charging, the unit may go into Charger Back-off protection, which automatically reduces the charge current to the batteries. This is caused by: 1) The internal temperature is too hot – the charger automatically reduces the charge rate to maintain temperature; or 2) The AC input voltage Page 32 © 2017 Sensata Technologies... -
Page 42: Figure 3-3, Automatic 4-Stage Charging Graph
Charge Charge after 4 hours in Rate Float Charge A b s o r b T im e Current Co nstant Reduced Monitored No Current Current Current Current Figure 3-3, Automatic 4-Stage Charging Graph © 2017 Sensata Technologies Page 33... -
Page 43: Transfer Time
No Change -0.3V -0.6V -0.15 -0.6V -1.2V -0.3 -0.9V -1.8V -0.45 -1.2V -2.4V -0.6 -1.5V -3.0V -0.75 104F 113F 122F Temperature reading from BTS (in degrees) Figure 3-4, BTS Temperature to Charge Voltage Change Page 34 © 2017 Sensata Technologies... -
Page 44: Protection Circuitry Operation
<66.7 VDC LBCI 25.0 VDC 50.0 VDC LBCO 20.0 VDC 40.0 VDC (one minute delay) (18.0 to 24.4 VDC)* (36.0 to 48.8 VDC)* LBCO (no delay) 17.0 VDC 34.0 VDC * adjustable with remote control © 2017 Sensata Technologies Page 35... -
Page 45: Inverter Start-Up
AC loads connected to the inverter’s output). Power ON/OFF pushbutton switch Charging/Inverting Status LED indicator Figure 3-5, Power Switch and Status Indicator Page 36 © 2017 Sensata Technologies... -
Page 46: Factory Default Values
* These default values are without a remote connected. If a remote is connected, the remote settings are saved in the inverter even if the remote is disconnected—until all power to the inverter is removed or a soft reset is performed. © 2017 Sensata Technologies Page 37... -
Page 47: Inverter Fan Operation
Required’ on the remote compatibility matrix on our website, then your inverter can support the device setting/feature you want. If your inverter does not have the required compatibility level for a feature/setting you want, contact Sensata about a software upgrade. Page 38... -
Page 48: Parallel Operation
Overview A single MS-PAE inverter produces 120/240 VAC at its rated power (i.e., MS4024PAE provides 4000 watts of inverter power). When multiple MS-PAE inverters are stacked together in parallel (using the required ME-RTR router), the inverters work together as a single inverter/charger system. -
Page 49: Figure 4-1, Simplified Installation Diagram - Multiple Parallel-Stacked Inverters
(Magnum Accessory) GROU Battery Bank ME-BMK-NS DC Panel Battery Monitor (Part of Magnum Panel Series) (Magnum Accessory) Includes shunt & DC disconnects Figure 4-1, Simplifi ed Installation Diagram – Multiple Parallel-stacked Inverters Page 40 © 2017 Sensata Technologies... -
Page 50: Parallel System Connections And Components
BUSBARS BUSBARS BUSBARS PTION AC LOADS DC LOADS AC SOURCE (Customer Connection) DC SOURCE (Customer Connection) (Customer Connection) (Customer Connection) Figure 4-3, Simplifi ed Panel Figure 4-2, Simplifi ed Panel (DC Panel) (AC Panel) © 2017 Sensata Technologies Page 41... -
Page 51: Figure 4-4, Battery Connections In A Parallel System
B TS A TT ER Y EM P EN SOR A T T ER Y A N K (D C S O U R C E Figure 4-4, Battery Connections in a Parallel System Page 42 © 2017 Sensata Technologies... -
Page 52: Functional Test For Parallel-Stacked Ms-Pae Inverters
This confi guration makes it easy to keep track of which inverter is displayed on each port, and allows you to easily identify the master and slave units. • Only the same inverter models are stacked together (i.e., all MS4024PAE models, or all MS4448PAE models). •... -
Page 53: Figure 4-5, Me-Rtr (Port) Master/Slave Displays
MS4024PAE Inverter Inverting Inverter Standby Searching 23.4VDC 0ADC 23.4VDC 0ADC 29.3VDC 0ADC INV Home INV Home INV Home Master Inverter Slave Inverter Standalone Inverter (stacked) (stacked) (not stacked) Figure 4-5, ME-RTR (Port) Master/Slave Displays Page 44 © 2017 Sensata Technologies... -
Page 54: Performing The Functional Test
If you want the slave(s) to share more of the load, then set the threshold to a lower setting. © 2017 Sensata Technologies Page 45... -
Page 55: Using The Ms-Pae Series In An Ac Coupled Application
Options include: 1) a DC diversion controller and DC resistance loads; 2) AC diversion using AC resistance loads driven by DC controlled relays; or, 3) Sensata’s AC Load Diversion controller (ACLD-40). Confi guring a Remote to work in an AC Coupled System A remote control (ME-RTR, ME-ARC, or ME-RC) is required and must be confi... -
Page 56: Troubleshooting
This is normal; see Section 3.3 (Battery DC charge voltage (BTS) is installed, the DC voltage will Temperature Sensor Operation) for more is higher or lower increase or decrease depending on the information. than expected. temperature around the BTS. © 2017 Sensata Technologies Page 47... -
Page 57: Resetting The Inverter
Info: If DC disconnects are not used, there may be a momentary spark when the positive battery cable is connected to the inverter’s terminal. This is normal and indicates that the inverter’s internal capacitors are being charged. Page 48 © 2017 Sensata Technologies... -
Page 58: Appendix A - Specifi Cations And Optional Equipment
18.5” x 17.5” x 12.5” (47 cm x 44.5 cm x 31.8 cm) Mounting Shelf, wall (no vents on bottom), MP or MMP panels Unit/Shipping weight 55 lb (24.9 kg) / 62 lb (28.2 kg) 55 lb (24.9 kg) / 63 lb (29.6 kg) © 2017 Sensata Technologies Page 49... -
Page 59: Effi Ciency Graphs
MS4024PAE Efficiency Graph 100% 1000 1500 2000 2500 3000 3500 4000 4500 Power (VA) Figure A-1, MS4024PAE Effi ciency Chart MS4448PAE Efficiency Graph 100% 1000 1500 2000 2500 3000 3500 4000 4500 Power (VA) Figure A-2, MS4448PAE Effi... -
Page 60: Optional Equipment/Accessories
The ME-SBC eliminates a signifi cant voltage drop, and provides automatic turn-on and turn-off based on adjustable voltage set- points. This allows different batteries to be charged from a single charging source, and prevents overcharging/undercharging. © 2017 Sensata Technologies Page 51... -
Page 61: Appendix B - Battery Information
AC utility or generator power. See also Appendix C, Section C–1. Info: For the MS-PAE Series inverter/charger to perform optimally, a minimum battery bank of 200 AH is recommended for moderate loads (<1000W) and greater than 400 AH for heavy loads (≥1000W). Page 52 © 2017 Sensata Technologies... -
Page 62: Battery Bank Sizing Worksheet
AC source for the calculated load, the Total Amp-Hours should be multiplied by 1.2 to factor in an average 80% inverter effi ciency. © 2017 Sensata Technologies Page 53... -
Page 63: Battery Wiring
+ 200 AH @ 6 VDC 6 VDC 6 VDC = 200 AH @ 12 VDC (200 AH) (200 AH) add voltage add capacity voltage and in series in parallel capacity together Figure B-3, Series-Parallel Battery Wiring Page 54 © 2017 Sensata Technologies... -
Page 64: Figure B-4, Battery Bank Wiring Examples (24-Volt)
(12 VDC + 12 VDC) (100 AH) (100 AH) 24-volt battery bank (two strings of two 12-volt batteries wired in series and connected in parallel) Figure B-4, Battery Bank Wiring Examples (24-volt) © 2017 Sensata Technologies Page 55... -
Page 65: Figure B-5, Battery Bank Wiring Examples (48-Volt)
12-volt battery battery battery battery (100 AH) (100 AH) (100 AH) (100 AH) 48-volt battery bank (two strings of four 12-volt batteries wired in series and paralleled) Figure B-5, Battery Bank Wiring Examples (48-volt) Page 56 © 2017 Sensata Technologies... -
Page 66: Appendix C - Power Consumption And Output Waveforms
Pure Sine Wave – An AC waveform that looks like rolling waves on water. It rises and falls smoothly with time. The utility/grid puts out a sine waveform. Any plug-in AC equipment will operate from a sine wave inverter. © 2017 Sensata Technologies Page 57... -
Page 67: Appendix D - Inverter/Charger Terminology
LED (Light Emitting Diode) – A light made up of semi-conducting material. Line Tie (also Grid-Tie, or Utility-Interactive) – Term used when the inverter is connected to public power or to the “grid” system, and has the ability to sell power back to the grid. Page 58 © 2017 Sensata Technologies... - Page 68 Battery Temperature Sensor (BTS) automatically re-scales charge voltage settings to compensate for ambient temperatures. Voltage – The pressure that causes electrical fl ow in a circuit. Watts – Measure of power output or utilization. Watts = Volts x Amps. © 2017 Sensata Technologies Page 59...
-
Page 69: Appendix E - Warranty And Service
2. The limited warranty extends to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser. 3. During the limited warranty period, Sensata will repair or replace at our option any defective parts—or any parts that will not properly operate for their intended use—with factory new or rebuilt replacement items if such repair/replacement is needed because of product malfunction or failure during normal usage. - Page 70 Magnum Energy Products Manufactured by: Sensata Technologies Web: www.SensataPower.com/ MS-PAE Series Owner’s Manual (PN: 64-0032 Rev C)
