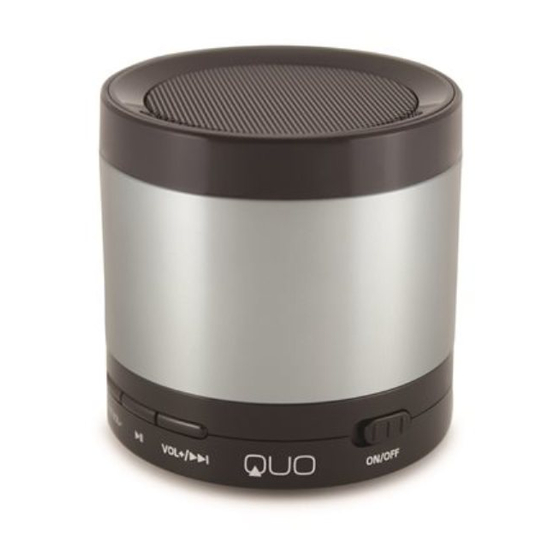

Thank you for purchasing our products. This is a Bluetooth speaker system in fashionable design, with wireless Bluetooth stereo
sound. It supports Bluetooth 2.1 agreement, not only being compatible with mobile phones, tablets, laptops and other Bluetooth
enabled devices, let you get rid of cables completely, enjoy the joy of music freely, but also audio input from mobile phones, laptops,
MP3, MP4 and other equipments.
Please read the following instructions carefully before operating. Keep them safe for future reference.
1.
Play/Pause 2. Next Song/Volume Increase
3. Previous Song/Volume Decrease 4. Indicate Light
5． On/Off
7. AUX‐in Jack 8. Microphone
9. TF Card Slot 10.Speaker Unit
Product Features
● Graceful sound quality, small size but great sound volume.
● Decorous and fashionable facade.
● The latest blue‐tooth technology, wide be used.
● Control the music playing between speaker and mobile phone or other equipments with Bluetooth.
● Support lots of sound sources input.
● Read music files from TF card and update online easily
● USB power supply or power adapter, built‐in rechargeable lithium battery, very easy to use.
● Support answer calling.
Technical Parameters
● Frequency Response：100Hz～18KHz
● S/N Ratio：≥70dB
● Bluetooth Standard: 2.1+EDR
● Bluetooth signal power：CLASS II
● Supports: A2DP,AVRCP,HFP,HSP,etc.
● Signal Distance：8 ‐ 10M
● Support reading MP3、WMA、WAV、AMR from TF card
● Power： DC5V 500mA
● Built‐in Battery: 3.7V 400mAH, rechargeable lithium battery.
● Playing Time: 7 hours ( middle volume)
● Product Size (D*H): 64X67 mm
● Weight: 195 g
How to Operate
Charge Up
Connect external DC 5V 500mA to charge up speaker, indicate light flashed in red. Finished, light turns off
※ Built‐in rechargeable lithium battery, please charge up before use.
※ Under off state, it will take about 3 hours to charge up. When working, it should be about 5 hours for full charging.
Production Introduction
Model name：QSPR‐303BT
Brand name：QUO
FCC ID:2ACDEQSPR‐303BT
6. Mini USB DC In
Advertisement
Table of Contents
Related Manuals for QUO QSPR-303BT
Summary of Contents for QUO QSPR-303BT
- Page 1 Production Introduction Model name：QSPR‐303BT Brand name：QUO FCC ID:2ACDEQSPR‐303BT Thank you for purchasing our products. This is a Bluetooth speaker system in fashionable design, with wireless Bluetooth stereo sound. It supports Bluetooth 2.1 agreement, not only being compatible with mobile phones, tablets, laptops and other Bluetooth ...
- Page 2 ON/OFF Turn On：Push the button to ON position, indicate light is shining. ※Indicate light will be in different colors, when it’s in Bluetooth mode, AUX in mode and TF mode. Please check below instruction. Change Mode This product supports Bluetooth mode, AUX in mode and TF mode, easy to change between each other by long press Play/Pause button for 2seconds. When AUX cable connected, the mode is confirmed AUX input mode; take out AUX cable, Bluetooth mode starts. Once inserted TF card, enter TF mode automatically. Bluetooth Mode When turns on, it enters Bluetooth mode automatically, working lamp flicker in blue: •Pair: It is necessary to pair this product for the first operating. Operation as below: Turn on and enter pairing status automatically, working light flashes in blue quickly; search for Bluetooth device, until find out pairing name “303”, select it, then lamp keeps lighting blue in slow flash, pair successfully.(Noted: if the pass code is required, entry "0000") •Operation: After paired, you can control the music play by buttons or mobile phone. Short press ,music play and pause. Short press ,previous song, long press, volume decrease ...
- Page 3 Low Power Warning The indicator light will flash red when the power is too low to alarm user to charge up speaker. If not charge up in time, the speaker will switch off automatically. Instruction on Product Safety Maintenance ...
- Page 4 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
