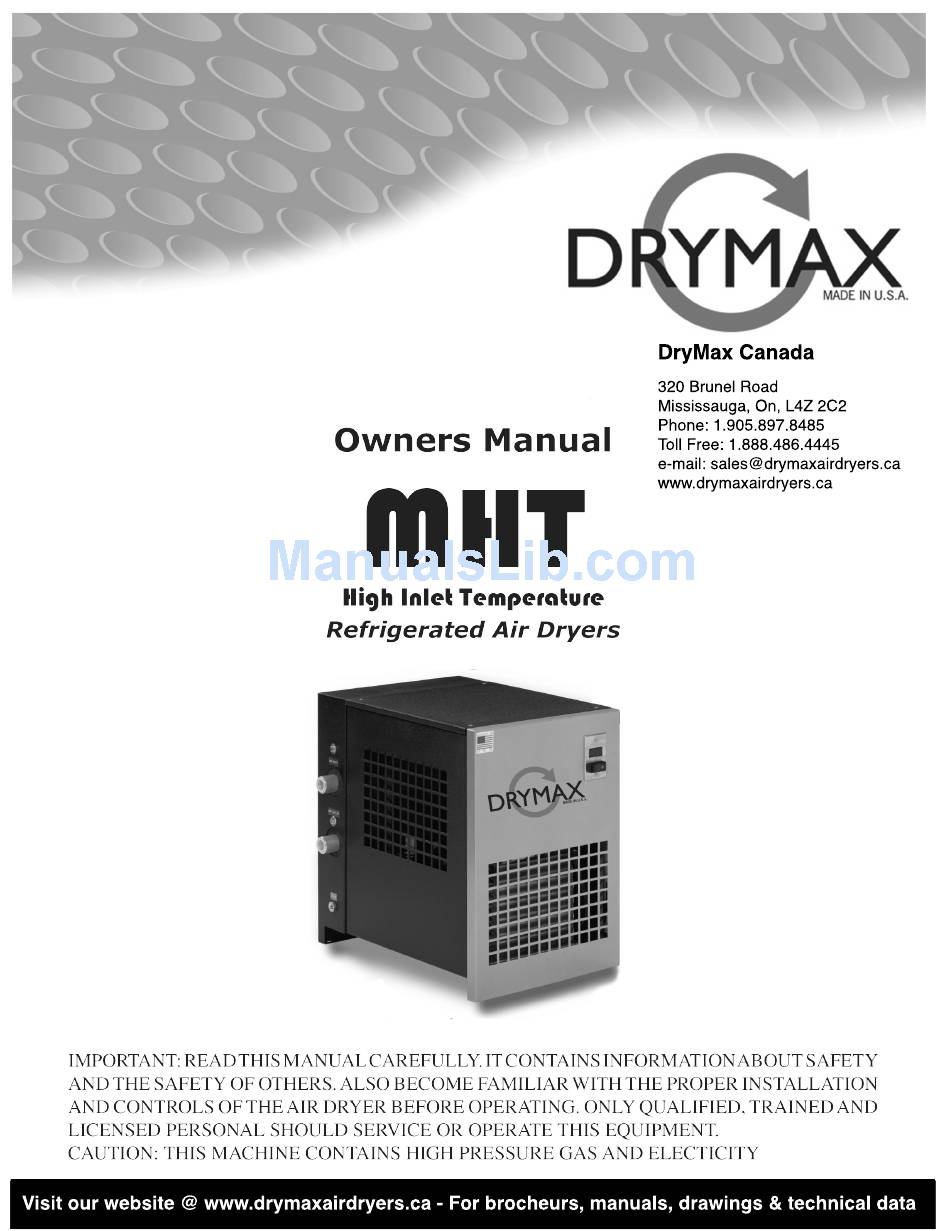

Summary of Contents for DryMax MHT100A-1
-
Page 3: Receiving And Inspection
RECEIVING AND INSPECTION 1. The dryer cannot be tilted on its side or upside down during shipping. 2. Use forklift from the bottom of the dryer when installing or moving. 3. Dryers are shipped F.O.B. factory. Immediately upon arrival check the dryer for possible damage. -
Page 4: Installation And Location
INSTALLATION AND LOCATION 1. Ventilation – Install dryer only in a well-ventilated clean, dry area only and keep at least 3 feet between the dryer, other equipment and the walls. 2. Dryer Location – Make sure there is approximately 3 feet around the dryer for service and maintenance purposes. -
Page 6: Data Label
If the model number and voltage are incorrect do no install the dryer. Do not put power to the dryer. Call your local distributor. install the dryer. Do not put power to the dryer. Call your local distributor. DATA LABEL Model MHT100A-1 Serial # Date of MFG. 115v-1ph- Voltage... - Page 8 START UP The following procedure must be followed to start your air dryer. Failure to follow this start up procedure will void your warranty. If problems occur during start up, contact your distributor. 1. Turn off the On/Off switch. 2. Verify the main electrical supply voltage matches the voltage specified on the data label. 3.
- Page 9 HOW TO SET THE CONDENSATE DRAIN OPEN & CLOSED TIME (LOCATE DRAIN VALVE) 1. The OPEN (ON) time is adjustable from 0.5 sec to 10 sec. Drains are set at factory to open for 6 sec. When drain opens the on light will light 2.
- Page 10 DANGER Dismantling or working on any component in the air dryer or the compressed air system under pressure may cause serious personal injury and equipment failure. Before dismantling any part of the air dryer or compressed air system completely vent the internal pressure to the atmosphere. Only qualified service persons should attempt to work on the air dryer.
-
Page 11: Maintenance Log
MAINTENANCE LOG DATE CLEAN SERVICE AMBIENT SUCTION DISCHARGE CONDENSER DRAIN TEMP PRESSURE PRESSURE PRESSURE...
