Rt IDLV-3000P User Manual

Professional integrated receiver/decoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IDLV-3000P
Professional Integrated Receiver/Decoder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDLV-3000P and is the answer not in the manual?

Questions and answers

Related Manuals for Rt IDLV-3000P

Summary of Contents for Rt IDLV-3000P

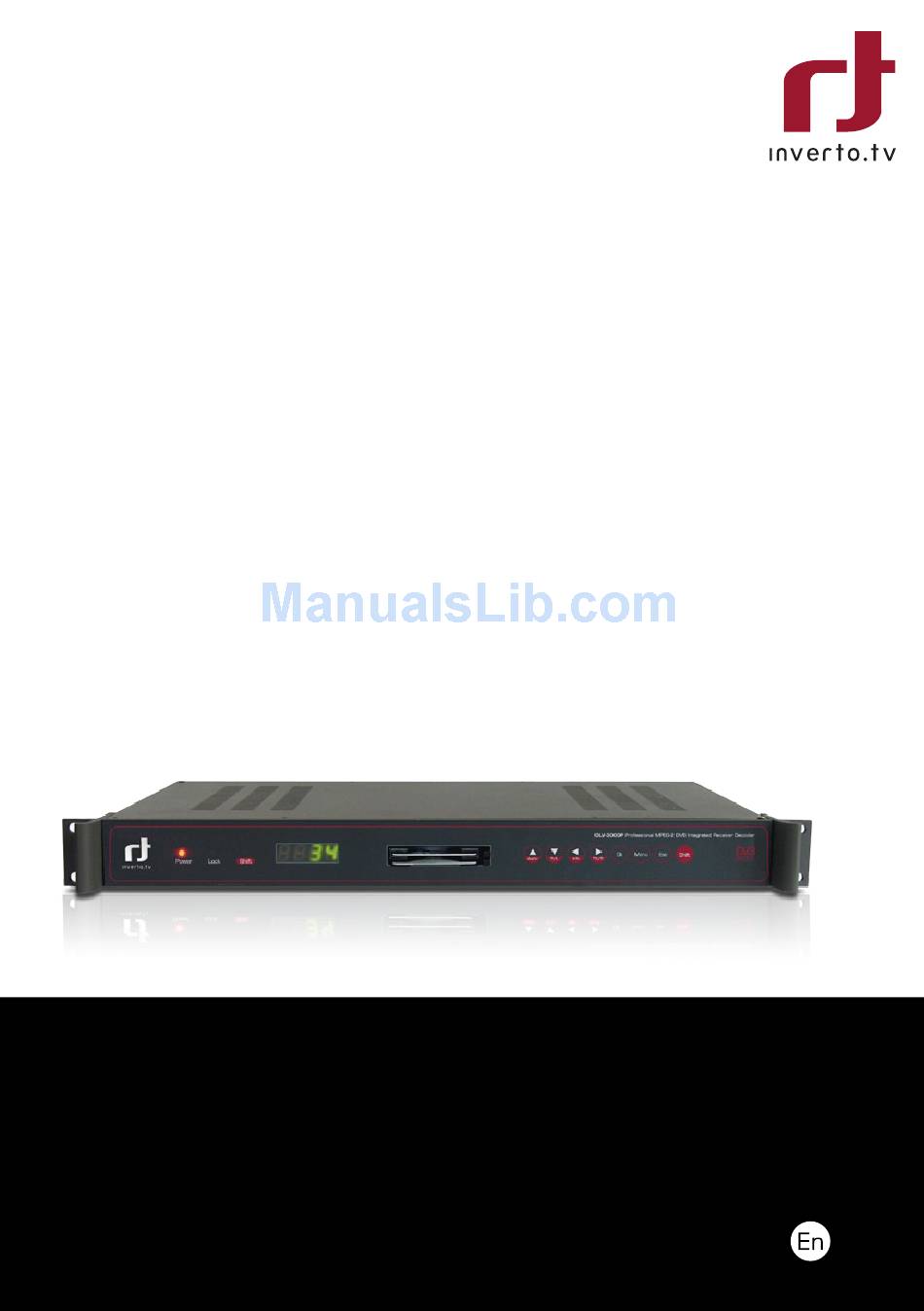

  • Page 1 IDLV-3000P Professional Integrated Receiver/Decoder...
  • Page 3 IDLV-3000P Professional Integrated Receiver/Decoder User Manual...

  • Page 5: Table Of Contents

    Table of Contents Notices Before using the device Overview Main Features Unpacking Control panel and interfaces Basic Functions Menu Operations ASI Input / Output and CI descramble function Trouble Shooting Specifications Safety Warrenty, service and support...

  • Page 6: Notices

    notices CoPyRIghT (Copyright © 2010 Inverto Digital Labs ) Not to be copied, used or translated in part or whole without Inverto prior consent in writing except approval of ownership of copyright and copyright law. WaRRanTy This warranty does not cover parts which may become defective due to misuse of the information contained in this manual.

  • Page 7: Before Using The Device

    Before Using the device Thank you for purchasing the IDLV-3000P Professional Integrated Receiver Decoder. This User Manual is written for operators/users of the IDLV-3000P to assist in installation and operation. Please read this user manual carefully before installation and use of the device.

  • Page 8: Overview

    The IDLV-3000P is a professional digital receiver decoder platform with CI interface. IDLV-3000P can receive digital satellite TV (DVB-S), cable TV (DVB-C) or terrestrial TV (DVB-T) signal. The IDLV-3000P platform contains the following series: • IDLV-3000P-10 series provides two CI slots, A/V outputs without ASI output;...

  • Page 9: Unpacking

    Power cord AV cable with three cores ASI cable 1pc (with IDLV-3000P-20/ -30 series) XLR connector 2pcs (with IDLV-3000P-30 series) Control Panels and Interfaces fRonT PaneL IDLV-3000P Professional MPEG-2 DVB Integrated Receiver Decoder Common Interface Menu Shift Audio Info TV/R Power...

  • Page 10: Rear Panel

    The following are typical applications using IDLV-3000P (For example: IDLV-3000P-30 series): IDLV-3000P-30S There are four options: • The IDLV-3000P-30S receives the QPSK signal, demodulates it to output ASI baseband transport stream to a DVB MPEG-2 multiplexer. The multiplexer filters or refreshes the PIDs of the selected programs, and rebuild the EPG, SI and other necessary tables. •...
  • Page 11 Connecting to a Multiplexer ASI TS IDLV-3000P-30S 1.1.1.1 Professional IRD ASI TS Input CATV IDLV-3000P-30S ASI TS Network Professional IRD IDLV-3000P-30S ASI TS Professional IRD Modulator ASI TS 1.1.1.2 IDLV-3000P-30S Professional IRD 1.1.1.4 Connecting to a QAM Modulator ASI TS...
  • Page 12 EPG, SI and other necessary tables. • The IDLV-3000P-30T receives the antenna signal and demodulates the signal. It will output ASI baseband transport stream to QAM modulator, the QAM modulator will transmit the QAM signal to CATV network.
  • Page 13 Connecting to a Multiplexer ASI TS IDLV-3000P-30T ASI TS 1.1.1.2 Professional IRD Input CATV ASI TS IDLV-3000P-30T Net-work Professional IRD MULTIPL EXER IDLV-3000P-30T ASI TS Modulator Professional IRD 1.1.1.3 ASI TS IDLV-3000P-30T Professional IRD Connecting to a QAM Modulator ASI TS...

  • Page 14: Basic Functions

    Basic functions The following describes the basic functions of your IDLV-3000P while watching satellite TV programs or listening to broadcasts. Select Channel To select channels, use the ▲▼ keys of the front panel. Alternatively, while watching, press the OK key. A channel list will be displayed on the right side of the screen.
  • Page 15 Volume Control While SHIFT indicator is off and watching, you could press ◄► keys of the front panel to control volume. Notify: The IRD has 18 volume grades, while tuning volume, the LED of the front panel will display a respective value from 0 to 17. Audio Control While SHIFT indicator is off and watching, press ▲ key to switch audio language, press ▼ key to switch audio channel, you will receive short-form audio information for approximately 6 seconds. TV/Radio switching While SHIFT indicator is on and watching, press ► key to switch TV mode and Broadcasting mode.

  • Page 16: Menu Operations

    Menu operations Connect the IDLV-3000P to the power source after installation and cable connection. In a first time operation of the unit, the main menu will automatically be displayed. Subsequent to the initial operation, when the unit is powered up, the last channel information will be displayed. The main menu can then be accessed by pressing the MENU key of the front panel.
  • Page 17 If you decide to delete the marked channels, press ESC. A message “Are you sure to delete marked channels” is displayed. Select “OK” or “Cancel” in the message box and then press the OK key to make sure your operation. Press ESC to exit the Main Menu, a message is displayed “Saving data…”. After the data has been saved, you could view the channel list to check if the delete operation was successful. Notes: • The deleted channel cannot be recovered unless you start a Channel Search again. • Please do not power off when the message “Saving data…” is displayed.
  • Page 18 Universal: Dual-pol. (Universal) LNB • LNBF: Dual-pol. C-band LNB 4. LNB Freq.: When LNB type changes, the frequency of LNB changes accordingly. You could input frequency using numeric keys. IDLV-3000P supports two LNB local frequencies, if the channel couldn’t be searched with...
  • Page 19 first local frequency, it will automatically search the channel with second local frequency. 5. Switches ( 22KHz, DiSEqC): You could select the switches with which you want to configure the antenna Press ESC to finish antenna setting, the message “Are you sure to change the configuration of Antenna set up?” will be displayed. Select OK, press the OK key to confirm it and wait till the updated data has been saved. hannel Search 1. Antenna: Select the number of the antenna corresponding to the satellite you want to scan. Note: On the right side of screen, you can see the corresponding parameters of the selected satellite, if it is not correct, you can modify it under Antenna Setting.
  • Page 20 2. Transponder: Use ◄► keys to select the desired TP, or move to the new TP item, you could edit the parameters of this TP. 3. Frequency & Symbol Rate: Edit the frequency and symbol rate. If the default values couldn’t meet your requirement, you can set the satellite parameters manually. 4. Polarization: Select H or V. Channel Search: After setting the satellite parameters, you could press ◄► keys to select search options: • Search SAT: Search all pre-defined channels for the selected satellite. • Search TP: Search all channels for one TP, which has been selected from the TP list. •...
  • Page 21 6. In Channel Search, press Menu key, the following submenu will be displayed: • Setting PID • Delete TP • Search Options (1) Set PID: Set PID (Packet Identifier) manually with “Set PID” command: Move to the Transponder item and press Menu key to display the Command box, select “Set PID” command and press OK, the menu “Set PID” will be displayed, you can input your data and press the OK key to confirm it. If the Set PID operation is successful, you will see a new program named “PID- XXXX” in the channel list, the “XXXX” is the corresponding Video PID.
  • Page 22 (3) Search Options: provides convenient options for channel searching, you could serach FTA channels only or All channels. IDLV-3000P-xxC Channel Search 1. No.: Each no. corresponds to a frequency. 2. Frequency: Input the frequency to be scanned. 3. Symbol Rate: Input the symbol rate to be used during the channel search.
  • Page 23 IDLV-3000P-xxT Channel Search 1. Channel: Channel number 2. Frequency: The frequency to be demodulated. 3. OFDM Spectrum: 2k or 8k carrier 4. Guard Interval: 1/32,1/16,1/8,1/4 5. Constellation: QPSK,16QAM,64QAM 6. Hierarchi: NONE,1,2,4 optional 7. FEC: 1/2,2/3,3/4,5/6,6/7,7/8 After setting the parameters, you could press ◄► keys to select search options: • Search CH: Search programs on the selected channel/frequency.
  • Page 24 How to search: After setting the parameters, move cursor to the search column, choose your desired search option. Then press OK to begin searching. During searching procedure, you can see a list of the previously searched channels in the Searched List Box on the screen. On completion of the channel search, you can move cursor to select “VIEW” or “EXIT”.
  • Page 25 All channels. Factory Default If you want to restore the IDLV-3000P’s default configuration, select “Factory Default” and press OK key. The warning message will be displayed. If you are sure of your operation, select OK and press OK key. Note: Once back to factory default settings, you will lose all of data and information, which was previously...

  • Page 26: Option Menu

    MenU The Option Menu consists of 3 submenus: • System Setting • Antenna Direction Help (available on IDLV-3000P-xxS only) • Receiver Information System Setting 1. OSD: Select the OSD language. 2. Audio Language: Set the priority of audio language, you could set the desired language to be first priority under the condition that this language is supported by the channel.
  • Page 27 6. Signal Source: Select the signal source between TUNER and ASI. 7. ASI Output: Output clear transport stream or scrambled transport stream. 8. ASI Packet: Setting ASI stream data format between “188” or “Bypass” (The IDLV-3000P will not transfer the original data package format). Antenna Direction Help It provides an antenna direction help function, with which you could get correct information to direct your antenna toward a satellite.

  • Page 28: Common Interface

    2. Second, input the value of local longitude and latitude, move cursor to “Calculate” then press OK, the correct information of satellite will be displayed. CoMMon InTeRfaCe The IDLV 3000P has 2 CI slots, you should select the suitable CI module (CAM) and Smart Card corresponding to the scrambled program. Note: Please pay attention to the interface direction of the CI Module and Smart Card, it should be inserted to slot with correct direction and it should not be pluged arbitrarily.
  • Page 29 Common Interface status Read the CI Module information. If the CI Module is inserted to a CI slot, the corresponding slot column will display the CI Module name. Select the slot you want to check and press OK, the related information will be displayed. If there isn’t any information about Smart Card, it will display “No Card”, please insert the smart card again.
  • Page 30 • Single Channel: decrypting one channel in the multi-program-stream with general CI Module. • Multiple Channel: It is only available when the professional CI Module supports multi-descrambling function and the Smart Card has multi-program authorization, then 2 or more or all programs in the stream are decrypted.

  • Page 31: Asi Input / Output And Ci Descramble Function

    Input / output and CI Descramble function aSI oUTPUT anD DeSCRaMBLe / SCRaMBLe SeTTIngS (aVaILaBLe on IDLV-3000P-18/ -20/ -30 SeRIeS) • When viewing a Free-to-Air satellite program, the ASI stream of this program will be output at the same time, it could serve as a signal resource when it is connected to QAM Modulator or Multiplexer.
  • Page 32 Note: The Multiple Channels must be from the same transponder. aSI InPUT fUnCTIon (aVaILaBLe on IDLV-3000P-30 SeRIeS) The IRD provides and ASI input interface port supporting a scrambled or descrambled ASI stream. It can then output the ASI stream as well as decoded AV video signal.

  • Page 33: Trouble Shooting

    Trouble Shooting Problem Possible Causes What To Do The display of the front panel does Main power cable is not connected not light up. The antenna is not aligned Adjust the antenna. towards to the satellite. No sound or picture / Pause Check the cable connection, LNB No signal or signal is weak.

  • Page 34: Specifications

    Specifications IDLV-3000P- DVB-S Front end, QPSK demodulation & FEC parameter Input Frequency Range 950MHz ~ 2150MHz Input Level -65dBm ~ -25dBm Input Impedance 75Ω Input Connector F-type Input Frequency band Ku and C band Symbol Rate 2~45MBaud/s (SPTS or MPTS) +1/2, 2/3, 3/4, 5/6, 6/7, 7/8...
  • Page 35 AC 90V~260V 50Hz/60Hz Net weight Dimension 44mm×255mm×483mm Operation Temperature 0-40 ° Storage Temperature -20~70 ° IDLV-3000P- DVB-T front end, Demodulation & FEC parameters DInput Frequency Range VHF: 174MHz ~ 230MHz, UHF: 470MHz ~ 862MHz Input Level -91dBm ~ -20dBm Input Impedance 75Ω...

  • Page 36: Safety

    Safety CAUTION Unauthorized maintenance or the use of non-approved replacements may affect the equipment specification and invalidate any warranties.The device should be kept away from electric, strong magnetic and hot areas (temperature < 40°C; humidity < 85%). Keep away from high electric and magnetic areas ID LV -5100P Professional Multi-format SD/HD Integrated Receiver Decoder Enter Exit Power...

  • Page 37: Warrenty, Service And Support

    Warranty, service and support This Limited Warranty applies only to the Product sold by Inverto Digital Labs, 18 Duchscherstrooss, L-6868 Wecker, Luxembourg (hereby, the “Company”) the Customer purchase for his own use and not for resale. The term “Product” in this Limited Warranty does not include any software programs, whether pre-loaded with the Product, installed subsequently or otherwise. 1. Disclaimer and exclusion except as specified in this limited warranty, the foregoing warranties are given and accepted in lieu of any and all other warranties or conditions, express or implied, including, but not limited to, the implied warranties or conditions of merchantability and fitness for a particular purpose.
  • Page 38 (viii) Loss of any, or damage to, programs, data, or storage media. The Company may opt to replace the Product submitted for warranty services and, thus, any data stored on the original Product may become permanently inaccessible. This Limited Warranty is voided by removal or alteration of identification labels on the Product or its parts. Any technical or other support provided for a Product under warranty, such as, “How to” questions and those regarding the product set-up and installation, is provided WITHOUT WARRANTIES OF ANY KIND.
