Darfon DL-200 Quick Installation Manual

Cellular data logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

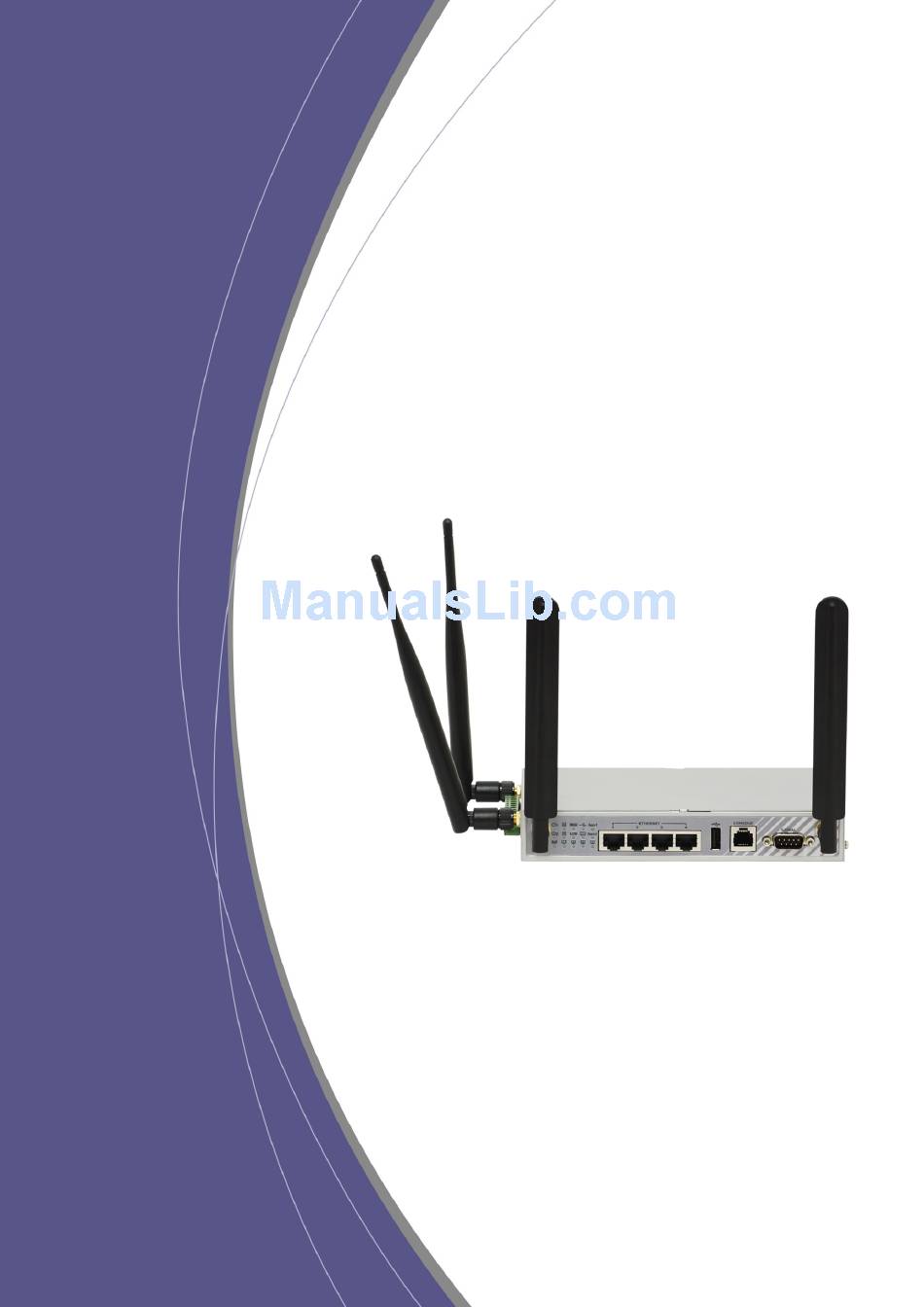

Quick Installation Guide
DL-200
Cellular Data logger
V1.2_201610

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Darfon DL-200

Summary of Contents for Darfon DL-200

  • Page 1 Quick Installation Guide DL-200 Cellular Data logger V1.2_201610...

  • Page 2: Table Of Contents

    DL-200 Cellular Data logger TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ..........................4 ............................. 5 ONTENTS ..........................6 ARDWARE NSTALLATION 1.2.1 WARNING ............................... 6 1.2.2 SYSTEM REQUIREMENTS ........................7 1.2.3 ........................8 ARDWARE ONFIGURATION 1.2.4 LED I ............................ 10 NDICATION CHAPTER 2 GETTING STARTED .......................... 11 .........................
  • Page 3 DL-200 Cellular Data logger Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.

  • Page 4: Chapter 1 Introduction

    9-48 VDC power terminal and VRRP, and dual SIM cards make the device as a back-up in power, data transmission, and network connection without lost. The DARFON DL-200 also provides the DB-9 male port for various serial communication use through connecting the RS-485 serial device to an IP-based Ethernet LAN. These communication protocols make user access serial devices anywhere over a local LAN or the Internet easily.

  • Page 5: Contents List

    2pcs Power Adapter (DC 12V/2A) 1pcs Power Terminal Block 1pcs 8G USB Flash Drive 1pcs RJ45 Cable 1pcs RS-485 Cable 1pcs Wall Mount Kits 2pcs DIN-Rail Bracket 1pcs 1 The maximum power consumption of DL-200 is 15.5W. Quick Installation Guide...

  • Page 6: Hardware Installation

    DL-200 Cellular Data logger 1.2 Hardware Installation 1.2.1 WARNING Do not use the product in high humidity or high  temperatures. Do not connect AC power to this device directly. This  product accepts DC power voltage from 9V to 48V.

  • Page 7: System Requirements

    DL-200 Cellular Data logger 1.2.2 SYSTEM REQUIREMENTS An Ethernet RJ-45 cable or DSL modem • Network Requirements 3G cellular service subscription • IEEE 802.11n or 802.11b/ g wireless clients • 10/100 Ethernet adapter on PC • Computer with the following: Windows®, Macintosh, or Linux-based...

  • Page 8: Hardware Configuration

    DL-200 Cellular Data logger 1.2.3 Hardware Configuration RS-485 Port Reset Button LED Indicators USB Port Auto MDI/MDIX RJ-45 Ports Console Antenna Antenna 4x FE LAN to connect local devices Port ※Reset Button The RESET button provides user with a quick and easy way to resort the default setting.
  • Page 9 DL-200 Cellular Data logger SIM_B SIM_A Slot Slot 2.4G WiFi 2.4G WiFi Antenna Antenna Power Terminal Block Quick Installation Guide...

  • Page 10: Led Indication

    DL-200 Cellular Data logger 1.2.4 LED Indication LED Icon Indication LED Color Description Steady ON: Device is powered on by power Power Source 1 Green source 1 Steady ON: Device is powered on by power Power Source 2 Green source 2...

  • Page 11: Chapter 2 Getting Started

    Hardware Installation 2.1.1 Mount the Unit The DARFON DL-200 can be placed on a desktop, mounted on the wall, or mounted on a DIN-rail. It has designed with “ears” for attaching to the wall or the inside of a cabinet. The wall-mount kits and DIN-rail bracket are not screwed on the product when out of factory.

  • Page 12: Connecting Power

    DL-200 Cellular Data logger 2.1.3 Connecting Power The DARFON DL-200 can be powered by connecting a power source to the terminal block. It supports dual 9 to 48VDC power inputs, 30VDC digital input and output Following picture is the power terminal block pin assignments. Please check carefully and connect to the right power requirements and polarity.

  • Page 13: Connecting Serial Devices

    LAN ports on the front panel. If you need to configure or troubleshoot the device, you may need to connect the DARFON DL-200 directly to the host PC. In this way, you can also use the RJ-45 Ethernet cable to connect the DARFON DL-200 to the host PC’s Ethernet port.

  • Page 14: Easy Setup By Configuring Web Ui

    DL-200 Cellular Data logger Easy Setup by Configuring WEB UI You can browse web UI to configure the device. First you need to launch the Setup Wizard browser and then the Setup Wizard will guide you step-by-step to finish the setup process.
  • Page 15 DL-200 Cellular Data logger Select “Wizard” for basic settings in a simple way. Quick Installation Guide...
  • Page 16 DL-200 Cellular Data logger Network Setup Wizard Network Setup Wizard will guide you through a basic configuration procedure step by step. Quick Installation Guide...
  • Page 17 DL-200 Cellular Data logger Step-2 is to change your login password. Go to Wizard > Network Setup Wizard > Step-2 Item Value setting Description If you want to change password, Enter the current password in this Old Password 1. String format: any text item.
  • Page 18 DL-200 Cellular Data logger Step-3 is to change the time zone. Go to Wizard > Network Setup Wizard > Step-3 Item Value setting Description Time zone list 1. A Must filled setting Select the time zone for the system clock.
  • Page 19 DL-200 Cellular Data logger Step 4. Internet Connection (WAN Interface Setting) In this step of the Wizard you will be specifying how your router connects to the Internet by selecting the appropriate Physical Interface and WAN Type. For detail settings, refer to the following pages for your required settings.
  • Page 20 DL-200 Cellular Data logger Physical Interface: Ethernet WAN Type: Dynamic IP Address Dynamic IP Settings Item Value setting Description Host Name An optional setting Enter the host name provided by your Service Provider. Enter the MAC address that you have registered with your service provider. Or ISP Registered Click the Clone button to clone your PC’s MAC to this field.
  • Page 21 DL-200 Cellular Data logger Physical Interface: Ethernet WAN Type: Static IP Address Static IP Settings Item Value setting Description A Must filled WAN IP Address Enter the WAN IP address given by your Service Provider setting A Must filled WAN Subnet Mask...
  • Page 22 DL-200 Cellular Data logger Physical Interface: Ethernet WAN Type: PPP over Ethernet PPPoE Settings Item Value setting Description A Must filled PPPoE Account Enter the PPPoE User Name provided by your Service Provider. setting A Must filled PPPoE Password Enter the PPPoE password provided by your Service Provider.
  • Page 23 DL-200 Cellular Data logger Physical Interface: Ethernet WAN Type: PPTP PPTP Settings Item Value setting Description Select either Static or Dynamic IP address for PPTP Internet connection. When Static IP Address is selected, you will need to enter the WAN IP Address, WAN Subnet Mask, and WAN Gateway.
  • Page 24 DL-200 Cellular Data logger Physical Interface: Ethernet WAN Type: L2TP L2TP Settings Item Value setting Description Select either Static or Dynamic IP address for L2TP Internet connection. When Static IP Address is selected, you will need to enter the WAN IP Address, WAN Subnet Mask, and WAN Gateway.
  • Page 25 DL-200 Cellular Data logger In Ethernet LAN Interface (Step-5), configure the LAN IP Address and Subnet Mask of the device. Ethernet LAN Interface Item Value setting Description A Must filled LAN IP Address Assign an IP Address for LAN, this IP address is a gateway IP.
  • Page 26 DL-200 Cellular Data logger Step 6. WiFi LAN Interface You can change SSID or channel here, or keep them with default settings. SSID is the name that you will see on your PC when doing wireless network scan. It’s strongly recommending you to add authentication and encryption in your wireless network to prevent any unknown Wi-Fi clients connecting to your wireless network and keep transferred data secured.
  • Page 27 DL-200 Cellular Data logger Step 7. Summary Check the information again. If all settings are correct, please press “Apply” button to save new settings. Then it will take 70 seconds to take new settings effective. Quick Installation Guide...
  • Page 28 DL-200 Cellular Data logger VPN Setup Wizard VPN Wizard will step by step guide you through to complete VPN tunnel setup. Step-1: Setup Steps In Step-1, the VPN Setup Step is a screen that displays the summary of steps for VPN setup.
  • Page 29 DL-200 Cellular Data logger Step-3: Sub-steps When IPSec is selected, go to (Step-3) IPSec in the following page. When PPTP is selected, go to (Step-3) PPTP in the following page. When L2TP is selected, go to (Step-3) L2TP in the following page.
  • Page 30 DL-200 Cellular Data logger (Step-3) PPTP When PPTP is selected in Step-2 for VPN Type and either PPTP client or server is selected the client or server configuration window will appear. PPTP Client When PPTP Client is selected in Step-2 for VPN Type, PPTP configuration window will appear.
  • Page 31 DL-200 Cellular Data logger PPTP Server When PPTP Server is selected in Step-2 for VPN Type, PPTP configuration window will appear. When complete the PPTP Server configuration, click Next button, a setup summary will display. Confirm the setting then click the Apply button to complete the setting.
  • Page 32 DL-200 Cellular Data logger (Step-3) L2TP When L2TP is selected in Step-2 for VPN Type and either L2TP client or server is selected the client or server configuration window will appear. L2TP Client When L2TP Client is selected in Step-2 for VPN Type, L2TP configuration window will appear.
  • Page 33 DL-200 Cellular Data logger L2TP Server When L2TP Server is selected in Step-2 for VPN Type, L2TP configuration window will appear. When complete the L2TP Server configuration, click Next button, a setup summary will display. Confirm the setting then click the Apply button to complete the setting.
  • Page 34 DL-200 Cellular Data logger (Step-3) GRE When GRE is selected in Step-2 for VPN Type, GRE configuration window will appear. When complete the GRE configuration, click Next button, a setup summary will display. Confirm the setting then click the Apply button to complete the setting.
  • Page 35 DL-200 Cellular Data logger Micro Inverter Status Select “Darfon”. Press “Device” to check Micro Inverter status. Quick Installation Guide...
