Summary of Contents for ANTENERGY ANTPAK DC-20

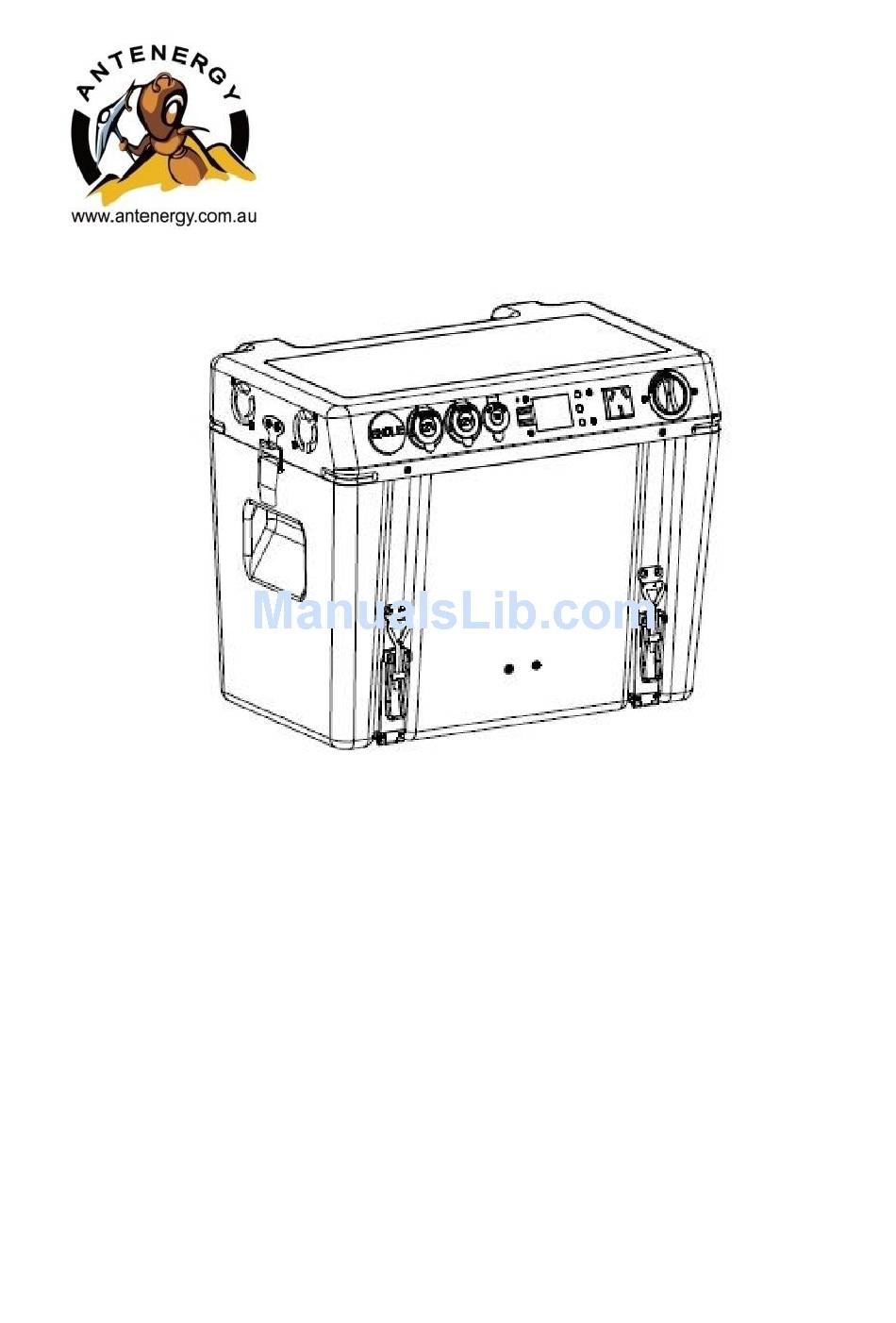

- Page 1 The World’s Most Innovative Battery box Powered by ANTENERGY Models：ANTPAK DC-20 ANTPAK BP-800 ANTPAK BP-300 Instruction manual Please read this manual thoroughly before operating this product.
-
Page 2: Table Of Contents
Content Page Content…………………………………………………..……………..…………..……………2 Warnings……………………………………………………………………….….…………….3 Get to know your gear….………………………………………………………………………4 Accessories…………………………………………………………………..……….…………6 Getting Started………………………………………………………………..……….…………7 Main Data Screen Overview…………………………………………..……………..…………9 Getting Charged……………………………………………………………………………..…10 Technical Specs of DBMP…………………………………………………..…………………13 Jump start a car……………………………….………..………………………………..………14 Mounting Bracket Installation……………………………………………..……………………15 Power of load……………………………………………………….……………………………16 Technical Information……………………………………………………………………………17 Frequently Asked Questions………………………………………………….…………………18... -
Page 3: Warnings
Warnings Please read this manual carefully before use. The external AC power supply and AC charger is for indoor use only. Never use the 240V AC socket outdoors if it is raining. Do not block air vents on the side of the unit (ANTPAK BP-800 / ANTPAK BP-300). Forbid to use incongruent parts or applications. -
Page 4: Get To Know Your Gear

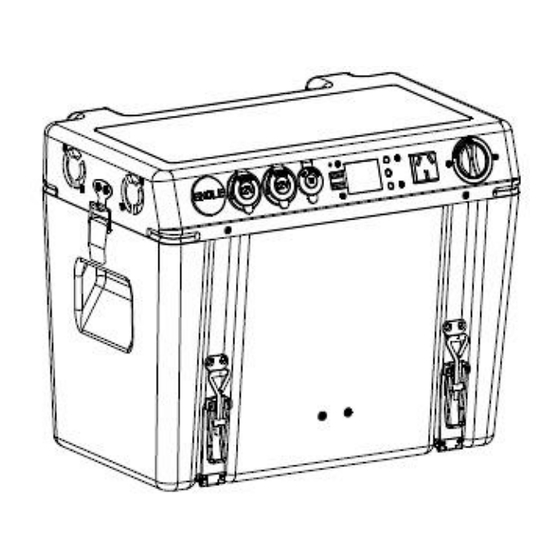

Get to know your gear Models: （ANTPAK DC-20） （ANTPAK BP-800 / ANTPAK BP-300）... - Page 5 Front panel: Rear panel:...
-
Page 6: Accessories
Accessories E xt e rn a l AC P ow er 1 9 V5 AS upp l y ( in clu de d) P S : E xt e r n a l A C p o we r s u p p l y wi l l b e m a t c h e d a c c o r d i n g t o s h i p p i n g d e s t i n a t i o n Ca r c ig ar ett e li ght er ch ar gin g le ad ( in c lud ed) M ounting Br a ck et s ( i ncl ud ed ) -
Page 7: Getting Started
Getting Started Connecting the Battery Step 1: Release the side latches and open the battery box lid Step 2: Place a 12 volt lead acid battery (not supplied) into the base of the ANTPAK and secure it with the Velcro belt Step 3: Connect the red cable to the positive battery terminal. - Page 8 Remark：Please turn off the 400A main switch before assemble.
-
Page 9: Main Data Screen Overview
Main Data Screen Overview Th e A N T PA K ’s i n f o r m a t i ve L C D s c r e e n d i s p l a ys a l l t h e r e l e va n t i n f o r m a t i o n r e g a r d i n g c h a r g i n g p r o c e s s . -
Page 10: Getting Charged
Getting Charged Charging the Battery using DC 19V5A (12V 7Amp Charging Current)adapter (supplied): C o n n e c t i n g 1 9 V 5 A b a t t e r y a d a p t e r ’s wi r e c o r r e c t l y vi a t h e b a t t e r y b o x “... - Page 11 Charging the Battery using 18V solar panel with regulator(not supplied) ◆ C o n n e c t i n g 1 8 V s o l a r p a n e l t h r o u g h 1 2 V s o l a r r e g u l a t o r ( n o t s u p p l i e d ) , t h e n p l u g i n “...
- Page 12 Car charger with isolator (not supplied) Isolator 12V Main battery ANTPAK C a r c h a r g e r o f t h e c a r c i g a r l i g h t e r l e a d ( s u p p l i e d ) ANTPAK Car Cigaretee Socket The car cigarette lighter wires...
-
Page 13: Technical Specs Of Dbmp
Technical Specs of DBMP ◆ DBMP Specifications: Input Voltage Charging System Suitable for 10 Amps Cut In Voltage 13.2 VDC Cut Out Voltage 12.8 VDC ◆ DPMP Features: The ANTPAK DPMP is a 12 Volts 10 Amp in-vehicle DC to DC charger designed for keep your auxiliary battery charged whilst driving or with portable solar panels when you are parked. -
Page 14: Jump Start A Car
Jump start a car Battery box Jump start car 100A Copper wire (not supplied) C A U T I O N : P l e a s e connect the positive and negative terminals correctly，otherwise will damage the system. -
Page 15: Mounting Bracket Installation
Mounting Bracket Installation (Supplied) -
Page 16: Power Of Load
Power of loads AC loads（ANTPAK BP-800/ ANTPAK BP-300 only） ANTPAK BP-800：The AC socket is powered by pure sine wave maximum output of 800W, if inverter temperature exceeds 60℃─65℃, the inverter is protected by Over-Temp Protection function. ANTPAK BP-300：The AC socket is powered by pure sine wave maximum output of 300W, if inverter temperature exceeds 60℃─65℃, the inverter is protected by Over-Temp Protection function. -
Page 17: Technical Information
Technical Information Model name ANTPAK DC-20 ANTPAK BP-800 ANTPAK BP-300 Maximum Solar panel ≤300W solar panel with 18V(carrying idler 21.5V) Capacity DC12V-AC240V， DC12V-AC240V， Pure sine inverter 800W 300W 12V power*2PCS， max output current：20A；12V cigar lighter*2PCS，max output current：20A； （12V power*2PCS+12V lighter*2PCS，4PCS total max current is 20A）... -
Page 18: Frequently Asked Questions
Frequently Asked Questions What batteries can be used? The ANTPAK can charge most types of rechargeable 12V lead-acid type battery from 60Ahr capacity up to 140Ahr. There are four main types of 12V lead acid battery - conventional wet lead-acid battery, calcium, AGM and gel. The ANTPAK can charge both cold cranking type car batteries and deep cycle batteries.
