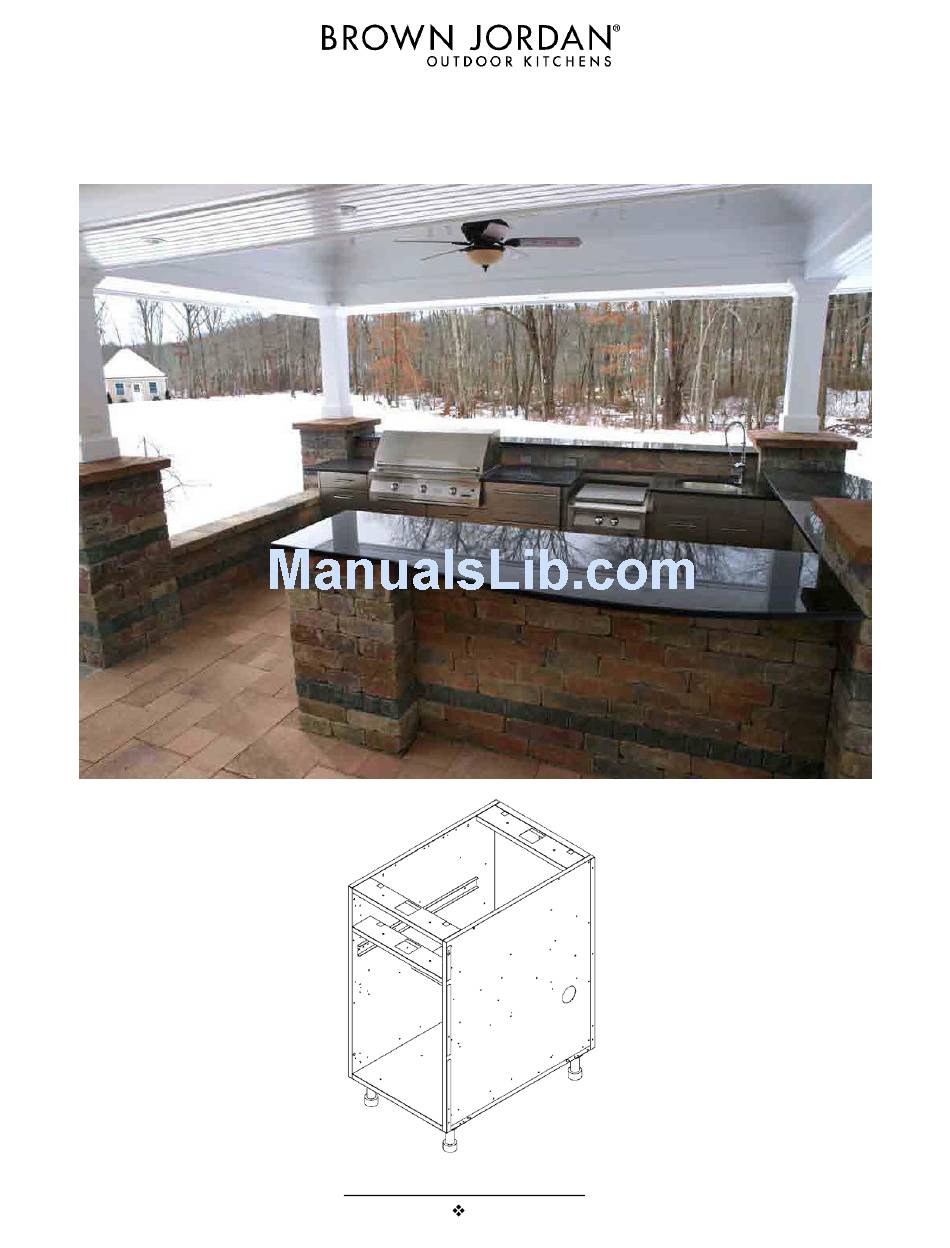

- Page 1 Stainless Outdoor Kitchen Cabinets Installation Instructions Thank you for purchasing our cabinets! Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190 Page 1 of 17 Revised: 10/17/2017...
- Page 2 They may be discarded with the protective peel coat. Tools you will need: Power screw gun (#2 Phillips), #2 Phillips head manual screw driver, level, tape measure Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190...
-
Page 3: Assembly And Installation
Install any optional shelving or internal accessories with supplied #10 screws in holes provided on the sides of the cabinet from the inside-out. Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190... -
Page 4: Foot Installation
Foot Installation Use #8 screw; Vertical Countersunk alignment screws here; PVC backer Attachment screw; also front to back alignment Horizontal alignment Door Installation Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190 Page 4 of 17... - Page 5 Handles are found in the hardware bag (if supplied). Remove the vinyl protective coating prior to installing the handles; then install them using the screws provided. Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190...
- Page 6 Cal Flame Napoleon Viking Capital Profire Wolf Solaire Hasty-Bake (charcoal) Dynasty Twin Eagles Fire Magic Vermont castings Vidalia Grill/Appliance Base Jenn Air Vintage Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190 Page 6 of 17...
- Page 7 Retighten the screw to secure the door. Loosen the hinge plate mounting screws and slide the hinge plates up or down for further adjustment. Retighten the screws. Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190...
-
Page 8: Joining Cabinets
4 holes align and install 4 #10 screws 6) Cabinets should now be firmly attached Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190 Page 8 of 17... - Page 9 When in position fasten with 2 #10 screws to secure panel from the inside of the cabinet. Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190...
- Page 10 Depending on the layout, you may require Brown Jordan Outdoor Kitchens accessories to complete the installation of refrigerators in the outdoor kitchen. 1. If you are building a freestanding island with Brown Jordan Outdoor Kitchens back panels, you will need Refrigerator Spacers of the appropriate size to match the refrigerator’s width (ORS15, ORS24, ORS27).
-
Page 11: Reinstalling Drawers
Retighten. Loosen the hinge plate mounting screws and slide hinges up or down for further adjustment if necessary. Retighten when aligned. Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190 Page 11 of 17... - Page 12 Space for fridge OAF90 Front only Space for fridge How to place fridge next to corner Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190 Page 12 of 17...
- Page 13 Install locally supplied countertop. Install appliances per each appliance manufacturer’s installation instructions. Align doors and drawers. Enjoy! Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190 Page 13 of 17...
- Page 14 Optional Electric Cutout Bracket adjusts in and out for different thickness Adjustable Feet OCP Instructions Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190 Page 14 of 17...
- Page 15 This will hold the bottom in place. These same steps apply to the Rear Panels. Panel installation should take no longer than 30 seconds Brown Jordan Outdoor Kitchens One Grand Street, Wallingford, CT 06492 Phone 203-626-5625, fax 203-265-6190...
-
Page 16: Care And Cleaning
LOW MAINTENANCE FINISHES To address the public’s resistance to doing maintenance, Brown Jordan Outdoor Kitchens has developed several low to no maintenance finishes. Powder coat in different styles completely seals the stainless from the environment (salt, chlorine and muriatic acid) eliminating the worry of pitting and surface rust. - Page 17 All implied warranties, including the warranties of merchantability and of fitness for a particular purpose, are limited in duration to the period of the express warranty stated above. In no event shall Brown Jordan Outdoor Kitchens be liable for incidental or consequential damage.
