Summary of Contents for Nexgo G3

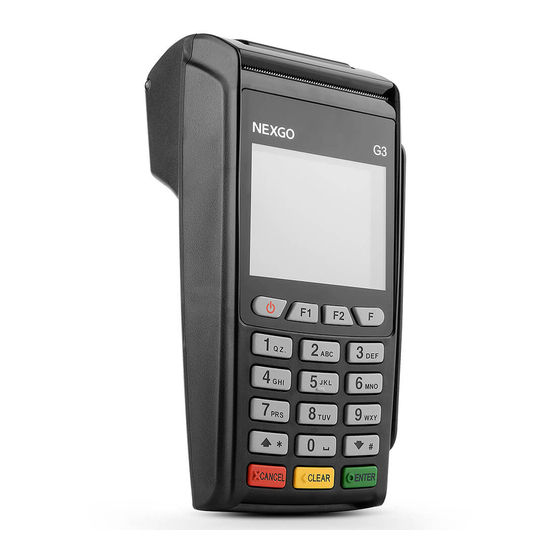

- Page 1 NEXGO G3 POS Terminal User Guide...
- Page 2 Version Information Shenzhen Xinguodu Technology Co., Ltd. Warning: No part of this publication may be reproduced, transmitted, stored in a retrieval system, nor translated into any human or computer language, in any form or by any means, electronic, mechanical, manual, or otherwise, without the prior written permission of Shenzhen Xinguodu Technology Co., Ltd.
-
Page 3: Table Of Contents
BASIC SETTING ..........................5 power on/off ..........................5 self-checking ..........................6 apps downloads ..........................7 G3 setting of China UnionPay ....................8 G3 setting of franchised business ....................11 GENERAL OPERATION ......................12 sign in of operator ........................12 sales ............................. 12 void ............................. -
Page 4: Specification Of Pos Terminal
Specification of pos terminal Item Specifications Dual CPU, Samsung 32 Bit CPU & 8 Bit CPU Processor Standard 32MB FLASH, 32MB SDRAM. Option to be extended to Memory 128MB 、128MB FLASH/SDRAM, support at least 500 transaction records. Linux External switch power Input: 100V～240V AC，50/60Hz Power Supply Output: 8.5VDC, 2.5A... -
Page 5: Basic Setting
Power on/off power on： Please connection G3 with power by power adapter, press “on/off” for 3 seconds to boot up Power off： Under status of power on, please press “on/off” for 3 seconds, then it will prompt “ press OK... -
Page 6: Self-Checking
1. Press “on/off”, “F” and “3” at the same time to power on, then it will prompt “please input password”; 2. Input password “556677” and press “OK” to enter self-checking menu; please “OK” Test app Test app G3 V1.01 20070622 1.keypad 5.comm —→... -
Page 7: Apps Downloads
1. please install driver apps according to your PC OS ： Secbulk_2000.msi(OS 2000 )/Secbulk_2003(OS 2003).msi/Secbulk_XP.msi(OS XP) 2. connect G3 with K3209 (please take care, the side with ACH of backbox should be upwards, the other side with arrow sign should be downward) 3. -
Page 8: G3 Setting Of China Unionpay
5. Click “start” to download apps, after finishing, it will prompt “ download success”; 6. Press “CNL” to exit apps to enter “sign in” interface. G3 setting of China UnionPay China UnionPay will set system parameter of G3 like bellows: System setting ⑴ input operator 99 to enter sign in interface and input System management system manager password;... - Page 9 Current year： set current year Serial number： set current serial number Batch number： set current batch number Verify version： if set verify version， （1-YES，0-NO） Refund amount： set refund amount Set settlement print： set if print details（1-YES，0-NO） Commercial banks’ code： set bank code Local area code:：...
- Page 10 2. Wireless setting (please parse GPRS/CDMA SIM card) Input APN1：set APN1 Input APN2：set APN2 If needing users： 0-No 1-Yes User name 1： input user name 1 User password 1：input user password 1 User name 2：input user name 2 User password 2：input user password 2 Host IP1：input Host IP1 Host port1：input host port1...
-
Page 11: G3 Setting Of Franchised Business
Setting on G3 by Appointed merchants’ manager Upon getting G3 from China union pay, the appointed merchants’ manager will set G3 parameter and accredit operation rights accordingly. (At the very first, get merchant administration password of G3 from CUP) Main setting：... -
Page 12: General Operation
1、when start, system will prompt sign-in, and input operation ID number； 2、input operator ID number（0~30）and press enter； 3、input operator password and enter； 4、G3 will upload data to central host and ask for response, it shows “sign-in success” when succeed; or else shows “sign-in failure”;； 5、enter main interface。... -
Page 13: Void
4、follow instruction, enter value amount and press enter； 5、Input password in Pin pad, no password, press enter directly； 6、Use G3 to make payment, screen shows payment success at last, and print receipt. Void Function：Transaction withdraws including transaction withdraw, pre-authorization... - Page 14 3. input pre-authorization code( the code corresponding to receipt) and press enter； 4. input amount, press enter； 5. input password in pin pad, no password, press enter； 6. Use G3 to make pre-authorization transaction, it shows success at the end, meanwhile print pre-authorization receipt III pre-authorization completion online：...
-
Page 15: Pre-Authorization
2、merchants manager input his password and press “OK”; 2、brushing card according to screen prompt or input card No. by hand； 3、input original transaction date； 4、input original authorization code and press “OK”. 5、input amount and press OK; 6、input password, if no password please directly press “OK”; 7、pre-authorization void success and print receipt. -
Page 16: Query
1、under main menu to select “7. Management”, and then select “6. Settlement”； 2、G3 will show debit and load times and amount according to different banking cards; 3、please press upward key and downward key to switch showing RMB or other foreign... -
Page 17: General Management Operation
4、press “OK”, then G3 will upload settlement command, then G3 will start uploading settlement, until screen prompts “settlement success” and print receipt automatically; Note： If settlement is not correct, G3 will upload report. If uploading report stops, G3 will continue to upload report after next online until finish uploading. General management operation Reprint Under main menu to press “6. -
Page 18: Outline
Under main menu to select “7. Management”, then “7. Lock POS”, then it will enter system closing interface temporary. If operator need to leave POS temporary, he can use this function to lock G3 POS temporary, and the screen will prompt “system close temporary”, that means the whole system will be closed temporary, if need withdraw close, then press “return”... - Page 19 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Certification information (SAR) ...
