Powerfile Back Panel; Powerfile Front Panel (Overview) - PowerFile C200 Installation And User Manual

PowerFile

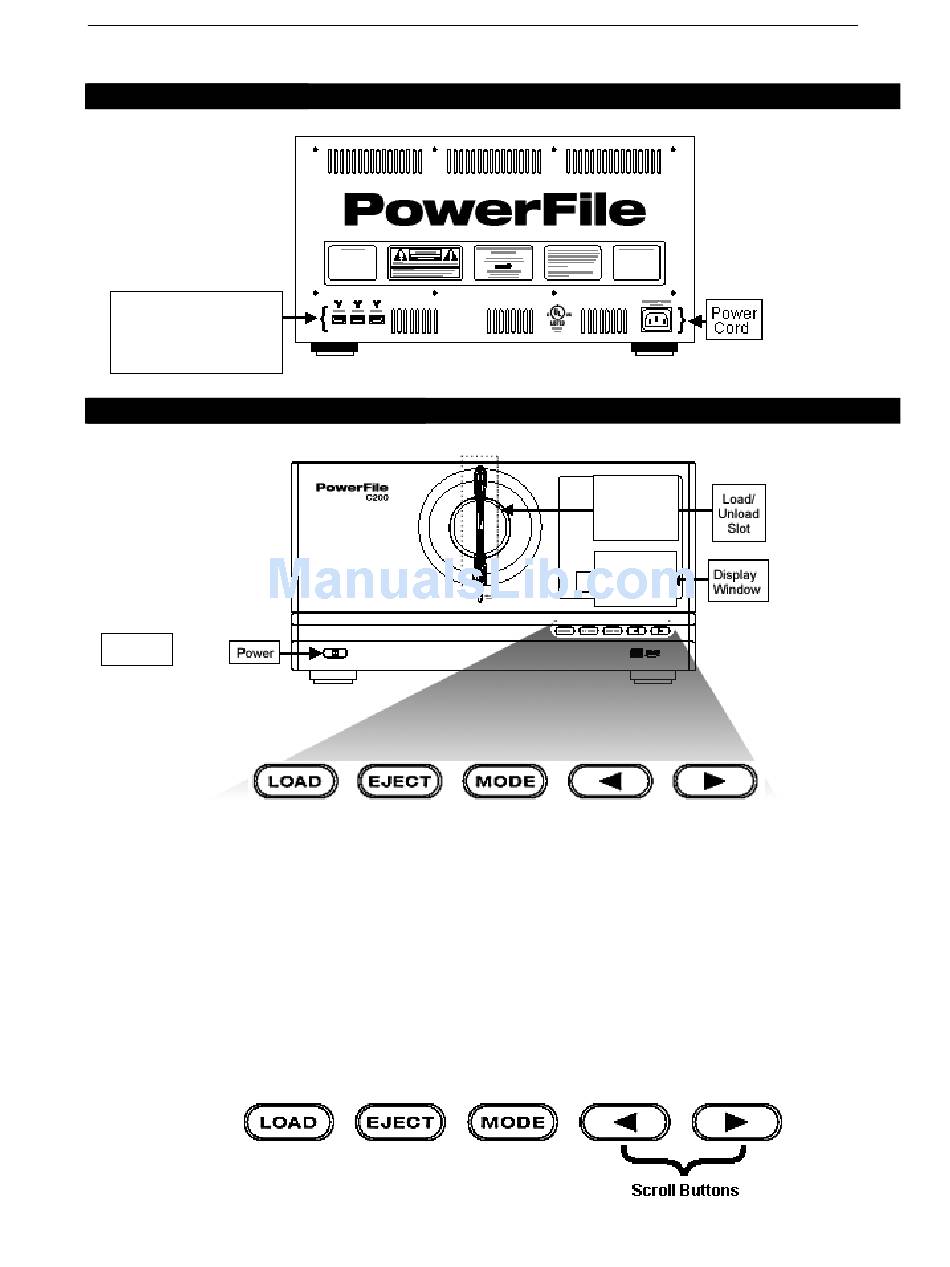

PowerFile Back Panel

Plug the 1394 cable
into any of the 3 ports.
Note: Do not force the
cable in backwards!

PowerFile Front Panel (Overview)

Power
The following is an explanation of the buttons and features on the front panel of the
PowerFile.
Load/Unload Slot
This is the front slot where discs are loaded into and unloaded from the PowerFile. Discs must be
loaded with the "data" side on the left, and the "label" side on the right.
Display Window
This two-line LCD readout displays unit status and messages.
Power Button:
Powers the PowerFile on or off.
Control Function Buttons
Many of the PowerFile functions can be accessed by using the following buttons:
PowerFile MFX User Guide
Macintosh Users
Load/
Unload
Slot
Display
Window
8
