Nine Eagles NE-MASF33 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

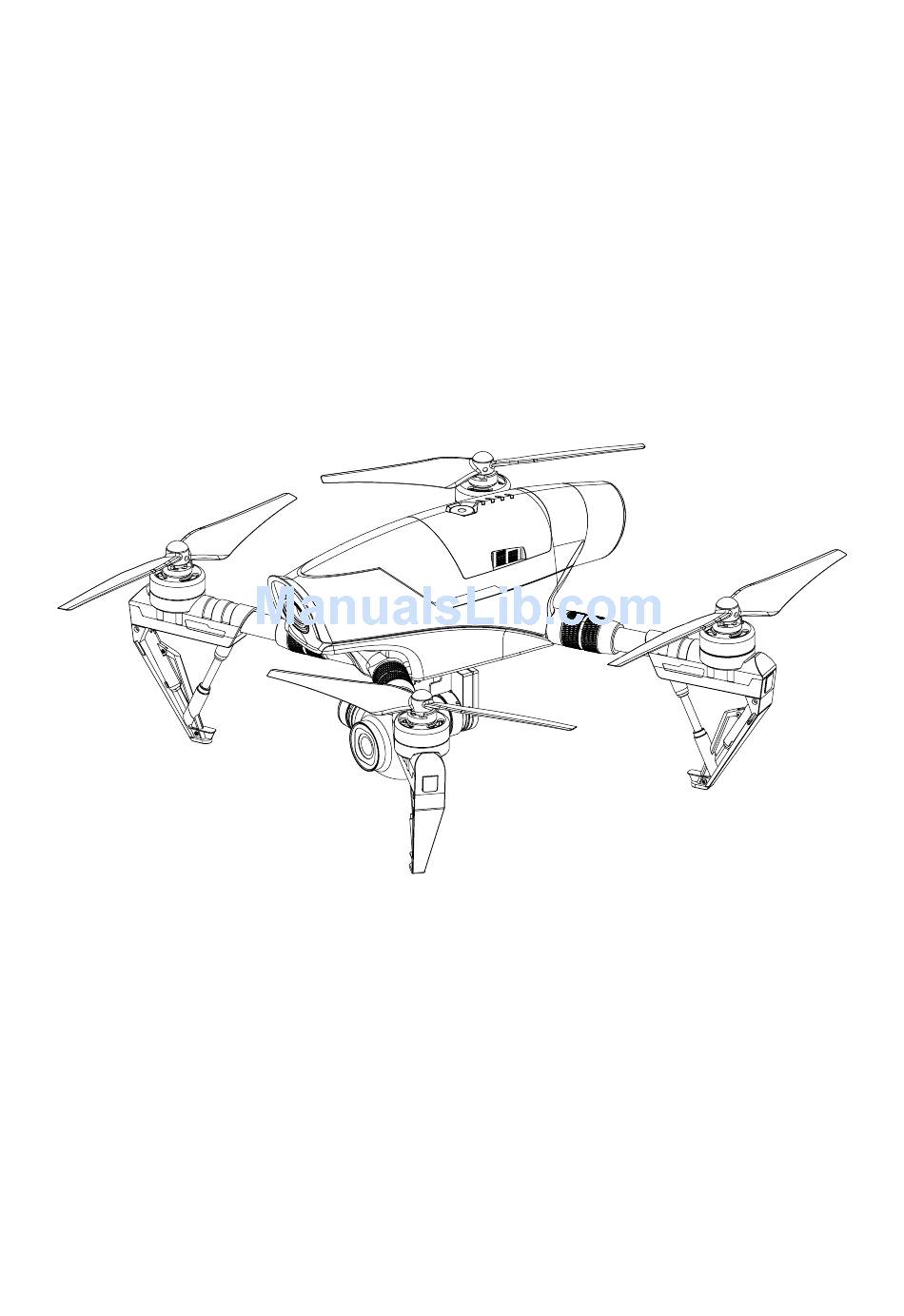

Instruction Manual
EN V1.0
Important Notice:
1 Please read carefully before using and follow this manual;
2 Improper operation may result in aircraft damage, lost, and likely to cause injury;
3 This manual is subject to be updated without further notices. You can check the latest version at our homepage: www.nineeagle.com.
NE-MASF33 20160908

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NE-MASF33 and is the answer not in the manual?

Questions and answers

Related Manuals for Nine Eagles NE-MASF33

Summary of Contents for Nine Eagles NE-MASF33

  • Page 1 1 Please read carefully before using and follow this manual; 2 Improper operation may result in aircraft damage, lost, and likely to cause injury; 3 This manual is subject to be updated without further notices. You can check the latest version at our homepage: www.nineeagle.com. NE-MASF33 20160908...
  • Page 2 INTRODUCTION Thank you so much for purchasing Tourist 1 of the Shanghai Nine Eagles Electronic Technology Co.,Ltd (so called 'Nine Eagles Tech' below). Please enjoy flying with 'Tourist 1' for good! Tourist owns an aircraft, a camera with gimbal, a remote controller and other accessories.

  • Page 3: Table Of Contents

    6) Stop motors ..............14 4 Technical Support............5 10 Technical Parameter and Specification ..... 15 1) Aircraft (NE-MASF33) ............. 15 5 About Tourist 1 ..............6 2) Remote Controller (NE-TXOS219B) ........15 Aircraft Diagram and Indicator Lights Status ......6 3) Battery ................

  • Page 4: Warning

    Tourist 1 NE-MASF33 1 Warning 1) Safe Flight Notice (1) Tourist 1 is an aircraft not a toy, which is Not suitable for children under 14 years old. (2) Please clarify the local regulations and flight environment, away from the prohibited site. Please fly inside the allowable area before flying.

  • Page 5: About Gimbal Lifting System

    NE-MASF33 Tourist 1 (2) App and aircraft notifies to calibrate Compass. (3) Severe drifting while hovering or flying. Steps for Calibration: (1) Enter into Calibration Power on the remote controller, move 'B' to one side of the remote controller, then move wheel 'E' to the rightmost position, wheel 'F' to the leftmost position and hold it (as the below graphic shown), then power on the Aircraft.

  • Page 6: Intelligent Flight Battery Guidance

    2) Battery Charging (1) Please always use a Nine Eagles approved adapter. Nine Eagles takes no repsonsibility if the battery is charged using a non-Nine Eagles charger. (2) Please charge the battery on the concrete surface, without flammable materials around. Never leave the battery unattended during charging.

  • Page 7: Battery Disposal

    'Nine Eagles Technology' may formulate any policies or guidelines. Nine Eagles Technology accepts no liability for damage, injury or any legal responsibility or indirectly from the use of this product. The user shall observe safe and lawful practices including, but not limited to, those set forth in the document.

  • Page 8: Technical Support

    4 Technical Support Nine Eagles Technology ensure that all products have to undergo a rigorous factory inspection, testing. We will publish it on the website in time if there is any technology updates or modification. You're also welcomed to visit the Nine Eagles Technology website, www.nineeagle.com, and open relative links to check out.

  • Page 9: About Tourist 1

    NE-MASF33 Tourist 1 5 About Tourist 1 Aircraft Diagram and Indicator Lights Status Nose Rear indicator light Blade Motor Blade Blade indicator light Collision Avoidance Motor module Gimbal indicator Camera & Reset button 3-Axis gimbal Motor Camera Nose Aircraft status...

  • Page 10: Charge Li-Po Battery

    Tourist 1 NE-MASF33 6 Charge Li-po Battery 1) Intelligent Battery Function Description (1) Battery level indicator: Current battery remaining capacity can be indicated by indicator light. (2) Over-discharge protection: Over-discharge damages battery. Do not discharge battery much to protect the battery.

  • Page 11: Transmitter Operation Instruction

    NE-MASF33 Tourist 1 7 Transmitter Operation Instruction 1) Transmitter Function Instruction (mode 2) Carrying handle F Auxiliary operation roller E Camera pitch control scroll wheel D Picture button A Video button C Right toggle switch B Left toggle switch Mobile device holder...
  • Page 12 Tourist 1 NE-MASF33 Video button Press 'Video' button (A) to start recording. Press 'Video' button (A) once again to stop recording. B Left toggle switch Way point memory mode: In GPS mode, switch it to way point memory position as the left graphic shown, then scroll 'F' Auxillary Operation Roller ll downward one time to memorize the current flight way point.

  • Page 13: Transmitter Status Indicator

    NE-MASF33 Tourist 1 Transmitter battery level indicator Battery level High Stick Left stick (1) Mode 1 Throttle on right tick (2) Mode 2 Throttle on left stick Forwards Climb Rotating Leftwards Rotating Rightwards Rotating Leftwards Rotating Rightwards Backwards Descend Figure 8...

  • Page 14: And Perform Flying

    Tourist 1 NE-MASF33 5) How to use transmitter to memorize waypoints and perform flying (1) The transmitter is in GPS mode and GPS signal is normal. (2) Move the transmitter's toggle switch 'B' to waypoint memory mode position. (3) Move the wheel 'F' clockwise once when flying, the aircraft memorize one waypoint. Move the wheel 'F' counter-clockwise to clear all memory waypoints.

  • Page 15: Install Propeller

    NE-MASF33 Tourist 1 (4) Check the propeller if it's broken or deformed. If so, please replace with a new one. (5) Check the aircraft to see any outlook damaged. If so, please quit flying and connect with our agent for better solution.

  • Page 16: Install Aircraft Battery

    Tourist 1 NE-MASF33 7) Install aircraft battery As the shown above, please insert the battery inside Figure 18 the battery compartment and make sure the snap-joints locked the body of the aircraft firmly. Attention: (1) Please get the battery well-installed, otherwise,...

  • Page 17: Start Motors

    NE-MASF33 Tourist 1 4) Start Motors (1) As shown in the Figure 19, simultaneously move the left stick to its bottom right corner and right stick to its bottom left corner. (2) When the propellers start to spin, loose the sticks and let them back to the Middle.

  • Page 18: Technical Parameter And Specification

    Tourist 1 NE-MASF33 10 Technical Parameter and Specification 1) Aircraft (NE-MASF33) Overall weight (battery included) : About 930g Maximum ascent speed : 4m/s Maximum descent speed : 3m/s Maximum horizontal flying speed : 6m/s Operating Environment : 0~40° C Time Flight : appox.

  • Page 19: Introduction Of App Main Functions

    NE-MASF33 Tourist 1 11 Introduction of APP main functions This APP will be used not only for real-time monitoring of camera captured image, photo shooting and video-taking, control of camera visual angle, setting of aircraft’s parameters, assistance to radio-controlled flying, but also for flying control by itself with multi-modes.

  • Page 20: Main Control Interface

    Tourist 1 NE-MASF33 (4) Language Both Chinese and English are available. (5) Parameter Unit Both metric or imperial units are available. (6) About You can refer to the APP version information, relevant information and contact information of MOLA in this interface.

  • Page 21: Use App Control The Aircraft

    NE-MASF33 Tourist 1 3) Use APP Control the Aircraft (1) Recordings You can select one of the following two ways to control the aircraft to record: With APP: Click〖09〗 Video icon in control interface, the camera will start recording. Click on the icon again, recording stops.
  • Page 22 Add: No.818 FengRao Road, Ma Lu, JiaDing District, Shanghai, China Tel: 0086-21-52919366 Web: http//www.nineeagle.com E-mail: sales@nineeagle.com Intellectual Property of the product manual belongs to Shanghai Nine Eagles Electronic Technology Co., Ltd. Without permission of the written, any institution or individual shall not copy in any form.
