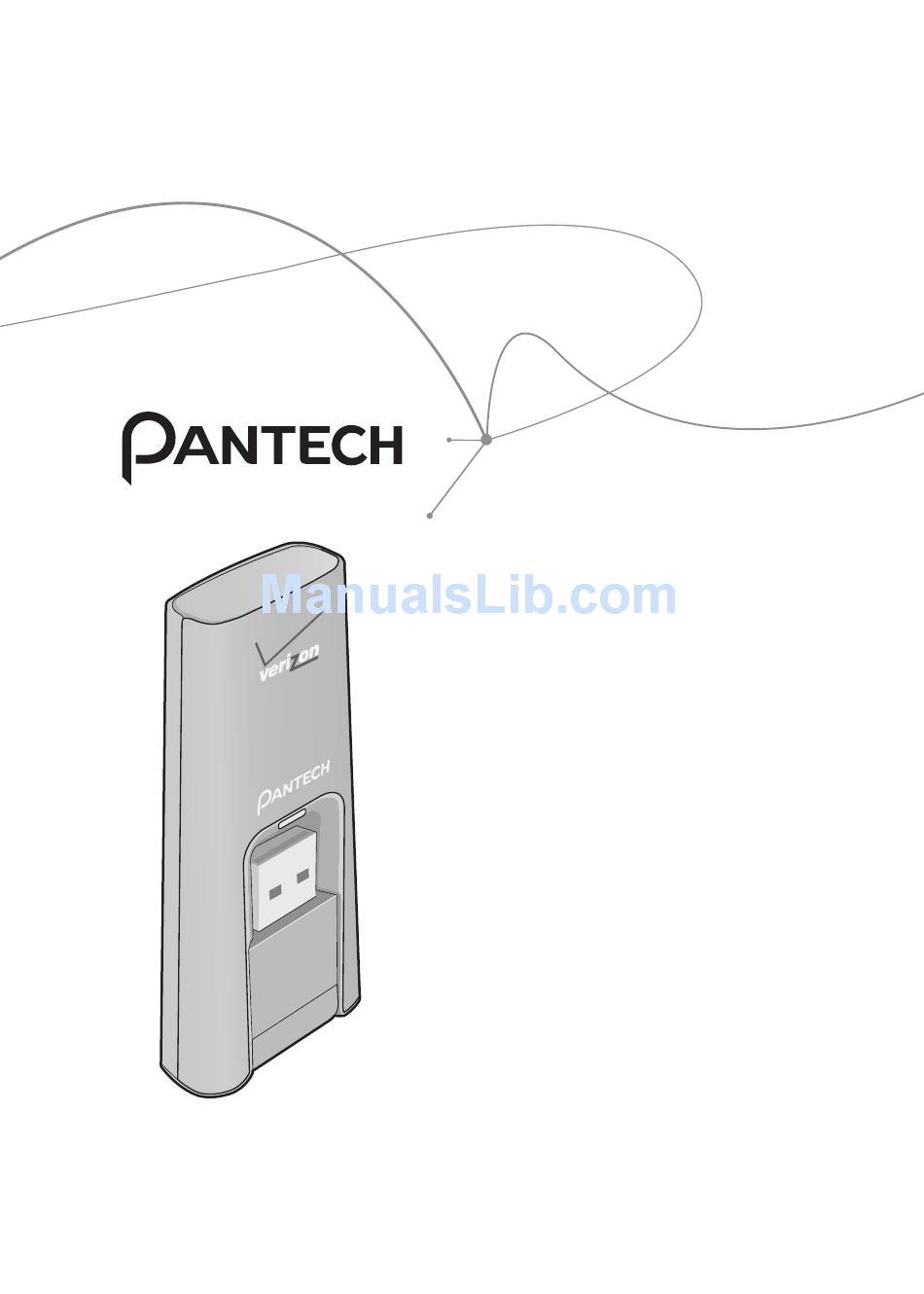

User Manual (Hardware)

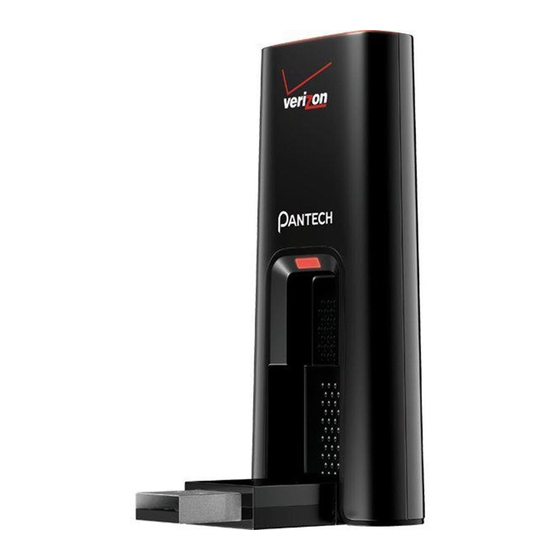

Thank you for purchasing the
Verizon Wireless 4G UML295 USB
Modem. The UML295 is a Global
Ready(TM) wireless device that
enables high-speed wireless
communication from your
computer and easily connects at
high speeds to the Internet, your
corporate Intranet, and your
email while you're away from the
office or out of the country.
The UML295 is simple to install
and use.
Advertisement
Table of Contents
Related Manuals for Pantech UML295
Summary of Contents for Pantech UML295
- Page 1 User Manual (Hardware) Thank you for purchasing the Verizon Wireless 4G UML295 USB Modem. The UML295 is a Global Ready(TM) wireless device that enables high-speed wireless communication from your computer and easily connects at high speeds to the Internet, your corporate Intranet, and your email while you’re away from the...
-
Page 2: Table Of Contents
Table of Contents Before Using UML295 About this User Manual............... 4 What’s Inside the Product Package ..........5 Introduction to Wireless UML295 USB Modem ......5 Product Features ..................7 Product Handling .................. 8 Getting Started Precautions ....................9 Recommended System Requirements .......... 9 Ways to Access..................10... - Page 3 Regulatory and Safety Information Regulatory Notices ................25 Operating Conditions ................25 Warnings and Cautions ..............26 Safety Precautions................28 Appendix Glossary....................30 Specific Absorption Rates (SAR) .............34 Safety Information for RF Exposure ..........37 Table of Contents 3...
-
Page 4: Before Using Uml295
About this User Manual You will find all the information you need to install and use the UML295 in this user manual. Before using the UML295, you must properly install the UML295 software by closely following the installation instructions. Instructions • Install the UML295 software BEFORE using the... -
Page 5: What's Inside The Product Package
The Verizon Wireless UML295 is designed for your computer’s USB port, which is available in most models. The UML295 can be used to access the Internet, your company’s intranet, or you can use it to send and receive email. It is extremely useful when you are away from the office, on the road, or wherever a wireline Internet access is not readily available. - Page 6 LED Status Indicator USB Connector External RF Antenna Port Cover SIM Card Slot: Positioned at the right of the USB modem. 6 Before Using UML295...
-
Page 7: Product Features
Product Features • Power management: The UML295 utilizes power management and system overhead reduction functions provided by the USB interface for maximum power savings. • Antenna design: Efficient, innovative internal antenna design optimizes data transfer rate and sensitivity to network signals. -
Page 8: Product Handling
It may leave a sticky residue that can cause problems inside the computer USB port. 2. The UML295 USB device should easily slide into the USB port. Do not force the UML295 into the USB port as it may cause damage to the modem and/ or the port. -
Page 9: Getting Started
Getting Started Precautions The first time you use the UML295, insert the UML295 into the USB port and install the software on your computer. Follow the auto prompts. When you complete the software installation, you are ready to use this device as USB Modem. -
Page 10: Ways To Access
Ways to Access The Verizon UML295 USB Modem supports Windows 7 Mobile Broadband(WMB) service for a superior wireless data connection. Windows 7 Mobile Broadband Mobile broadband technology, also called Wireless Wide Area Network (WWAN) technology, provides wireless high-speed Internet access through devices. You can use... -
Page 11: Installing The 4G Sim Card
Installing the 4G SIM Card* If not already done so, please follow these instructions for the installation of your new 4G SIM Card. 1. Remove the protective USB modem cover. 2. Insert the 4G SIM Card into the slot with the contact points (typically gold) facing towards the USB modem. -
Page 12: Removing The 4G Sim Card
The Verizon Wireless 4G SIM Card is compatible with any Verizon Wireless 4G certified device. You can move the 4G SIM Card from one device to another and your wireless service will work seamlessly as long as you have a compatible device and service plan. To see which devices are compatible with the Verizon Wireless 4G SIM Card, visit verizonwireless.com/certifieddevice. - Page 13 Note Should your SIM Card be lost or damaged visit verizonwireless.com/myverizon to order a replacement SIM. You can also call 1-800-922-0204 to speak with a Customer Service Representative. For toll-free support outside of the U.S. call +1-908-559-4899 for 24/7 global support.
-
Page 14: Installing Uml295
Installing UML295 Connecting UML295 It is normal to hear a short beep sound each time you insert or remove the UML295. It is an audible notification that your PC recognizes the new hardware. Removing UML295 After your session is over and you disconnect from the network, you’re ready to safely remove your wireless... -
Page 15: Installing The Usb Driver For Windows
Note When removing the UML295, always grip the top and bottom of the modem and push/pull gently. Installing the USB Driver for Windows Windows 8, 7, Vista(SP2) 1. Turn on your computer. 2. Insert the UML295 into your USB port. - Page 16 4. If you see notification, click Download Link to install the Windows XP Hotfix. 5. After install the Windows XP Hotfix, the Found New Hardware Wizard screen will appear. 16 Installing UML295...
-
Page 17: Installing The Usb Driver For Mac
14. Click Yes > Continue Anyway > Finish. Installing the USB Driver for Mac 1. Turn on your computer 2. Insert the UML295 into your USB port. 3. Your computer will recognize the UML295 and install the USB Driver automatically. -
Page 18: Using Uml295
Using UML295 Overviewing the SmartMobility When you activating the UML295, the web browser will open the main page for the Verizon wireless. You can manage available network connections and see your current connection state. Icon Description Displays the current status of connection... -
Page 19: Settings
2. Set connection options and then click Save. Setting Description Auto Connect Allows you to auto connecting. Selects the roaming mode (Always Roaming Roam / Never Roam / Prompt Before Roaming). International Allows you to international roaming Roaming service. Using UML295 19... - Page 20 / LTE/CDMA / GSM / UMTS / LTE / GSM/UMTS / LTE/GSM/UMTS). Changes the APN(Access Point Name). Usage and Billing Usage and Billing allows you to review your usage history. 1. Click Menu > Usage & Billing. 2. To reset the usage history, click RESET. 20 Using UML295...
- Page 21 3. Enter the new PIN code in the Enter New PIN field. Enter the new PIN code again to confirm your input in the Confirm New PIN field. 4. Click Apply. 5. To unlock the SIM card, select Off in SIM PIN Lock combo box. Using UML295 21...
- Page 22 1. Click Menu > SIM PIN Lock. 2. Enter the original PIN in the Enter Old PIN field. 3. Enter your new PIN in the Enter New PIN field. Enter the new PIN again to confirm your input. 4. Click APPLY. 22 Using UML295...
- Page 23 Accessing GPS 1. Click Menu > GPS. 2. Click Yes. Updates 1. Click Menu > Firmware Updates. 2. Downloads the files and follow the steps to update. Using UML295 23...
-
Page 24: Text Messaging
Text Messaging UML295 allow you to send and receive text messages. > New. 1. Click 2. Enter a phone number in the To field. 3. Enter the message text and click Send. 24 Using UML295... -
Page 25: Regulatory And Safety Information
Regulatory and Safety Information Regulatory Notices UML295 complies with Parts 15, 22, and 24 of the FCC rules. It has been tested with the typical personal computer with a USB port. This USB device must not be co-located or operated in conjunction with any other antenna or transmitter. -
Page 26: Warnings And Cautions
Warnings and Cautions 1. Modifying or changing this USB device without express authorization can nullify compliance with RF exposure guidelines. 2. This USB device has been tested and found to comply with the limits pursuant to Part 15, 22, and 24 of the FCC Rules. - Page 27 - Consult the dealer or an experienced radio/TV technician for help. 4. This USB device does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Department of Communications.
-
Page 28: Safety Precautions
Safety Precautions 1. Data transmission and reception cannot be guaranteed because of the nature of wireless communications. Data can be delayed, corrupted or lost during transmission. Even though it is quite rare that significant data delay or loss occurs if the USB device is used in a normal manner, this USB device should not be used in cases that data transmission or reception failure could result in damage of any kind to the user... - Page 29 3. Do not use this USB device in any aircraft whether the aircraft is on the ground or in flight. Make sure to turn off this USB device in aircraft. If used in an aircraft, it can transmit signals that could interfere with various aircraft systems.
-
Page 30: Appendix
Appendix Glossary Analog Coverage An area where analog service is available. Analog phones usually indicate signal strength on an indicator in the phone’s display when receiving an analog signal. Browser The software that allows you to view the Internet; contains navigator commands such as forward and back;... - Page 31 Driver Software that controls a device. Inactivity Time-Out A stoppage in a connection, which usually occurs after a period of time elapses, without activity. Time-out settings are usually determined by the network. Internet A cooperatively run, globally distributed collection of computer networks that exchange information via a common set of rules for exchanging data (Transfer Control Protocol/Internet Protocol or TCP/IP).
-
Page 32: Proxy Settings
Modem Hardware that translates and transmits data over wire- line or wireless. Package Minutes Package minutes are those minutes included in the cost of a monthly service plan. Once the packaged minutes have been exhausted, additional airtime charges apply. Please refer to Plans and Pricing for more information, details and offers in your area. -
Page 33: Transmission Speed
Search Engine A program that receives a user’s search request, compares it to the entries in the index, and returns results to help the user find relevant information. Serial Port A connector on a computer used to connect peripherals, which communicate using a serial protocol. Serial/Data Cable A wire that connects two serial ports carrying data to one another. -
Page 34: Specific Absorption Rates (Sar)
Specific Absorption Rates (SAR) Maximum: SAR 0.951 W/kg CDMA835 Body SAR 1.000 W/kg PCS CDMA1900 Body SAR 0.858 W/kg WCDMA850 Body SAR 0.974 W/kg WCDMA1900 Body SAR 1.160 W/kg GSM850 Body SAR 0.778 W/kg GSM1900 Body SAR 1.110 W/kg LTE(B13) Body SAR 0.944 W/kg LTE(B4) Body THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS AND EUROPEAN UNION (EU) - Page 35 Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value.
- Page 36 the Display Grant section of http://www.fcc.gov/oet/ fccid after searching on FCC ID: JYCSPARKLE. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) web-site at http://www. wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 W/kg averaged over one gram of tissue.
-
Page 37: Safety Information For Rf Exposure
Safety Information for RF Exposure Body Worn Operation This device was tested in multiple computer configurations with USB port configurations for typical near-body operations with the back of the USB Modem kept 5mm from body. To maintain compliance with FCC RF exposure requirements it can be used in computers with substantially similar physical dimensions, construction, and electrical and RF characteristics,and... -
Page 38: Fcc Compliance Information
Interference to Medical Divices Certain electronic equipment may be shielded against RF signal from you wireless phone (pacemakers, Hearing Aids, and so on). Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. RF signals may affect improperly installed or inadequately shielded electronic system in motor vehicles. -
Page 39: Information To User
Information to user NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 40 Caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 40 Appendix...
