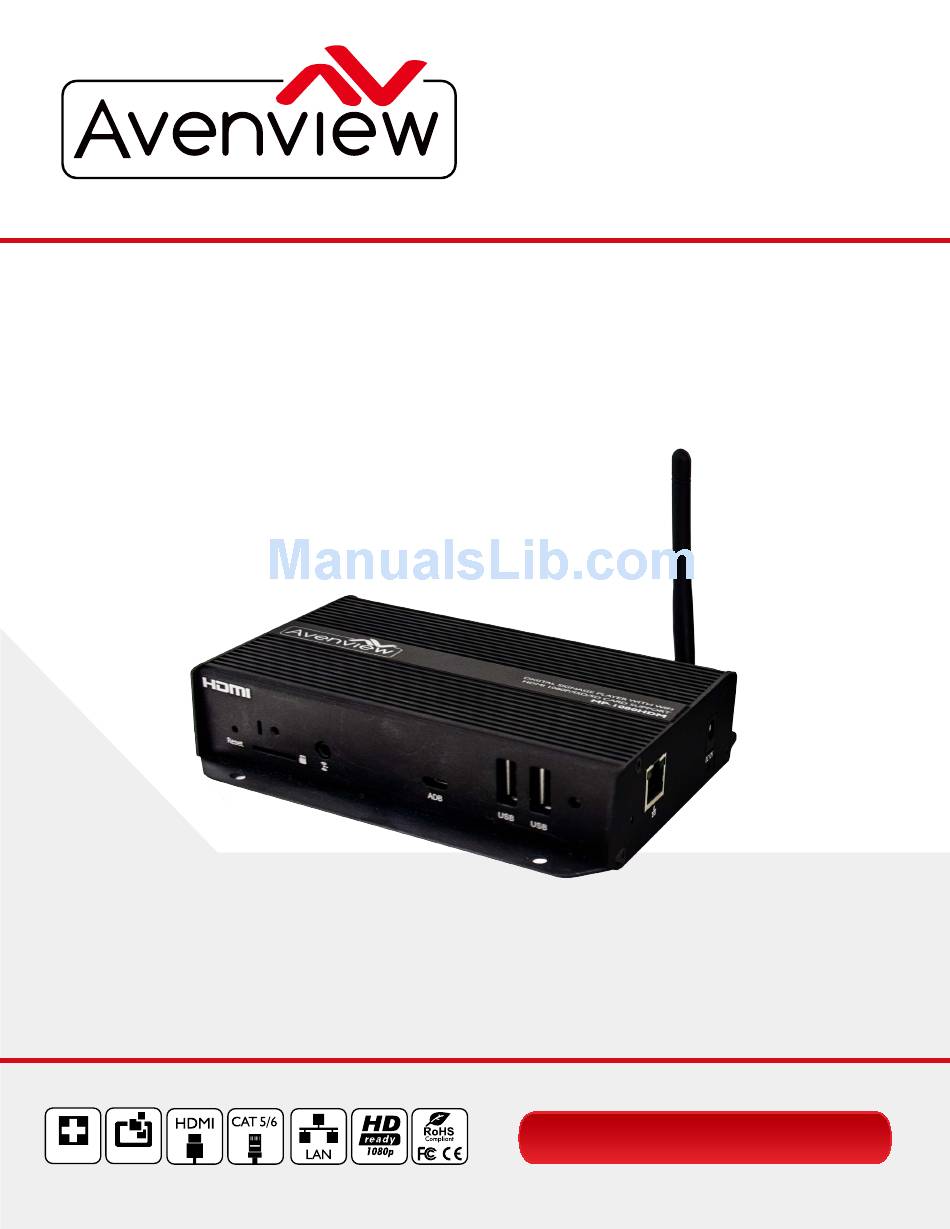

- Page 1 VIDEO WALLS VIDEO PROCESSORS VIDEO MATRIX SWITCHES EXTENDERS SPLITTERS WIRELESS CABLES & ACCESSORIES Control Your Video PRODUCT MANUAL Model: MP-1080HDM Fanless HDMI 1080p Digital Signage Player w/ WiFi/USB/Optical Audio/CEC Support SIGNAGE SELF-RECOVERY Rev. 04 11/2017...
- Page 2 Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.
-
Page 3: Table Of Contents
2.4.1 RIGHT SIDE PANEL ........................6 2.4.2 LEFT SIDE PANEL ........................6 2.4.3 FRONT AND REAR PANEL ......................7 INSTAllATION GUIDE........................8 GENERAl TROuBlESHOOTING ....................8 MP-1080HDM STARTUP........................9 SOFTWARE (AV SignPRO)........................10 6.1 Software Download ........................10 6.2 Create Playlist ..........................10 6.3 Select Player..........................11 6.4 Select a Template.........................11 6.5 Edit Template ..........................12... -
Page 4: Getting Started
The Avenview MP-1080HDM Digital Signage Player has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the MP-1080HDM should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 5: Regulatory Notices Federal Communications Commission (Fcc)
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Avenview is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. - Page 6 We partnered with the most prominent digital signage developers such as SignageLive, Sharing Cloud, Onsign TV and many more that are all fully compatibe with the MP-1080HDM. There are no limits with what can be accomplished using our hardware such as Way Finding, Room Bookings, Airport Signage, Rest API integration, Web Triggers and hundreds of available widgets.
-
Page 7: Package Contents
CONTENTS Before starting the installation of MP-1080HDM, please check the package contents. MP-1080HDM HDMI CORD (3 ft) WIFI ANTENNA VELCRO STRIP pOWER ADApTER (12V/1.5A DC) MOUNTING BRACKET uSER’S MANuAl BEfORE INSTAllATION ATTENTION • put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction. -
Page 8: Application Diagram
APPLICATION DIAGRAM www.avenview.com Rev. 04 11/2017... -
Page 9: Panel Description
HDMI OUT: Connect to a TV or Display using an HDMI cable connect to Audio/Video Receiver or Soundbar LAN: Connect to local network for media POWER JACK: Plug in the provided 12V power adapter transfer via CMS or for cloud managment www.avenview.com Rev. 04 11/2017... -
Page 10: Installation Guide
2. Connect an HDMI display or TV to the MP-1080HDM using HDMI cable 3. Connect a CAT-5e/6 to the MP-1080HDM to connect to local network 4. plug in 5v DC power cord to the power jack of the receiving unit MP-1080HDM. 5. Power on all devices. -
Page 11: Mp-1080Hdm Startup
MP-1080HDM STARTUP When MP-1080HDM is powered on it will start with an intro; the 'Basic Settings' screen allowing 15 seconds before it starts autoplaying the last uploaded playlist. Click 'Advanced' to Left click and hold for 10 sec. in access MP-1080HDM... -
Page 12: Software (Av Signpro)
SOFTWARE Software Download Download and install AV SignPro software from below: http://www.avenview.com/downloads/AVSignPRO_Setup-3.0.3.117.msi Double click software icon to launch the application, AV SignPRO will start with the main screen to create a playlist. 6.2 Create a Playlist Start by typing a playlist name then click on 'Create Playlist' - List of active "online"... -
Page 13: Select Player
6.4 Select a Template After selecting the player model a preset layouts/templates will be displayed to choose from. Select the desired template. Other properties can be selected from the left panel such as output resolution, orientation, etc.. www.avenview.com Rev. 04 11/2017... -
Page 14: Edit Template
Click on template empty zones. Media uploading panel will appear on the right side of software main screen. Contents can be uploaded by selecting 6.6 Uploading Contents Click to upload a video, image or a document. Click to upload a widget or link an internet stream (IPTV) www.avenview.com Rev. 04 11/2017... -
Page 15: Widget Selection
Seven preloaded widgets can be uploaded. More can be added by saving Widget files in the Widget folder. Set a Schedule Click 'Edit Schedule' from top left menu to set a schedule for all created playlist www.avenview.com Rev. 04 11/2017... -
Page 16: Save/Load Playlist To Pc
Click 'File' then select 'Load' to load a saved playlist. 6.10 Save/Export Playlist to Player/USB Click from top right menu to either export created media content to a player or transfer content to a USB flash drive www.avenview.com Rev. 04 11/2017... -
Page 17: Send To Player
- If no playlist to be uploaded to the player, factory reset the digital media player to delete all playlist previously created. - From Player 'Basic Settings' page click 'Advanced' - 'System' and Select 'Factory Default' Note: 'Factory default' will delete all playlists created and media saved and will restore MP-1080HDM to its factory default state www.avenview.com... -
Page 18: Password Protection
6.13 Password Protection MP-1080HDM can be protected from any access or content changes using a password that can be set from 'Advanced menu' and selecting 'Access'. 6.14 Language Selection The AV SignPRO software is available in a number of languages. To change the language of the software, click on "Language"... - Page 19 Output Resolution: Choose output resolution, select from NTSC, PAL, 720p, 1080p or the display's native resolution Dsiplay Orientation: Mount display upsidedown or sideways, content will adjust to orientation Sound Level: Change the output volume Password: Password protect the player from unauthorized changes www.avenview.com Rev. 04 11/2017...
- Page 20 Screenshot: Get the status of your player at a glance Reboot Player: Reboots the MP-1080HDM. The status bar on the left will indicate when unit has come back online www.avenview.com Rev.
-
Page 21: Partenered Software
Avenview MP-1080HDM users can use a selected number of third party content management softwares(CMS) -from the list below- other than the free AV SignPro Software provided with their purchase of any Avenview Digital Signage Player for added convinience and flexibility in media creation. -
Page 22: Specifications
SpECIfICATIONS ITEM DESCRIPTION UNITS MP-1080HDM UNIT DESCRIPTION 1080p Digital Signage Player HDMI COMPLIANCE Password Protected PRIVACY AND SECURITY VIDEO FORMAT SUPPORTED H.264/AVC up to 1080p (1920x1080), MPEG-4 up to 1080p (1920x1080), MPEG-2 up to 1080p (1920x1080), MPEG-1 up to 1080p (1920x1080),... -
Page 23: Pin & Wiring Standard Definition
TMDS Data1– pin 16 pin 7 TMDS Data0+ pin 17 DDC/CEC Ground pin 8 TMDS Data0 Shield pin 18 +5v power pin 9 TMDS Data0– pin 19 Hot plug Detect pin 10 TMDS Clock+ CAT5E/6 WIRING STANDARD www.avenview.com Rev. 04 11/2017... - Page 24 PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact support@avenview.com.
-
